Genie® model: 405-W-68C-52A18S-18WB-16HP-1G

modern sophistication meets compelling design with superior ergonomics

Genie® model: 405-W-74C-52A18S-18WB-16HP-1G | Textile: Camira Aquarius Pitch.
Genie® model: 405-B-25C-52A18S-18WB-16HP-1G | Textile: Momentum Odyssey Rue.
Genie® model: 405-W-25C-52A18S-18BA-16HP-3G | Textile: Momentum Silica Regatta.
Genie® model: 405-W-68C-12SS-52A18R-19AB-18WB-16HP-12G | Textile: Spradling Silvertex Baazar.
Genie® model: 405-W-25C-52A18S-18WB-16HP-12G | Textile: Spradling Silvertex Baazar.
Genie® model: 401-B-35C-11XDR-51A18R-18BB-16HP-11G | Textile: Momentum Odyssey Eggplant.
Genie® model: 405-W-68C-12SS-52A18R-19AB-18WB-16HP-12G | Textile: Spradling Silvertex Baazar.
Genie® model: 401-W-68C-52A18R-19AB-18WB-16HP-3G

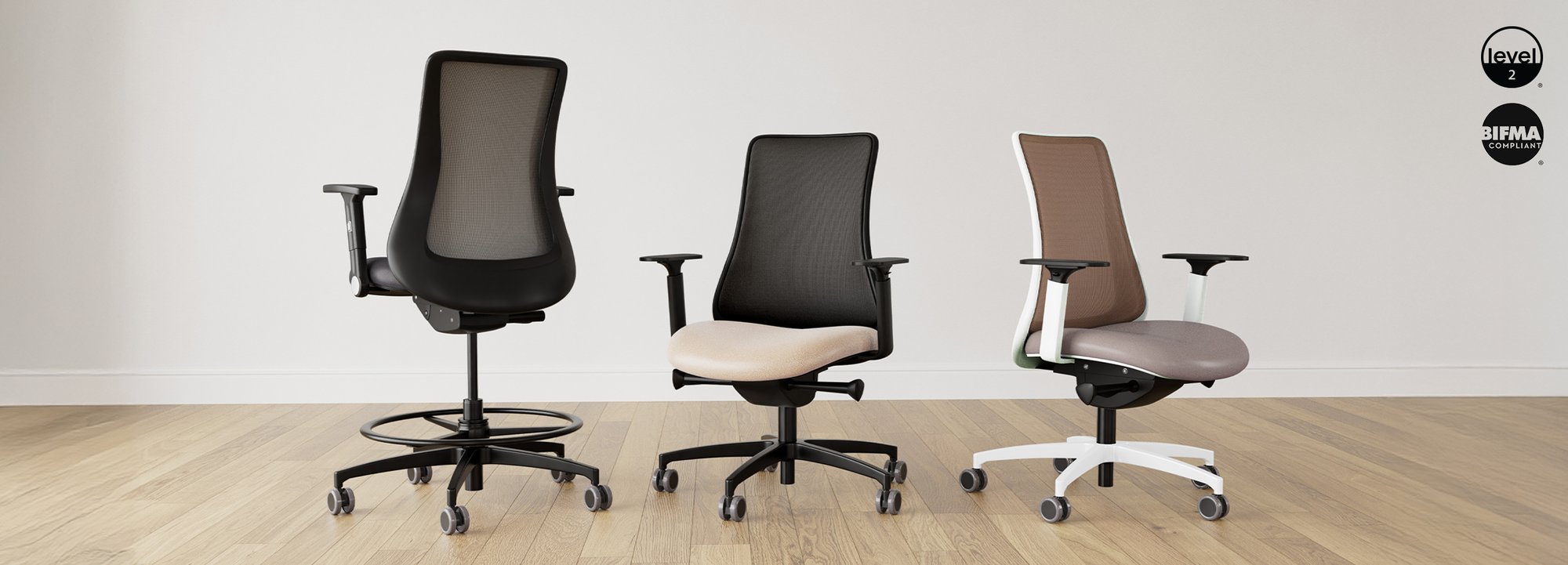

The award-winning Genie® series designed by Henner Jahns is Via Seating’s best-selling office chair series. With its supreme look, advanced ergonomics and extensive breadth of line, this is no surprise. The distinctive genie lamp shape of the back frame stands out as not only a beautiful design, but, a purposeful one as well.  Its contours promote movement by the way the back narrows at the top, which allows for upper body thoracic mobility in the shoulder area and provides great comfort and support throughout the body.  This creates an important sense of “room within the chair” while office work stations are getting smaller and more confined.  Genie® offers 6 different seat sizes all within the same framework allowing for the one “look” to fit all body types in the workplace. All seats are formed using Via Seating’s proprietary comfort foam and are backed by Genie®‘s 12 year warranty—including for heavy-duty and 24/7 use.   Multiple arm options include a unique roll back height adjustable arm, conference arms and multi-adjustment arms.  Genie® can be customized to fit any work environment and use.

Looking for the perfect chair? Genie® is your wish granted.

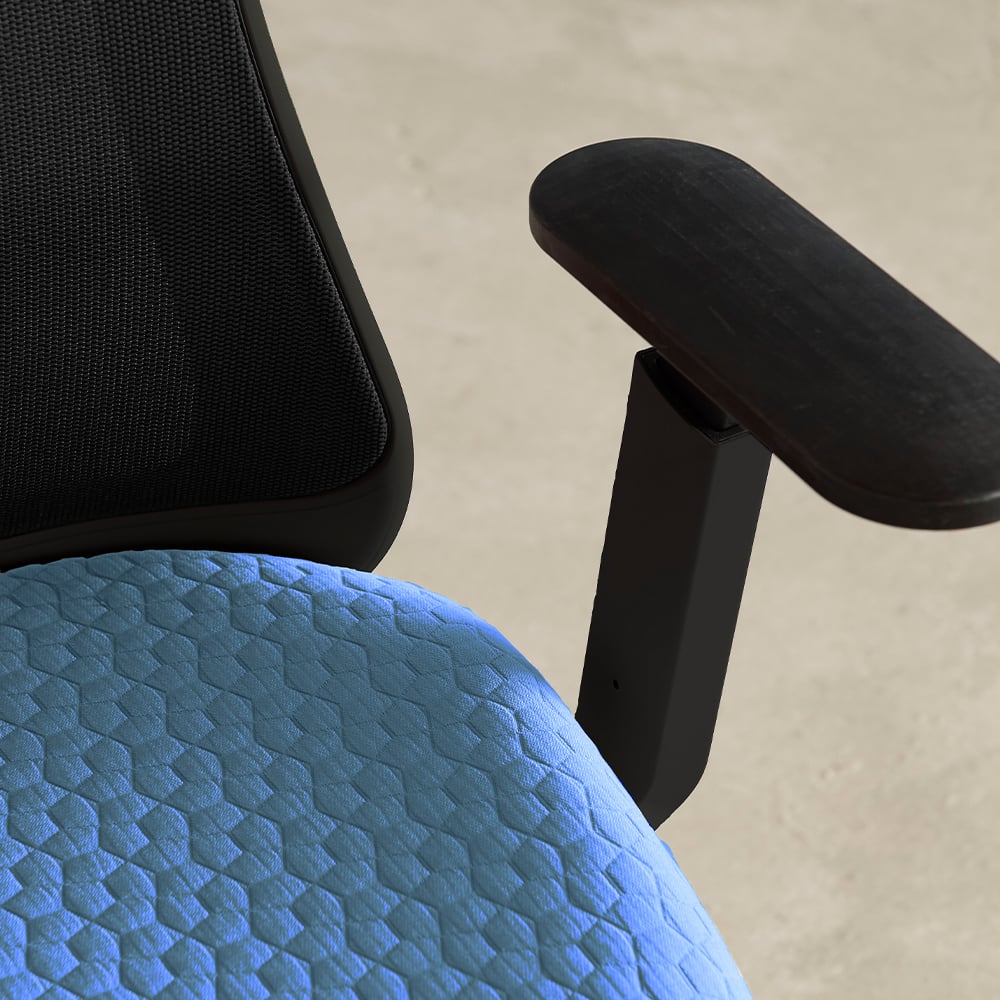

  • Framework: available in black or white frame colors.
  • Seats: offering 6 seat styles, petite (AA) to heavy-duty, extra-large (D), all in one look and reaching a 400 lb weight rating. Available with optional seamless pattern for infection prevention & easy clean up.
  • Via Seating’s comfort foam: a proprietary blend of high-density, injection-molded, closed-cell, cold-cured foam so durable and lasting it is backed by Via Seating’s 12 year warranty.
  • Mesh: in addition to 7 designer standard 4 way elastomeric mesh, now featuring two biocidal, first-to-market, patent-pending Genie Copper Mesh® in copper and black colors perfect for healthcare environments as well as improving hygiene in shared desk situations.
  • Arms: multiple height and width adjustable options and a fixed, conference arm.
  • Control mechanisms: featuring quick adjust advanced synchro that uses single rotation adjustments for the back (no endless turning of the handle to adjust your backrest to your level of comfort). Simple body balance and enhanced body balance options.
  • Bases: five-star bases available in black nylon standard on black frames, white nylon standard on white frames, polished aluminum & brushed aluminum.
  • Max weight: 400 lb. (see options for more details)
  • Quick Ship: 20 chairs produced in a 48 hour period.
  • Warranty: 12 year warranty including the foam, 5 years for mesh.



  • ANSI/BIFMA X7.1-2011 (R2016) Standard Method equivalent to CDPH Standard Method v1.1-2010 (Clean Air Gold).
  • LEED – v4.1 Low Emitting Materials (Clean Air Gold).
  • Living Building Challenge (LBC) – Imperative 08 (Clean Air Gold).
  • WELL – Feature 04 – VOC Reduction (Clean Air Gold).





6 seat sizes all designed within one look.

Standard seat.

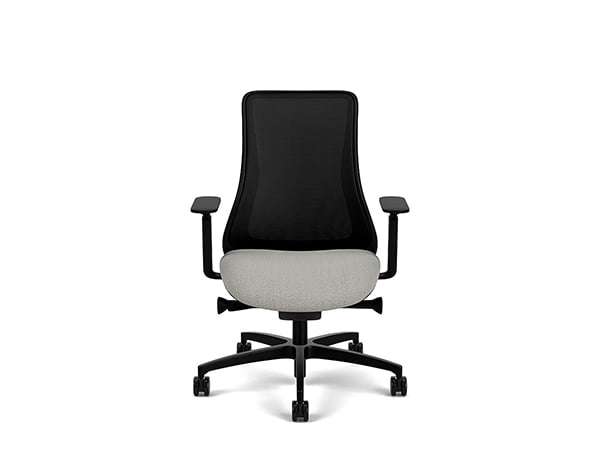

  • Standard A seat. (401)
  • Petite A seat. (1PTG-401)

Medium seat.

  • Medium B seat. (405)
  • Petite B seat. (1PTG-405)

Large seat.

  • Large C seat. (408)

Extra-large seat.

  • Heavy-duty extra-large D seat. (410)

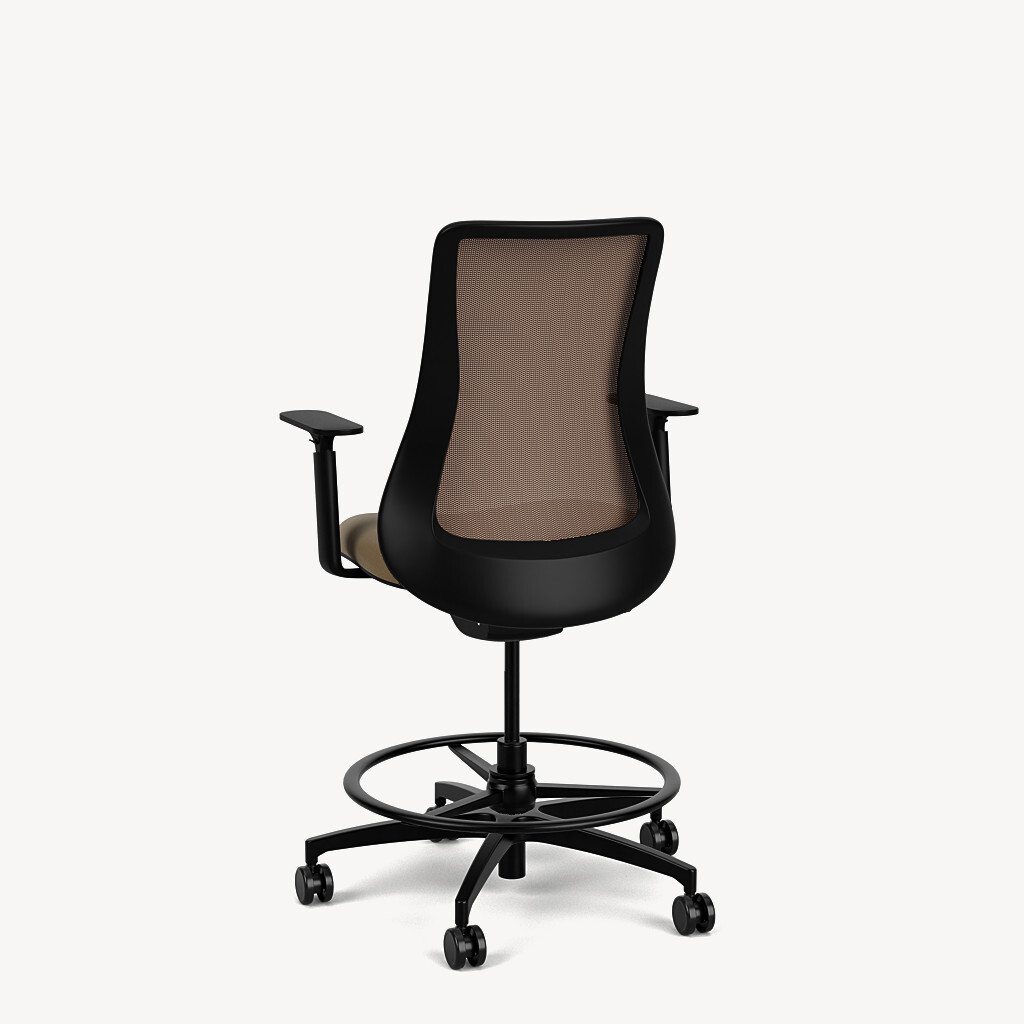

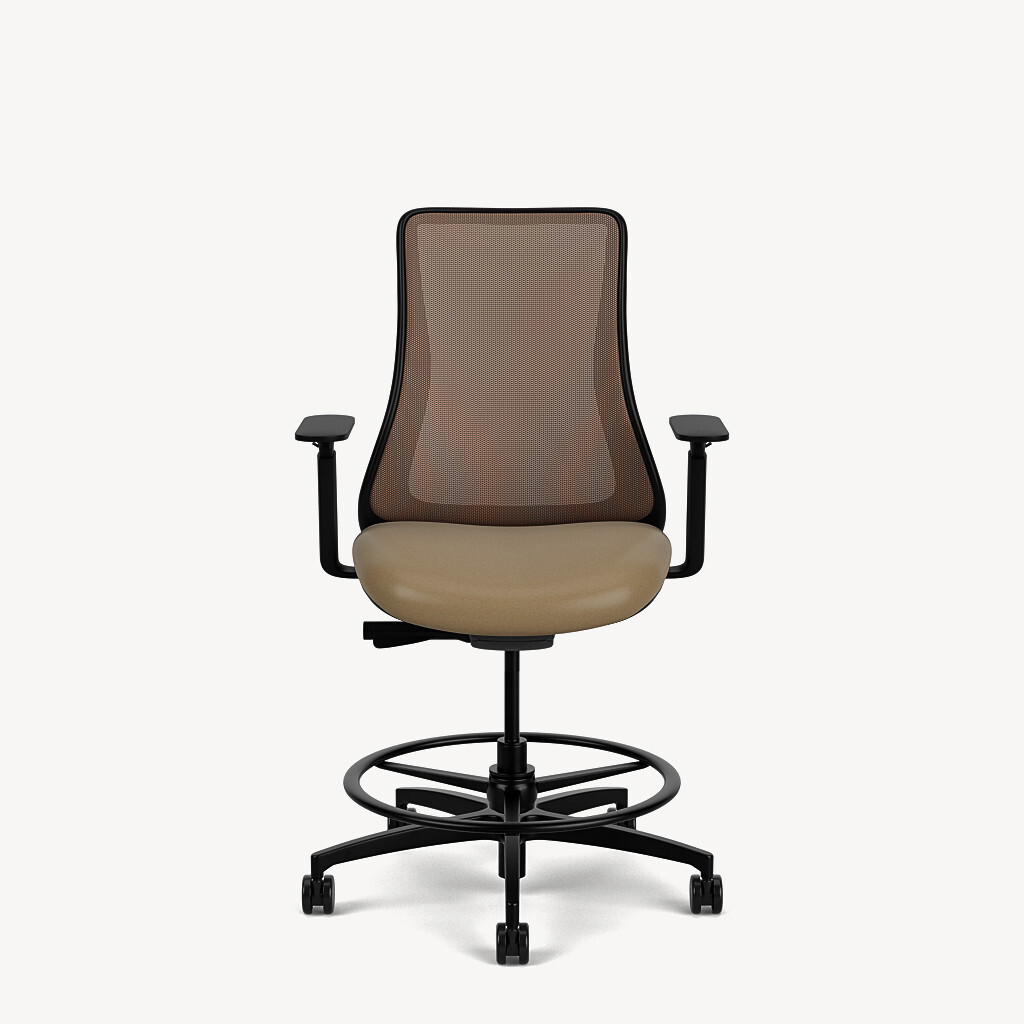

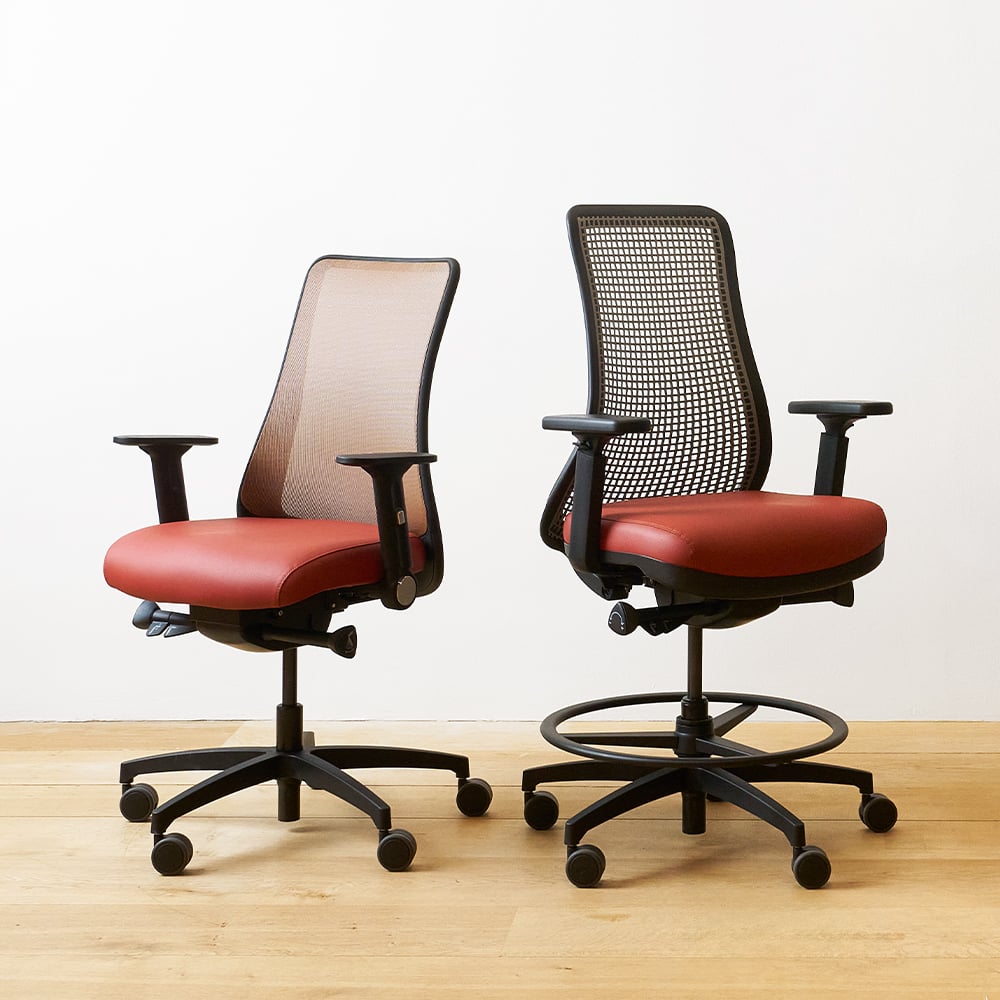

Task stools.

  • Available on AA, A, BB & B seats.

finishes

  • Frame finishes.

    Matte black. (-B)

    • Black finish is standard.
    • Finish applied to mesh frame.

    Matte white. (-W)

    • Finish applied to mesh frame.

mesh colors

arms

  • Armless standard.

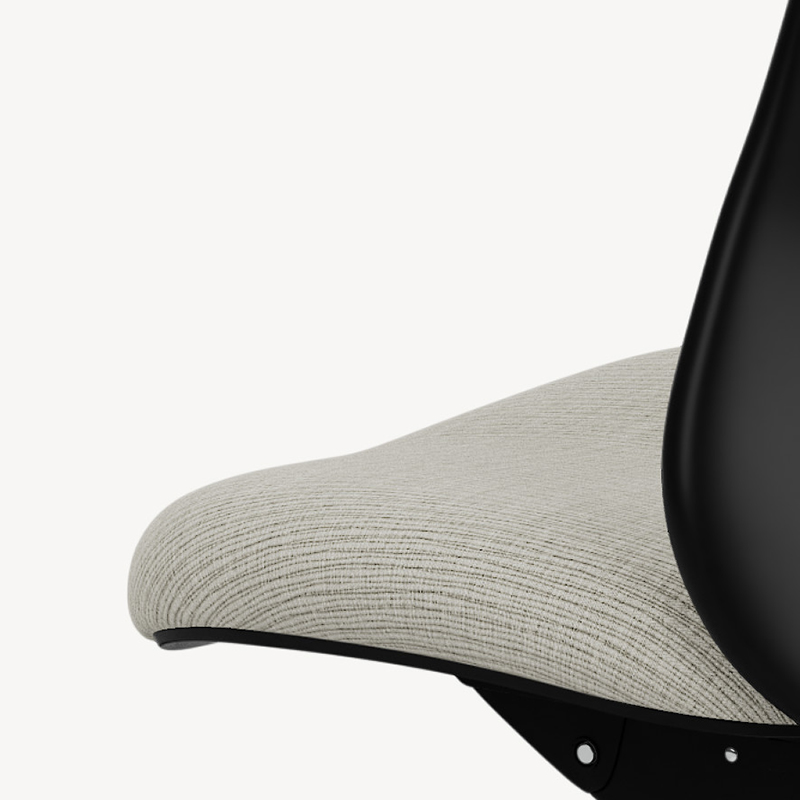

    Armless. (-0A)

    • Armless chairs are standard on all models.
  • Adjustable arms.

    Basic height adjustable arm, black finish. (-38A)

    Features a 2D to 4D height adjustable arm that offers the following adjustments:

    • Arm moves up and down.
    • Optional arm width adjustment bracket extends each arm 2.0″ away from the sides of the chairs and back to the resting position.



    Preferred armrest:

    1 cap

    user guide: view the guide →

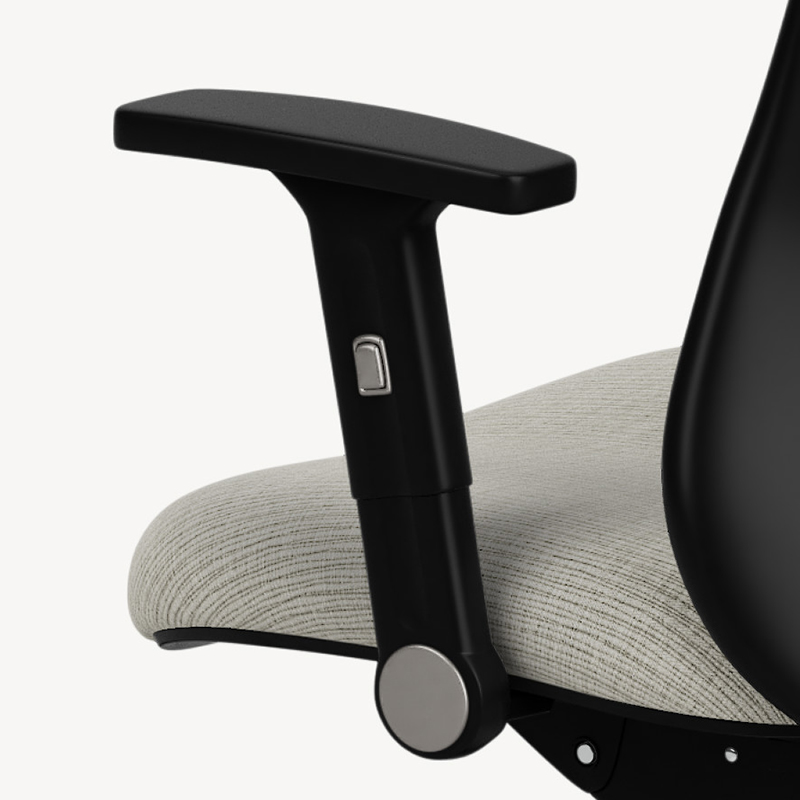

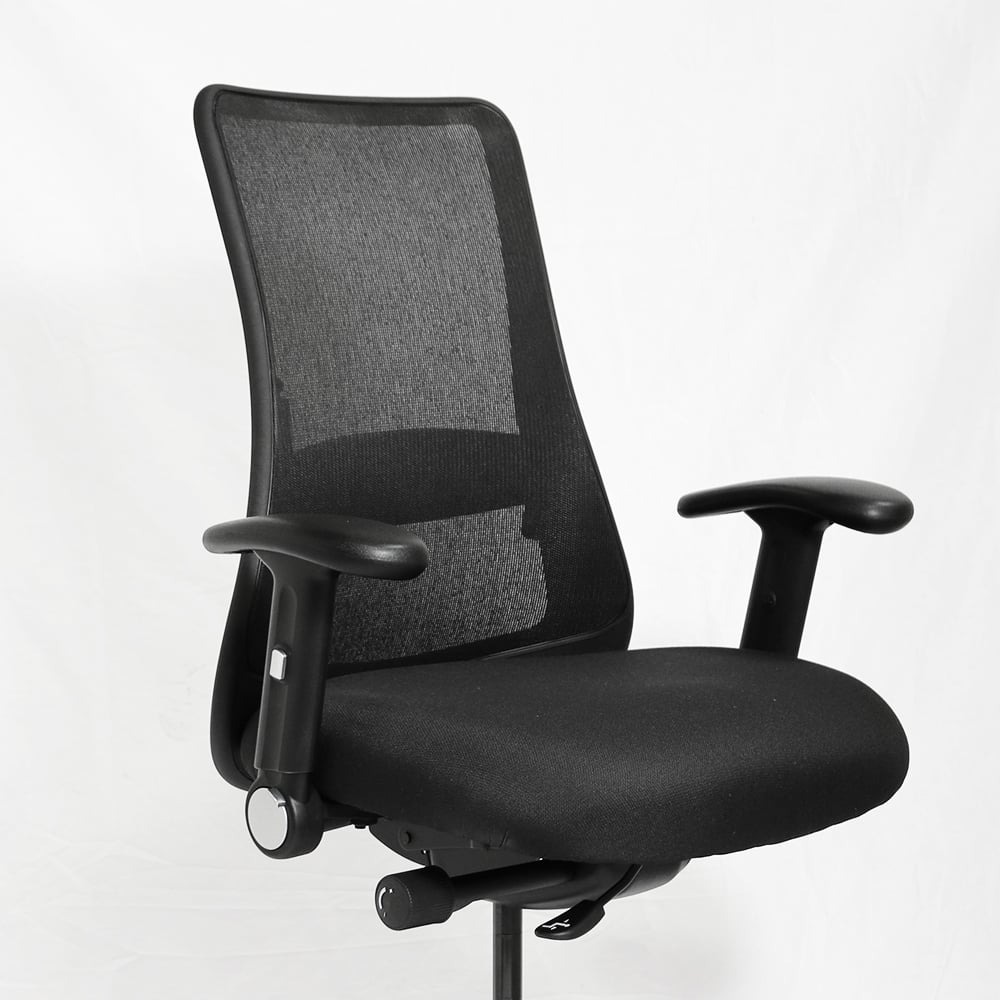

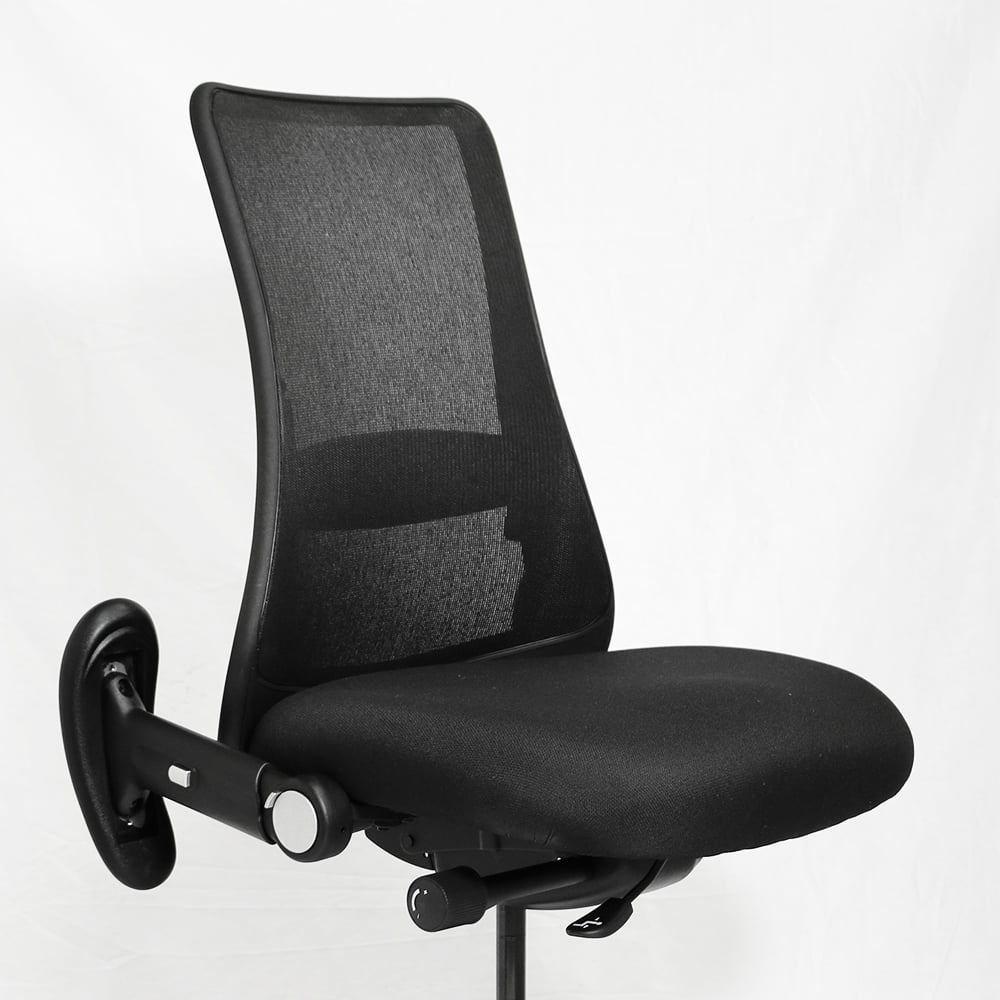

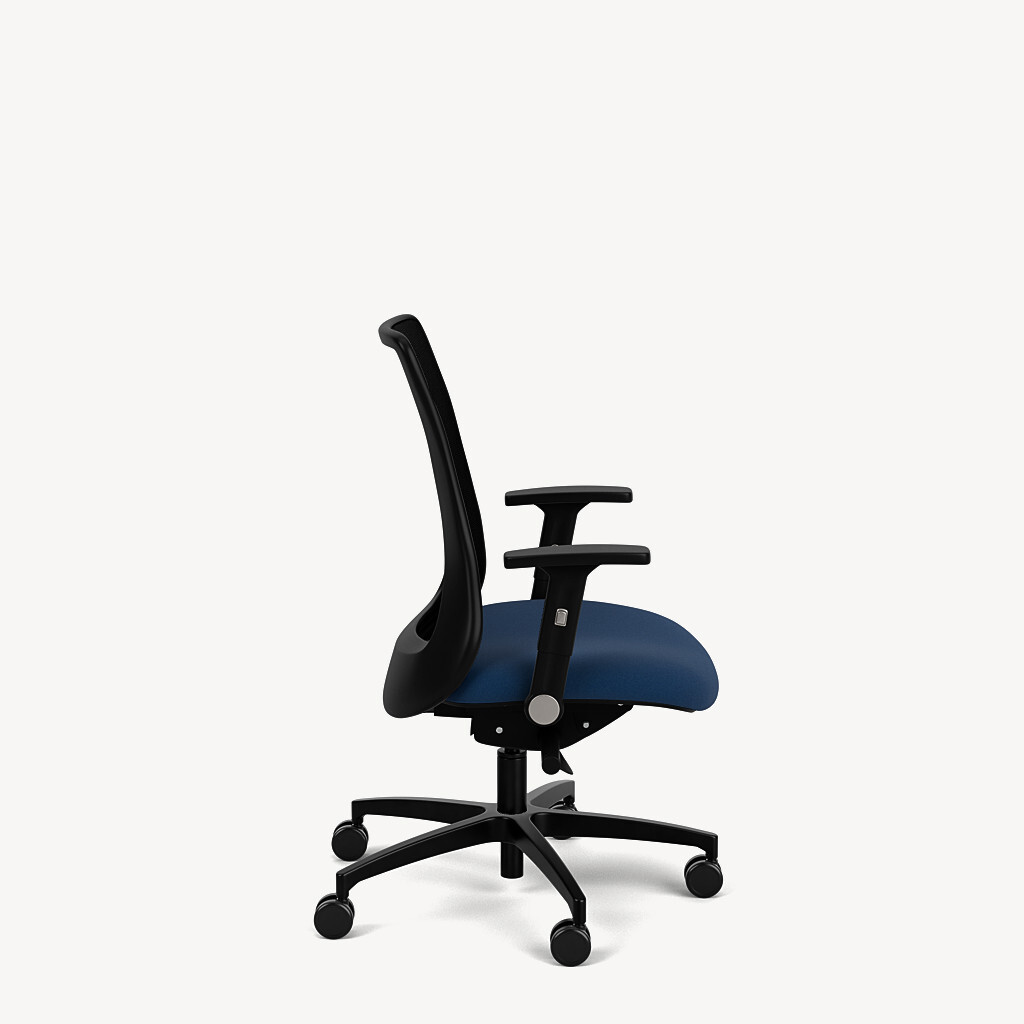

    Roll back arm. (-39A)

    Features a 3D height adjustable arm that offers the following adjustments:

    • Arm moves up and down.
    • Smooth roll back feature where the arm can be fully rolled back out of the way to easily slide in and out of the chair.



    Preferred armrest:

    1 cap

    user guide: view the guide →

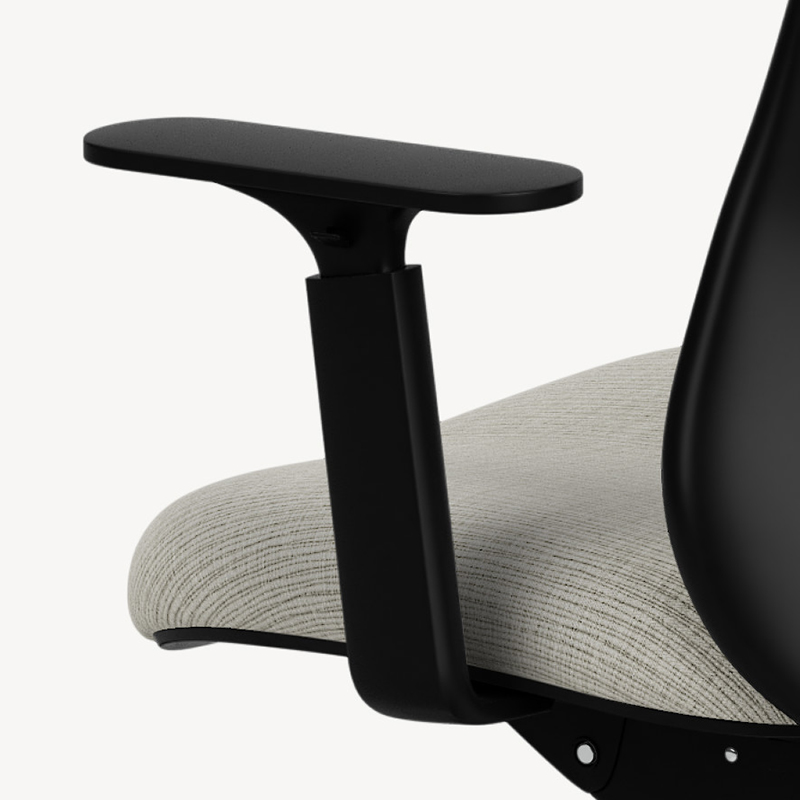

    8-way adjustable arm, black finish. (-51A)

    Features a 2D to 8D height adjustable arm that offers the following adjustments:

    • Arm moves up and down.
    • Optional armrest rotates in 15°, out 15°.
    • Optional armrest slides out 1.5″, slides back to resting position.
    • Optional arm width adjustment bracket extends each arm 2.0″ away from the sides of the chairs and back to the resting position.
    • Optional upholstery can be added on static armrest 20S & and 4D rotating armrest 20R.



    Armrest choices include:

    20S static cap is fixed

    20R rotating cap

    • Both armrests are available with option of upholstery. The 20R example above shows upholstery applied.



    user guide: view the guide →

    8-way adjustable arm, white finish. (-52A)

    Features a 2D to 8D height adjustable arm that offers the following adjustments:

    • Arm moves up and down.
    • Optional armrest rotates in 15°, out 15°.
    • Optional armrest slides out 1.5″, slides back to resting position.
    • Optional arm width adjustment bracket extends each arm 2.0″ away from the sides of the chairs and back to the resting position.
    • Optional upholstery can be added on static armrest 20S & and 4D rotating armrest 20R.



    Armrest choices include:

    20S static cap is fixed

    20R rotating cap

    • Both armrests are available with option of upholstery. The 20R example above shows upholstery applied.



    user guide: view the guide →

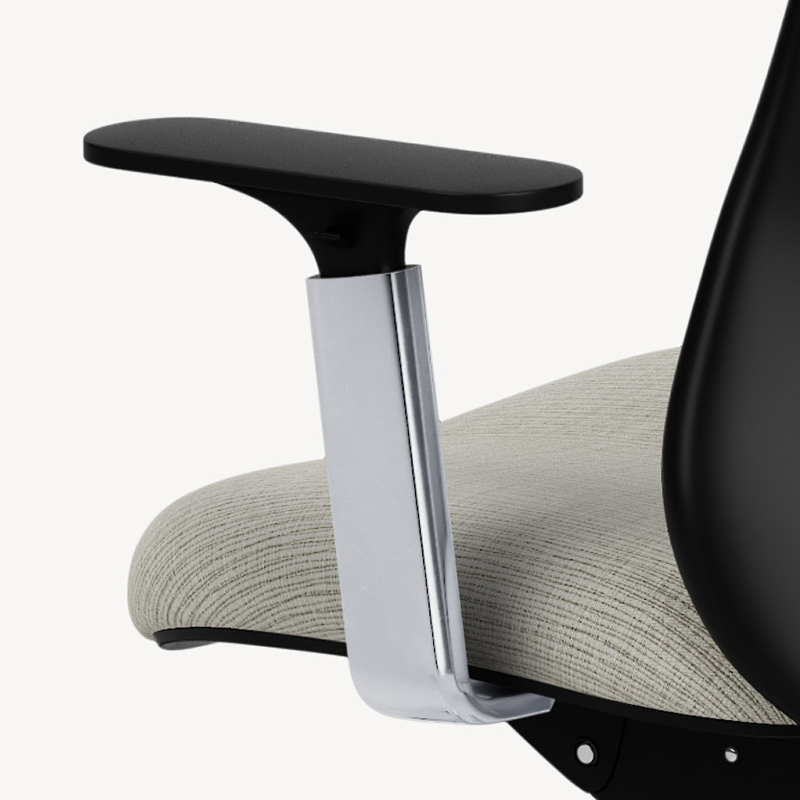

    8-way adjustable arm, polished finish. (-53A)

    Features a 2D to 8D height adjustable arm that offers the following adjustments:

    • Arm moves up and down.
    • Optional armrest rotates in 15°, out 15°.
    • Optional armrest slides out 1.5″, slides back to resting position.
    • Optional arm width adjustment bracket extends each arm 2.0″ away from the sides of the chairs and back to the resting position.
    • Optional upholstery can be added on static armrest 20S & and 4D rotating armrest 20R.



    Armrest choices include:

    20S static cap is fixed

    20R rotating cap

    • Both armrests are available with option of upholstery. The 20R example above shows upholstery applied.



    user guide: view the guide →

  • Fixed arms.

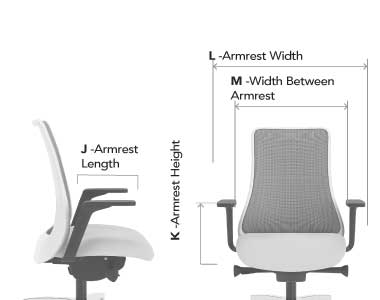

    Fixed conference arm. (-46A)

    • Permanent armrest is fixed.

control mechanisms

  • Conference control mechanisms.

    Swivel tilt conference control. (-25C)

    adjustments:
    1 Seat height adjustment.
    2 upright position tilt lock (single position).
    3 Back/recline tension adjustment.



    user guide: view the guide →

    Swivel tilt conference control with seat slider. (-26C)

    adjustments:
    1 Seat height adjustment.
    2 upright position tilt lock (single position).
    3 Back/recline tension adjustment.
    4 Seat depth adjustment.



    user guide: view the guide →

  • Body balance control mechanisms.

    Auto-adjust body balance control. *new* (-74C)

    adjustments:
    1 Seat height adjustment.
    2 Back lock adjustment (3 position).

    note: 66C alternate.

    user guide: view the guide →

    Auto-adjust body balance control & seat slider. *new* (-74C-12SS)

    adjustments:
    1 Seat height adjustment.
    2 Back lock adjustment (3 position).
    3 Seat depth adjustment.

    note: 66C-12SS alternate.

    user guide: view the guide →

    Enhanced body balance control with dynamic fine-tuning. (-68C)

    adjustments:
    1 Seat height adjustment.
    2 Back tension adjustment.
    3 Tilt limiter.



    user guide: view the guide →

    Enhanced body balance control with a seat slider. (-68C-12SS)

    adjustments:
    1 Seat height adjustment.
    2 Back tension adjustment.
    3 Tilt limiter.
    4 Seat depth adjustment.



    user guide: view the guide →

  • Synchro control mechanisms.

    Quick adjust advanced synchro control. *new*
    (-67C)

    adjustments:
    1 Seat height adjustment.
    2 Back tension adjustment.
    3 Single rotation back tilt lock adjustment (5 position).

    note: 61C alternate.

    user guide: view the guide →

    Quick adjust advanced synchro control with a seat slide. *new* (-67CSS)

    adjustments:
    1 Seat height adjustment.
    2 Back tension adjustment.
    3 Single rotation back tilt lock adjustment (5 position).
    4 Seat depth adjustment.

    note: 62C alternate.

    user guide: view the guide →

    Quick adjust advanced synchro control with a seat slide & forward tilt adjustment. *new* (-67CSS-FT)

    adjustments:
    1 Seat height adjustment.
    2 Back tension adjustment.
    3 Single rotation back tilt lock adjustment (5 position).
    4 Seat depth adjustment.
    5 Forward tilt adjustment.



    user guide: view the guide →

  • Task stool control.

    Auto-adjust body balance stool control. *new* (-35C)

    adjustments:
    1 Seat height adjustment.
    2 Back lock adjustment (single position).
    3 Foot ring height adjustment.



    This style matches the 74C & 74C-12SS controls.



    user guide: view the guide →

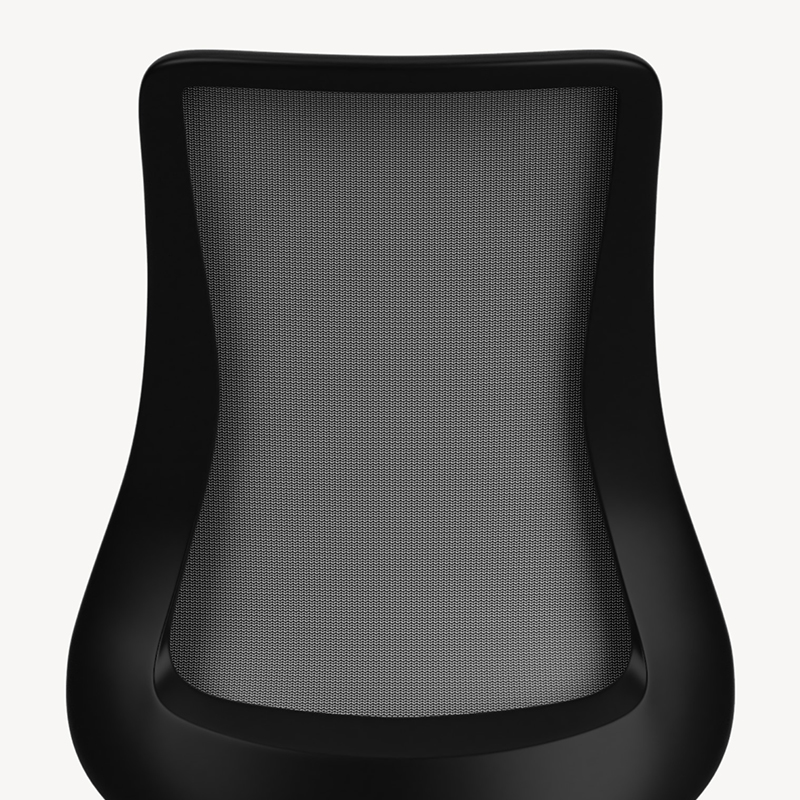

adjustable lumbars

  • Optional adjustable lumbar supports.

    Genie® adjustable lumbar support. (-LS1)

    • Offers height adjustable lumbar as an option i.e. “vertical adjustment” with 3.5″ of travel.
    • Adjusts independently from the back.
    • Allows the user to promote the natural, forward curve of his/her lower back.
    • Promotes an optimal sitting position and the opportunity to maintain this posture throughout the entire work day.



    user guide: view the guide →

bases

  • Chair swivel bases.

    Standard black nylon 5-star base. (-18BB)

    • Standard base with black frames.

    Powder coated white aluminum 5-star base. (-18WB)

    • Standard base with white frames.

    Polished aluminum 5-star base. (-18PB)

    Brushed aluminum 5-star base. (-18BA)

  • Stool swivel bases.

    Black nylon 5-star base with foot ring. (-18BB-11DR, -18BB-11XDR)

    • Standard stool base with black frames.
    • Tall (-11DR) height range/stroke: 7 in.
    • Extra-tall (-11XDR) height range/stroke: 9.5 in.
    • See exact dimensions in the drawings section.

    Powder coated white aluminum 5-star base with foot ring. (-18WB-11DR, -18WB-11XDR)

    • Standard stool base with white frames.
    • Tall (-11DR) height range/stroke: 7 in.
    • Extra-tall (-11XDR) height range/stroke: 9.5 in.
    • See exact dimensions in the drawings section.

    Polished aluminum 5-star with foot ring. (-18PB-11DR, -18PB-11XDR)

    • Tall (-11DR) height range/stroke: 7 in.
    • Extra-tall (-11XDR) height range/stroke: 9.5 in.
    • See exact dimensions in the drawings section.

    Brushed aluminum 5-star with foot ring. (-18BA-11DR, -18BA-11XDR)

    • Tall (-11DR) height range/stroke: 7 in.
    • Extra-tall (-11XDR) height range/stroke: 9.5 in.
    • See exact dimensions in the drawings section.

casters & glides

  • Casters.

    Black carpet casters. (-16HP)

    • Standard casters for all swivel bases.

    Grey hard floor & carpet casters. (-16SCG)

  • Glides.

    Black glides. (-16GL)

designed by Henner Jahns

Henner Jahns, founder and lead designer of Gecco Vision (est. 1997), specializes in creating tailor-made office furniture. The company focuses on cultivating a vision into reality. The small design team is seen as an advantage, allowing each member to really focus on the development of something new.  The result is numerous, award-winning, seating solutions that stand out.

The Muvman® is a world innovation in design and functionality: sturdy base, soft junction, angled gaslift and a pillow with intelligence inside. It is designed to enhance physical and mental activity.” – Jahns’ regarding the Muvman® sit-so-stand chair

studio: Los Angeles, California

Dimensions recorded by Via Seating engineers using:

  • the BIFMA Chair Measuring Device® (CMD) &

  • the BIFMA Universal Measuring Procedure.

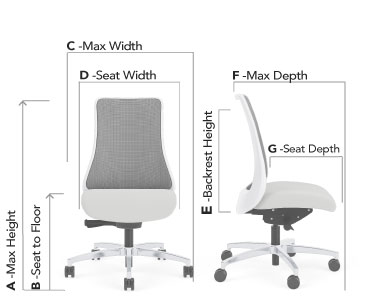

chair drawings

  • Chairs, all seat sizes on a swivel tilt conference control. (401, 405, 408, 410 with -25C)

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    -25C

    seats A seat (401) B seat (405) C seat (408) D seat (410)
    A 38.0″ – 42.8″ 38.9″ – 43.7″ 38.4″ – 43.2″ 38.0″ – 42.8″
    B 16.7″ – 21.5″ 16.5″ – 21.3″ 16.9″ – 21.7″ 16.7″ – 21.5″
    C 20.5″ 21.0″ 22.2″ 23.5″
    D 16.0″ – 20.2″ 16.0″ – 20.2″ 16.0″ – 20.2″ 16.0″ – 20.2″
    E 23.5″ 23.7″ 23.7″ 23.5″
    F 29.0″ 20.6″ 28.4″ 29.0″
    G 18.9″ 20.8″ 18.1″ 18.4″
  • Chairs, all seat sizes on a swivel tilt conference control with a seat slider. (401, 405, 408, 410 with -26C)

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    -26C (+seat depth adjustment)

    seats A seat (401) B seat (405) C seat (408) D seat (410)
    A 38.1″ – 42.9″ 39.0″ – 43.8″ 38.5″ – 43.3″ 38.1″ – 42.9″
    B 17.5″ – 22.3″ 17.3″ – 22.1″ 17.7″ – 22.5″ 17.5″ – 22.3″
    C 20.5″ 21.0″ 22.2″ 23.5″
    D 16.0″ – 20.2″ 16.0″ – 20.2″ 16.0″ – 20.2″ 16.0″ – 20.2″
    E 23.5″ 23.7″ 23.7″ 23.5″
    F 29.0″ 30.6″ 28.4″ 29.0″
    G 18.7″ – 20.7″ 20.6″ – 22.6″ 17.9″ – 19.9″ 18.2″ – 20.2″

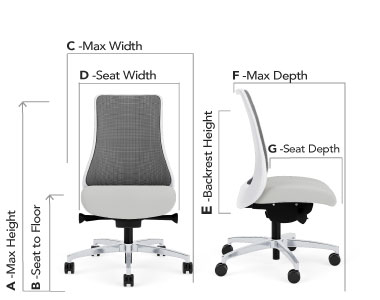

  • Chairs, all seat sizes on a quick adjust advanced synchro control. (401, 405, 408, 410 with -67C)

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    -67C

    seats A seat (401) B seat (405) C seat (408) D seat (410)
    A 37.8″ – 42.5″ 38.7″ – 42.7″ 38.2″ – 42.7″ 37.8″ – 42.6″
    B 16.4″ – 21.0″ 16.2″ – 20.1″ 16.6″ – 21.2″ 16.4″ – 21.2″
    C 20.5″ 21.0″ 22.2″ 23.5″
    D 16.0″ – 20.2″ 16.0″ – 20.2″ 16.0″ – 20.2″ 16.0″ – 20.2″
    E 22.1″ 22.3″ 22.3″ 22.1″
    F 26.6″ 28.2″ 26.0″ 26.6″
    G 17.8″ 19.7″ 17.0″ 17.3″
  • Chairs, all seat sizes on a quick adjust advanced synchro control with a seat slider. (401, 405, 408, 410 with -67CSS)

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    -67CSS (+seat depth adjustment)

    seats A seat (401) B seat (405) C seat (408) D seat (410)
    A 38.7″ – 43.5″ 39.6″ – 44.4″ 39.1″ – 43.9″ 38.7″ – 43.5″
    B 16.9″ – 21.7″ 16.7″ – 21.5″ 17.1″ – 21.9″ 16.9″ – 21.7″
    C 20.5″ 21.0″ 22.2″ 23.5″
    D 16.0″ – 20.2″ 16.0″ – 20.2″ 16.0″ – 20.2″ 16.0″ – 20.2″
    E 22.1″ 21.3″ 21.3″ 22.1″
    F 26.6″ 28.2″ 26.0″ 26.6″
    G 16.6″ – 18.6″ 18.5″ – 20.5″ 15.8″ – 17.8″ 16.1″ – 18.1″
  • Chairs, all seat sizes on an enhanced body balance control. (401, 405, 408, 410 with -68C)

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    -68C

    seats A seat (401) B seat (405) C seat (408) D seat (410)
    A 39.0″ – 43.8″ 39.9″ – 44.7″ 39.4″ – 44.2″ 39.0″ – 43.8″
    B 16.5″ – 21.3″ 16.3″ – 21.1″ 16.7″ – 21.5″ 16.5″ – 21.3″
    C 20.5″ 21.0″ 22.2″ 23.5″
    D 16.0″ – 20.2″ 16.0″ – 20.2″ 16.0″ – 20.2″ 16.0″ – 20.2″
    E 22.2″ 22.4″ 22.4″ 22.2″
    F 24.9″ 26.5″ 24.3″ 24.9″
    G 18.0″ 19.9″ 17.2″ 17.5″
  • Chairs, all seat sizes on an enhanced body balance control with a seat slider. (401, 405, 408, 410 with -68C-12SS)

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    -68C-12SS

    seats A seat (401) B seat (405) C seat (408) D seat (410)
    A 39.0″ – 43.8″ 39.9″ – 44.7″ 39.4″ – 44.2″ 39.0″ – 43.8″
    B 17.0″ – 21.8″ 16.8″ – 21.6″ 17.2″ – 22.0″ 17.0″ – 21.8″
    C 20.5″ 21.0″ 22.2″ 23.5″
    D 16.0″ – 20.2″ 16.0″ – 20.2″ 16.0″ – 20.2″ 16.0″ – 20.2″
    E 22.2″ 22.4″ 22.4″ 22.2″
    F 24.9″ 26.5″ 24.3″ 24.9″
    G 18.0″ – 20.0″ 19.9″ – 21.9″ 17.2″ – 19.2″ 17.5″ – 19.5″
  • Chairs, all seat sizes on an auto-adjust body balance control. (401, 405, 408, 410 with -74C)

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    -74C

    seats A seat (401) B seat (405) C seat (408) D seat (410)
    A 38.1″ – 42.9″ 39.0″ – 43.8″ 38.5″ – 43.3″ 38.1″ – 42.9″
    B 16.5″ – 21.3″ 16.3″ – 21.1″ 16.7″ – 21.5″ 16.5″ – 21.3″
    C 20.5″ 21.0″ 22.2″ 23.5″
    D 16.0″ – 20.2″ 16.0″ – 20.2″ 16.0″ – 20.2″ 16.0″ – 20.2″
    E 21.8″ 22.0″ 22.0″ 21.8″
    F 26.6″ 28.2″ 26.0″ 26.6″
    G 18.6″ 20.5″ 17.8″ 18.1″
  • Chairs, all seat sizes on an auto-adjust body balance control with a seat slider. (401, 405, 408, 410 with -74C-12SS)

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    -74C-12SS

    seats A seat (401) B seat (405) C seat (408) D seat (410)
    A 38.1″ – 42.9″ 39.0″ – 43.8″ 38.5″ – 43.3″ 38.1″ – 42.9″
    B 17.0″ – 21.8″ 16.8″ – 21.6″ 17.2″ – 22.0″ 17.0″ – 21.8″
    C 20.5″ 21.0″ 22.2″ 23.5″
    D 16.0″ – 20.2″ 16.0″ – 20.2″ 16.0″ – 20.2″ 16.0″ – 20.2″
    E 21.3″ 21.5″ 21.5″ 21.3″
    F 26.6″ 28.2″ 26.0″ 26.6″
    G 18.0″ – 20.0″ 19.9″ – 21.9″ 17.2″ – 19.2″ 17.5″ – 19.5″

stool drawings

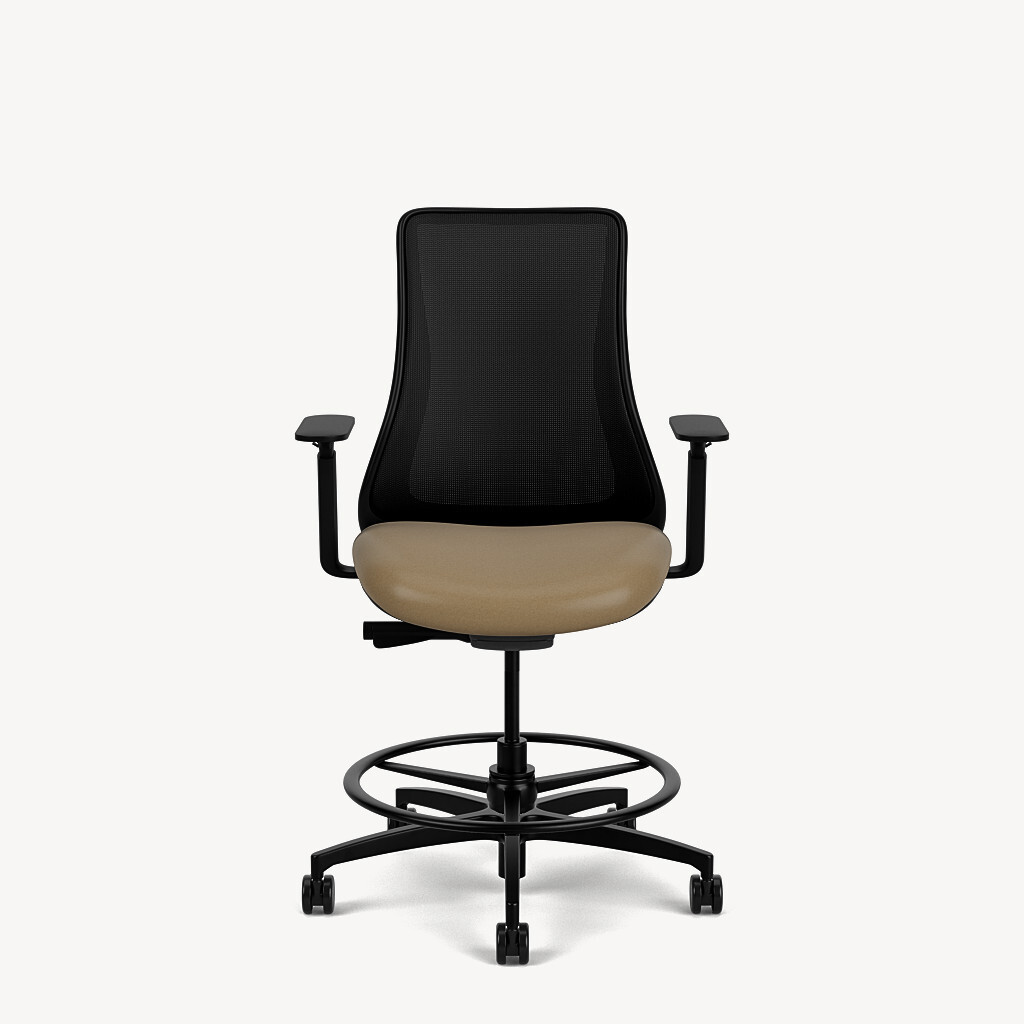

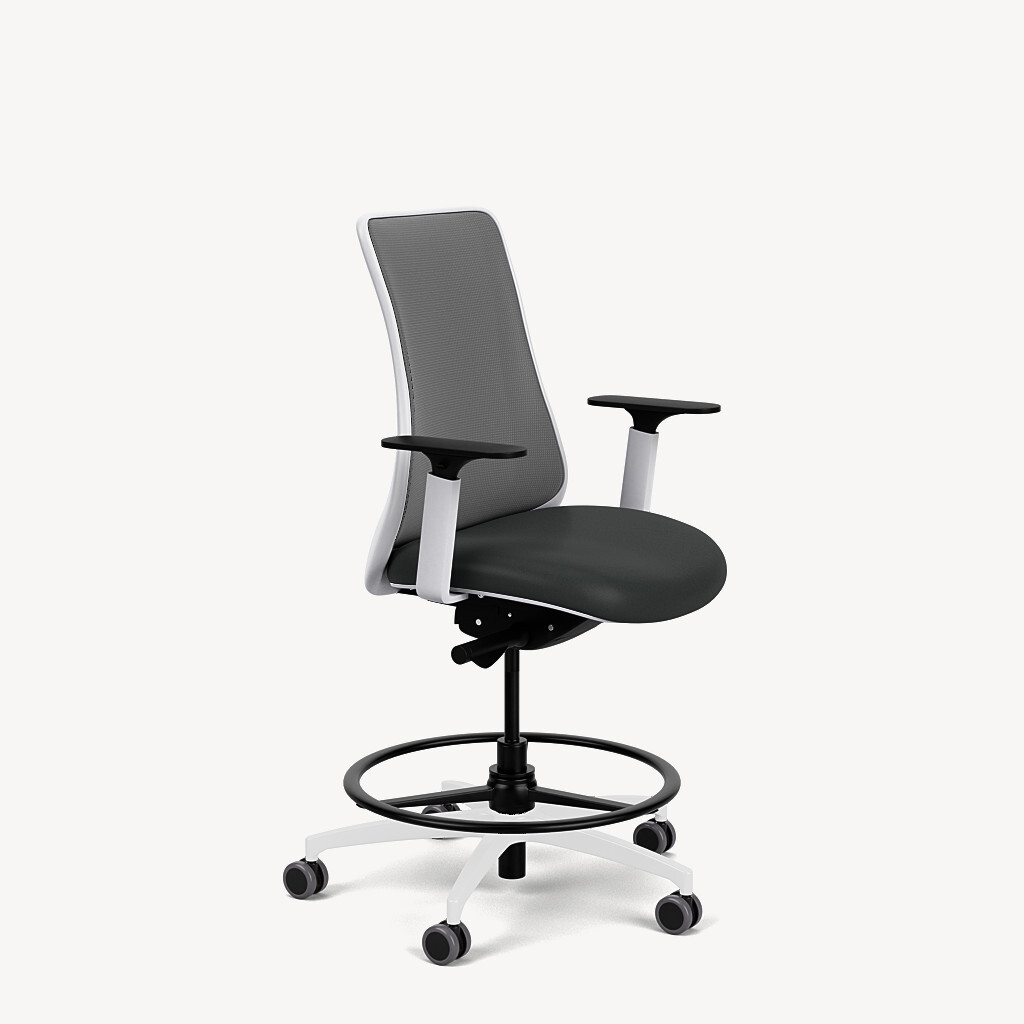

  • Stools, A & B seats. (401, 405 with -35C-11DR)

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    -35C-11DR

    seats A seat (401) B seat (405)
    A 43.9″ – 50.9″ 44.8″ – 51.8″
    B 22.3″ – 29.3″ 22.1″ – 29.1″
    C 20.5″ 21.0″
    D 16.0″ – 20.2″ 16.0″ – 20.2″
    E 22.2″ 22.4″
    F 24.4″ 26.0″
    G 18.0″ 19.9″
  • Extra-tall stools, A & B seats. (401, 405 with -35C-11DR)

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    -35C-11XDR

    seats A seat (401) B seat (405)
    A 46.3″ – 55.8″ 47.2″ – 56.7″
    B 24.7″ – 32.4″ 24.5″ – 34.0″
    C 20.5″ 21.0″
    D 16.0″ – 20.2″ 16.0″ – 20.2″
    E 22.2″ 22.4″
    F 24.4″ 26.0″
    G 18.0″ 19.9″

seat drawings



Seat Reference Point (SRP),
The ergonomic seat depth measurement.



Measurement G (and not measurement H) is the true seat reference point. SRP is an ergonomic term that defines where there is a slight indentation in the lumbar (i.e. where the sitter is benefiting from the lumbar support) to the front edge of the seat. It gives the true measurement of surface area in contact with the body. It is very useful for correctly matching up with hip to knee measurements for ergonomists taking into account the two – three finger gap between the back of the leg to the edge of the seat. It is very important to ensure no restriction in circulation to the lower extremities (lower legs and ankles).

  • Petite A seat. (1PTG-401)

    C. Seat width.

    G. Seat depth.

    H. Seat depth of the seat off the chair.

    -1" to standard A seat depth.

    controls 25C 26C 67C 67CSS 74C 68C
    C 20.5″ 20.5″ 20.5″ 20.5″ 20.5″ 20.5″
    G 17.9″ 17.7″ – 19.7″ 16.8″ 15.6″ – 17.6″ 17.6″
    17.0″ – 19.0″ (12SS)    		 17.0″
    17.0″ – 19.0″ (12SS)
    H 19.7″ 19.7″ 19.7″ 19.7″ 19.7″ 19.7″
  • Standard A seat. (401)

    C. Seat width.

    G. Seat depth.

    H. Seat depth of the seat off the chair.
    controls 25C 26C 67C 67CSS 74C 68C
    C 20.5″ 20.5″ 20.5″ 20.5″ 20.5″ 20.5″
    G 18.9″ 18.7″ – 20.7″ 17.8″ 16.6″ – 18.6″ 18.6″
    18.0″ – 20.0″ (12SS)    		 18.0″
    18.0″ – 20.0″ (12SS)
    H 20.7″ 20.7″ 20.7″ 20.7″ 20.7″ 20.7″



  • Petite Medium BB seat. (1PTG-405)

    C. Seat width.

    G. Seat depth.

    H. Seat depth of the seat off the chair.

    -1" to medium B seat depth.

    controls 25C 26C 67C 67CSS 74C 68C
    C 21.0″ 21.0″ 21.0″ 21.0″ 21.0″ 21.0″
    G 17.8″ 17.6″ – 19.6″ 16.7″ 15.5″ – 17.5″ 17.5″
    16.9″ – 18.9″ (12SS)    		 16.9″
    16.9″ – 18.9″ (12SS)
    H 20.0″ 20.0″ 20.0″ 20.0″ 20.0″ 20.0″



  • Medium B seat. (405)

    C. Seat width.

    G. Seat depth.

    H. Seat depth of the seat off the chair.
    controls 25C 26C 67C 67CSS 74C 68C
    C 21.0″ 21.0″ 21.0″ 21.0″ 21.0″ 21.0″
    G 20.8″ 20.6″ – 22.6″ 19.7″ 18.5″ – 20.5″ 20.5″
    19.9″ – 21.9″ (12SS)    		 19.9″
    19.9″ – 21.9″ (12SS)
    H 21.0″ 21.0″ 21.0″ 21.0″ 21.0″ 21.0″
  • Large C seat. (408)

    C. Seat width.

    G. Seat depth.

    H. Seat depth of the seat off the chair.
    controls 25C 26C 67C 67CSS 74C 68C
    C 22.2″ 22.2″ 22.2″ 22.2″ 22.2″ 22.2″
    G 18.1″ 17.9″ – 19.9″ 17.0″ 15.8″ – 17.8″ 17.8″
    17.2″ – 19.2″ (12SS)    		 17.2″
    17.2″ – 19.2″ (12SS)
    H 20.0″ 20.0″ 20.0″ 20.0″ 20.0″ 20.0″
  • Extra-large D seat. (410)

    C. Seat width.

    G. Seat depth.

    H. Seat depth of the seat off the chair.
    controls 25C 26C 67C 67CSS 74C 68C
    C 23.5″ 23.5″ 23.5″ 23.5″ 23.5″ 23.5″
    G 18.4″ 18.2″ – 20.2″ 17.3″ 16.1″ – 18.1″ 18.1″
    17.5″ – 19.5″ (12SS)    		 17.5″
    17.5″ – 19.5″ (12SS)
    H 19.0″ 19.0″ 19.0″ 19.0″ 19.0″ 19.0″

arm drawings

  • Basic height adjustable arm. (-38A)

    J. Armrest length.

    K. Armrest height.

    L. Armrest width.

    M. Width between armrests.
    seats A seat (401) B seat (405) C seat (408) D seat (410)
    J 7.0″ 8.0″ 6.0″ 9.3″
    K 8.4″ – 10.9″ 7.9″ – 10.4″ 7.3″ – 9.7″ 7.2″ – 9.7″
    L 24.9″ 25.0″ 25.9″ 29.3″
    M 19.6″ 19.8″ 20.6″ 23.8″

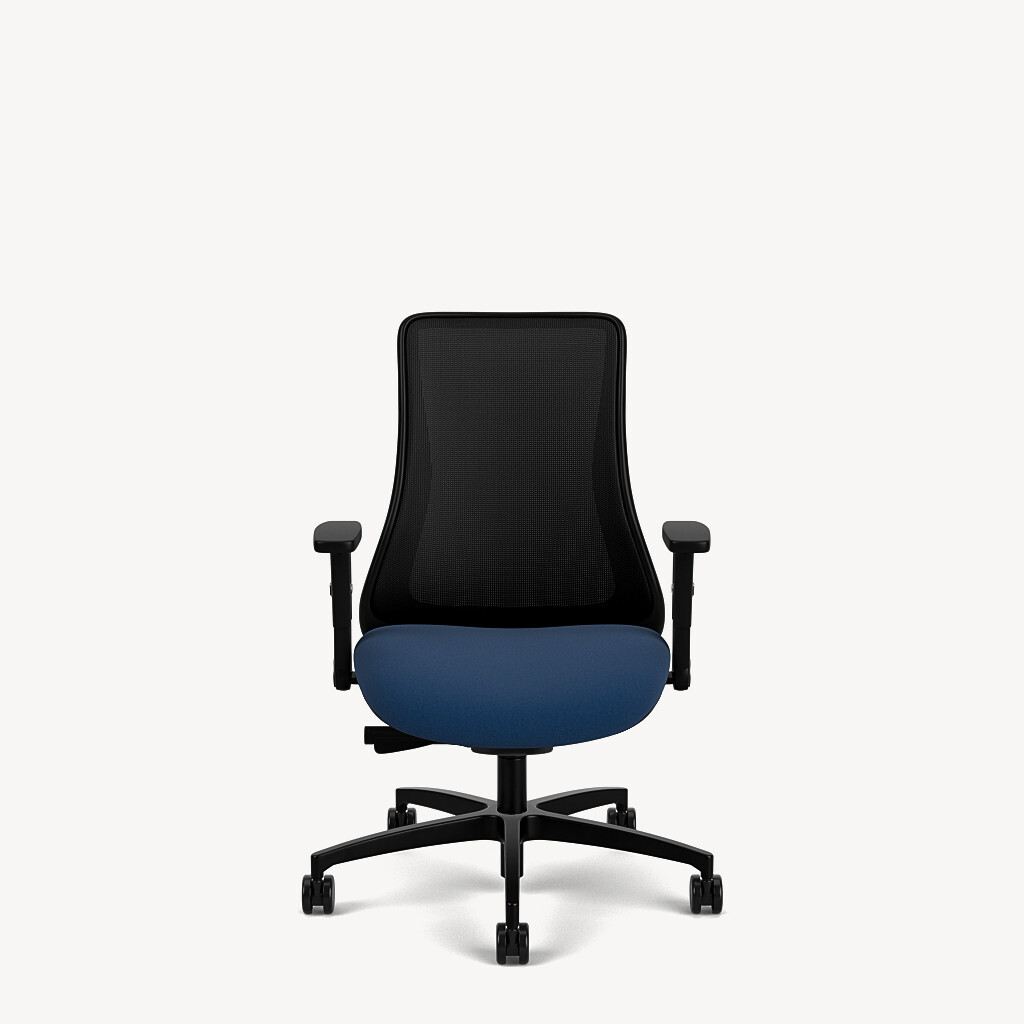

  • Roll back arm. (-39A)

    J. Armrest length.

    K. Armrest height.

    L. Armrest width.

    M. Width between armrests.
    seats A seat (401) B seat (405) C seat (408) D seat (410)
    J 7.9″ 6.9″ 4.9″ 8.2″
    K 5.8″ – 8.3″ 7.3″ – 9.8″ 6.7″ – 9.2″ 6.6″ – 9.0″
    L 25.2″ 25.2″ 26.1″ 29.5″
    M 19.1″ 19.4″ 20.2″ 23.3″
  • Fixed conference arm. (-46A)

    J. Armrest length.

    K. Armrest height.

    L. Armrest width.

    M. Width between armrests.
    seats A seat (401) B seat (405) C seat (408) D seat (410)
    J 6.6″ 7.6″ 5.6″ 6.9″
    K 6.3″ 5.8″ 5.2″ 7.1″
    L 25.7″ 25.8″ 26.7″ 30.0″
    M 19.2″ 19.4″ 20.2″ 23.4″
  • 8-way adjustable arm. (-51A, -52A, -53A)

    J. Armrest length.

    K. Armrest height.

    L. Armrest width.

    M. Width between armrests.
    seats A seat (401) B seat (405) C seat (408) D seat (410)
    J 7.9″ 7.0″ 5.0″ 8.2″
    K 6.7″ – 10.6″ 8.6″ – 12.5″ 8.0″ – 11.9″ 7.5″ – 11.4″
    L 26.2″ 26.0″ 26.9″ 30.5″
    M 19.6″ 19.0″ 19.8″ 23.8″
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download

Downloads

pricing

Genie price list and specification guide pdf (1.35 MB)

brochures

Copper Mesh Collection brochure pdf (2.95 MB)
Genie brochure pdf (2.08 MB)
Education Seating Solutions book pdf (9.86 MB)
Healthcare Seating Solutions book pdf (15.64 MB)
Healthier Hospitals Initiative (HHI) brochure pdf (13.09 MB)
Solutions: Seating Collection Overview 2020 pdf (9.99 MB)

symbols

Genie 2D autoCAD files zip (630.92 KB)
Genie 3D autoCAD files zip (12.2 MB)
Genie revit files zip (1.85 MB)

certifications

BIFMA LEVEL 2 task chairs certification pdf (114.76 KB)
Clean Air Gold certification pdf (316.89 KB)

care

Genie Copper Mesh cleaning and care guidelines pdf (140.33 KB)
Genie cleaning and care guidelines pdf (140.84 KB)

instructions

base to chair assembly instructions pdf (308.35 KB)

user-guides

Genie series user guide pdf (2.21 MB)
25C swivel tilt conference control user guide pdf (201.86 KB)
26C swivel tilt conference control with seat slider user guide pdf (203.26 KB)
35C auto-adjust body balance stool control user guide pdf (207.24 KB)
67C quick adjust advanced synchro control user guide pdf (205.62 KB)
67CSS-FT quick adjust advanced synchro control with seat slider and forward tilt user guide pdf (226.24 KB)
67CSS quick adjust advanced synchro control with seat slider user guide pdf (211.6 KB)
68C-12SS enhanced body balance with seat slider user guide pdf (208.54 KB)
68C enhanced body balance user guide pdf (206.53 KB)
74C-12SS auto-adjust body balance control with seat slider user guide pdf (208.13 KB)
74C auto-adjust body balance control user guide pdf (157.13 KB)
38A/38AG Basic height adjustable arm user guide pdf (205.86 KB)
39A roll back arm user guide pdf (195.06 KB)
51A/51AG/52A/53A 8-way adjustable arm user guide pdf (212.64 KB)
LS1 Genie adjustable lumbar support user guide pdf (190.76 KB)

white-papers

copper mesh back seating white paper pdf (1.03 MB)
