Oslo chairs

build & spec →
7103-10CH-17A-18BB-16HP | Textile: Via Seating Via Leathers Black (293).

timeless, unforgettable comfort

Oslo model: 7103-10CH-17A-18BB-16HP | Textile: Via Seating Via Leathers Black (293).
Oslo model: 7103-10CH-17A-18BB-16HP | Textile: Via Seating Via Leathers Black (293).

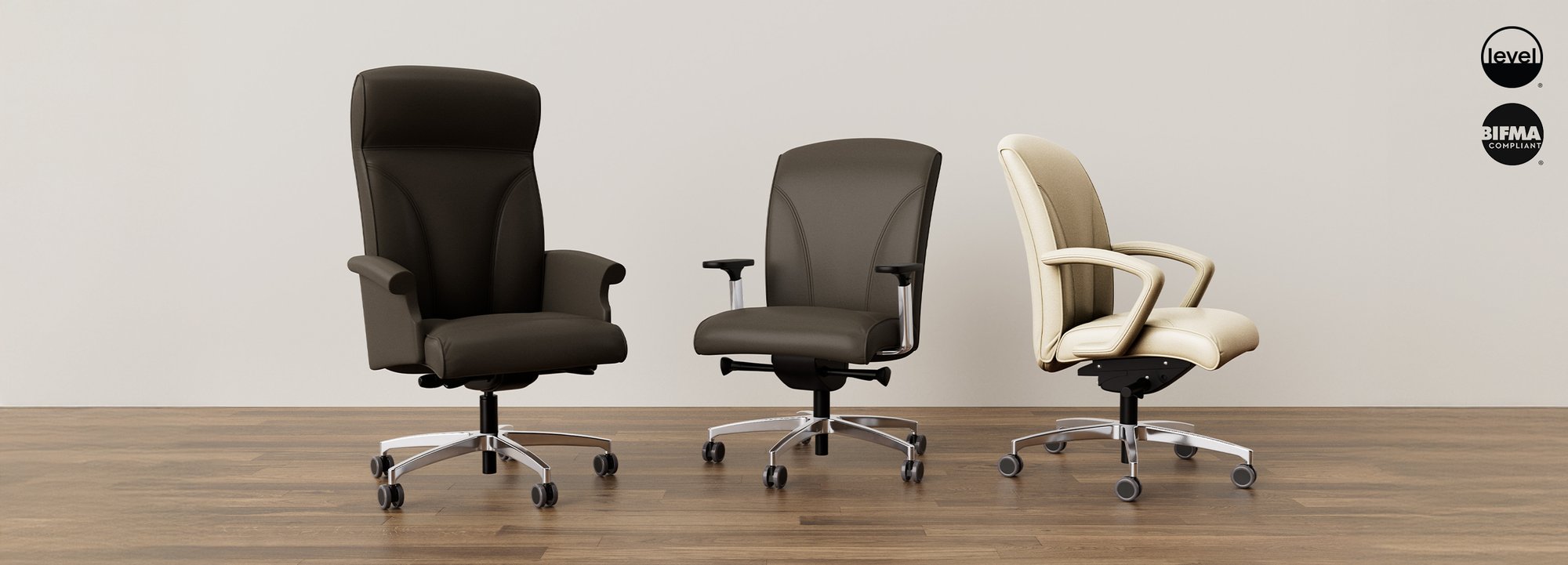

Oslo model left to right: 7103-10CH-90A-18PB-16SCG | Textile: Via Seating Ultrafabrics Ultraleather Pro Char. | 7101-67C-51A18S-18PB-16HP | Textile: Via Seating Ultrafabrics Brisa Original Onyx. | 7101-67C-17A-18PB-16SCG | Textile: Via Seating Momentum Faux Felt Charcoal.
Oslo model: mid and high back with Ultrafabrics Ultraleather Pro Char.
Oslo model: 7103-10CH-17A-18BB-16HP | Textile: Via Seating Via Leathers Black (293).
Oslo model: 7103-10CH-17A-18BB-16HP | Textile: Via Seating Via Leathers Black (293).

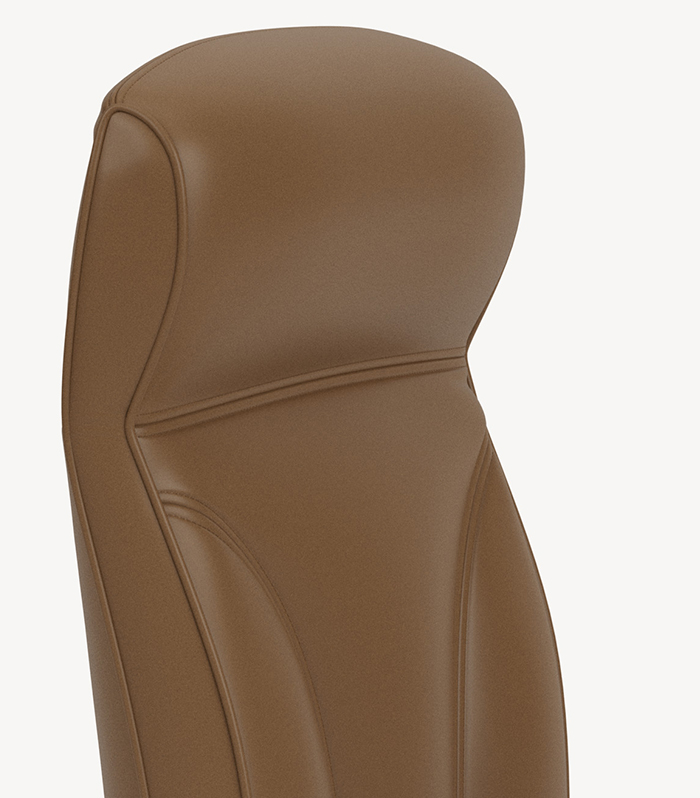

Oslo model: high back with Ultrafabrics Ultraleather Pro Char.
Oslo model: 7103-10CH-17A-18BB-16HP | Textile: Via Seating Via Leathers Black (293).

Embrace classic comfort and a sophisticated design with the Oslo chair designed by Studio V & Ed Abadie (ABA Design). This perfect blend of timeless style and substance is thanks to the proprietary Via Seating blend of high-density, injection-molded foam over Oslo’s durable, automotive inspired steel framework. High or mid back forms make Oslo perfect for private office, home office and in conference rooms. Its 8-way adjustable ergonomic arm option with rotating armrests and optional arm width adjustment bracket plus synchro control mechanisms with optional seat depth adjustments extend Oslo’s use to include task, multi-office, open office and breakout areas. The luxurious feel of Oslo in leather and its expertly hand-sewn saddle stitch linework ensure Oslo delivers a quality, lasting and beautiful look and feel.

  • Backrests: high & mid backs.

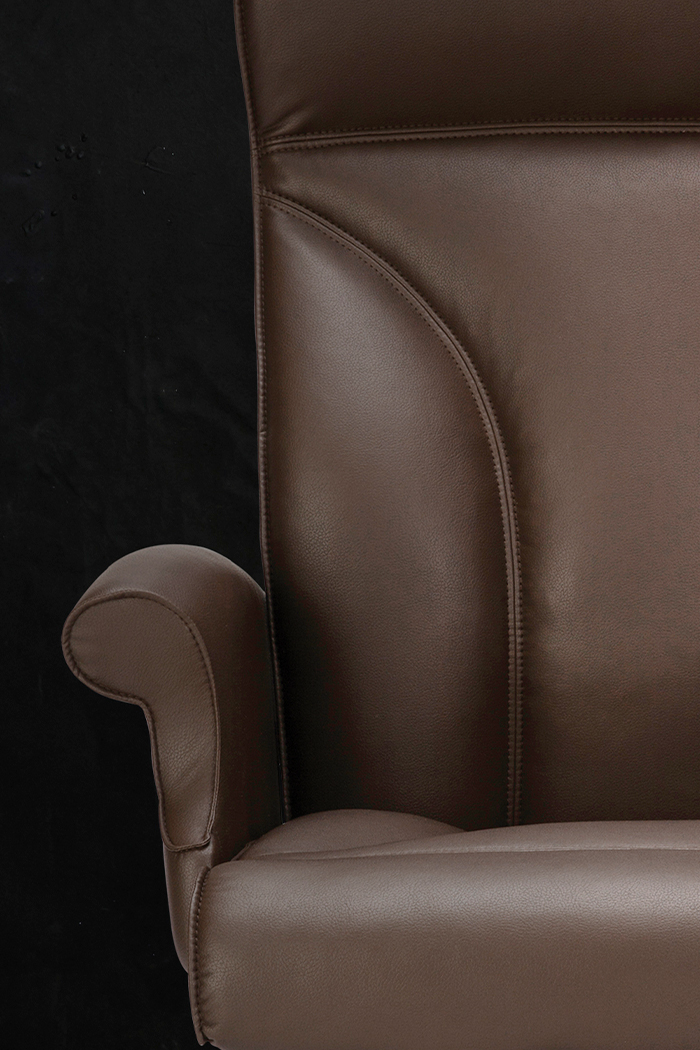

  • Stitching: captivating saddle stitch lines.
  • Via Seating’s comfort foam: a proprietary blend of high-density, injection-molded, closed-cell, cold-cured foam so durable and lasting it is backed by Via Seating’s 12 year warranty.
  • Arms: height adjustable and multiple textured or upholstered fixed conference/executive arms.
  • Control Mechanisms: controls include latest quick adjust advanced synchro with choice of 2” seat depth adjustment and an optional forward tilt adjustment for mid backs.
  • Bases: five-star bases available in black nylon, polished aluminum and brushed aluminum finishes.
  • Backs: adjustable ratchet back is standard.
  • Max weight: 400 lb. (see options for more details)
  • Quick Ship: 10 chairs produced in a 48 hour period.
  • Warranty: 12 year warranty including the foam.



  • ANSI/BIFMA X5.1 General-Purpose Office Chairs (BIFMA Compliant).
  • ANSI/BIFMA X5.11 General-Purpose Large Occupant Office Chairs (BIFMA Compliant).
  • LEED – v4.1 Low Emitting Materials (Clean Air Gold).
  • Living Building Challenge (LBC) – Imperative 08 (Clean Air Gold).
  • WELL – Feature 04 – VOC Reduction (Clean Air Gold).
  • Meets the Practice Greenhealth, Health Care Without Harm Healthy Interiors Criteria for Seating (ie. HHI compliant).

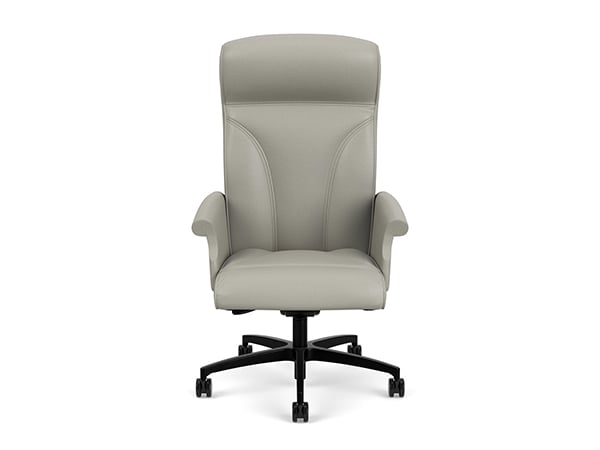

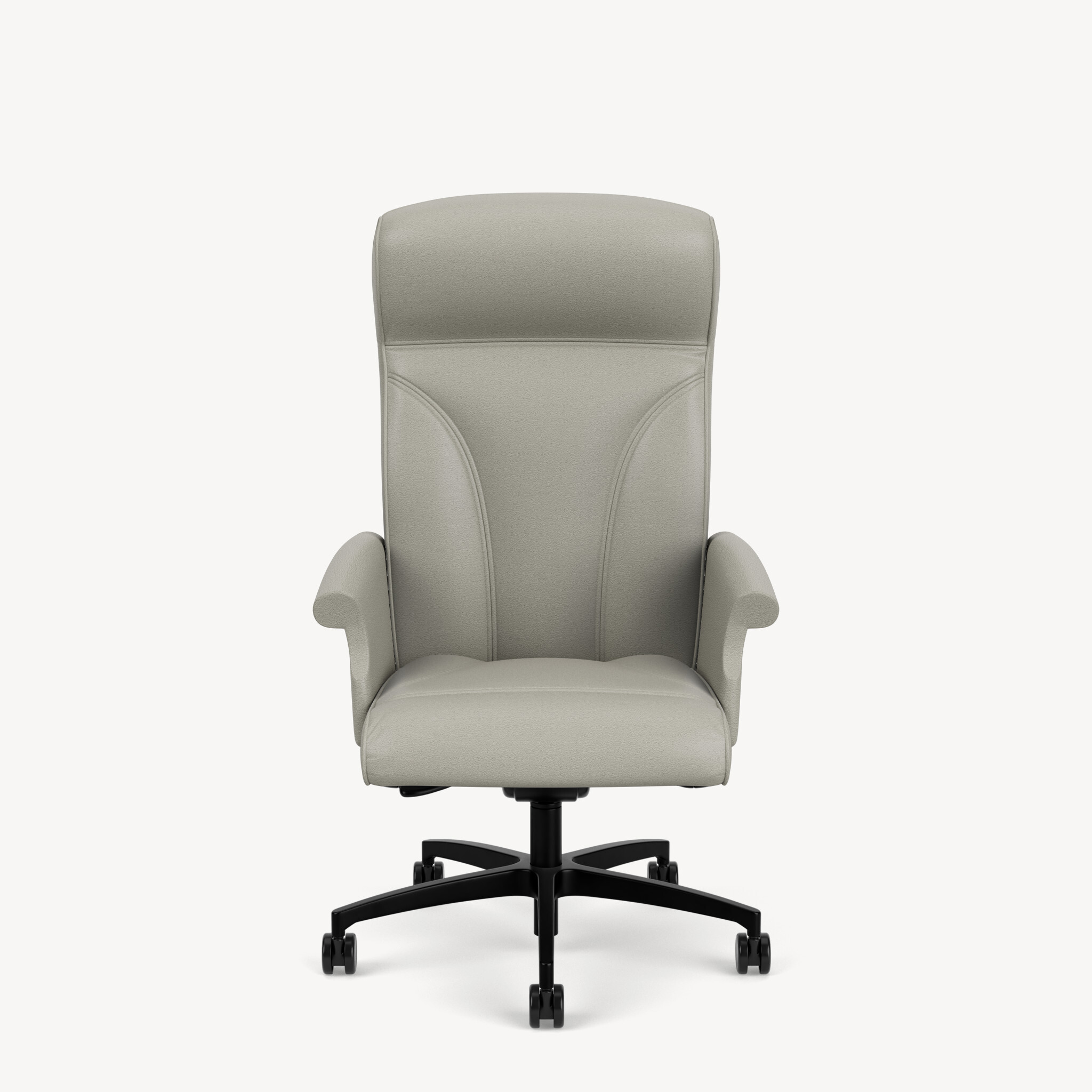

High back. #7103

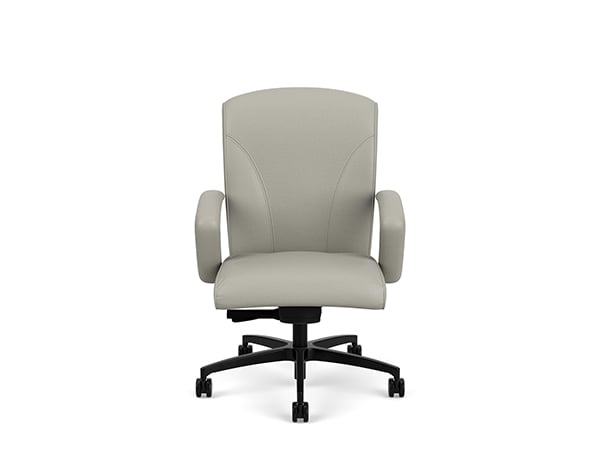

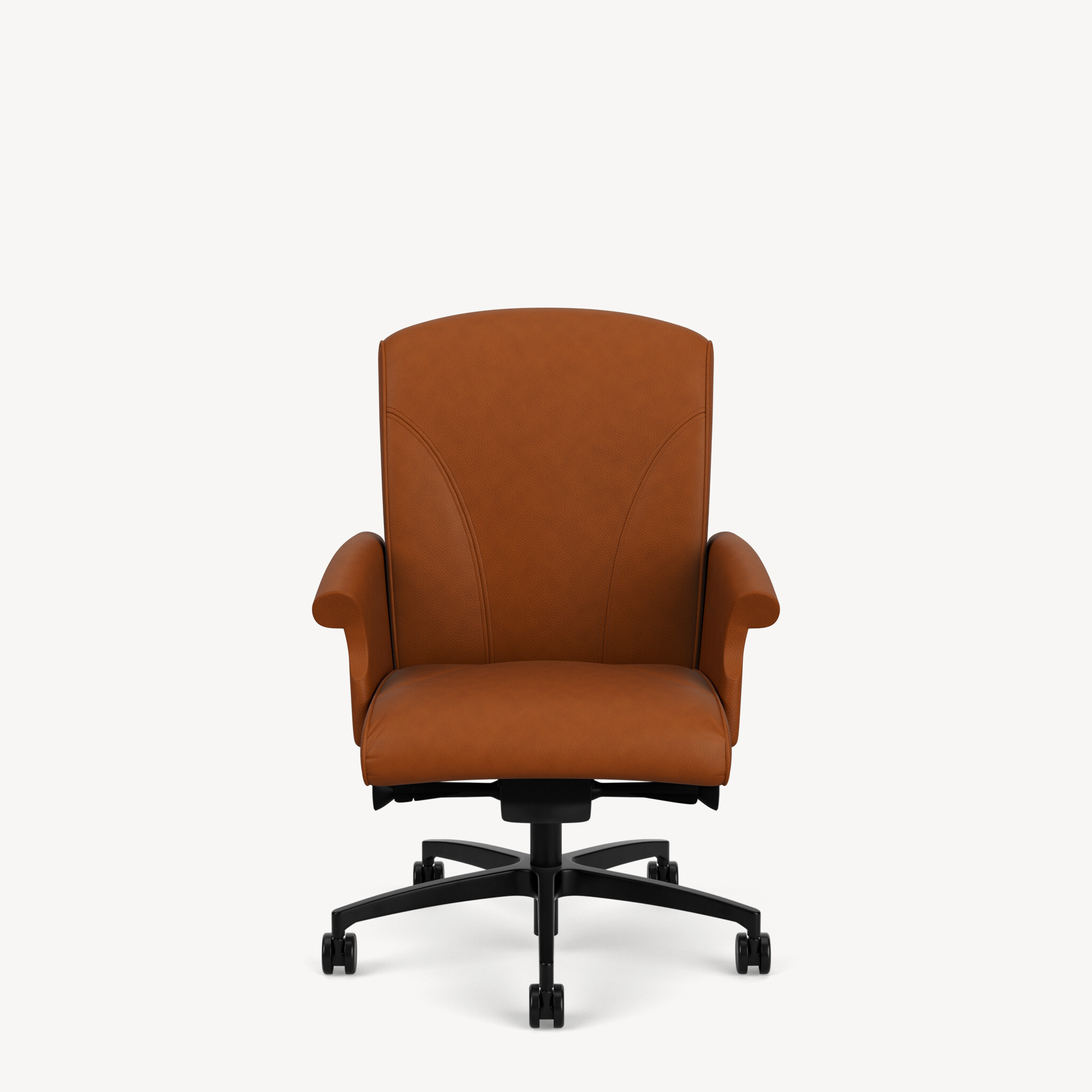

Mid back. #7101

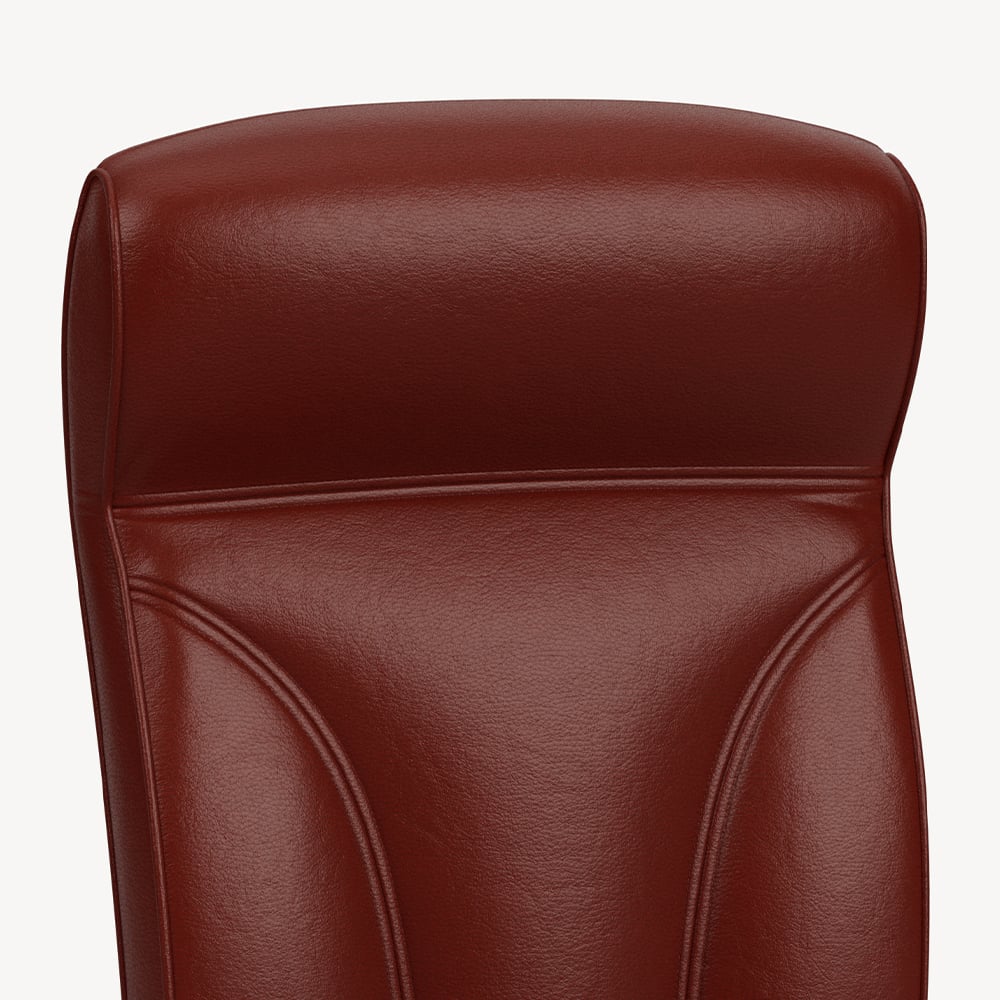

headrests

arms

  • Armless standard.

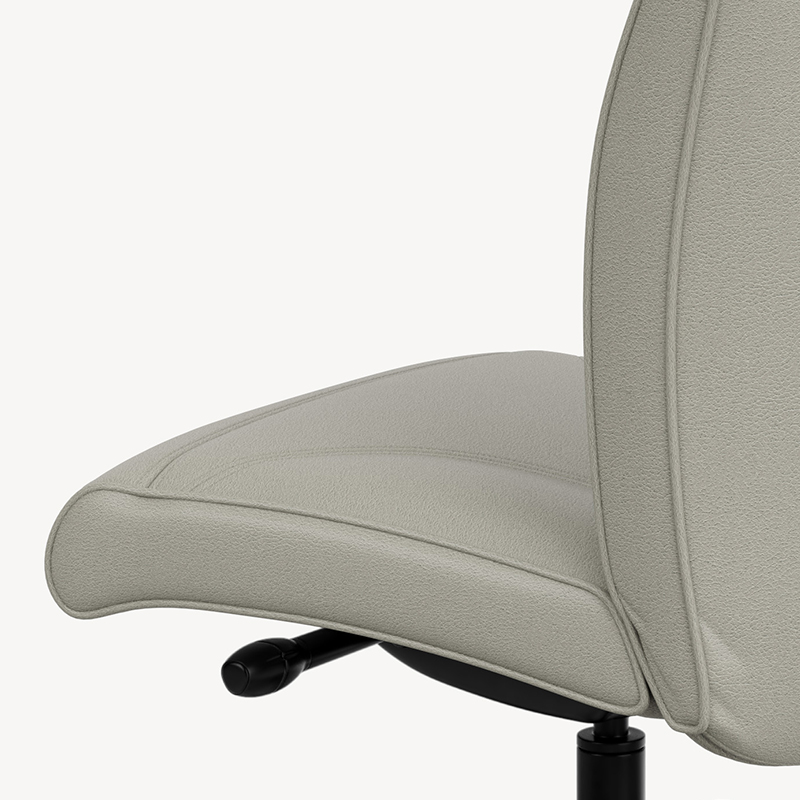

    Armless. #0A

    • Armless chairs are standard on all models.
  • Adjustable arms.

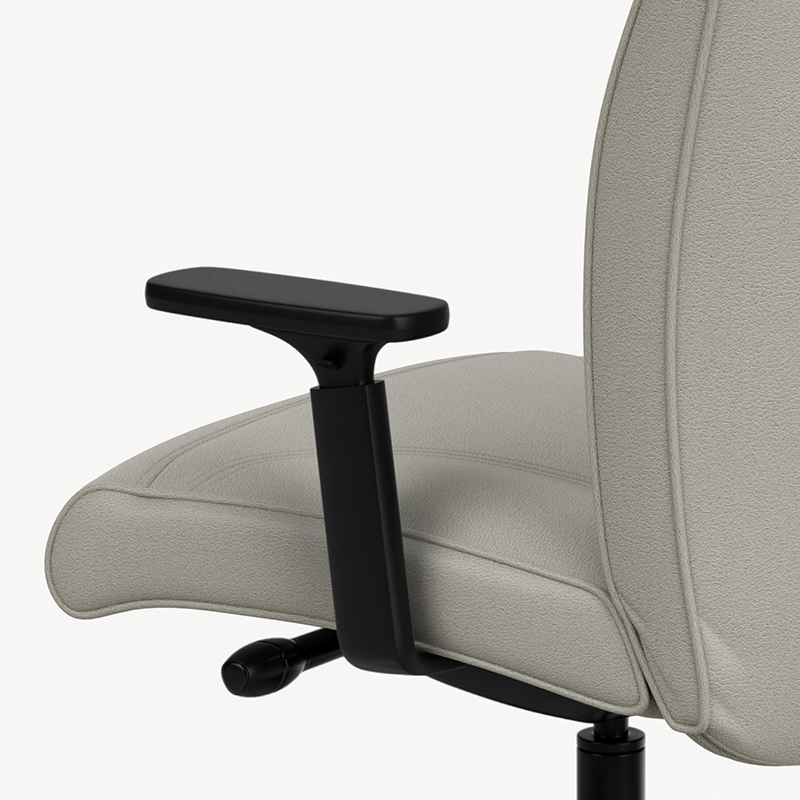

    Black arm with optional 8-way adjustments. #51A

    user guide: video » | pdf »

    arm features:

    • Arm: moves up and down.

    optional adjustable armrests features:

    • Rotates in 15° and out 15°.
    • Slides forward 1.5″ and back to its resting position.

    optional arm width adjustment features:

    • Bracket extends each arm up to 2.0″ away from the sides of the seat.

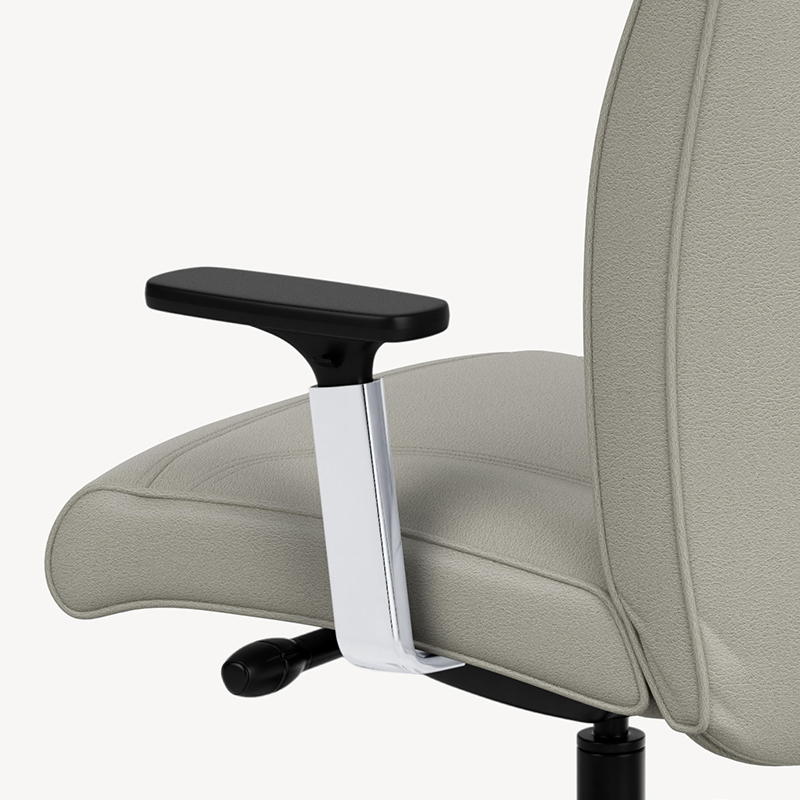

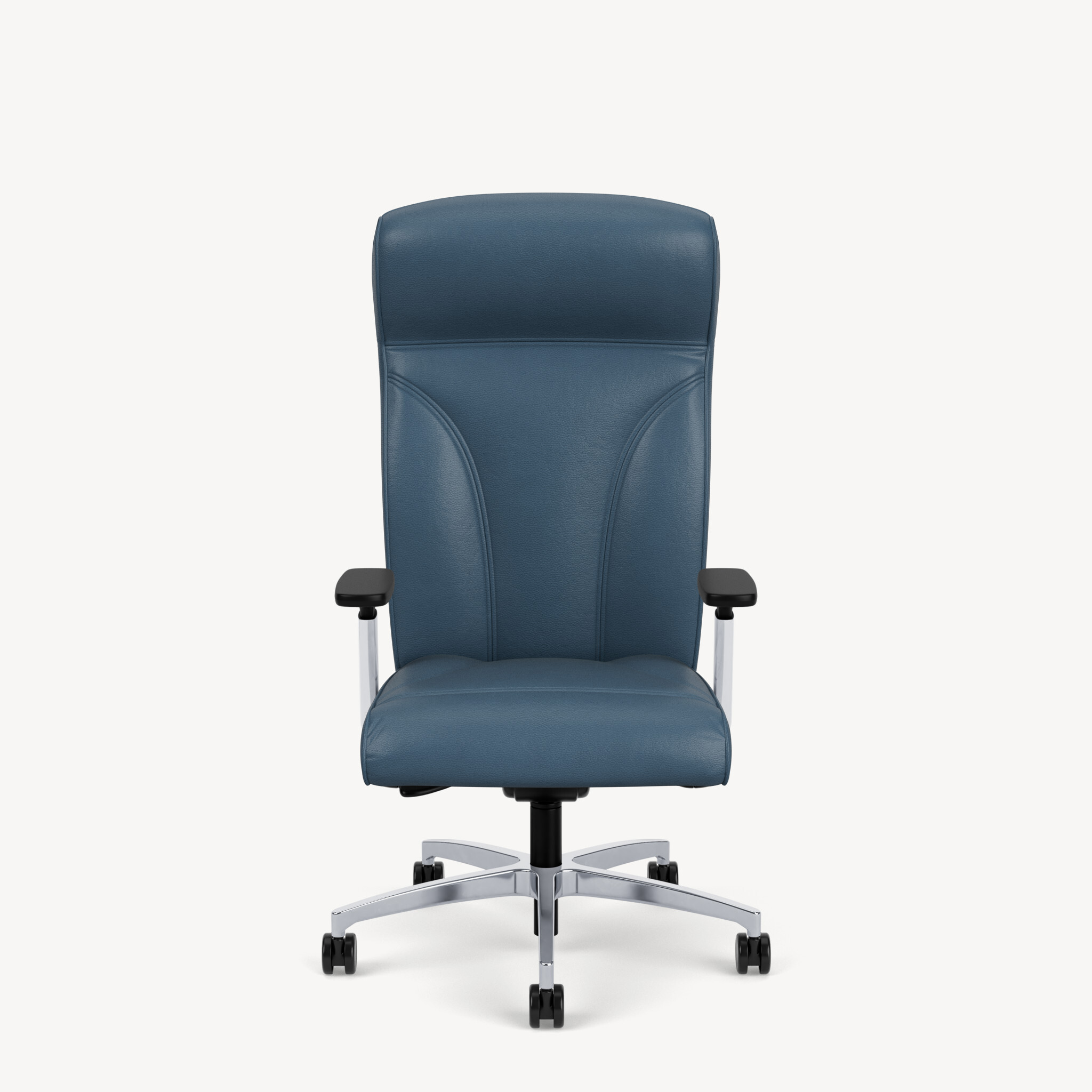

    Polished arm with optional 8-way adjustments. #53A

    user guide: video » | pdf »

    arm features:

    • Arm: moves up and down.

    optional adjustable armrests features:

    • Rotates in 15° and out 15°.
    • Slides forward 1.5″ and back to its resting position.

    optional arm width adjustment features:

    • Bracket extends each arm up to 2.0″ away from the sides of the seat.
  • Fixed arms.

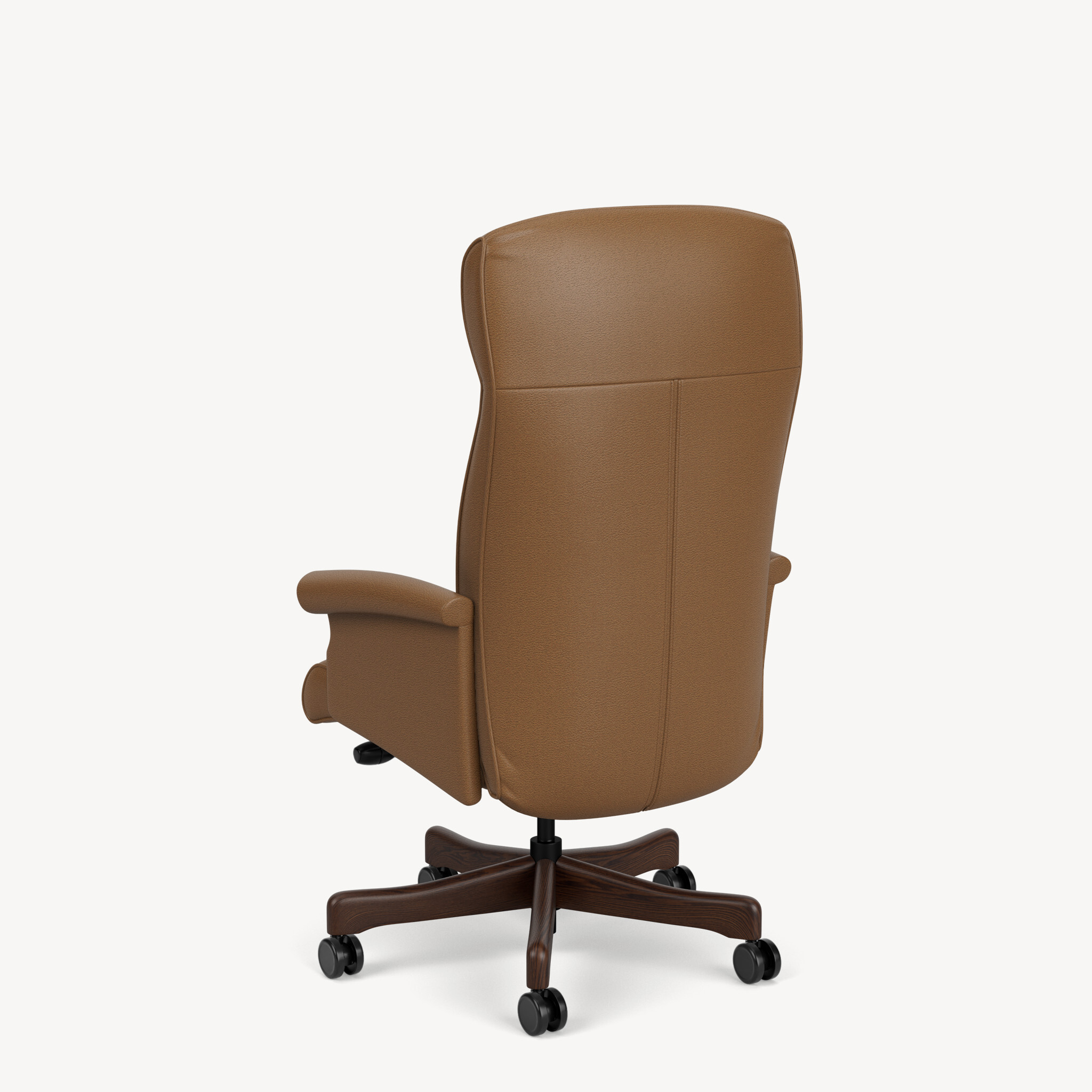

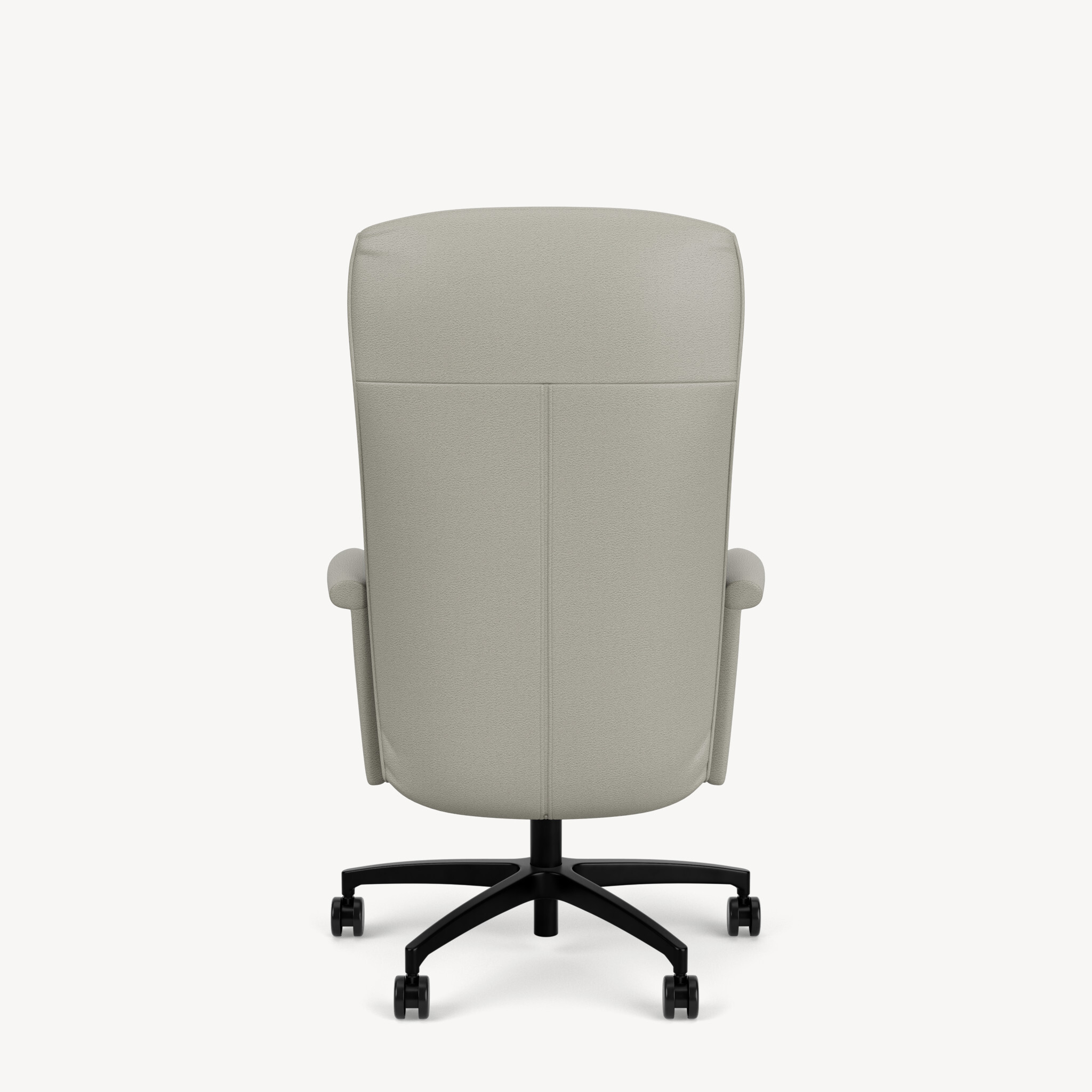

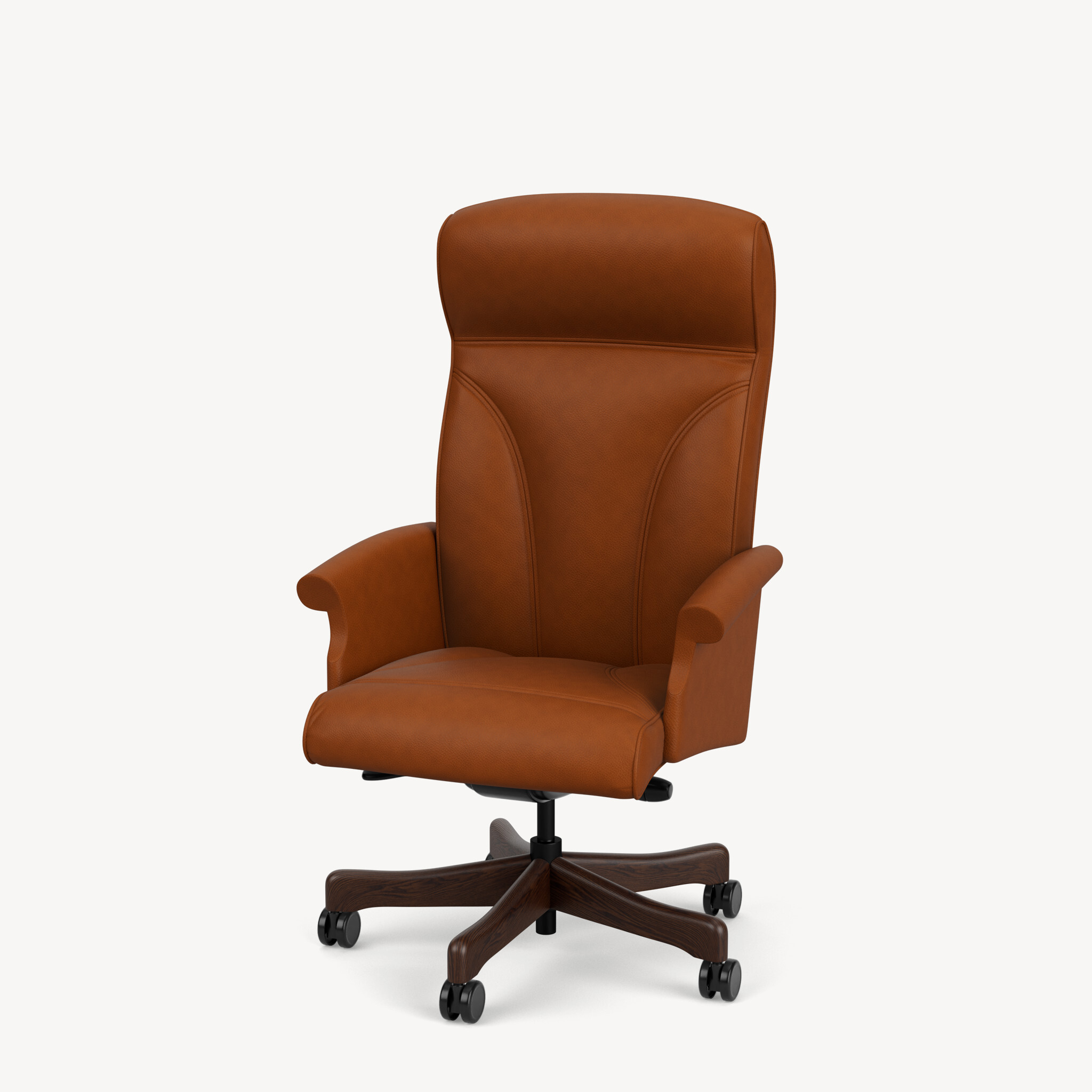

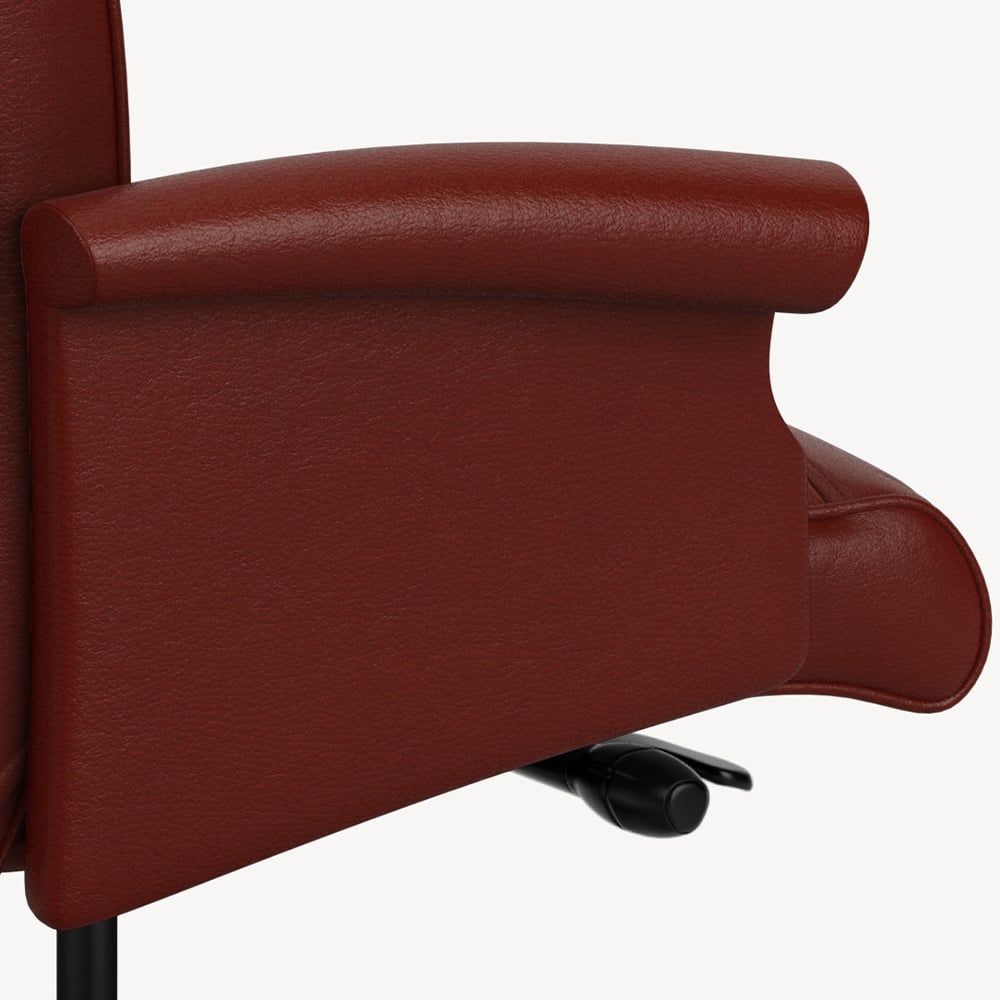

    Fully upholstered wing arms. #12A

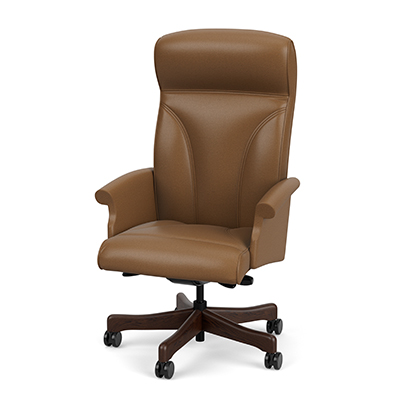

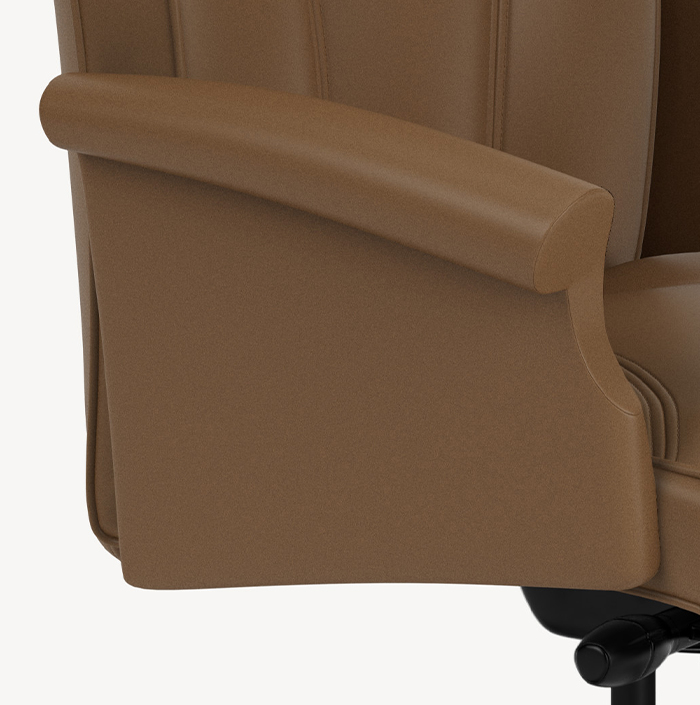

    Fully upholstered traditional arms. #17A

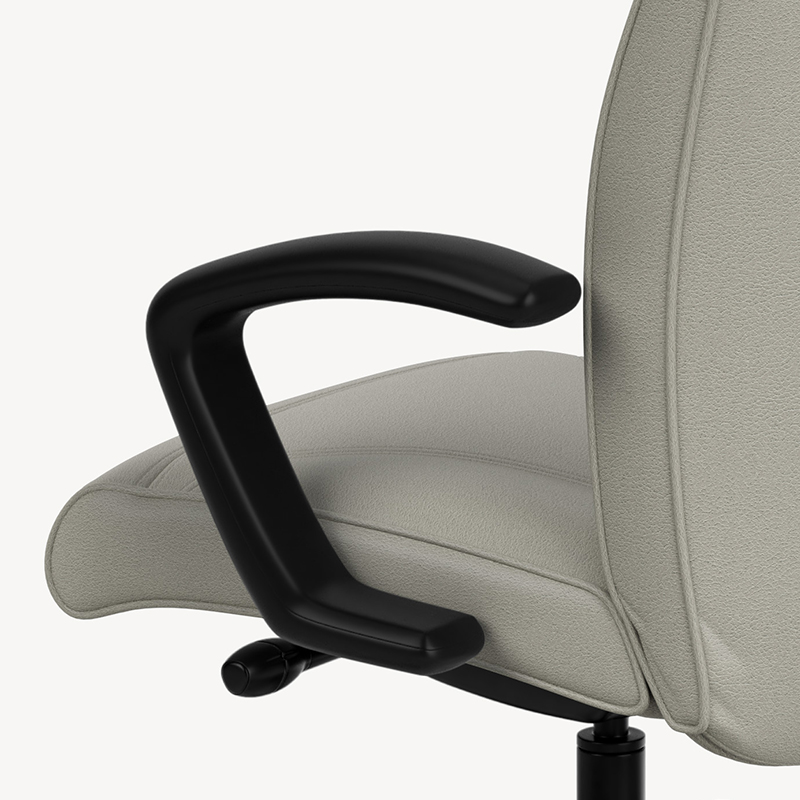

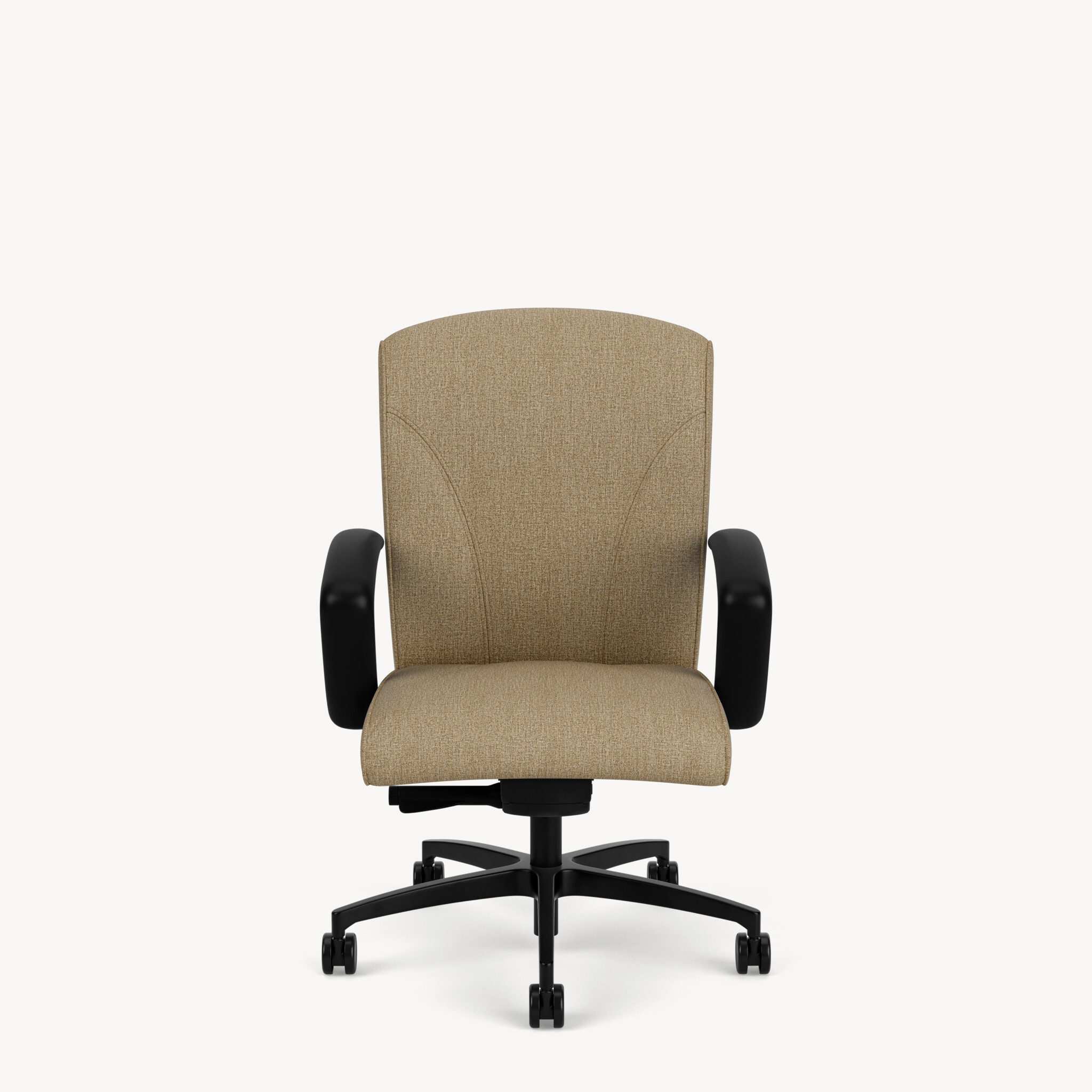

    Black executive C arms. #80A

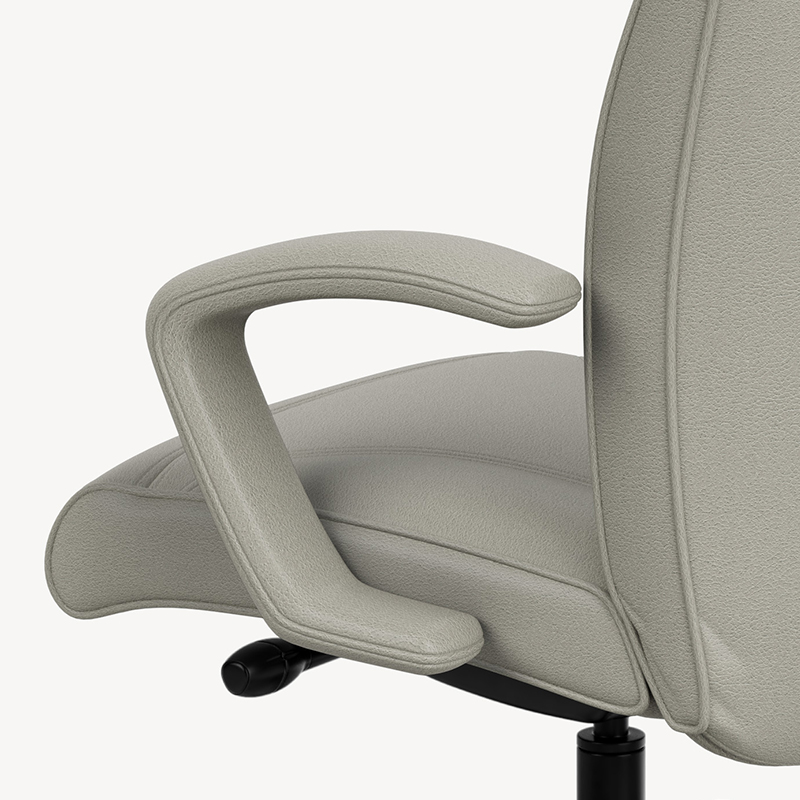

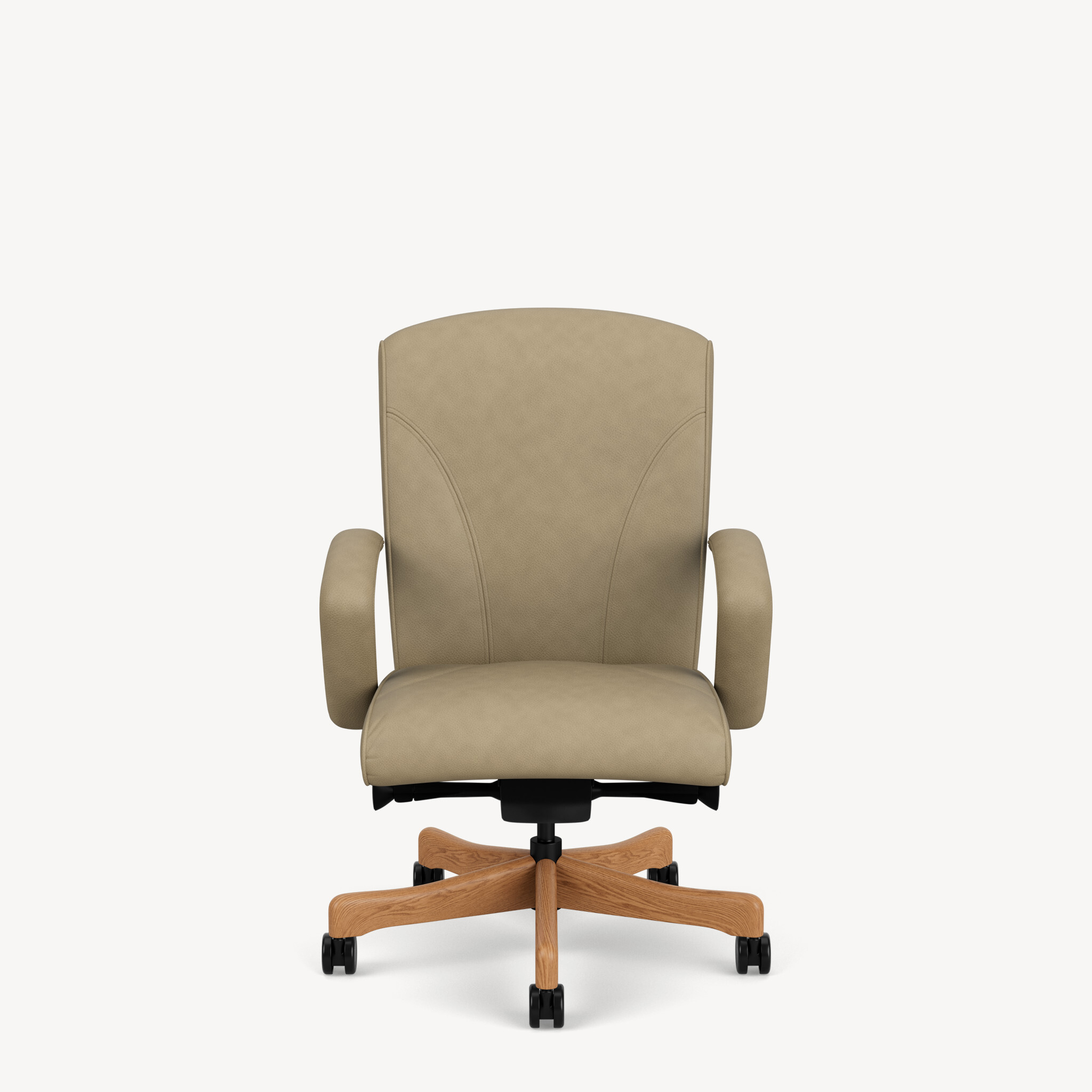

    Fully upholstered executive C arms. #90A

control mechanisms

  • Mid backs: synchro control mechanisms.

    Quick adjust advanced synchro. #67C

    user guide: video » | pdf »

    control mechanism adjustments:

    1. Seat height adjustment.
    2.  Back tension adjustment.
    3. Single rotation back tilt lock adjustment (5 position).

    Quick adjust advanced synchro with a seat depth adjustment. #67C-SS

    user guide: video » | pdf »

    control mechanism adjustments:

    1. Seat height adjustment.
    2.  Back tension adjustment.
    3. Single rotation back tilt lock adjustment (5 position).
    4. Seat depth adjustment. #SS

    Quick adjust advanced synchro with a seat depth adjustment & a forward tilt adjustment. #67C-SS-FT

    user guide: video » | pdf »

    control mechanism adjustments:

    1. Seat height adjustment.
    2.  Back tension adjustment.
    3. Single rotation back tilt lock adjustment (5 position).
    4. Seat depth adjustment. #SS
    5. Ergonomic forward tilt adjustment. #FT
  • High backs: synchro control mechanisms.

    Synchro control with heavy-duty spring tension control mechanism. #9CH

    user guide: video » | pdf »

    control mechanism adjustments:

    1. Seat height adjustment.
    2. Back lock adjustment (5 position).
    3. Back/recline tension adjustment.

    Synchro control with heavy-duty spring tension control mechanism. #10CH

    user guide: video » | pdf »

    control mechanism adjustments:

    1. Seat height adjustment.
    2. Back lock adjustment (5 position).
    3. Back/recline tension adjustment.
    4. Seat depth adjustment.
  • Mid backs: conference control mechanisms.

    Standard single position knee tilt control mechanism. #12C

    user guide: video » | pdf »

    control mechanism adjustments:

    1. Seat height adjustment.
    2. Back lock adjustment (single position).
    3. Back/recline tension adjustment.

    Single position knee tilt control mechanism & a seat depth adjustment. #13C

    user guide: video » | pdf »

    control mechanism adjustments:

    1. Seat height adjustment.
    2. Back lock adjustment (single position).
    3. Back/recline tension adjustment.
    4. Seat depth adjustment.

bases

  • Chair swivel bases.

    Standard black nylon 5-star swivel base. #18BB

    Polished aluminum 5-star swivel base. #18PB

    Brushed aluminum 5-star swivel base. #18BA

casters & glides

  • Casters.

    Standard black carpet casters. #16HP

    • Standard casters for all swivel bases.

    Two-toned black with grey soft rubber tread all floor casters. #16SCG

  • Glides.

    Black glides. #16GL

upholstery layouts

  • Single.

    High back, single upholstery.

    • Standard & only option on all models.

    Mid back, single upholstery.

    • Standard & only option on all models.

more customization

  • Embroidery.

    Embroidery on front of chair back.

    • Must be a minimum of 1″ from all edges of the upholstery area & not recommended to be placed over stitch lines.

    Embroidery on back of chair back.

    • Must be a minimum of 1″ from all edges of the upholstery area & not recommended to be placed over stitch lines.

designed by Studio V & Ed Abadie (ABA Design)

Via Seating ’s quintessential execu-task series Linate & Oslo were designed in a collaboration between Studio V and Ed Abadie (ABA Design). These chairs feature Via Seating ’s comfort foam, an automobile-inspired, lasting steel framework and hand-manufacturedfine stitch work.

studio: Reno, Nevada.

Dimensions recorded by Via Seating engineers using:

  • the BIFMA Chair Measuring Device® (CMD) &

  • the BIFMA Universal Measuring Procedure.

chair drawings

seat drawings



Seat Reference Point (SRP),
The ergonomic seat depth measurement.



Measurement G (and not measurement H) is the true seat reference point. SRP is an ergonomic term that defines where there is a slight indentation in the lumbar (i.e. where the sitter is benefiting from the lumbar support) to the front edge of the seat. It gives the true measurement of surface area in contact with the body. It is very useful for correctly matching up with hip to knee measurements for ergonomists taking into account the two – three finger gap between the back of the leg to the edge of the seat. It is very important to ensure no restriction in circulation to the lower extremities (lower legs and ankles).

  • Mid back. (7101)

    C. Seat width.

    G. Seat depth.

    H. Seat depth of the seat off the chair.
    controls 12C 13C 67C 67CSS
    C 18.9″ 18.9″ 18.9″ 18.9″
    G 18.0″ 18.1″ – 20.1″ 18.9″ 17.7″ – 19.7″
    H 19.4″ 19.4″ 19.4″ 19.4″
  • High back. (7103)

    C. Seat width.

    G. Seat depth.

    H. Seat depth of the seat off the chair.
    controls 9CH 10CH
    C 19.0″ 19.0″
    G 19.0″ 19.0″ – 21.0″
    H 20.4″ 20.4″



arm drawings

  • Fully upholstered wing arm. (-12A)

    J. Armrest length.

    K. Armrest height.

    L. Armrest width.

    M. Width between armrests.
    backs Mid back (7101) High back (7103)
    J 6.4″ 7.8″
    K 10.7″ 8.9″
    L 23.2″ 28.0″
    M 17.1″ 22.0″
  • Classic cantilever arm. (-13A, -14A)

    J. Armrest length.

    K. Armrest height.

    L. Armrest width.

    M. Width between armrests.
    backs Mid back (7101) High back (7103)
    J 6.9″ 8.3″
    K 12.5″ 10.7″
    L 22.5″ 28.5″
    M 18.1″ 23.5″

    Note: On upholstered arms, add up to 0.5″ for a textile.

  • Traditional upholstered arm. (-17A)

    J. Armrest length.

    K. Armrest height.

    L. Armrest width.

    M. Width between armrests.
    backs Mid back (7101) High back (7103)
    J 7.4″ 8.8″
    K 11.1″ 9.3″
    L 24.7″ 29.5″
    M 18.1″ 23.0″

    Note: On upholstered arms, add up to 0.5″ for a textile.

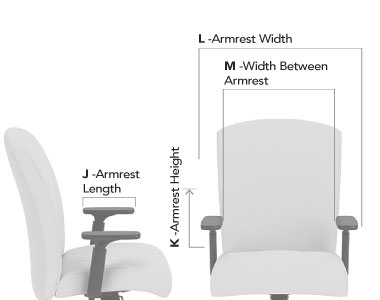

  • 8-way adjustable arm. (-51A, -52A, -53A)

    J. Armrest length.

    K. Armrest height.

    L. Armrest width.

    M. Width between armrests.
    backs Mid back (7101) High back (7103)
    J 5.6″ 7.0″
    K 9.2″ – 13.0″ 7.4″ – 11.2″
    L 26.0″
    26.0″ – 30.0″ (with 19AB)    		 30.8″
    30.8″ – 34.8″ (with 19AB)
    M 19.0″
    19.0″ – 23.3″ (with 19AB)    		 23.9″
    23.9″ – 27.9″ (with 19AB)

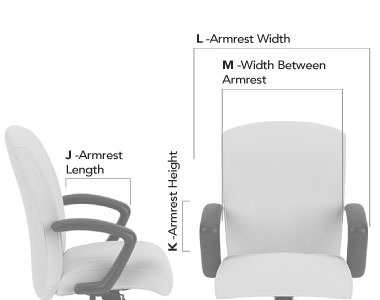

  • Executive “C” shape arm. (-80A, -90A)

    J. Armrest length.

    K. Armrest height.

    L. Armrest width.

    M. Width between armrests.
    backs Mid back (7101) High back (7103)
    J 5.6″ 7.0″
    K 11.1″ 9.3″
    L 23.2″ 28.0″
    M 18.1″ 23.0″

    Note: On upholstered arms, add up to 0.5″ for a textile.
