Zee chairs

Zee model: 761-N-05Z

designer curves make this elegant chair

Be inspired by Zee, created by GREY ID. Zee’s sculpted shell curves around the body, providing a welcoming poly seat with integrated arms. Zee demands to be noticed in one of seven vibrant colors. Enhance the comfort and style by applying pattern and color with its upholstered seat pad option. Whether as a light task chair, a bar stool, a café seat or a side chair–Zee offers the bases to fit your space’s needs.  When not in use, easily stack side chair Zee on or off its optional transport cart.



Zee. It is the result of vision, form, function and style in harmony, made perfect for your space.

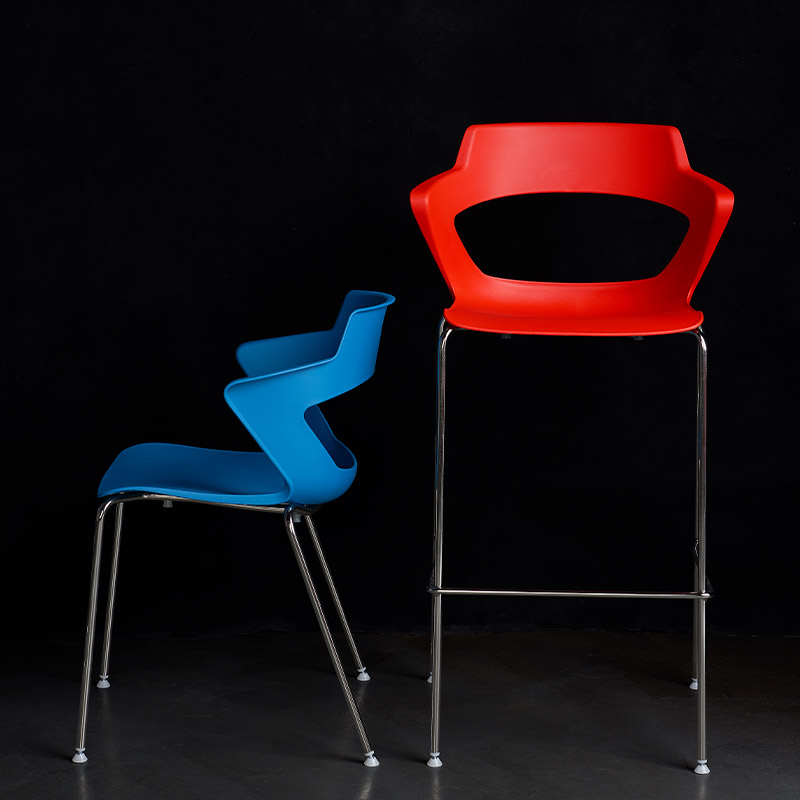

  • Applications: stackable side chair with 4-leg or sled base options, bar or counter height stool, light task chair, light task stool, guest chair with wood base.
  • Design: sculpted shell curves around the body, providing a welcoming poly seat with integrated arms.
  • Colors: chair shell offered in 7 lovely colors.
  • Upholstery: option of adding an extra comfort foam upholstered seat.
  • Transportation cart: optional transportation cart stacks poly 9 chairs high or soft side chairs 7 high.
  • Max weight capacity: 400 lb.
  • Quick ship: 20 chairs produced in a 48 hour period.
  • Warranty: 6 year warranty.



  • ANSI/BIFMA X7.1-2011 (R2016) Standard Method equivalent to CDPH Standard Method v1.1-2010 (Clean Air Gold).
  • LEED – v4.1 Low Emitting Materials (Clean Air Gold).
  • Living Building Challenge (LBC) – Imperative 08 (Clean Air Gold).
  • WELL – Feature 04 – VOC Reduction (Clean Air Gold).



Stackable sled base chair. (721)

Stackable 4-leg base chair. (731)

Executive wood base guest chair. (761)

Bar stool. (751)

Light task chair. (741)

Light task stools.

  • Available on model 741 only.

Stacking cart.

  • For stacking chair models 721 & 731 only.

finishes

poly colors

bases

For light task chairs & stools.

  • Chair swivel bases.

    Standard black nylon high-crown 5-star. (-13BB)

    • Standard base for light task chair.
    • Can’t be used with stool kit.

    Black nylon 5-star base. (-18BB)

    Polished aluminum 5-star base. (-18PB)

    Brushed aluminum 5-star base. (-18BA)

  • Stool swivel bases.

    Black nylon 5-star base with foot ring. (-18BB-11DR, -18BB-11XDR)

    • Standard stool base.
    • Tall (-11DR) height range: 7 in.
    • Extra-tall (-11XDR) height range: 9 in.
    • See exact dimensions in the drawings section.
    • Foot ring position is height adjustable.

    Polished aluminum 5-star with foot ring. (-18PB-11DR, -18PB-11XDR)

    • Tall (-11DR) height range: 7 in.
    • Extra-tall (-11XDR) height range: 9 in.
    • See exact dimensions in the drawings section.

    Brushed aluminum 5-star with foot ring. (-18BA-11DR, -18BA-11XDR)

    • Tall (-11DR) height range: 7 in.
    • Extra-tall (-11XDR) height range: 9 in.
    • See exact dimensions in the drawings section.

casters & glides

  • Casters.

    Black carpet casters. (-16HP)

    • Standard casters for all swivel bases.

    Grey hard floor & carpet casters. (-16SCG)

  • Glides.

    Black glides. (-16GL)

designed by GREY ID

Industrial design does not end in the talent of a single designer but encompasses the skills of young creative professionals working in the various disciplines of industrial planning: from concept to development, to provide support to the different stages of product engineering; they are dealing with the correct ways of communicating their projects both in terms of design and exhibitions. Although located in the industrial Italian north east, it works with numerous customers spread through the country and more and more frequently with foreign clients. GREY ID, founded in 2007, nowadays it is dedicated and well-known particularly in the outdoor, furniture, lighting and houseware industry for which it has received several international awards and has been published in numerous specialized magazines.

studio: Italy

inspired look & feel

Zee achieves an equilibrium in seating. It conveys style and substance in equal measure, a harmony between progressive design and exquisite comfort. The distinct and playful shapes of Zee that may elevate and compliment any space are supported by via seating’s person-first approach to its sit.

a modern designer form

Notice Zee. Its lines are dynamic and bold with graceful, rounded edges. It captures the organic shapes found outdoors molded into the durability of industrial construction. The Zee chair is a supple merger between the raw form of nature and the tenacious nurture of man. It delivers seating that is an experience, from its tantalizing form through its cradling seat.

vast versatility

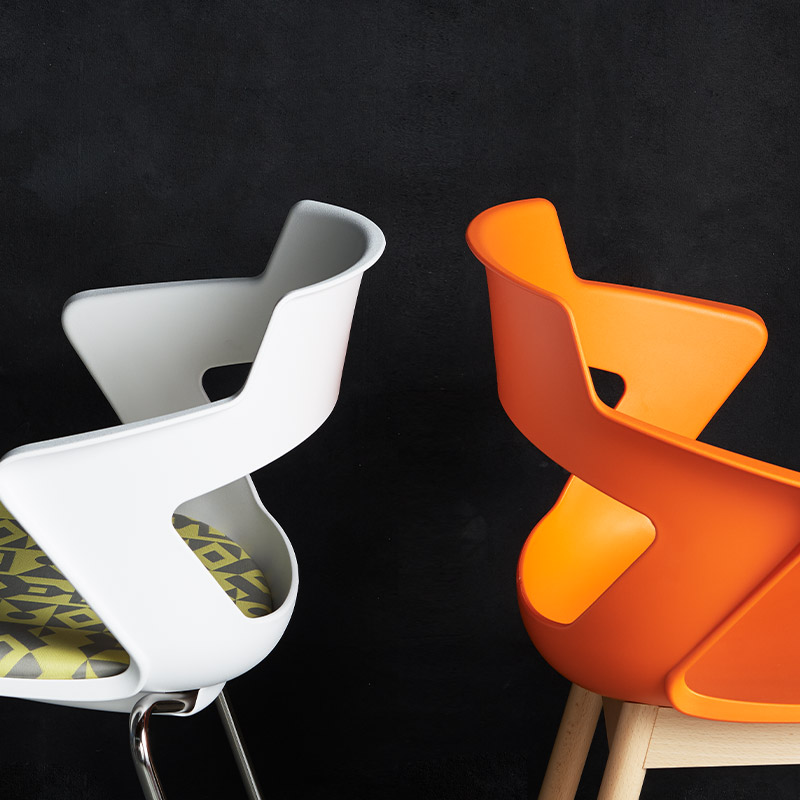

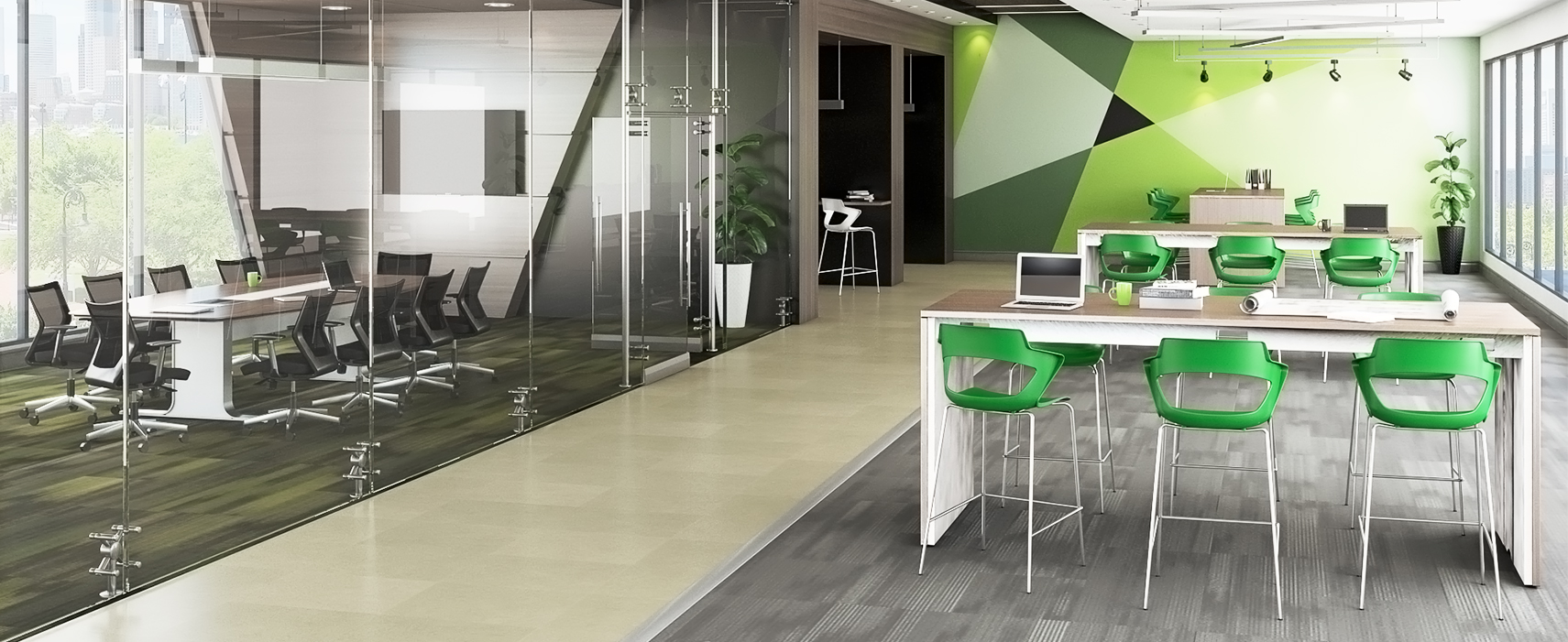

Zee provides choice in bases allowing its appealing form to translate across a variety of spaces. Use in cafés, in coffee shops, for counters and in university lobbies. Atop a swivel base, Zee is perfect for training rooms and for breakout areas. Upholster all with an optional spacious seat.

the bespoke chair

Zee offers an extensive breadth of options across its line. Choose from 6 base models – 4-leg side chair, sled side chair, training/light task chair, light task stool, bar stool and 4-leg wood guest chair. Choose 7 shell colors and 8 total base finishes. Add an upholstered seat available in fabrics and vinyl. Design and refine Zee to be your seat.

Dimensions recorded by Via Seating engineers using:

  • the BIFMA Chair Measuring Device® (CMD) &

  • the BIFMA Universal Measuring Procedure.

chair drawings

  • 4-leg chairs.

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    Stackable 4-leg chair.

    731
    Upholstery. Poly chair. With 7US.
    A 30.5″ 30.5″
    B 18.5″ 19.3″
    C 17.5″ 17.5″
    D 19.5″ 19.5″
    E 14.0″ 14.0″
    F 21.6″ 21.6″
    G 17.8″ 18.0″

    upholstered options:

    • 7US: upholstered seat option.

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    Stackable sled chair.

    721
    Upholstery. Poly chair. With 7US.
    A 30.8″ 30.8″
    B 19.0″ 19.8″
    C 17.5″ 17.5″
    D 19.5″ 19.5″
    E 14.0″ 14.0″
    F 21.1″ 21.1″
    G 17.8″ 18.5″

    upholstered options:

    • 7US: upholstered seat option.

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    Guest chair.

    761
    Upholstery. Poly chair. With 7US/
    A 31.0″ 31.0″
    B 18.3″ 19.0″
    C 17.5″ 17.5″
    D 19.5″ 19.5″
    E 14.0″ 14.0″
    F 21.9″ 21.9″
    G 17.8″ 18.5″

    upholstered options:

    • 7US: upholstered seat option.
  • Bar stools.

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    Bar stool.

    751
    Upholstery. Poly chair. With 7US.
    A 43.0″ 43.0″
    B 30.5″ 31.3″
    C 17.5″ 17.5″
    D 19.5″ 19.5″
    E 14.0″ 14.0″
    F 21.6″ 21.6″
    G 17.8″ 18.5″

    upholstered options:

    • 7US: upholstered seat option.
  • Light task chairs.

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    Light task chair with high-crown base.

    741-13BB
    Upholstery. Poly chair. With 7US.
    A 28.5″ – 33.3″ 29.3″ – 34.1″
    B 16.5″ – 21.3″ 17.3″ – 22.1″
    C 17.5″ 17.5″
    D 19.5″ 19.5″
    E 14.0″ 14.0″
    F 25.0″ 25.0″
    G 17.8″ 18.5″

    upholstered options:

    • 7US: upholstered seat option.

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    Light task chair.

    741 with -18BB, -18BA & -18PB
    Upholstery. Poly chair. With 7US.
    A 27.0″ – 31.5″ 27.8″ – 32.3″
    B 15.0″ – 19.8″ 15.8″ – 20.6″
    C 17.5″ 17.5″
    D 19.5″ 19.5″
    E 14.0″ 14.0″
    F 27.0″ 27.0″
    G 17.8″ 18.5″

    upholstered options:

    • 7US: upholstered seat option.
  • Light task stools.

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    Light task stool.

    741 with -11DR
    Upholstery. Poly chair. With 7US.
    A 33.3″ – 40.1″ 34.1″ – 40.9″
    B 21.3″ – 28.3″ 22.1″ – 29.1″
    C 17.5″ 17.5″
    D 19.5″ 19.5″
    E 14.0″ 14.0″
    F 27.0″ 27.0″
    G 17.8″ 18.5″

    upholstered options:

    • 7US: upholstered seat option.

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    Light task stool.

    741 with -11XDR
    Upholstery. Poly chair. With 7US.
    A 35.6″ – 45.0″ 36.4″ – 45.8″
    B 22.1″ – 30.3″ 22.9″ – 31.1″
    C 17.5″ 17.5″
    D 19.5″ 19.5″
    E 14.0″ 14.0″
    F 27.0″ 27.0″
    G 17.8″ 18.5″

    upholstered options:

    • 7US: upholstered seat option.

seat drawings



Seat Reference Point (SRP),
The ergonomic seat depth measurement.



Measurement G (and not measurement H) is the true seat reference point. SRP is an ergonomic term that defines where there is a slight indentation in the lumbar (i.e. where the sitter is benefiting from the lumbar support) to the front edge of the seat. It gives the true measurement of surface area in contact with the body. It is very useful for correctly matching up with hip to knee measurements for ergonomists taking into account the two – three finger gap between the back of the leg to the edge of the seat. It is very important to ensure no restriction in circulation to the lower extremities (lower legs and ankles).

  • Zee seats.

    C. Seat width.

    G. Seat depth.

    H. Seat depth of the seat off the chair.

    Upholstery. No upholstery. With 7US.
    C 17.5″ 17.5″
    G 17.8″ 18.5″
    H 18.0″ 18.8″

    Upholstery type:

    • 7US: Upholstered seat only.

arm drawings

  • Permanent, fixed arms.

    J. Armrest length.

    K. Armrest height.

    L. Armrest width.

    M. Width between armrests.

    Zee arms.

    J.  7.5″
    K.  9.9″
    L.  20.8″
    M.  17.6″

stacking drawings

  • Stacking carts.

    A. Overall height.

    F. Overall depth.

    W. Overall width.

    Stacking cart.

    600C

    A.   50.0″
    F.    32.0″
    W.  18.0″

  • Chairs stacked on the floor & cart.

    A. Overall height.

    F. Overall depth.

    Chair #721 stacked

    A.  41.0″ (on floor) | 42.0″ (on cart)
    F.  29.0″ (on floor) | 39.0″ (on cart)



    Chair #731 stacked

    A.  49.0″ (on floor) | 50.0″ (on cart)
    F.  33.0″ (on floor) | 43.0″ (on cart)
