Vista II chairs

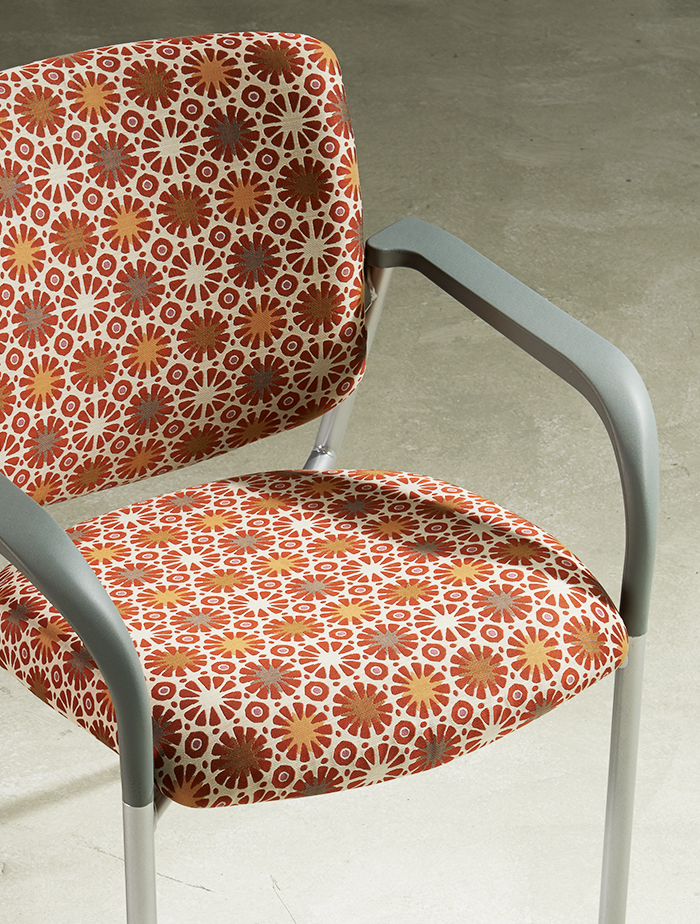

Vista II model: 302-S-49A | Textile: Momentum Silica Petunia.

multi-use seating with a stylish & purposeful open back

Vista II is a generously padded, stackable, multi-use chair suitable for a wide variety of spaces. This series is made of smooth curves and contoured, waterfall seats shaped perfectly through via seating’s proprietary, injection-mold, cold-cure foam process. The distance between the back and seat allows for easy clean up in healthcare environments.  The lovely arc of their rear legs provides a wall-saving frame. Choose between side/guest chair, stool or bariatric chair. For more options select a mesh back to play with a range of color and apply increased breathability. Available with Via Seating’s natural or black copper mesh, making this a perfect healthcare environment chair. Also offered in a poly poly, easy-clean version.

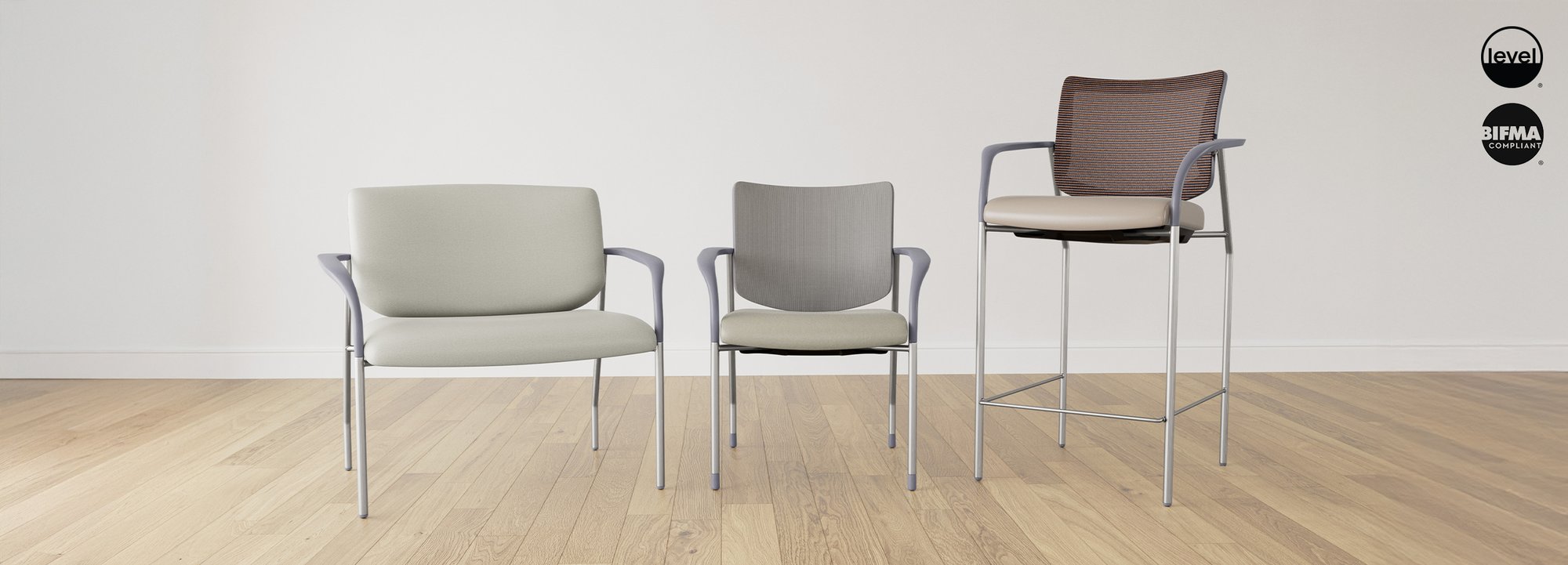

  • Applications: available as a stackable side/guest chair, 4-leg bar stool or bariatric chair.

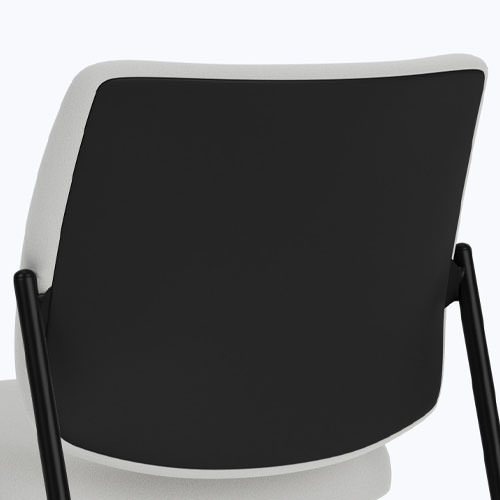

  • Backs: available with choice of a poly back, mesh back or upholstered back.
  • Mesh: available in multiple colors including natural or black, biocidal copper mesh.
  • Arms: option of armless, a black fixed arm or a grey fixed arm across all models.
  • Casters: all chair models can add casters.
  • Foam: high density, closed-cell, cold-cured, injection molded, foam using Via Seating’s proprietary process (backed by Via Seating’s 12 year warranty).
  • Max weight: 500 lb.
  • Quick ship: 20 chairs produced in a 48 hour period.
  • Warranty: 12 year warranty, 10 years for caster versions.



  • ANSI/BIFMA X7.1-2011 (R2016) Standard Method equivalent to CDPH Standard Method v1.1-2010 (Clean Air Gold).
  • LEED – v4.1 Low Emitting Materials (Clean Air Gold).
  • Living Building Challenge (LBC) – Imperative 08 (Clean Air Gold).
  • WELL – Feature 04 – VOC Reduction (Clean Air Gold).

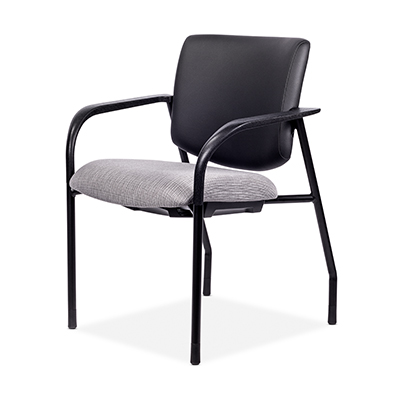

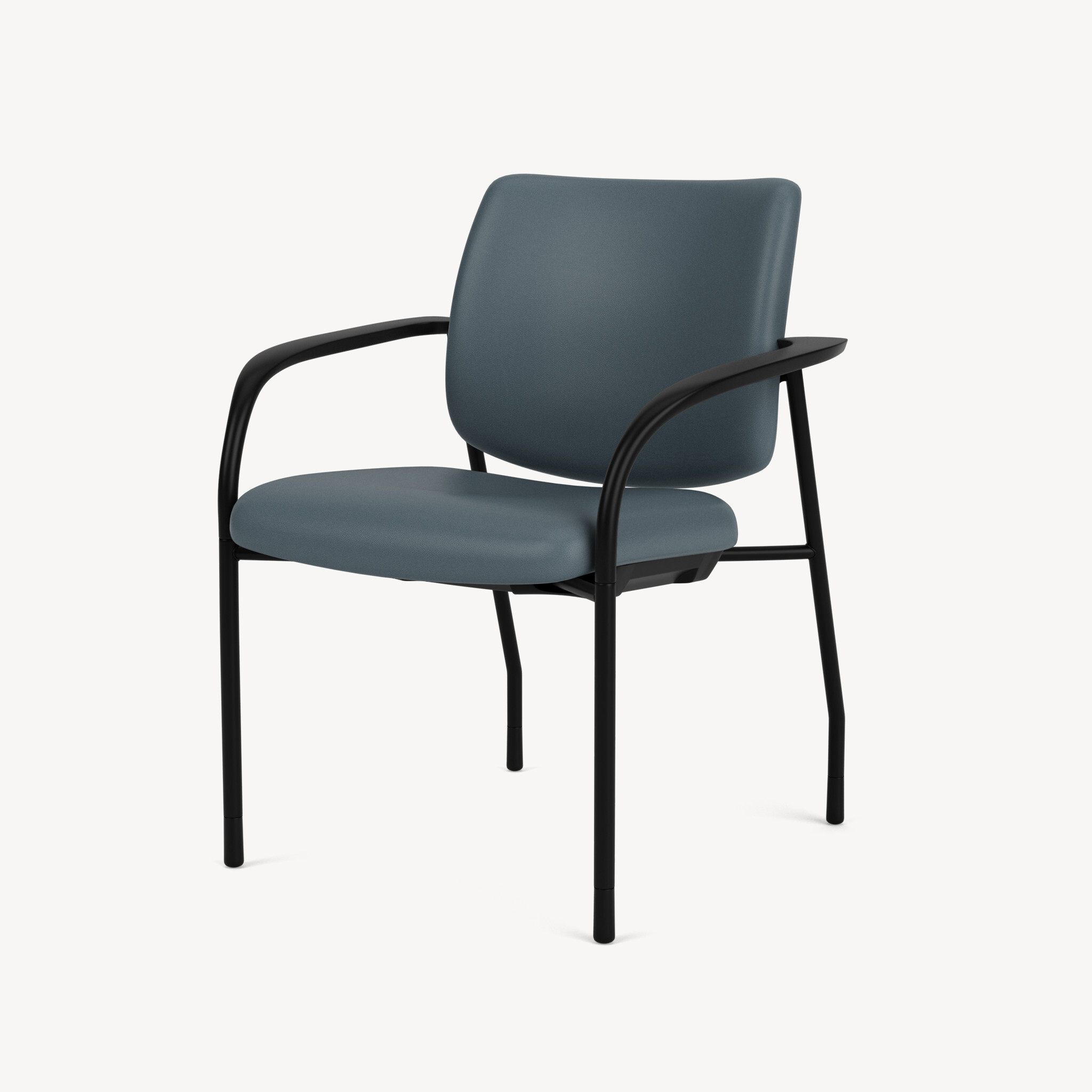

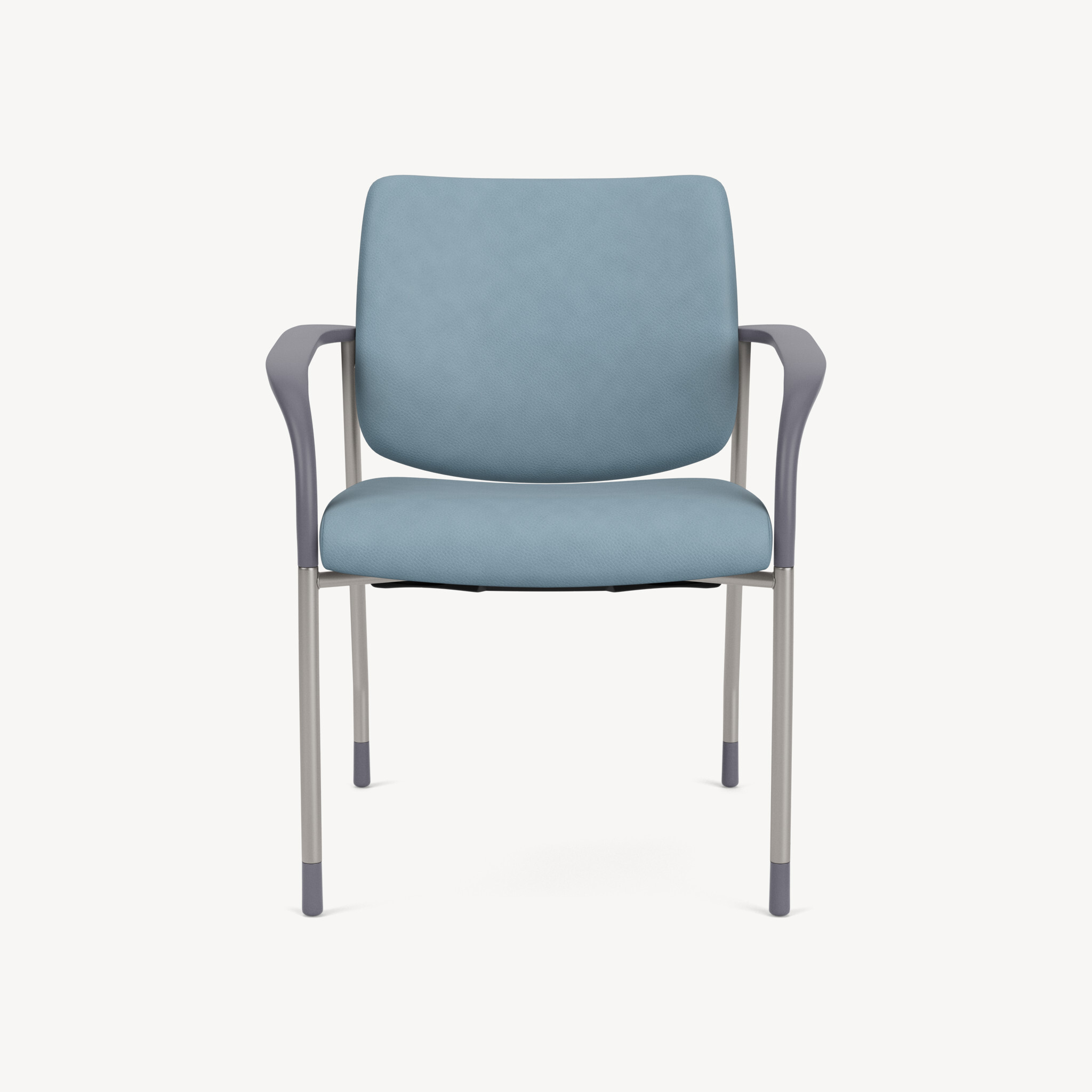

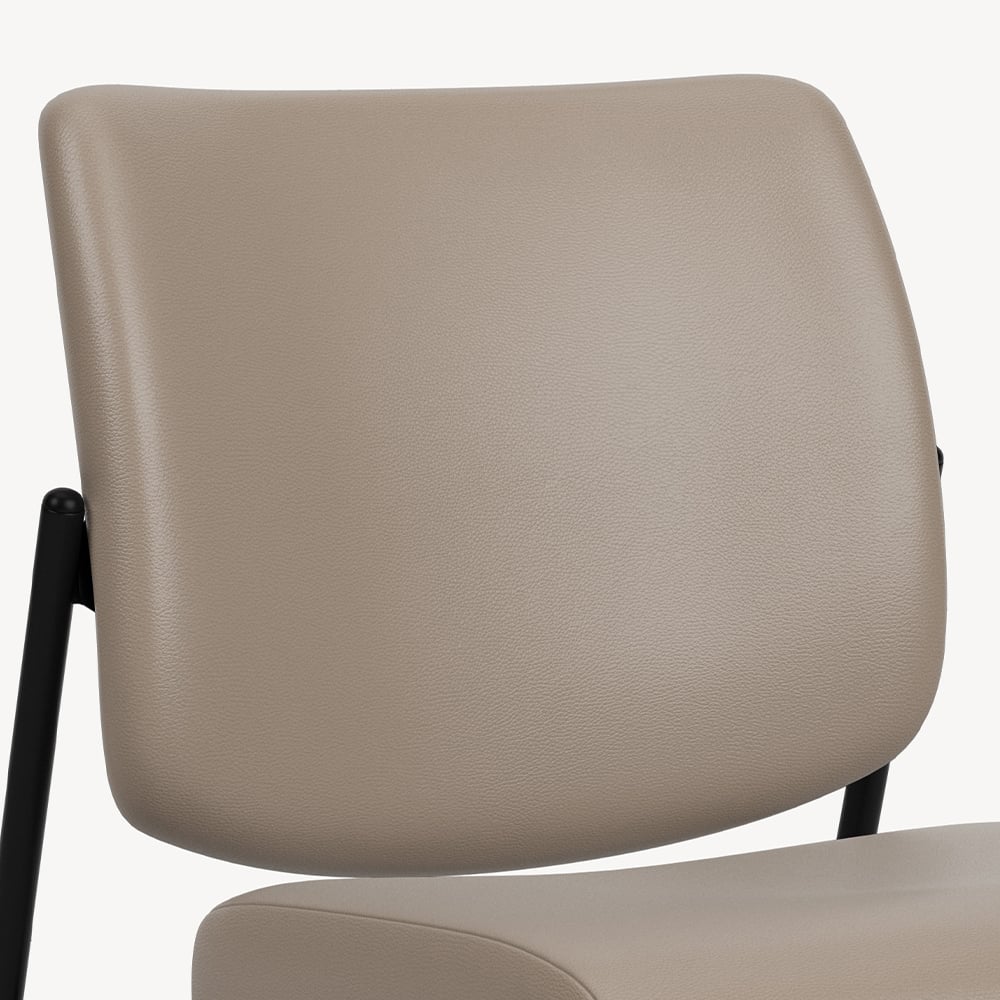

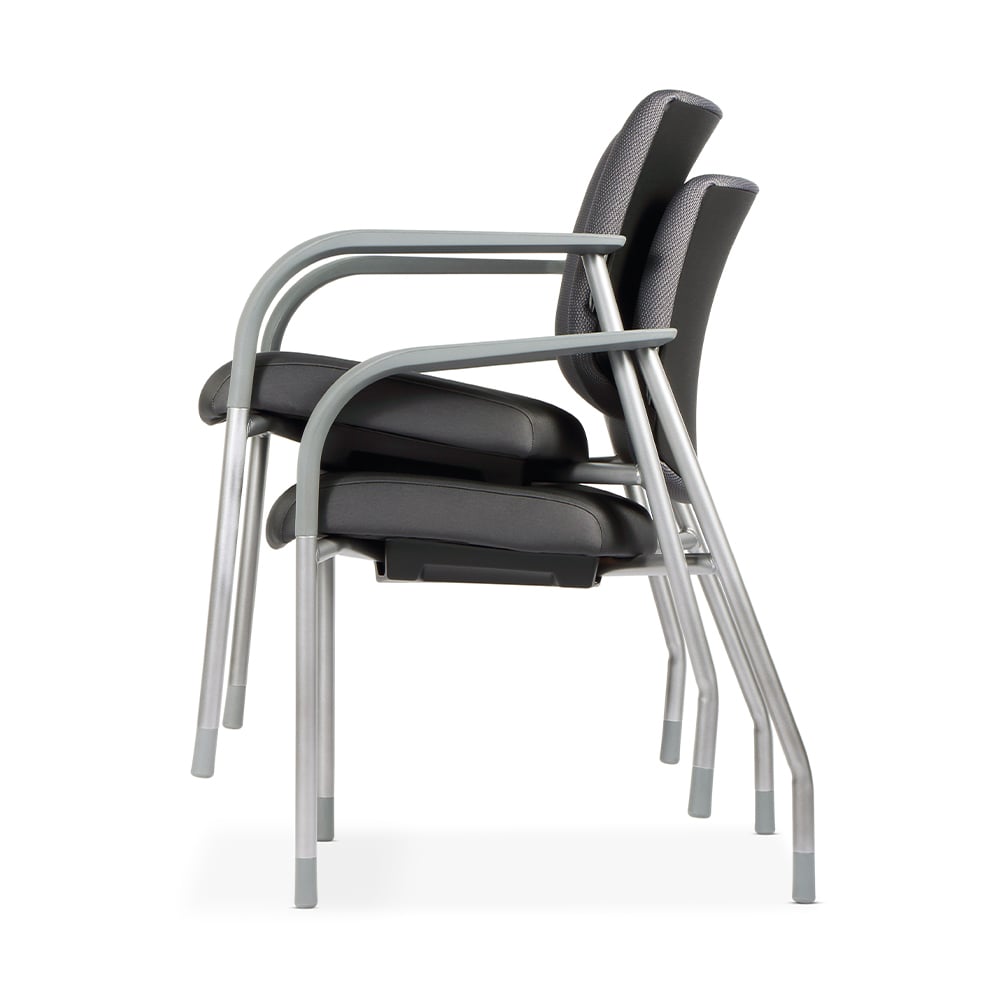

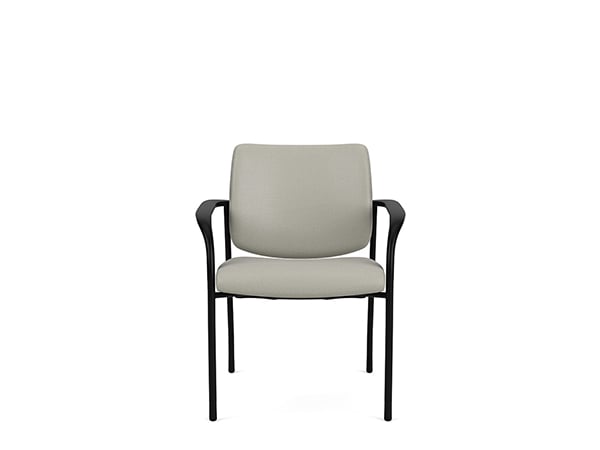

Upholstered Back, Stackable Chair. (302)

Upholstered Back, Stool. (303)

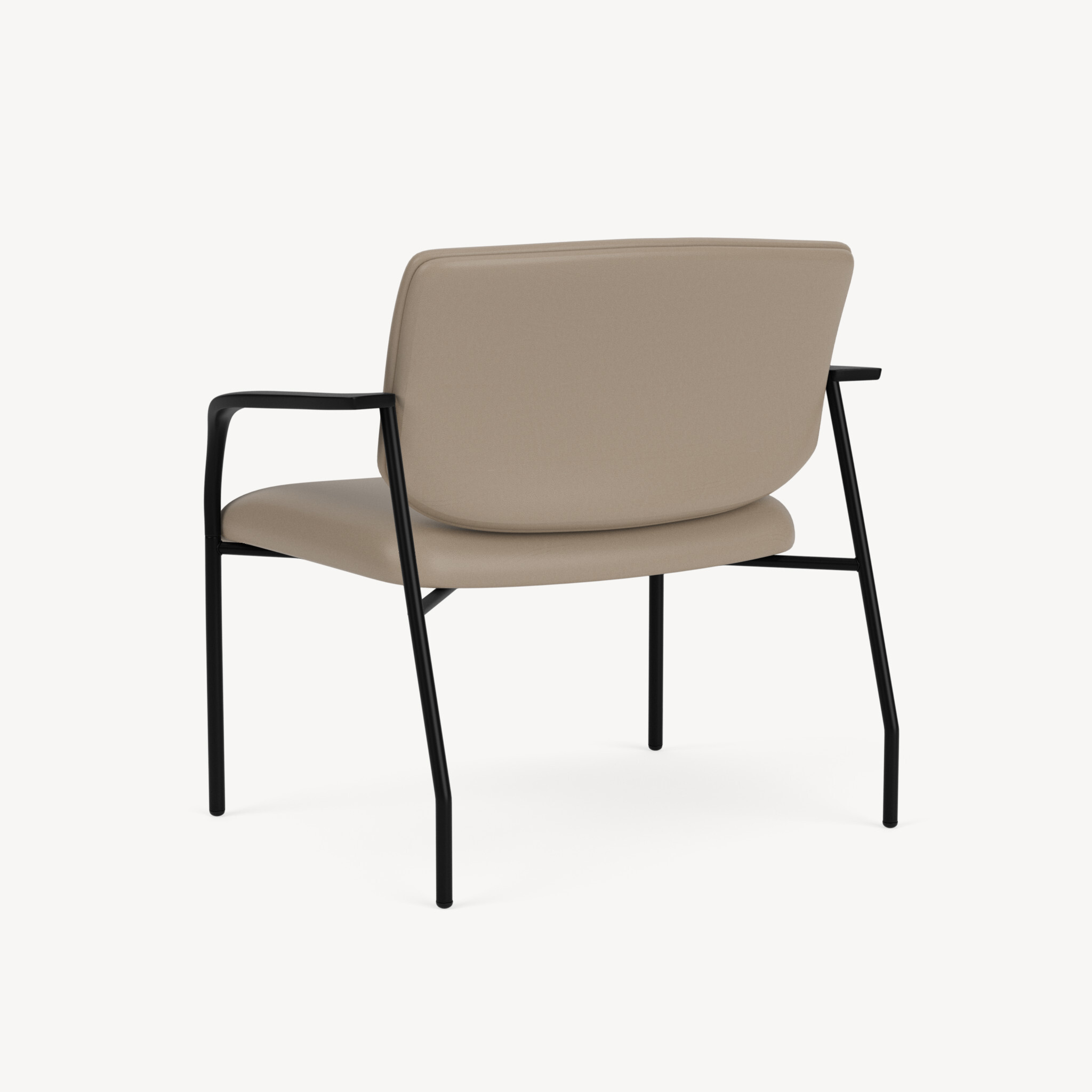

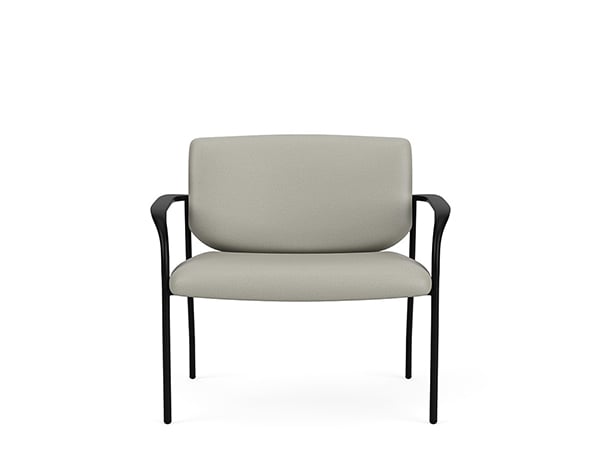

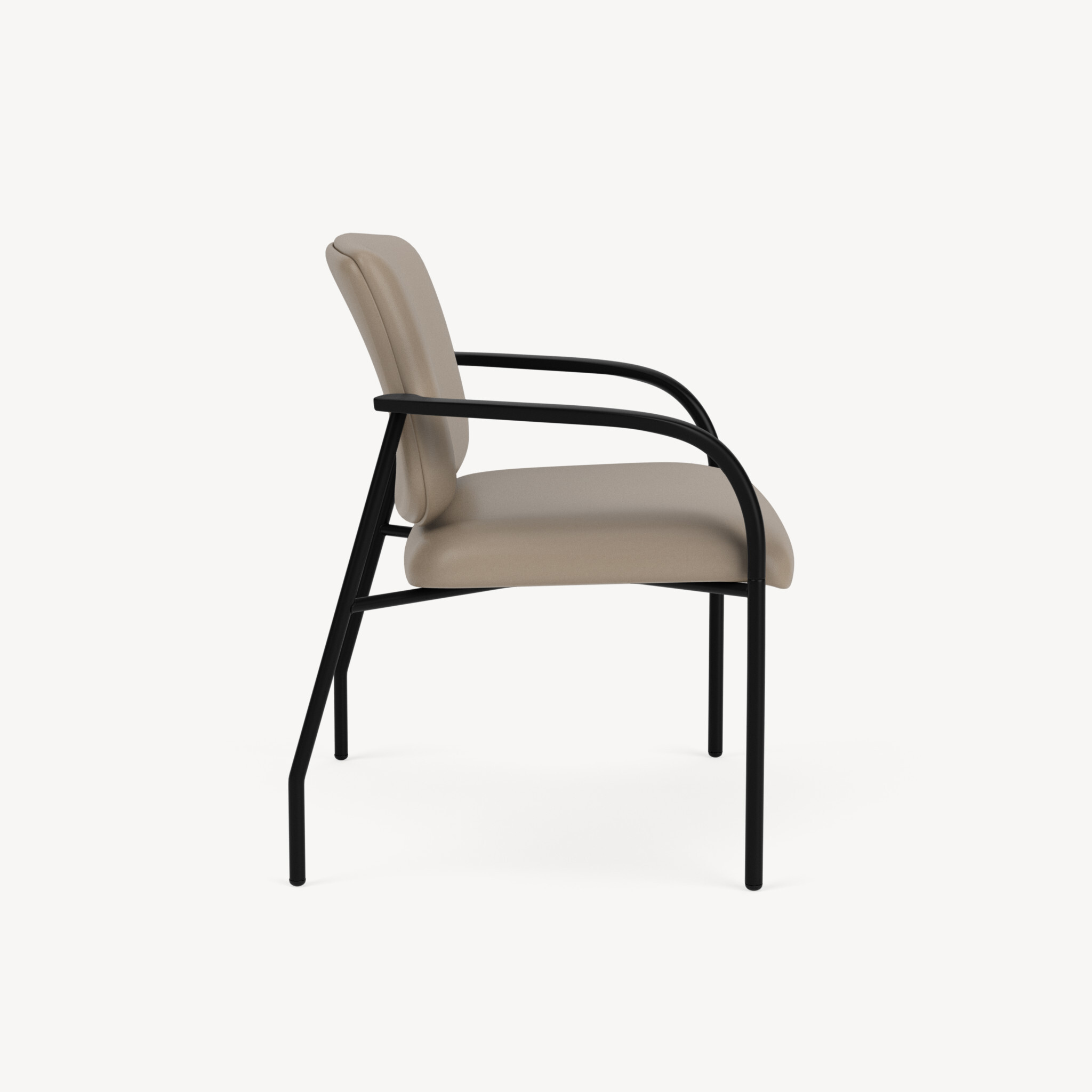

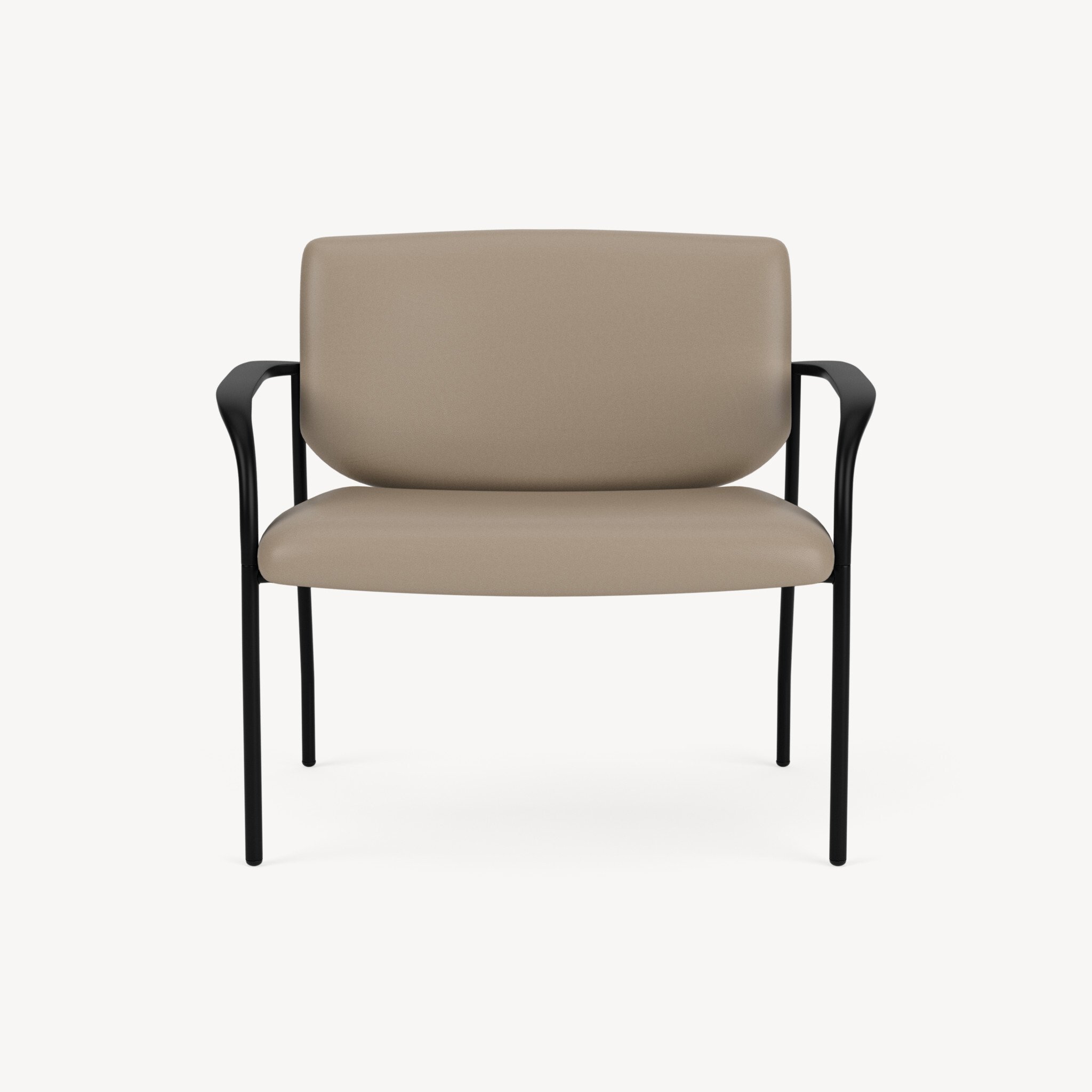

Bariatric Chair. (307)

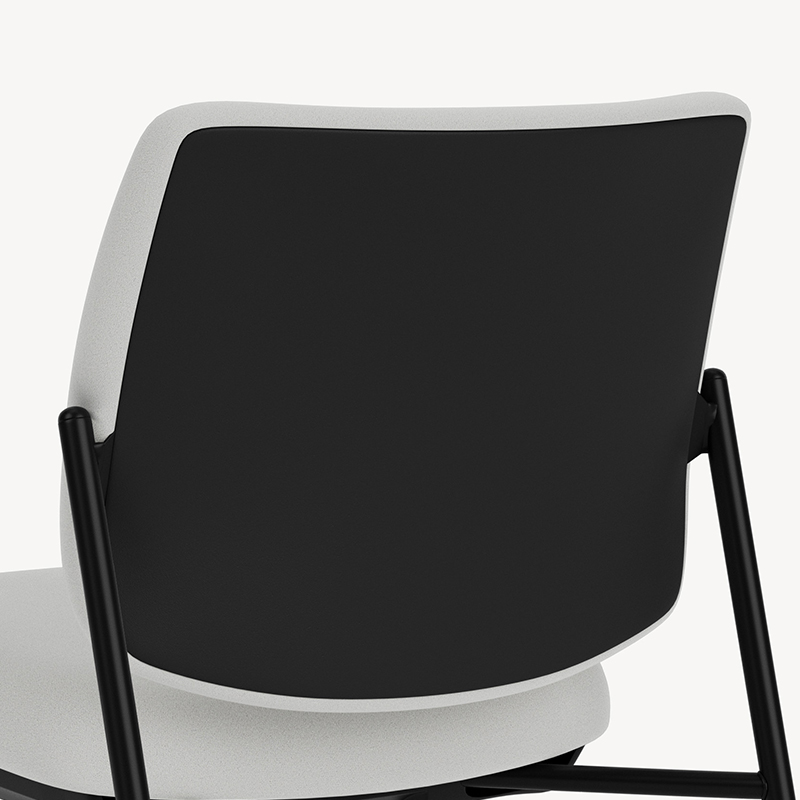

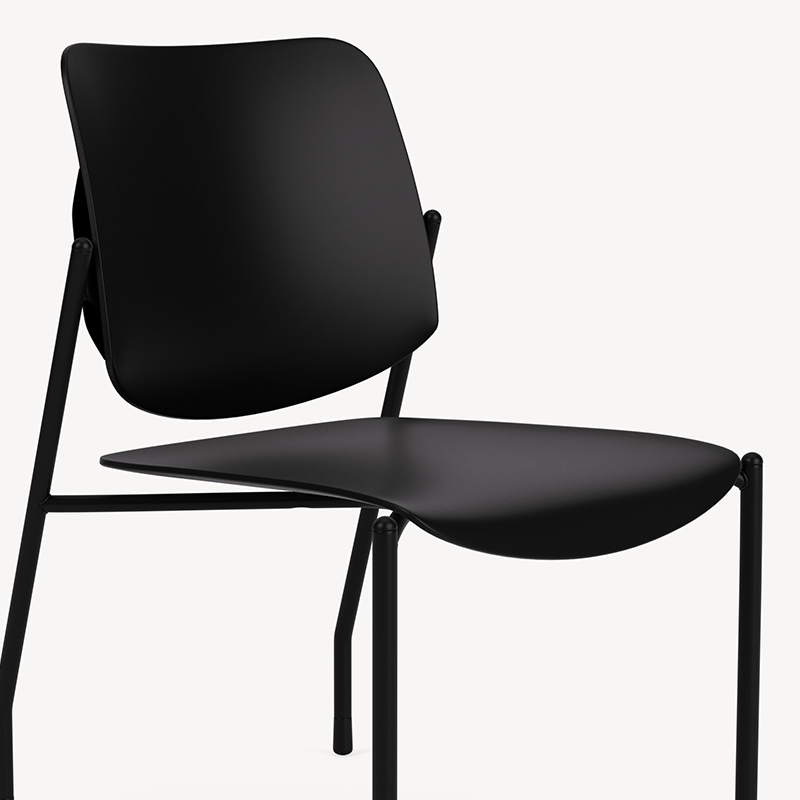

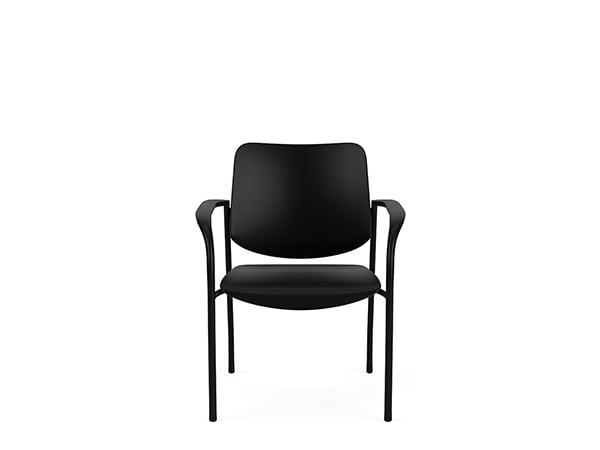

Poly Back, Stackable Chair. (330)

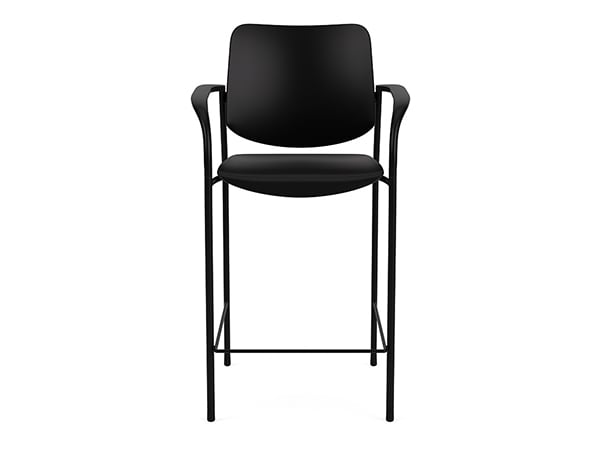

Poly Back, Stool. (331)

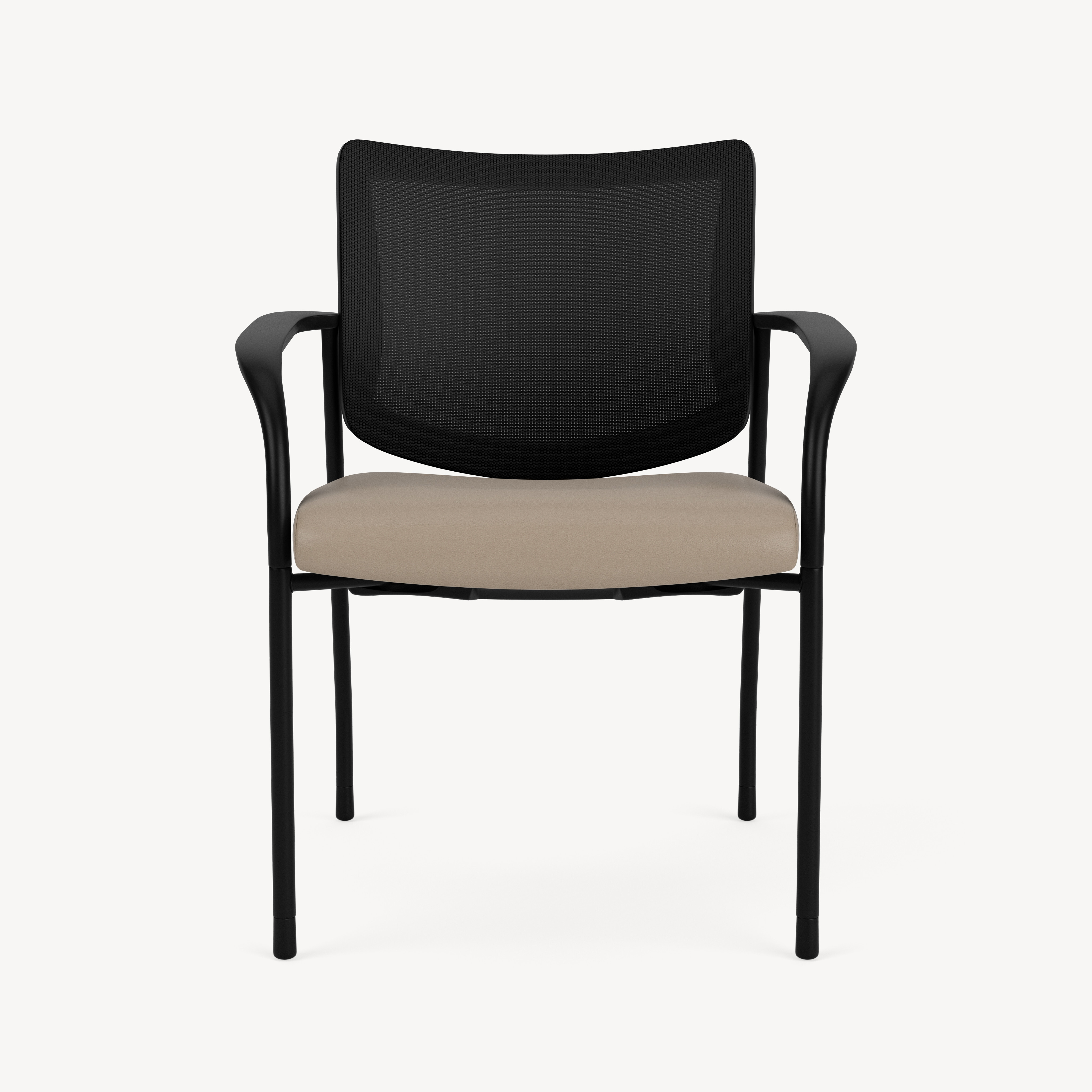

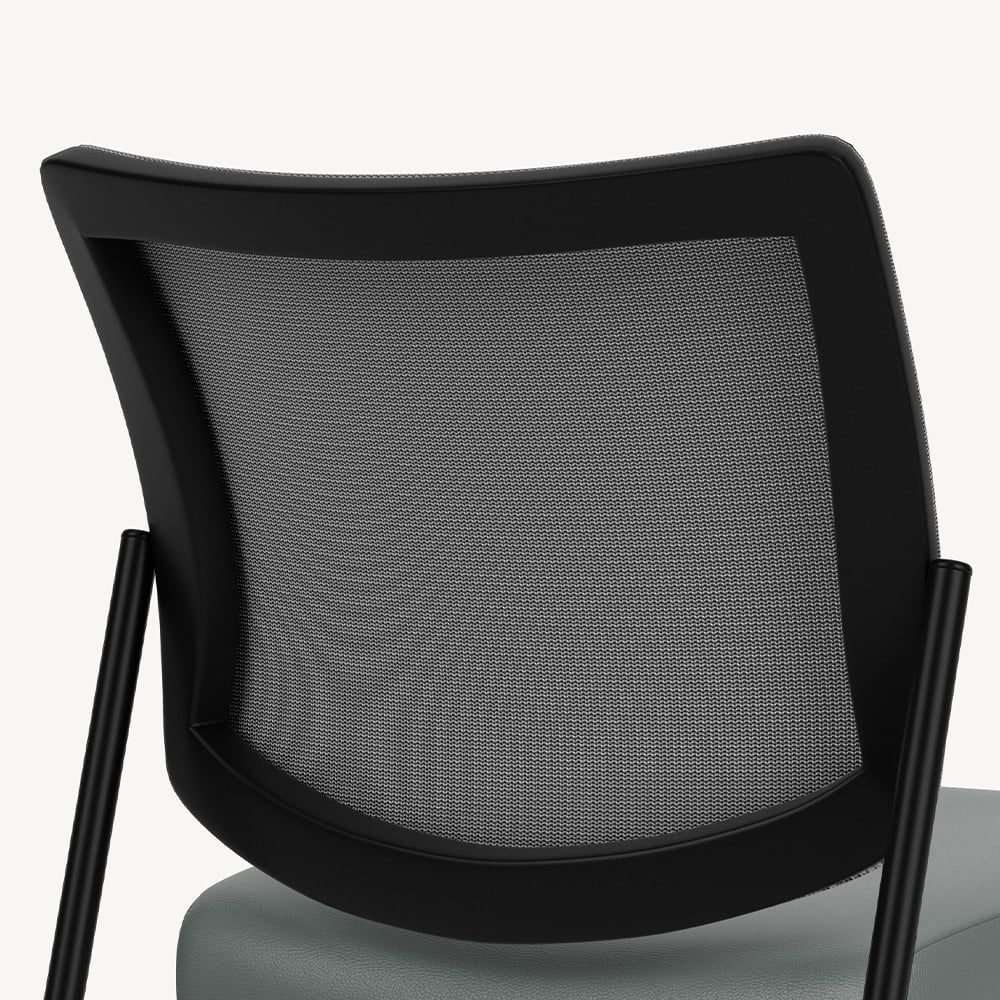

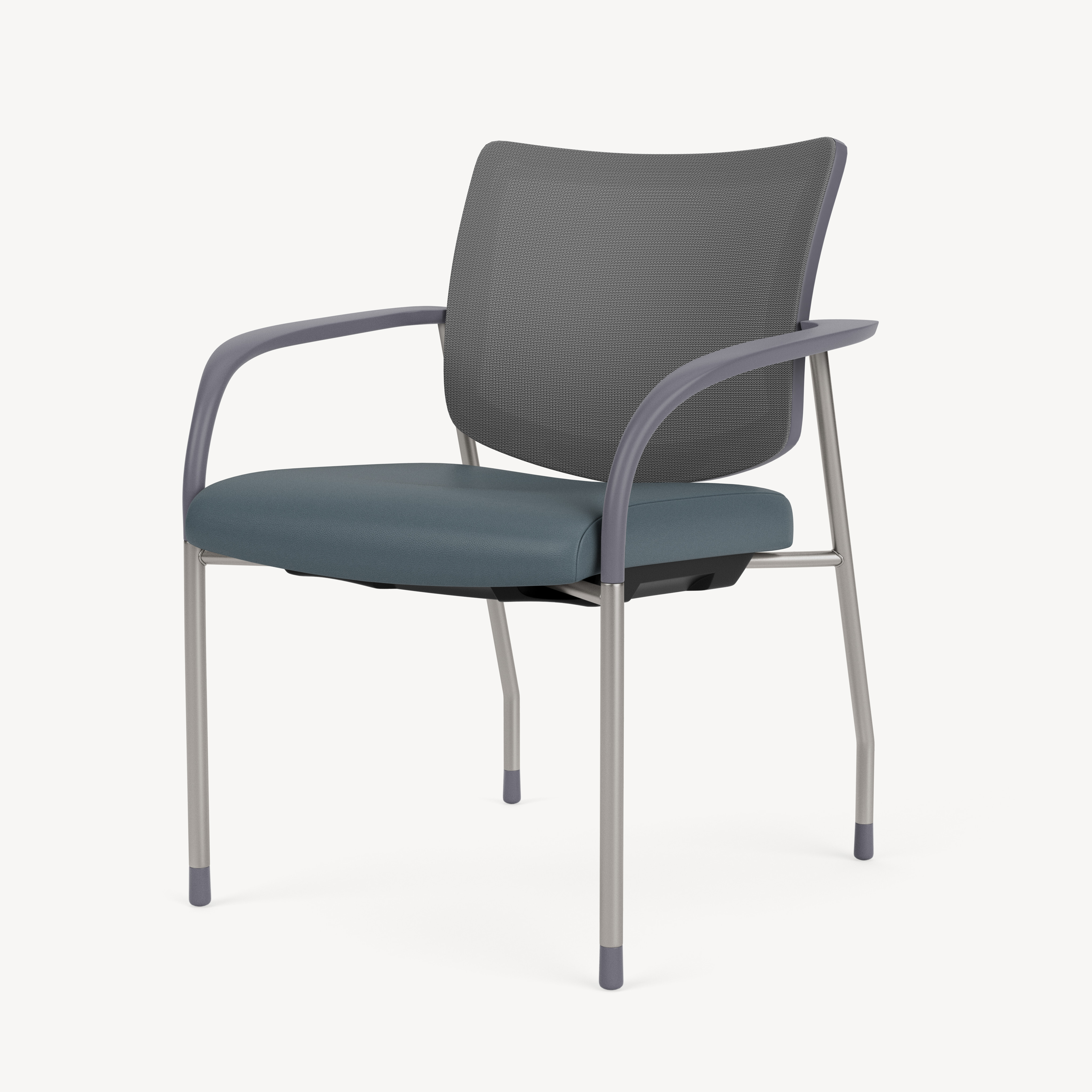

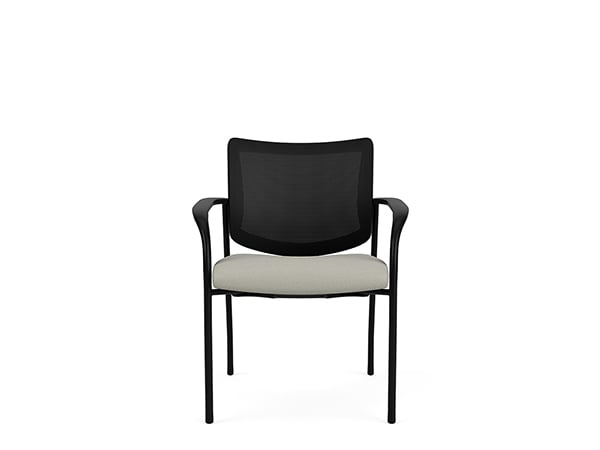

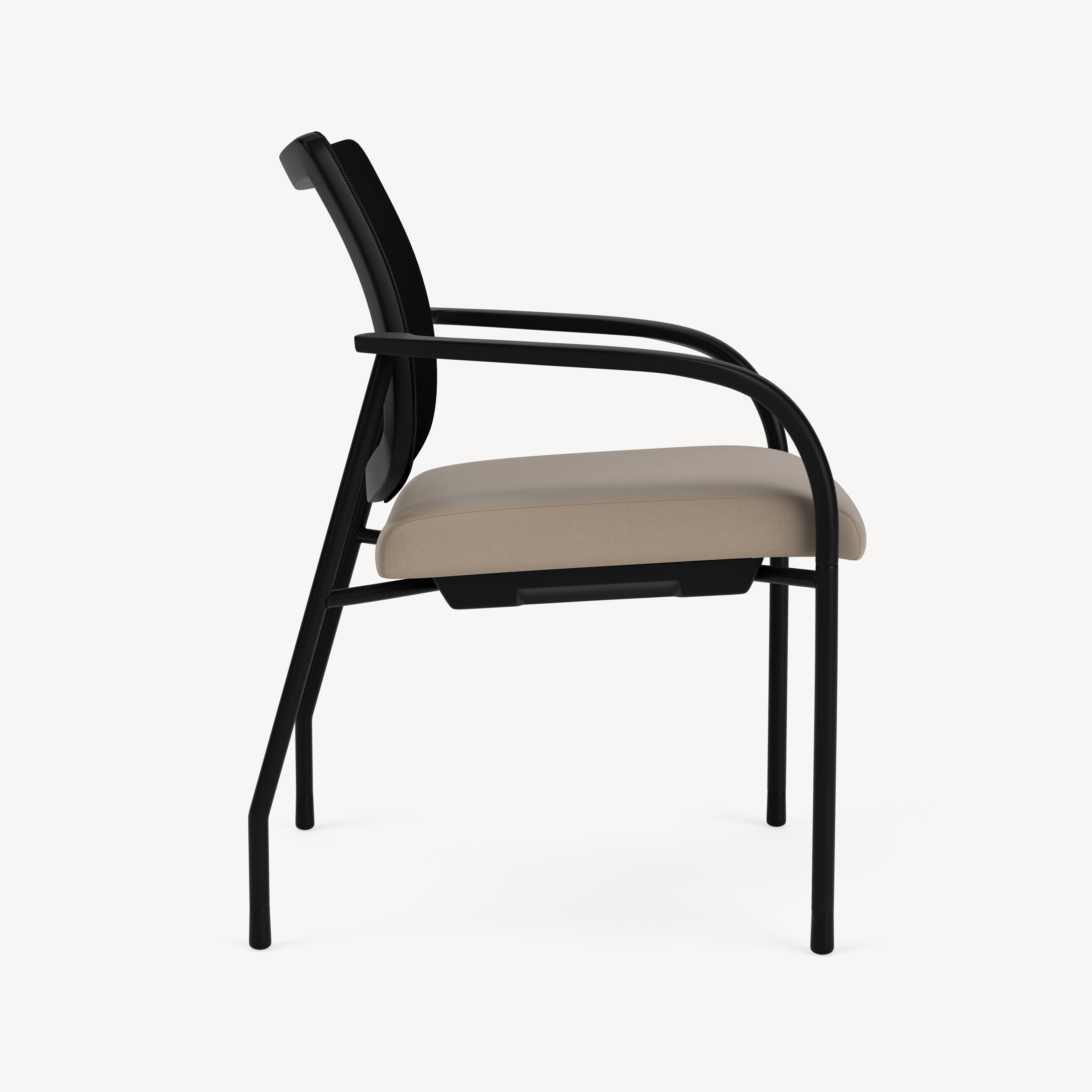

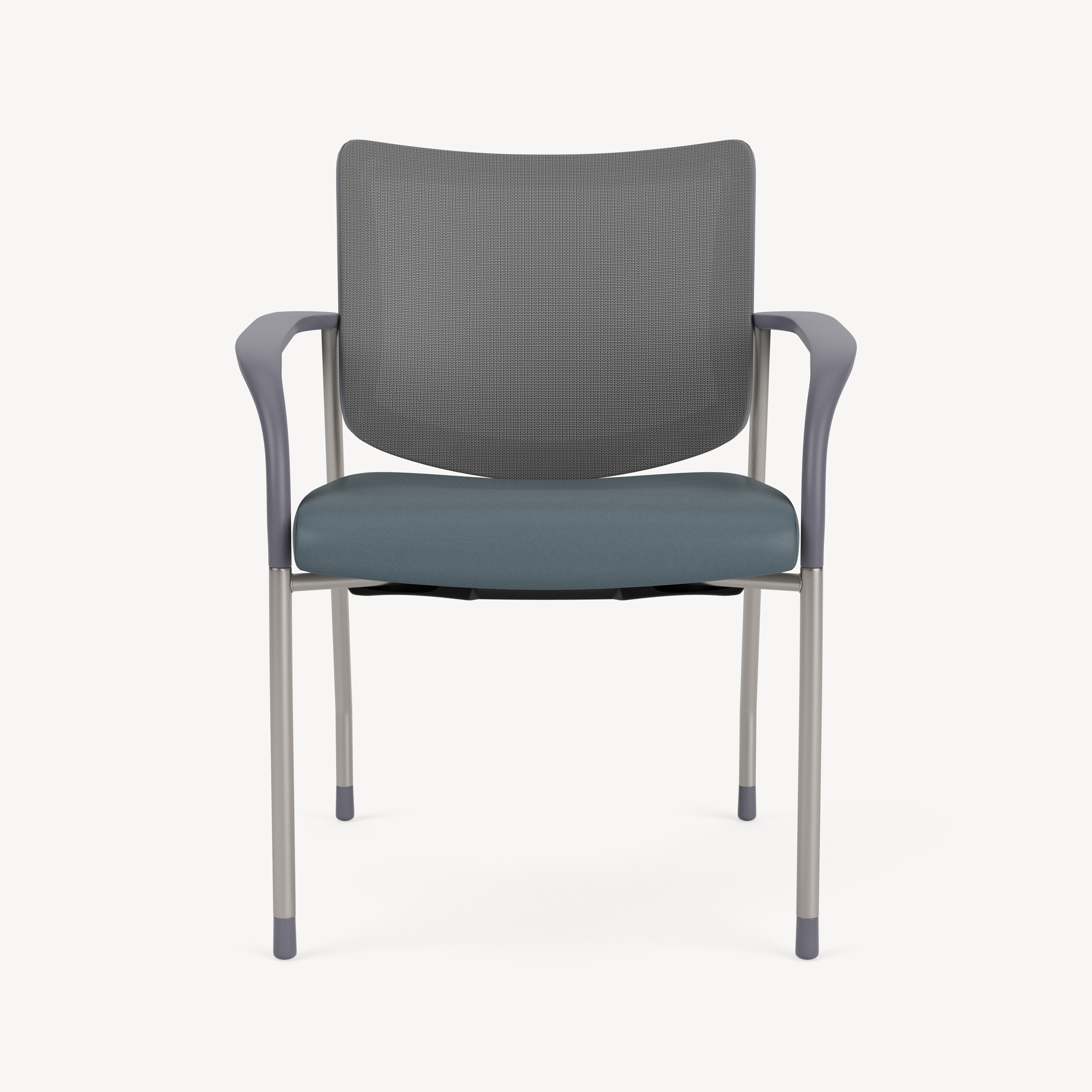

Mesh Back, Stackable Chair. (312)

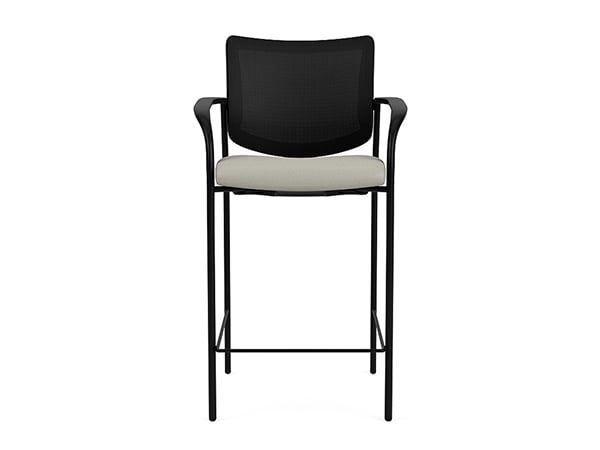

Mesh Back, Stool. (313)

finishes

  • Base & frame finishes.

    Matte black. (-B)

    • Black finish is standard.
    • Finish applied to framwork & 4-leg base.

    Silver. (-S)

    • Powder-coated finish.
  • Mesh framework finishes.

    Matte black.

    • Mesh framework finish when a mesh back model is paired with a black base.

    Matte grey.

    • Mesh framework finish when a mesh back model is paired with a silver base.

poly colors

mesh colors

arms

  • Armless standard.

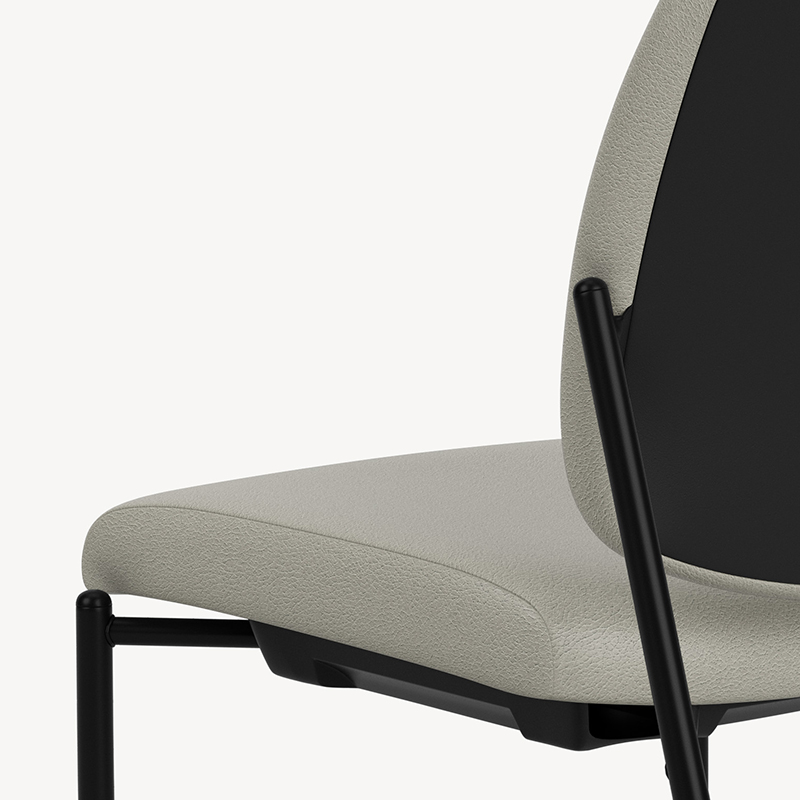

    Armless. (-0A)

    • Armless chairs are standard on all models.
  • Fixed arms.

    Black fixed arm. (-32A)

    • Available option with black frames.

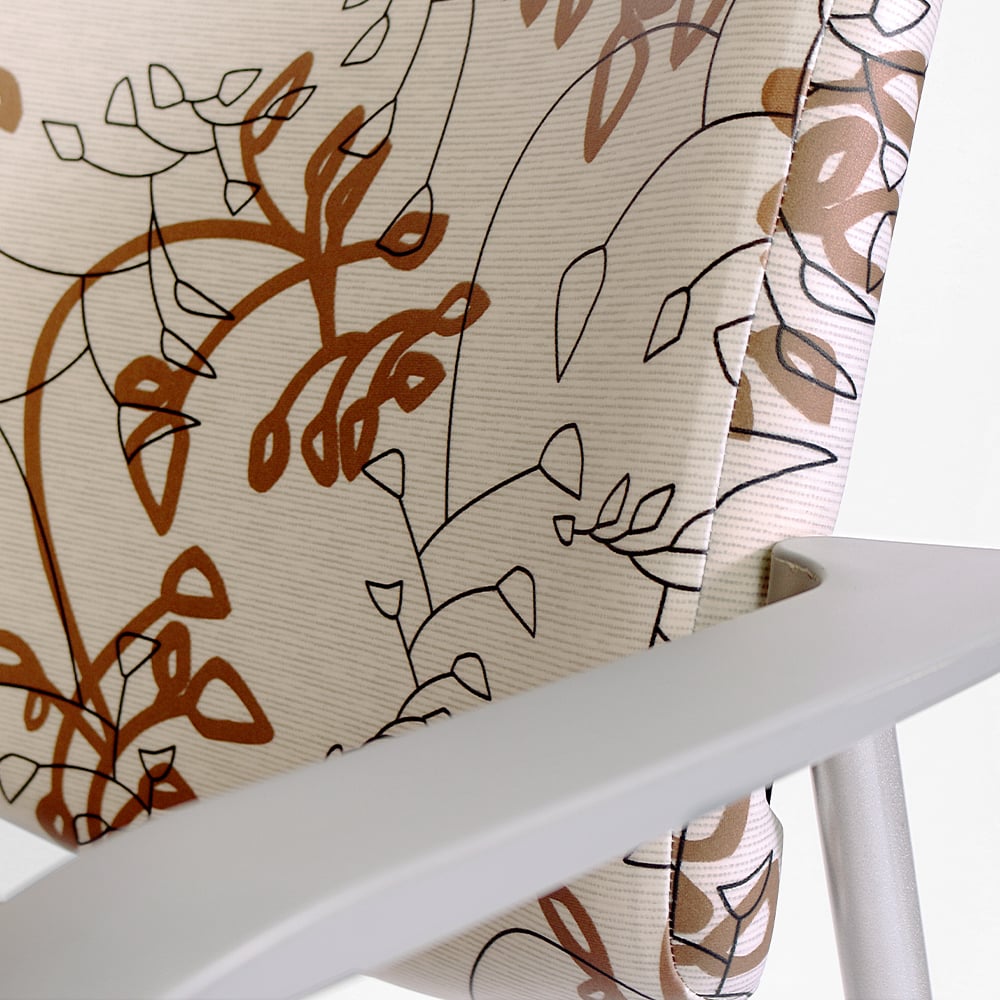

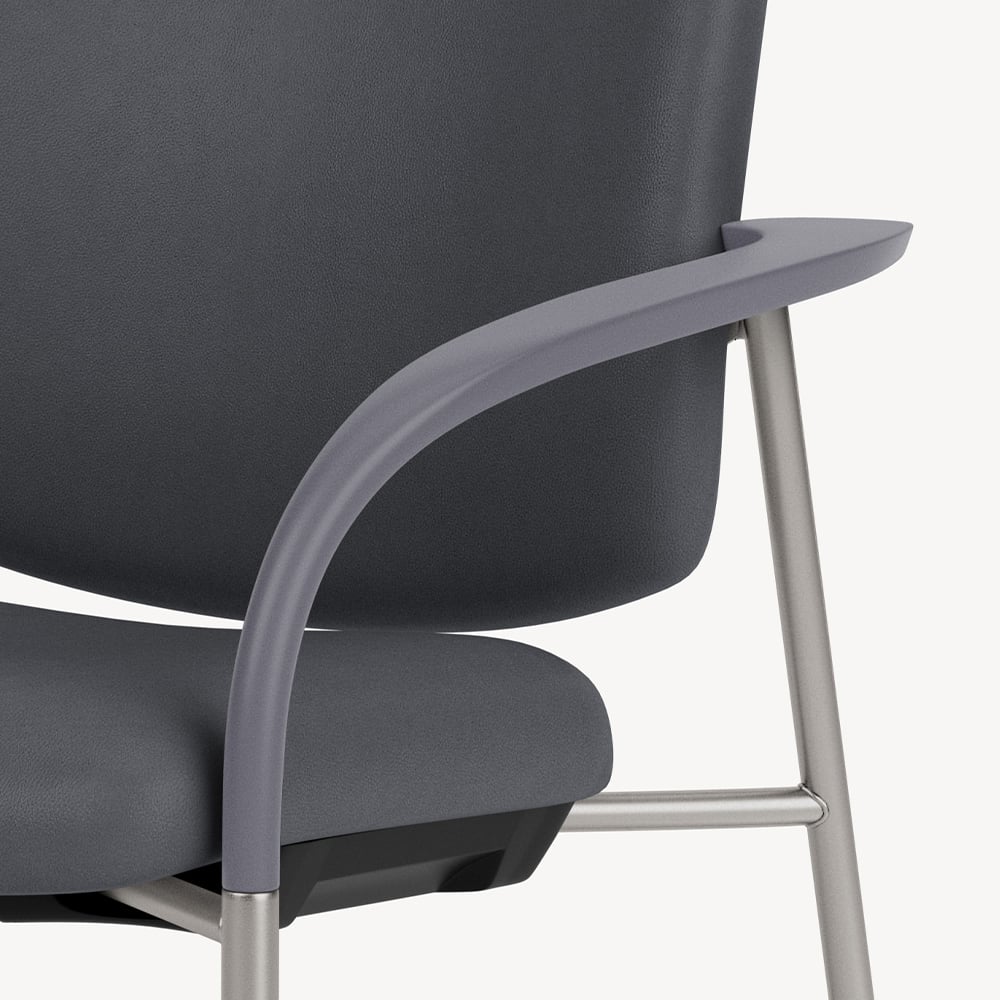

    Grey fixed arm. (-49A)

    • Available option with grey frames.

unique options

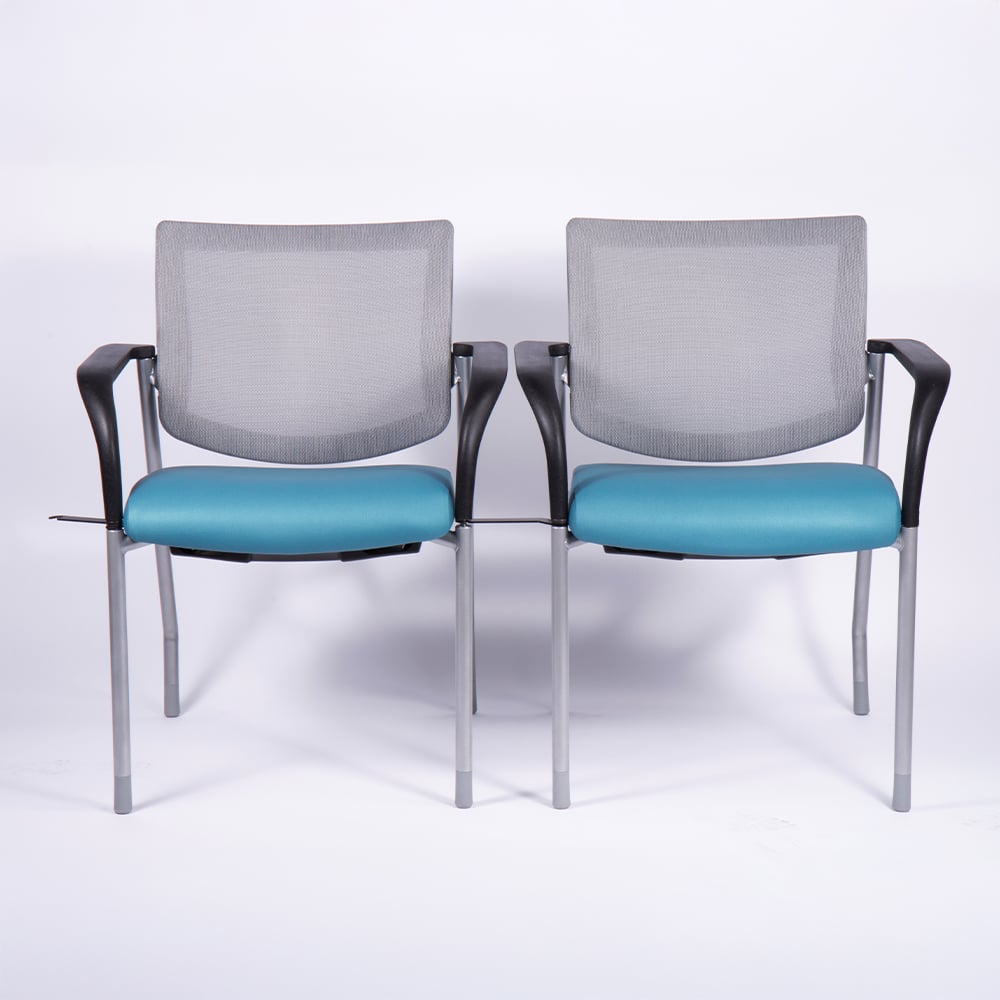

  • Ganging brackets.

    Unlockable latch, permanent ganging brackets. (-33GNGR)

    • Chairs can be unlocked and moved.
    • Mounts beneath arms.

    Fixed, permanent ganging brackets. (-33GNGP)

    • Mounts under the seats in place of the seat pans.
    • Brackets to be installed on site.

casters & glides

  • Casters.

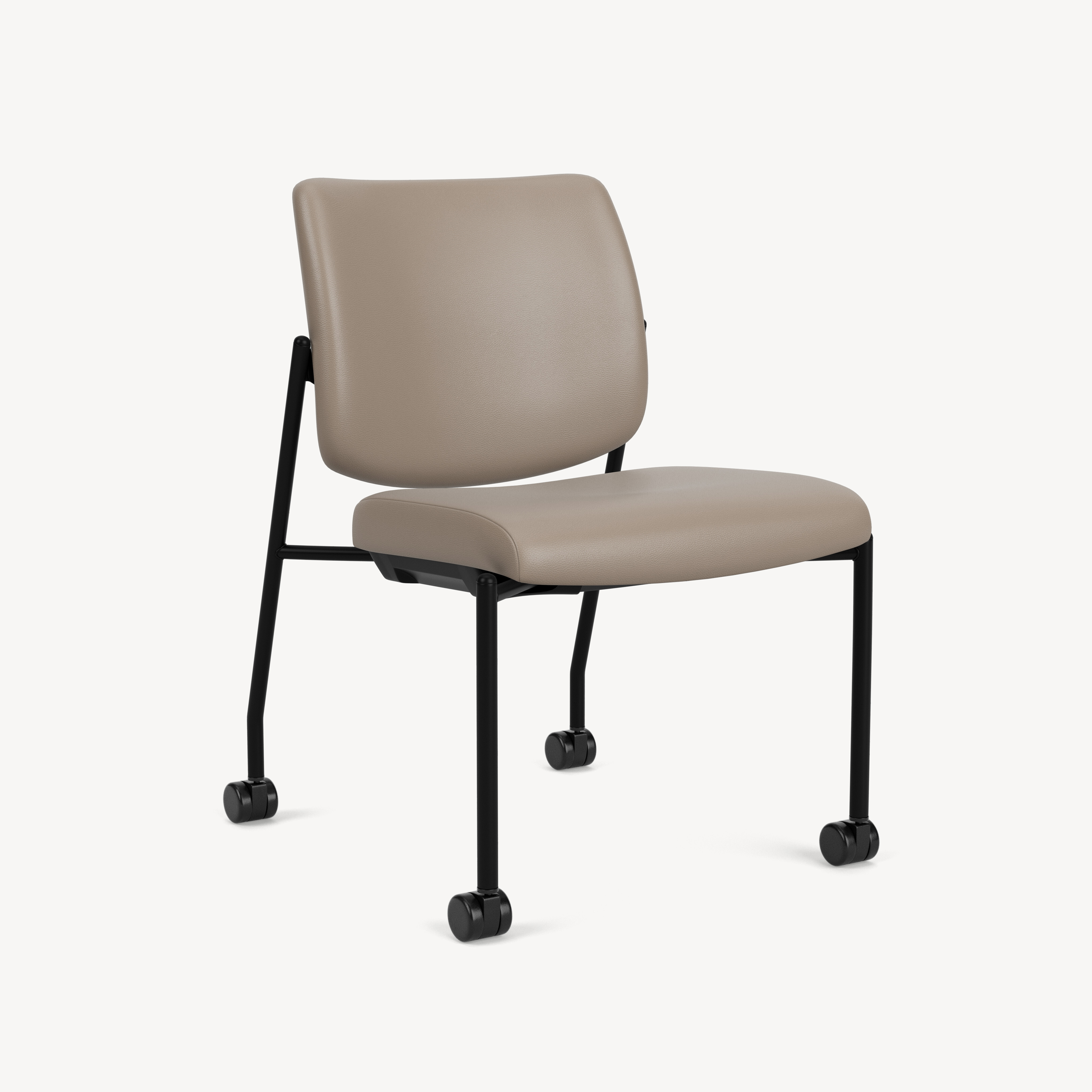

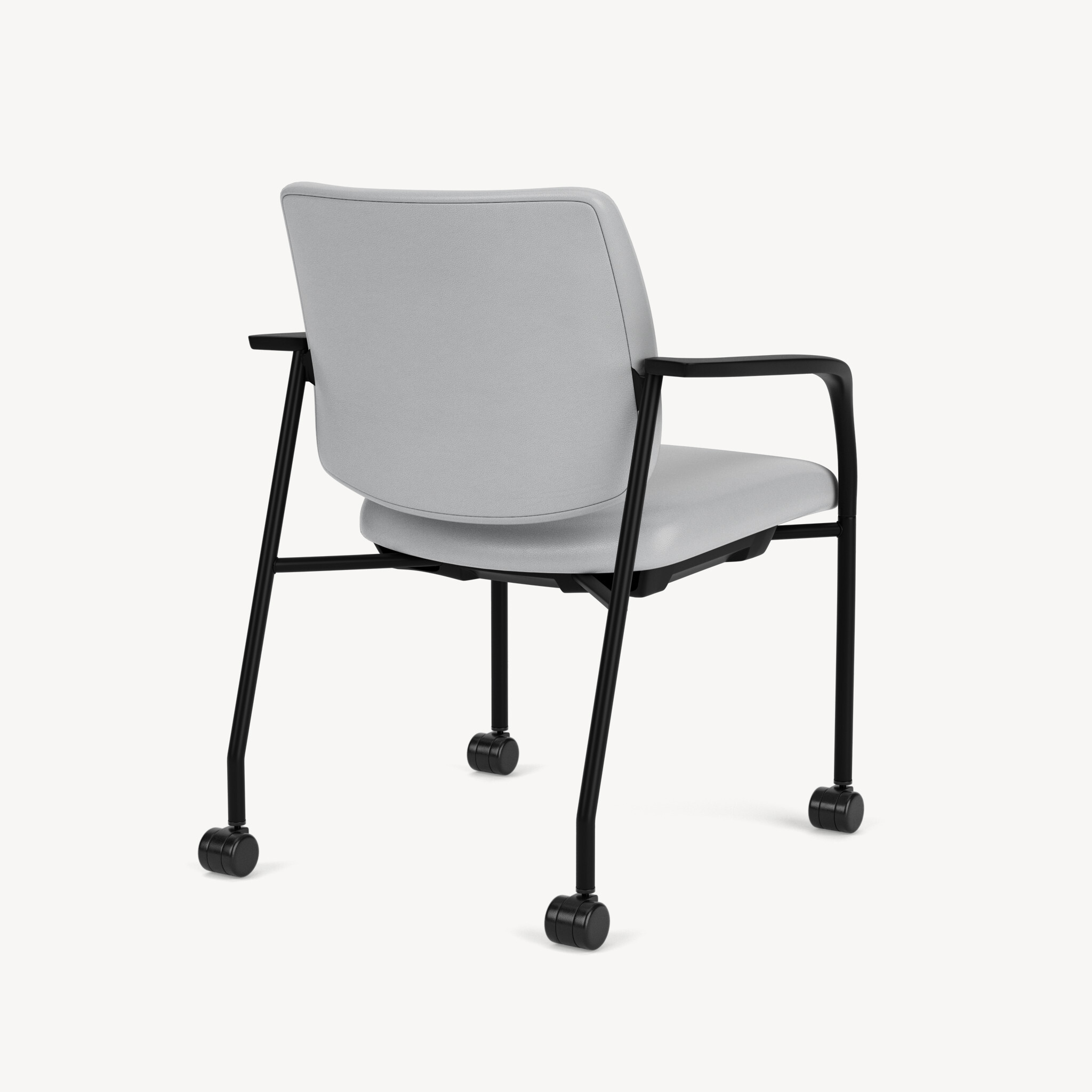

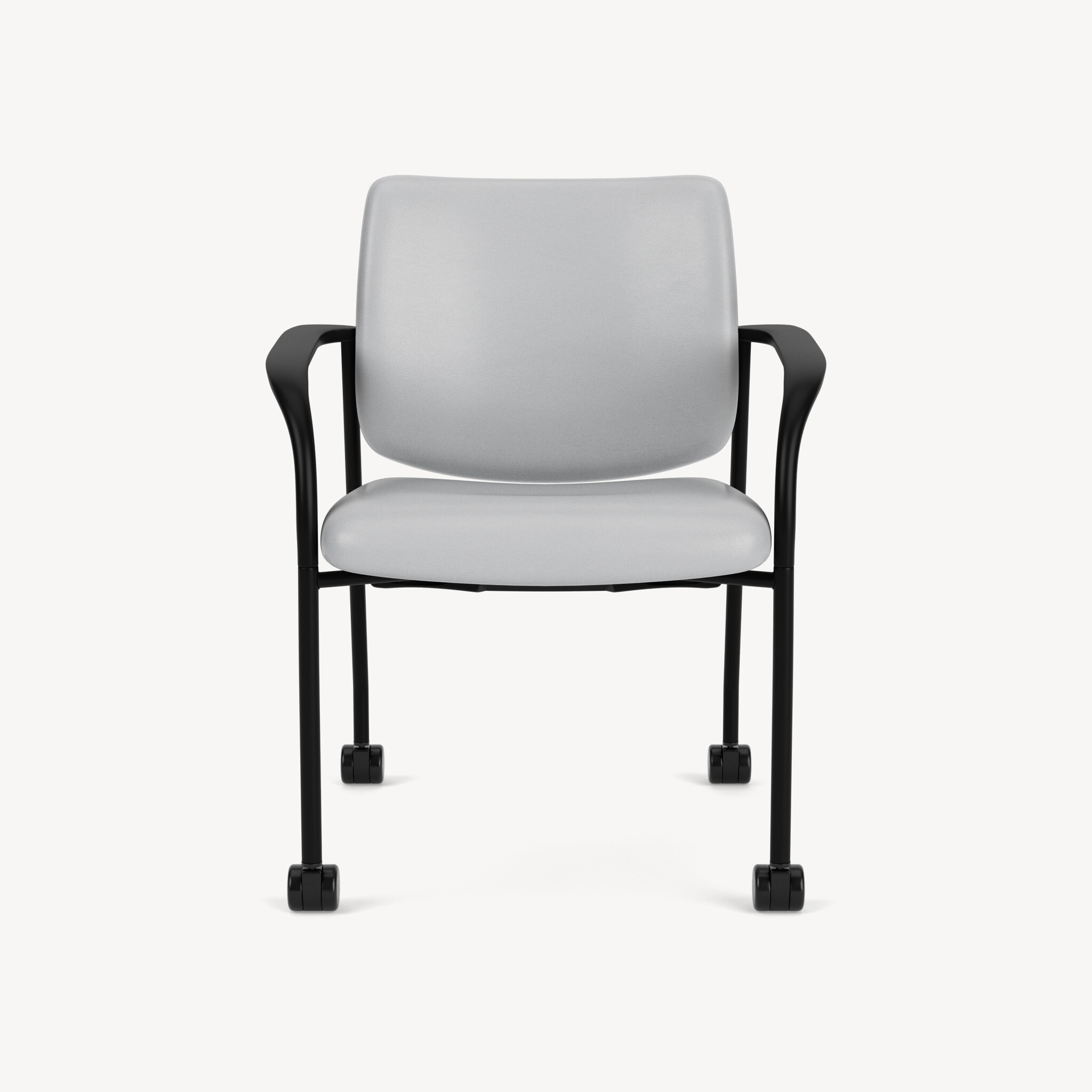

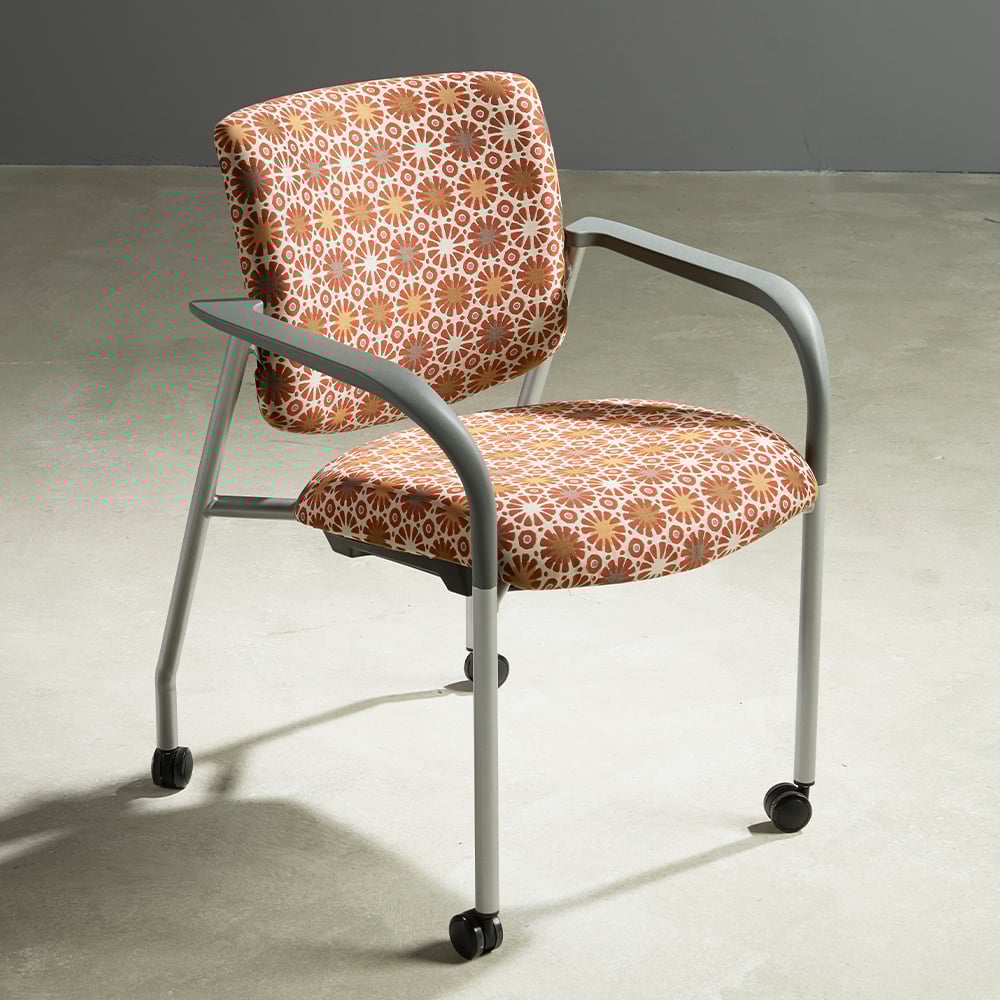

    Black hard floor & carpet casters. (-WH)

    • Optional on all chair models.
    • Max weight is 350 lb on chairs with casters.
  • Glides.

    Black glides.

    • Standard with black frames.

    Grey glides.

    • Standard with silver frames.

designed by Studio V

Studio V creates modern, sophisticated and original seating solutions that are ergonomic, beautiful and sustainable. This team of engineers and designers are based at the Via Seating Factory in Reno, Nevada, where they develop products using a prototyping lab, the latest in 3D modeling software and a materials testing center.

studio: Reno, Nevada.

Explore their design process here→

Dimensions recorded by Via Seating engineers using:

  • the BIFMA Chair Measuring Device® (CMD) &

  • the BIFMA Universal Measuring Procedure.

chair drawings

  • 4-leg Chairs.

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    Chairs.

    302, 312 & 330.
    Backs. 330 Poly Back. 312 Mesh Back. 302 Upholstered Back.
    A 33.4″ 33.4″ 33.4″
    B 17.1″ 19.5″ 19.5″
    C 18.1″ 18.5″ 18.5″
    D 19.0″ 19.0″ 19.0″
    E 8.5″ 17.1″ 17.2″
    F 25.3″ 25.3″ 25.3″
    G 19.2″ 18.7″ 18.4″

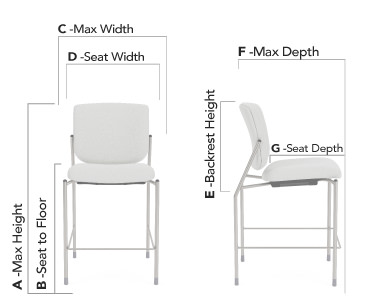

  • Bar stools.

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    Stools.

    303, 313 & 331.
    Backs. 330 Poly Back. 312 Mesh Back. 302 Upholstered Back.
    A 46.7″ 46.7″ 46.7″
    B 29.8″ 29.8″ 29.8″
    C 18.8″ 18.8″ 18.8″
    D 19.0″ 19.0″ 19.0″
    E 8.5″ 17.1″ 17.2″
    F 25.3″ 25.3″ 25.3″
    G 19.2″ 18.4″ 18.7″

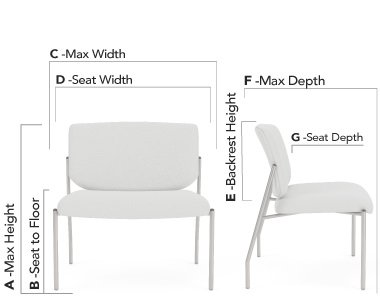

  • Bariatric chairs.

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    Bariatric chairs.

    307.

    A. 35.4″
    B. 21.3″
    C. 30.0″
    D. 29.5″
    E. 17.5″
    F.  28.8″
    G. 17.6″

seat drawings



Seat Reference Point (SRP),
The ergonomic seat depth measurement.



Measurement G (and not measurement H) is the true seat reference point. SRP is an ergonomic term that defines where there is a slight indentation in the lumbar (i.e. where the sitter is benefiting from the lumbar support) to the front edge of the seat. It gives the true measurement of surface area in contact with the body. It is very useful for correctly matching up with hip to knee measurements for ergonomists taking into account the two – three finger gap between the back of the leg to the edge of the seat. It is very important to ensure no restriction in circulation to the lower extremities (lower legs and ankles).

  • Chair seats.

    C. Seat width.

    G. Seat depth.

    H. Seat depth of the seat off the chair.

    Chairs seats.

    302, 312 & 330.
    Backs. 330 Poly Back. 312 Mesh Back. 302 Upholstered Back.
    C 18.1″ 18.5″ 18.5″
    G 19.2″ 18.7″ 18.4″
    H 25.0″ 19.1″ 19.1″
  • Stools seats.

    C. Seat width.

    G. Seat depth.

    H. Seat depth of the seat off the chair.

    Stools.

    303, 313 & 331.
    Backs. 330 Poly Back. 312 Mesh Back. 302 Upholstered Back.
    C 18.1″ 18.5″ 18.5″
    G 19.2″ 18.7″ 18.4″
    H 25.0″ 19.1″ 19.1″
  • Bariatric chairs.

    C. Seat width.

    G. Seat depth.

    H. Seat depth of the seat off the chair.

    Bariatric chairs.

    307.

    C.  30.0″
    G.  17.6″
    H.  18.8″

arms drawings

  • Chairs: fixed arms.

    J. Armrest length.

    K. Armrest height.

    L. Armrest width.

    M. Width between armrests.

    Fixed arms.

    -32A & -49A.

    J.   14.4″
    K.   5.7″
    L.   25.8″
    M.  21.8″

  • Stools: fixed arms.

    J. Armrest length.

    K. Armrest height.

    L. Armrest width.

    M. Width between armrests.

    Fixed arms.

    -32A & -49A.

    J.   14.4″
    K.   5.7″
    L.   25.8″
    M.  21.8″

  • Bariatric chairs: fixed arms.

    J. Armrest length.

    K. Armrest height.

    L. Armrest width.

    M. Width between armrests.

    Fixed arms.

    -32A & -49A.

    J.   14.4″
    K.   8.1″
    L.   36.5″
    M.  32.0″
