Splash collection

build & spec →
Splash models clockwise: 801-C-01-0A (jet black) | 801-C-05-0A (sand) | 801-C-04-0A (cobalt blue) | 801-C-02-0A (window grey) | 801-C-07-0A (carmine red).

splash into an extensive depth of options

Splash models clockwise: 801-C-01-0A (black) | 801-C-05-0A (sand) | 801-C-04-0A (blue) | 801-C-02-0A (grey) | 801-C-07-0A (red).
Splash models: 802-C-03-SA2-S03-3S-8US-COM.
Splash chair model: 802-C-03-SA2-12S-8US | Textile: Spradling Silvertex Bazaar. | Splash stool model: 807-C-03-SA2-12S-8US | Textile: Spradling Silvertex Bazaar.
Splash models: 802-C-03-0A-3S.
Splash models: 801-C-04.
Splash models: 802-C-01-SA2-S01-81TABB-R-8US. | Textile: Momentum Origin Eureka.
Various mesh back models.
Various mesh back models with #81BOOKC book rack & #81TABW-R white arm tablet.

Splash by designers Alberto Basagalia & Natalia Rota Nodari is a multi-faceted, sophisticated series designed to accommodate a wide variety of spaces.  This mobile seating series includes high-density stacking side/guest chairs, stacking stools, light task training chairs, and light task stools. Use Splash in training rooms, stacking the chairs on or off their durable, mobile carts.  Use Splash in classrooms applying book racks and tablets to the chair or stool arms.  Splash is a perfect light task solution, available as both a 4-star base chair or stool.  Keep it classy with Splash’s various monotone shades or apply pops of color to its poly shells, optional mesh backs and optional upholstered components.  Splash delivers an elegant, Italian-designer, versatile collection made perfect for a range of applications all at an economic price.

  • Applications: stackable chairs, bar/counter stools, light task chairs & light task stools.
  • Backs: chair models are available with mesh, poly or upholstered back.
  • Seats: seats are available as poly or upholstered.
  • Plastic colors: poly & soft backs available in 7 colors, mesh backs available in 3 colors.
  • Mesh: high-performance mesh is offered in 9 colors including natural & black Via Seating biocidal copper mesh.
  • Stackable: the sled base chairs  are stackable on or off the optional high density stacking carts.
  • Bases: sled bases & swivel bases.
  • Max weight: 275 lb.
  • Quick ship: 20 chairs produced in a 48 hour period.
  • Warranty: 6 year warranty, 5 years for mesh.



  • ANSI/BIFMA X7.1-2011 (R2016) Standard Method equivalent to CDPH Standard Method v1.1-2010 (Clean Air Gold).
  • LEED – v4.1 Low Emitting Materials (Clean Air Gold).
  • Living Building Challenge (LBC) – Imperative 08 (Clean Air Gold).
  • WELL – Feature 04 – VOC Reduction (Clean Air Gold).
  • Meets the Practice Greenhealth, Health Care Without Harm Healthy Interiors Criteria for Seating.



Poly back stackable chair. #801

Mesh back stackable chair. #802

High-density stacking cart for chairs. #800C

  • Works with models 801 & 802 only.

Poly back stackable counter stool. #813

Mesh back stackable counter stool. #814

Poly back stackable bar stool. #807

Mesh back stackable bar stool. #808

Poly back light task chair. #805

Poly back light task stool. #805-11DR

  • Available on model 805 only.

Mesh back light task chair. #806

Mesh back light task stool. #806-11DR

  • Available on model 806 only.

finishes

poly colors

mesh colors

  • Mesh colors.

    Black. #1S

    • Black mesh is standard.

    Silver. #2S

    Coffee. #8S

    Blue. #3S

    Green. #5S

    Cardinal red. #6S

    Orange. #4S

  • Copper mesh colors.

    Black copper. #11S

    Nautral copper. #12S

arms

  • Armless standard.

    Armless. #0A

    • Armless chairs are standard for all models.
  • Fixed arms.

    Fixed arm with a black poly armrest. #SA2-S01

    • Arm frame matches frame finish.
    • Poly armrest color matches chair shell poly color.
    • Cannot be retrofitted onto existing frames.

    Fixed arm with a dark grey poly armrest. #SA2-S08

    • Arm frame matches frame finish.
    • Poly armrest color matches chair shell poly color.
    • Cannot be retrofitted onto existing frames.

    Fixed arm with a grey poly armrest. #SA2-S02

    • Arm frame matches frame finish.
    • Poly armrest color matches chair shell poly color.
    • Cannot be retrofitted onto existing frames.

    Fixed arm with a white poly armrest. #SA2-S03

    • Arm frame matches frame finish.
    • Poly armrest color matches chair shell poly color.
    • Cannot be retrofitted onto existing frames.

    Fixed arm with a blue poly armrest. #SA2-S04

    • Arm frame matches frame finish.
    • Poly armrest color matches chair shell poly color.
    • Cannot be retrofitted onto existing frames.

    Fixed arm with a red poly armrest. #SA2-S07

    • Arm frame matches frame finish.
    • Poly armrest color matches chair shell poly color.
    • Cannot be retrofitted onto existing frames.

    Fixed arm with a sand poly armrest. #SA2-S05

    • Arm frame matches frame finish.
    • Poly armrest color matches chair shell poly color.
    • Cannot be retrofitted onto existing frames.

unique options

  • Arm tablets.

    Right arm tablet with a black surface & sides. #81TABB-R

    • Option on models with arms.
    • Chairs with arm tablets do not stack.

    Left arm tablet with a black surface & sides. #81TABB-L

    • Option on models with arms.
    • Chairs with arm tablets do not stack.

    Right arm tablet with a white surface & black sides. #81TABW-R

    • Option on models with arms.
    • Chairs with arm tablets do not stack.

    Left arm tablet with a white surface & black sides. #81TABW-L

    • Option on models with arms.
    • Chairs with arm tablets do not stack.
  • Book racks.

    Chrome book rack. #81BOOKC

    • Option on sled base chairs & stools.
    • Chairs with book racks do not stack.
  • Ganging brackets.

    Removable ganging brackets. #81GNGS

    • Option on sled base chairs, sled base stools and desks.
    • This ganging bracket locks two chairs securely together.
    • This bracket can be unlocked and removed.
    • Chairs with ganging brackets on cannot stack.

bases

For light task chairs & stools.

  • Chair swivel bases.

    Standard black nylon high-crown 5-star swivel base. #13BB

    • Standard base for light task chairs.
    • Can’t be used with a stool kit.

    Black nylon 5-star swivel base. #18BB

    • Standard base for light task stools.

    Polished aluminum 5-star swivel base. #18PB

    Brushed aluminum 5-star swivel base. #18BA

  • Stool swivel bases.

    Standard black nylon 5-star swivel base with a stool kit. #18BB-11DR or #18BB-11XDR

    • Standard stool base.
    • Tall (-11DR) height range: 7 in.
    • Extra-tall (-11XDR) height range: 9 in.
    • See exact dimensions in the drawings section.

    Polished aluminum 5-star swivel base with a stool kit. #18PB-11DR or #18PB-11XDR

    • Tall (-11DR) height range: 7 in.
    • Extra-tall (-11XDR) height range: 9 in.
    • See exact dimensions in the drawings section.

    Brushed aluminum 5-star swivel base with a stool kit. #18BA-11DR or #18BA-11XDR

    • Tall (-11DR) height range: 7 in.
    • Extra-tall (-11XDR) height range: 9 in.
    • See exact dimensions in the drawings section.

casters & glides

  • Casters.

    Standard black carpet casters. #16HP

    • Standard casters for all swivel bases.

    Two-toned black with grey soft rubber tread all floor casters. #16SCG

  • Glides.

    Black glides. #16GL

    Felt glides. #FELT

    • Optional on all sled base chairs.
    • Glide is clear/neutral.

designed by Alberto Basaglia and Natalia Rota Nodari

Alberto Basaglia and Natalia Rota Nodari met while studying at the Politecnico of Milan where they both graduated in architecture.  Shortly after, they founded their studio, BASAGLIA ROTA NODARI.  They completed their first design project in 1999 – the Antennati collection of side tables, clothing racks and more – winning first prize in the Young & Design competition.  This was a powerful sign of much more to come.  Since then, the duo has gone on to win numerous awards and recognition in architecture, design, interior space, food and town planning projects.

These Italian designers aim to transcend the typical image of the Italian designer. The pair achieve this by capturing beauty in equal measure with the technical aspects of their creations. Their visions manifest into award-winning, lovely furniture that captivates and stands the test of time.

“Seizing the specific energies of the person we are communicating with and finding the way to enhance them through the creation of alternative visions, often complementary to that which is already exists.” This is what the duo said about themselves in 2013, during the opening of “Alternative Synergies”.

studio: BASAGLIA ROTA NODARI, Brembate di Sopra (BG), Italy

Dimensions recorded by Via Seating engineers using:

  • the BIFMA Chair Measuring Device® (CMD) &

  • the BIFMA Universal Measuring Procedure.

chair drawings

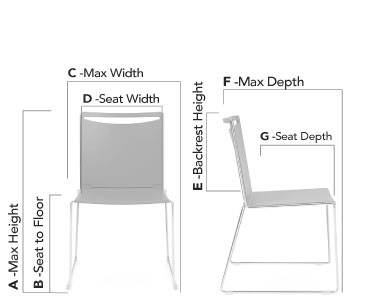

  • Sled base chairs.

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    Sled base chair.

    801 & 802
    Backs. 801 Poly Back. 802 Mesh Back.
    A 33.3″ 33.3″
    B 17.3″ (poly)
    18.0″ (8US)
    18.0″ (8USB)    		 17.3″ (poly)
    18.0″ (8US)
    C 18.0″ 18.0″
    D 17.6″ 17.6″
    E 17.5″ (poly)
    16.7″ (8US)
    16.7″ (8USB)    		 17.5″ (poly)
    16.7″ (8US)
    F 22.7″ 22.7″
    G 17.2″ (poly)
    18.1″ (8US)
    17.2″ (8USB)    		 16.4″ (poly)
    17.3″ (8US)

    Upholstery type:

    • Poly: Chair, no upholstery.
    • 8US: Upholstered seat only.
    • 8USB: Upholstered seat & upholstered back.
  • Bar stools.

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    Bar stool.

    807 & 808
    Backs. 807 Poly Back. 808 Mesh Back.
    A 43.5″ 43.5″
    B 28.6″ (poly)
    29.3″ (8US)
    29.3″ (8USB)    		 28.6″ (poly)
    29.3″ (8US)
    C 18.0″ 18.0″
    D 17.6″ 17.6″
    E 17.5″ (poly)
    16.7″ (8US)
    16.7″ (8USB)    		 17.5″ (poly)
    16.7″ (8US)
    F 24.5″ 24.5″
    G 17.2″ (poly)
    18.1″ (8US)
    17.2″ (8USB)    		 16.4″ (poly)
    17.3″ (8US)

    Upholstery type:

    • Poly: Chair, no upholstery.
    • 8US: Upholstered seat only.
    • 8USB: Upholstered seat & upholstered back.
  • Light task chairs.

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    Light task chair with a high-crown base.

    805 & 806 with -13BB
    Backs. 805 Poly Back. 806 Mesh Back.
    A 32.0″ – 36.8″ 32.0″ – 36.8″
    B 15.3″ – 20.1″ (poly)
    16.0″ – 20.8″ (8US)
    16.0″ – 20.8″ (8USB)    		 15.3″ – 20.1″ (poly)
    16.0″ – 20.8″ (8US)
    C 18.0″ 18.0″
    D 17.6″ 17.6″
    E 17.5″ (poly)
    16.7″ (8US)
    16.7″ (8USB)    		 17.5″ (poly)
    16.7″ (8US)
    F 26.5″ (poly)
    31.5″ (8US)
    31.5″ (8USB)    		 26.5″ (poly)
    31.5″ (8US)
    G 17.2″ (poly)
    18.1″ (8US)
    17.2″ (8USB)    		 17.2″ (poly)
    18.1″ (8US)

    Upholstery type:

    • Poly: Chair, no upholstery.
    • 8US: Upholstered seat only.
    • 8USB: Upholstered seat & upholstered back.

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    Light task chair.

    805 & 806 with -18BB, -18PB & -18BA
    Backs. 805 Poly Back. 806 Mesh Back.
    A 32.0″ – 36.8″ 32.0″ – 36.8″
    B 16.8″ – 21.6″ (poly)
    17.5″ – 22.3″ (8US)
    17.5″ – 22.3″ (8USB)    		 16.8″ – 21.6″ (poly)
    17.5″ – 22.3″ (8US)
    C 18.0″ 18.0″
    D 17.6″ 17.6″
    E 17.5″ (poly)
    16.7″ (8US)
    16.7″ (8USB)    		 17.5″ (poly)
    16.7″ (8US)
    F 26.5″ 26.5″
    G 17.2″ (poly)
    18.1″ (8US)
    17.2″ (8USB)    		 17.2″ (poly)
    18.1″ (8US)

    Upholstery type:

    • Poly: Chair, no upholstery.
    • 8US: Upholstered seat only.
    • 8USB: Upholstered seat & upholstered back.
  • Light task stools.

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    Light task stool.

    805 & 806 with -11DR
    Backs. 805 Poly Back. 806 Mesh Back.
    A 36.8″ – 44.3″ 36.8″ – 44.3″
    B 21.5″ – 28.7″ (poly)
    22.2″ – 29.4″ (8US)
    22.2″ – 29.4″ (8USB)    		 15.3″ – 20.1″ (poly)
    16.0″ – 20.8″ (8US)
    C 18.0″ 18.0″
    D 17.6″ 17.6″
    E 17.5″ (poly)
    16.7″ (8US)
    16.7″ (8USB)    		 17.5″ (poly)
    16.7″ (8US)
    F 31.5″ 31.5″
    G 17.2″ (poly)
    18.1″ (8US)
    17.2″ (8USB)    		 17.2″ (poly)
    18.1″ (8US)

    Upholstery type:

    • Poly: Chair, no upholstery.
    • 8US: Upholstered seat only.
    • 8USB: Upholstered seat & upholstered back.

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    Light task extra-tall stool.

    805 & 806 with -11XDR
    Backs. 805 Poly Back. 806 Mesh Back.
    A 39.2″ – 49.0″ 39.2″ – 49.0″
    B 23.9″ – 33.6″ (poly)
    24.6″ – 34.3″ (8US)
    24.6″ – 34.3″ (8USB)    		 23.9″ – 33.6″ (poly)
    24.6″ – 34.3″ (8US)
    C 18.0″ 18.0″
    D 17.6″ 17.6″
    E 17.5″ (poly)
    16.7″ (8US)
    16.7″ (8USB)    		 17.5″ (poly)
    16.7″ (8US)
    F 31.5″ 31.5″
    G 17.2″ (poly)
    18.1″ (8US)
    17.2″ (8USB)    		 17.2″ (poly)
    18.1″ (8US)

    Upholstery type:

    • Poly: Chair, no upholstery.
    • 8US: Upholstered seat only.
    • 8USB: Upholstered seat & upholstered back.

seat drawings



Seat Reference Point (SRP),
The ergonomic seat depth measurement.



Measurement G (and not measurement H) is the true seat reference point. SRP is an ergonomic term that defines where there is a slight indentation in the lumbar (i.e. where the sitter is benefiting from the lumbar support) to the front edge of the seat. It gives the true measurement of surface area in contact with the body. It is very useful for correctly matching up with hip to knee measurements for ergonomists taking into account the two – three finger gap between the back of the leg to the edge of the seat. It is very important to ensure no restriction in circulation to the lower extremities (lower legs and ankles).

  • Splash seats.

    C. Seat width.

    G. Seat depth.

    H. Seat depth of the seat off the chair.
    Upholstery. No upholstery. With 8US. With 8USB.
    C 18.0″ 18.0″ 18.0″
    G 17.2 18.1″ 17.2″
    H 16.5″ 16.5″ 16.5″

    Upholstery type:

    • 8US: Upholstered seat only.
    • 8USB: Upholstered seat & upholstered back.

arm drawings

  • Fixed arms.

    J. Armrest length.

    K. Armrest height.

    L. Armrest width.

    M. Width between armrests.

    Fixed arms.

    -SA2

    J.  9.3″
    K.  8.7″
    L.  22.4″
    M.  18.8″

stacking drawings

  • Stacking carts.

    A. Overall height.

    F. Overall depth.

    W. Overall width.

    Chair stacking cart.

    800C

    A.  36.0″
    F.   42.0″
    W.  28.0″

  • Stacking carts with chairs stacked.

    A. Overall height.

    F. Overall depth.

    Max chairs stacked on cart.

    Chairs 801 & 802 without upholstery stack a max of 40 high on the cart.

    A.  48.0″
    F.   43.0″

  • Chairs stacked on the floor.

    A. Overall height.

    F. Overall depth.

    Max chairs stacked on the floor.

    Chairs 801 & 802 without upholstery stack a max of 20 high on the floor.

    A.  43.0″
    F.   48.0″

Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download

Downloads

pricing

Splash price list 2021 3rd edition pdf (1.79 MB)
Splash price list 2022 pdf (1.78 MB)

brochures

Copper Mesh Collection brochure pdf (4.04 MB)
Splash brochure pdf (5.03 MB)

books

Solutions Overview book 2021 pdf (78.22 MB)

symbols

Splash 2D autoCAD files zip (1.23 MB)
Splash 3D autoCAD files zip (6.65 MB)
Splash revit files zip (2.36 MB)

certifications

BIFMA LEVEL 2 certification pdf (467.46 KB)
CLEAN AIR GOLD certification pdf (441.6 KB)

care

Splash cleaning and care guidelines pdf (137.69 KB)
Splash chair stacking cart assembly instructions pdf (272.01 KB)
Splash mesh back chair stacking instructions pdf (1.02 MB)

instructions

Sierra round table to cubes assembly instructions pdf (1.25 MB)
base to chair assembly instructions pdf (291.99 KB)
X
