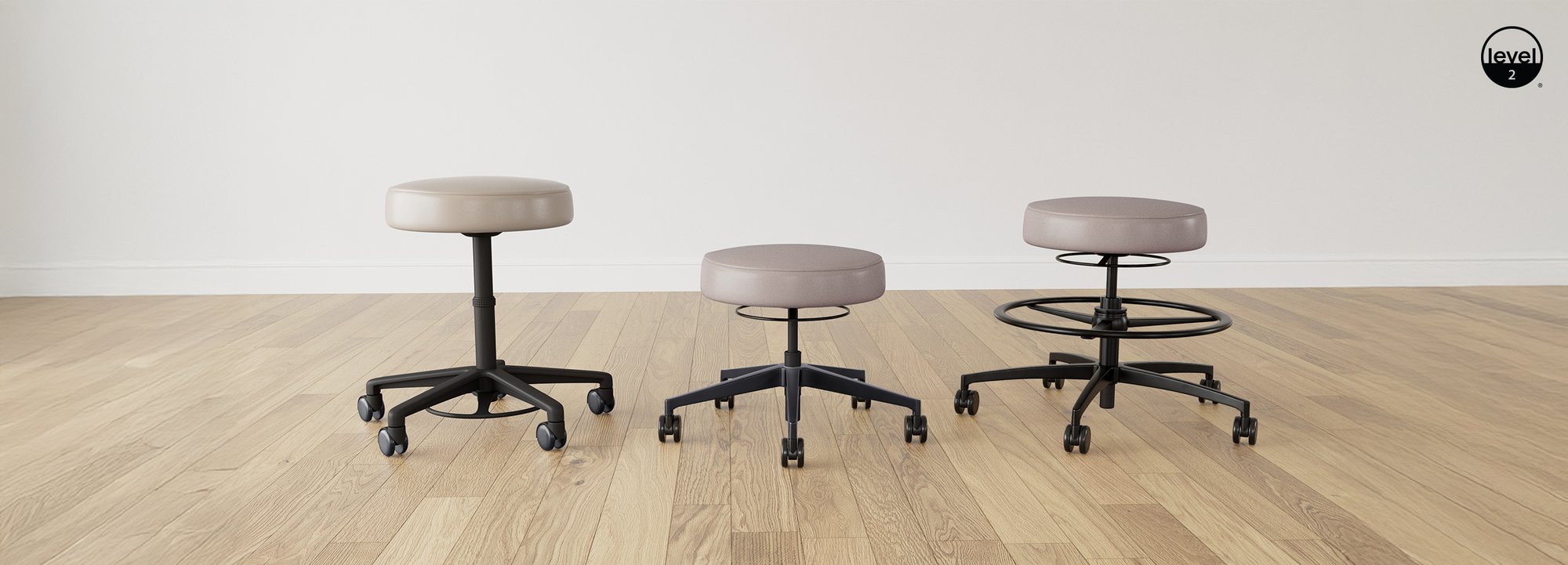

Spec Stools

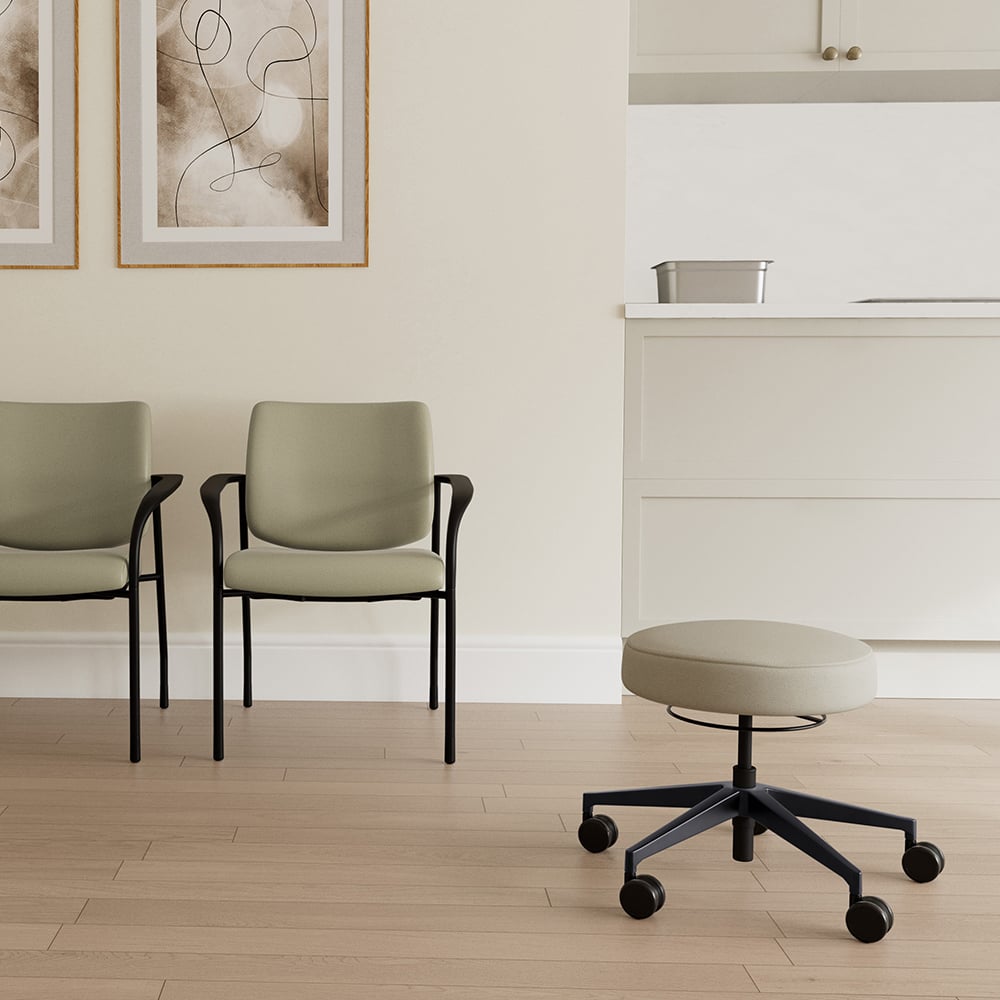

Spec Stool model: 1401-15SPEC | Textile: Spradling Silvertex Lagoon.

compact stools with exceptional comfort

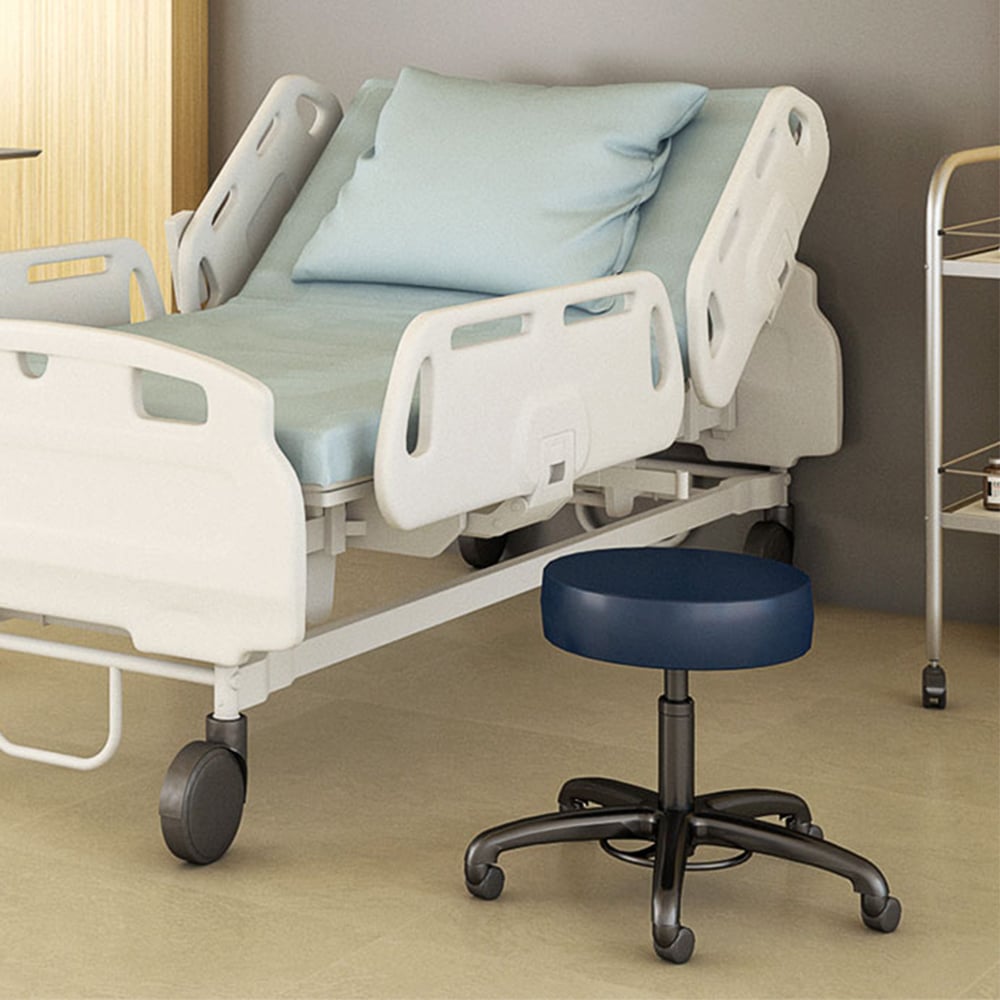

Spec stools are the perfect companion for the fast-paced environment of a physician or caregiver. Instantly adjust the height choosing the method – hand or foot ring – that fits the way you work.  Their classic style and seamless upholstery support infection prevention and easy clean up.  Apply glides or instant lock wheels available for hard or soft floors.  Spec stools’ compact profile and versatile options make each stool an ideal choice in labs, in medical training rooms, to pair with an artist’s drafting table and as guest seating. Designed by Via Seating’s Studio V.

  • Applications: stools at regular, tall and extra-tall heights.
  • Compact Footprint: a spacious seat is balanced atop a compact design.
  • Seamless Upholstery: supports infection prevention and easy clean up.
  • Easy Adjustments: available with a hands-free or hand-activated height adjustment ring.
  • Casters & Glides: offering a variety of black and two-toned casters and black glides. Casters offer the option of a safety-brake feature.
  • Max weight capacity: 300 lb.
  • Quick ship: 20 chairs produced in a 48 hour period.
  • Warranty: 12 year warranty.



  • ANSI/BIFMA X7.1-2011 (R2016) Standard Method equivalent to CDPH Standard Method v1.1-2010 (Clean Air Gold).
  • LEED – v4.1 Low Emitting Materials (Clean Air Gold).
  • Living Building Challenge (LBC) – Imperative 08 (Clean Air Gold).
  • WELL – Feature 04 – VOC Reduction (Clean Air Gold).
  • Meets the Practice Greenhealth, Health Care Without Harm Healthy Interiors Criteria for Seating.

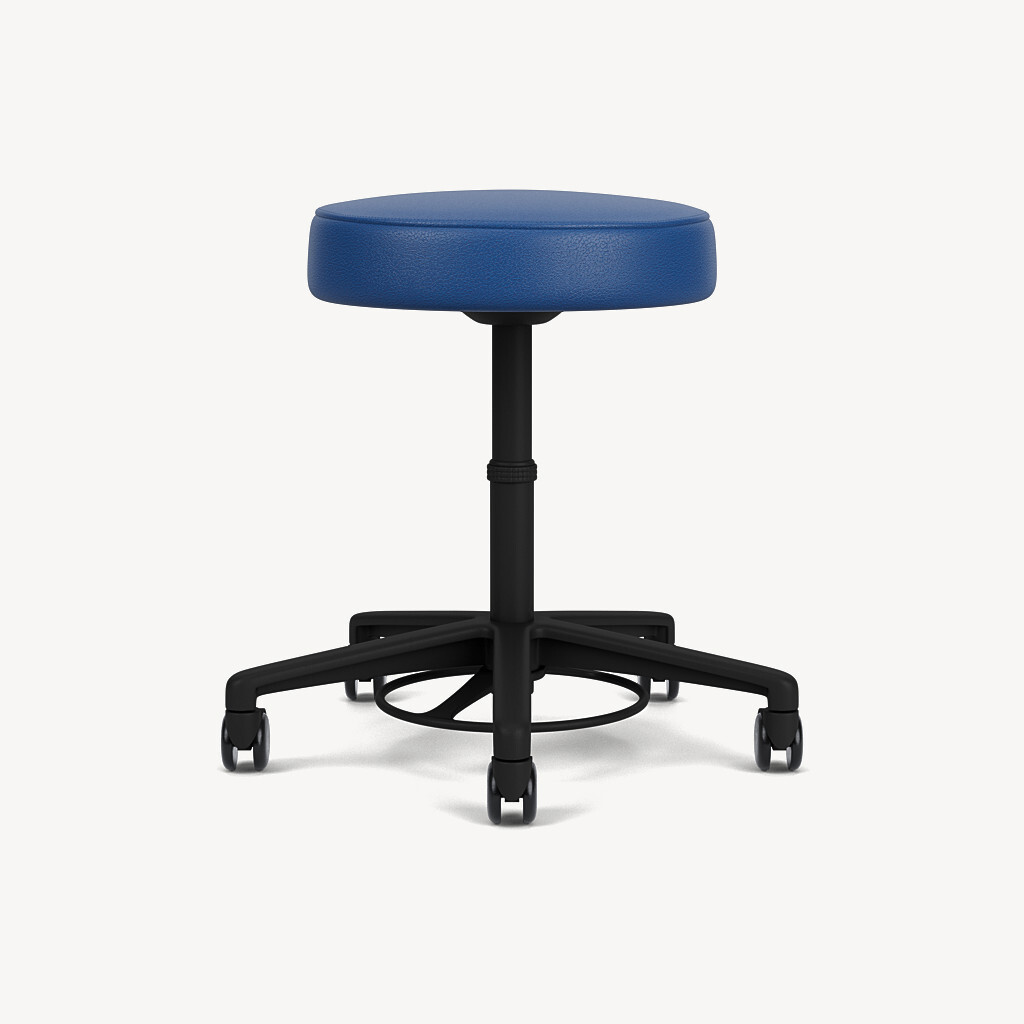

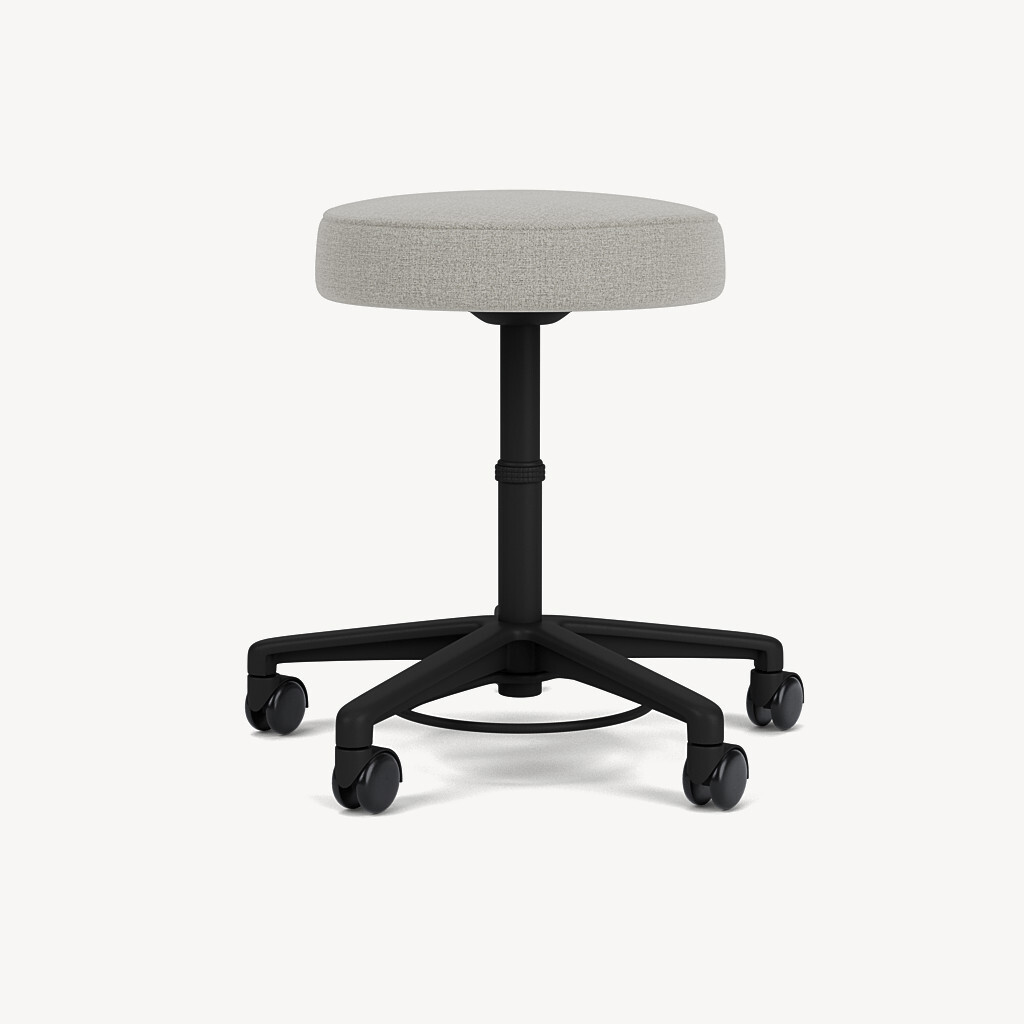

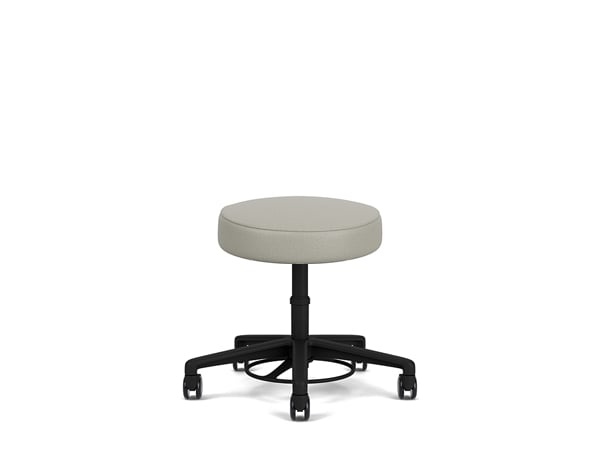

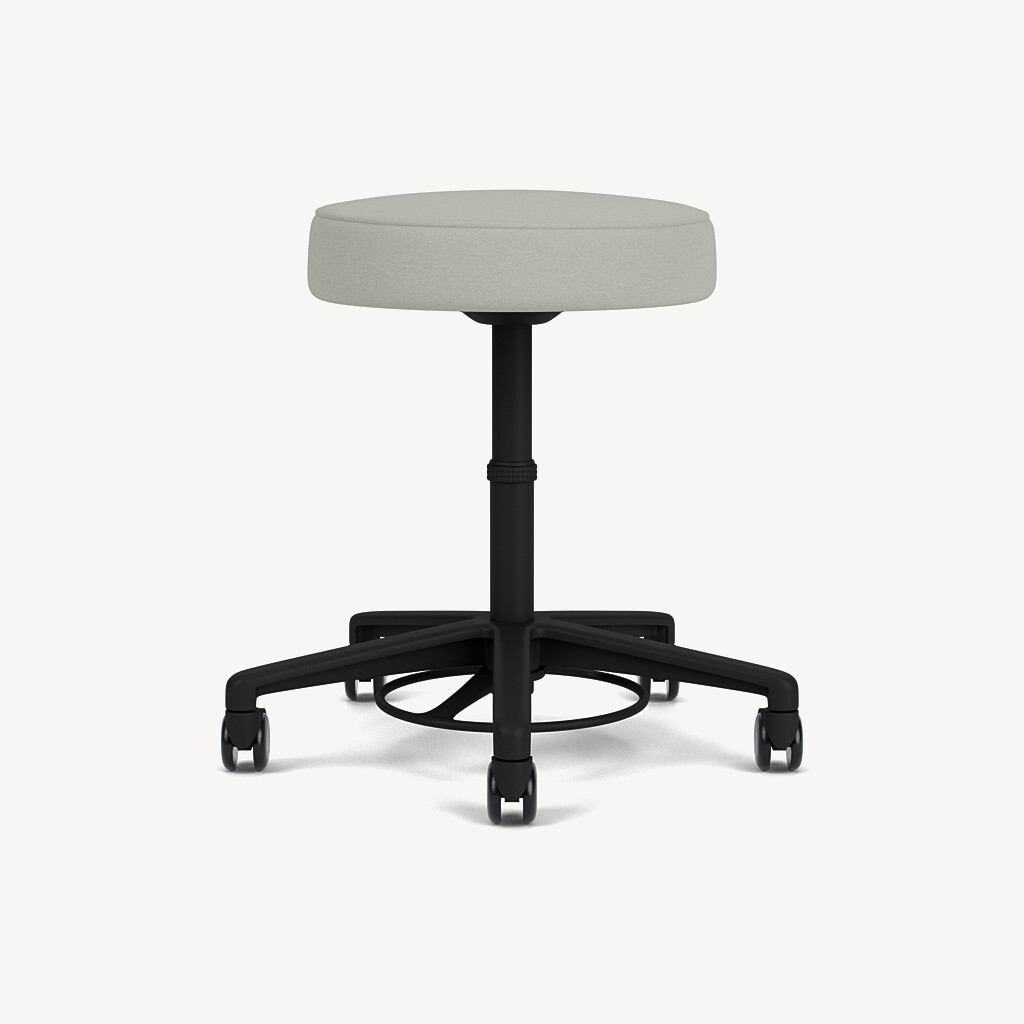

Stool with a hands-free height adjustment. #1401

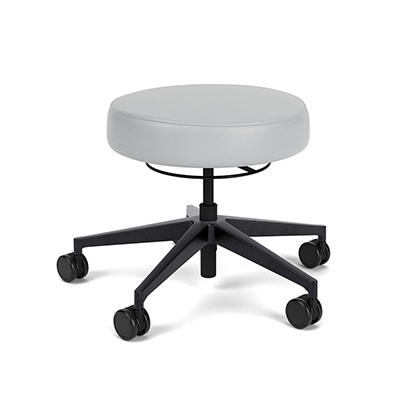

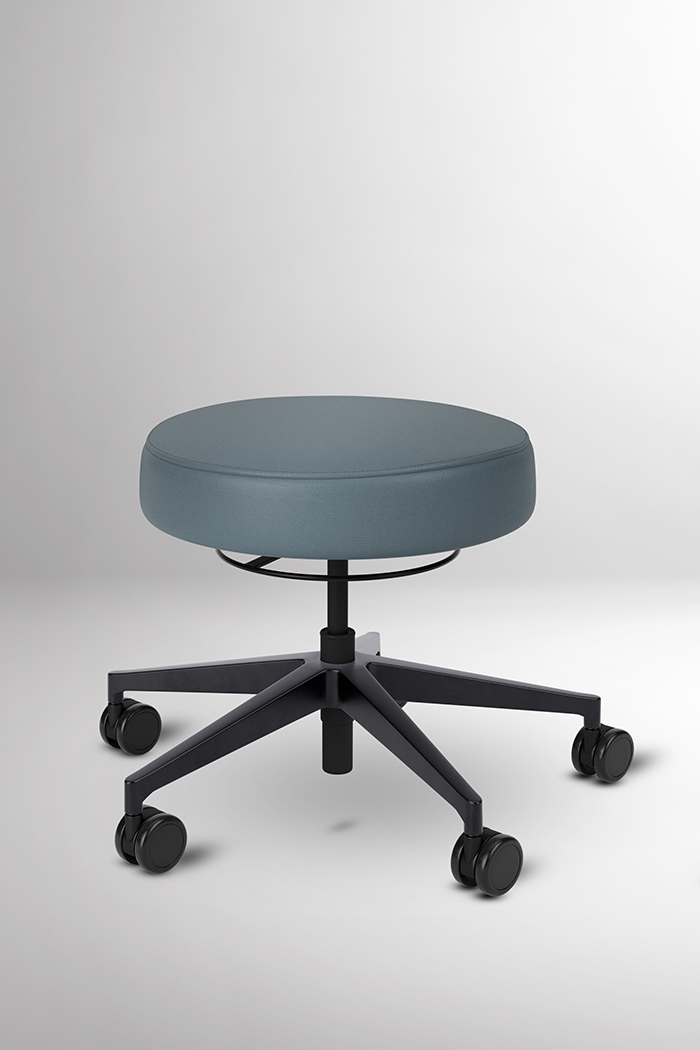

Stool with a hand-activated height adjustment. #1416

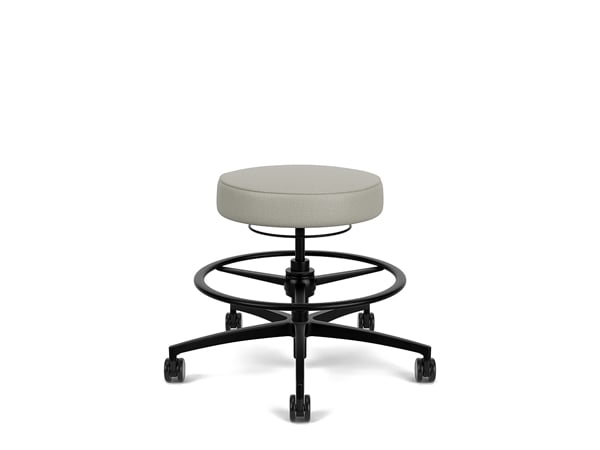

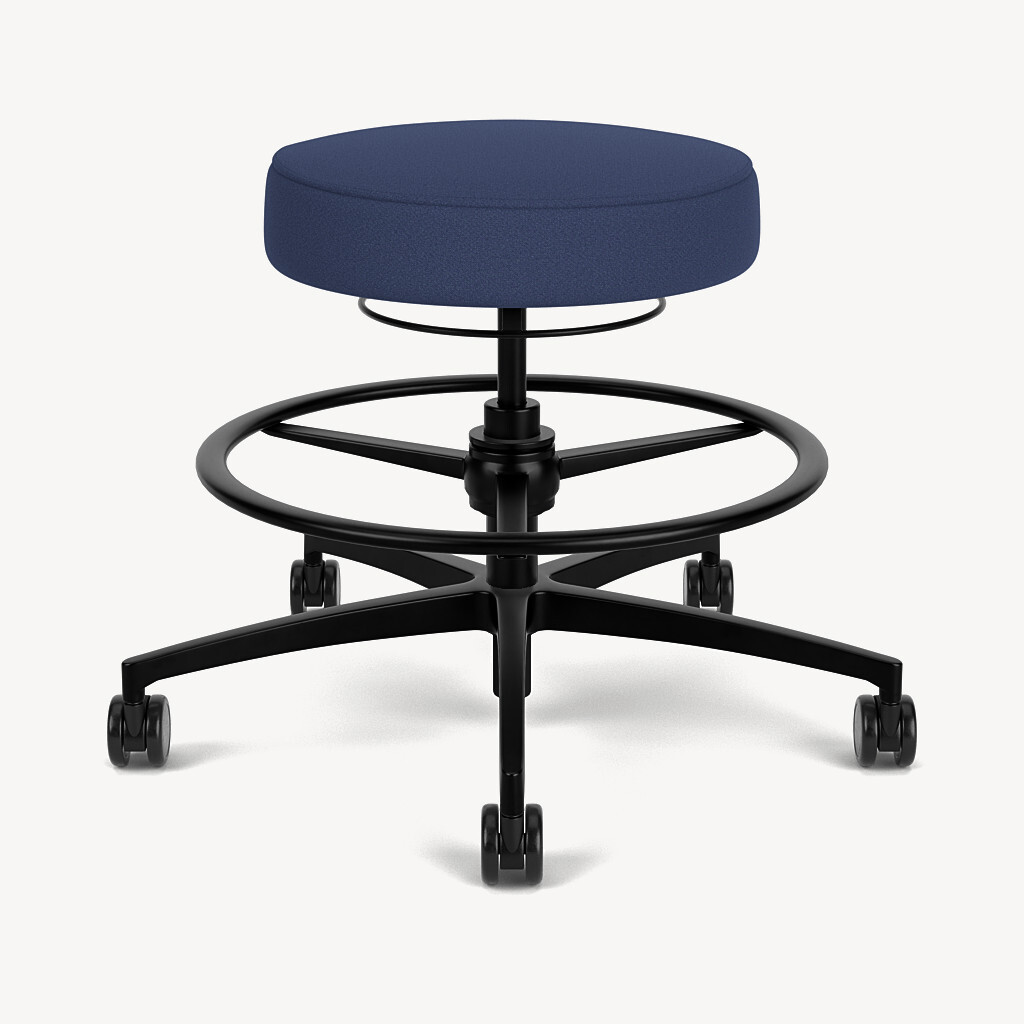

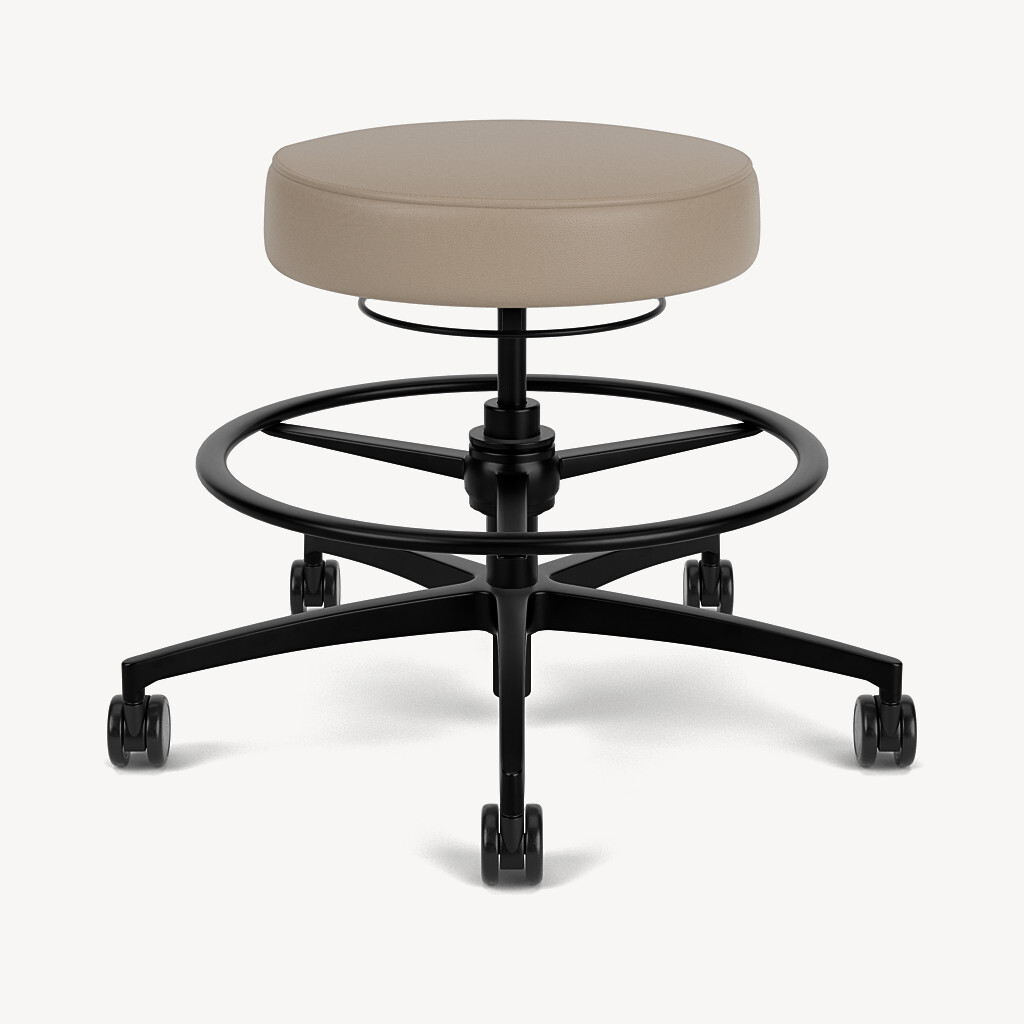

Tall stool with a hand-activated height adjustment.

  • Available as a a tall or extra-tall stool.
  • Offered on model #1416.

bases

For model #1416 only.

  • Stool swivel bases.

    Standard black nylon high-crown 5-star swivel base. #13BB

    • Standard base for light task chair.
    • Can’t be used with stool kit.

    Black nylon 5-star swivel base. #18BB

    Polished aluminum 5-star swivel base. #18PB

    Brushed aluminum 5-star swivel base. #18BA

  • Tall stool swivel bases.

    Standard black nylon 5-star swivel base with a stool kit. #18BB-11DR or #18BB-11XDR

    • Standard light task stool base.
    • Tall #11DR height range: 7 in.
    • Extra-tall #11XDR height range: 9 in.
    • See exact dimensions in the drawings section.

    Polished aluminum 5-star swivel base with a stool kit. #18PB-11DR or #18PB-11XDR

    • Tall #11DR height range: 7 in.
    • Extra-tall #11XDR height range: 9 in.
    • See exact dimensions in the drawings section.

    Brushed aluminum 5-star swivel base with a stool kit. #18BA-11DR or #18BA-11XDR

    • Tall #11DR height range: 7 in.
    • Extra-tall #11XDR height range: 9 in.
    • See exact dimensions in the drawings section.

casters & glides

  • Casters for stool #1416.

    Standard black carpet casters. #16HP

    • Standard casters for all 1416 swivel bases.

    wo-toned black with grey soft rubber tread all floor casters. #16SCG

  • Casters for hands-free stool #1401.

    Standard black hard floor casters with a safety-lock feature. #15SPEC

    • Standard casters for #1401.
    • Includes a safety-lock feature.

    Black all floor casters with a safety-lock feature. #15NWB

    Includes a safety-lock feature.

  • Glides for all stools.

    Black glides. #16GL

designed by Studio V

Studio V creates modern, sophisticated and original seating solutions that are ergonomic, beautiful and sustainable. This team of engineers and designers are based at the Via Seating Factory in Reno, Nevada, where they develop products using a prototyping lab, the latest in 3D modeling software and a materials testing center.

studio: Reno, Nevada.

Explore their design process here »

Dimensions recorded by Via Seating engineers using:

  • the BIFMA Chair Measuring Device® (CMD) &

  • the BIFMA Universal Measuring Procedure.

chair drawings

  • Hands-free stools.

    A. Overall height.

    B. Seat height.

    C. Seat width.

    F. Overall depth.

    G. Seat depth.

    Hands-free stool.

    1401

    A. 18.0″ – 23.1″
    B. 18.0″ – 23.1″
    C. 16.8″
    F.  21.5″
    G. 16.8″

  • Stools.

    A. Overall height.

    B. Seat height.

    C. Seat width.

    F. Overall depth.

    G. Seat depth.

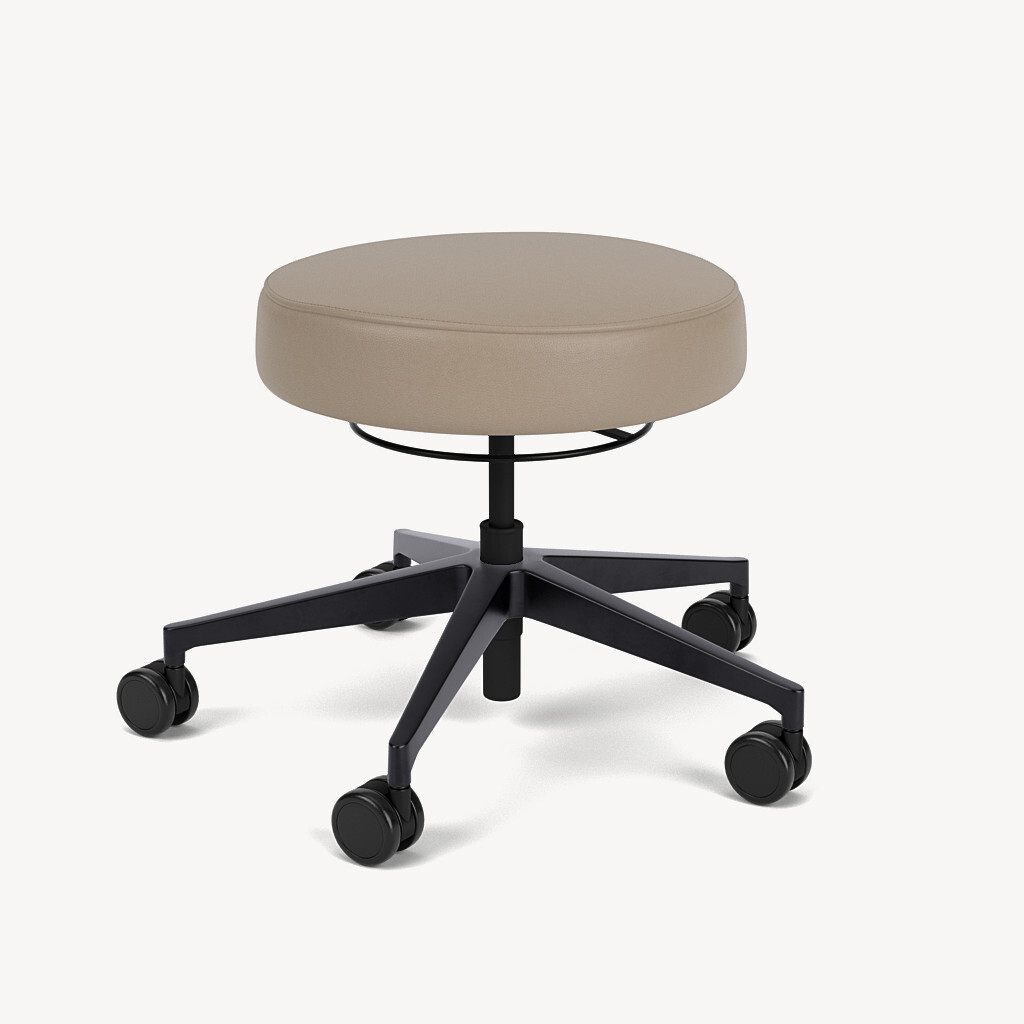

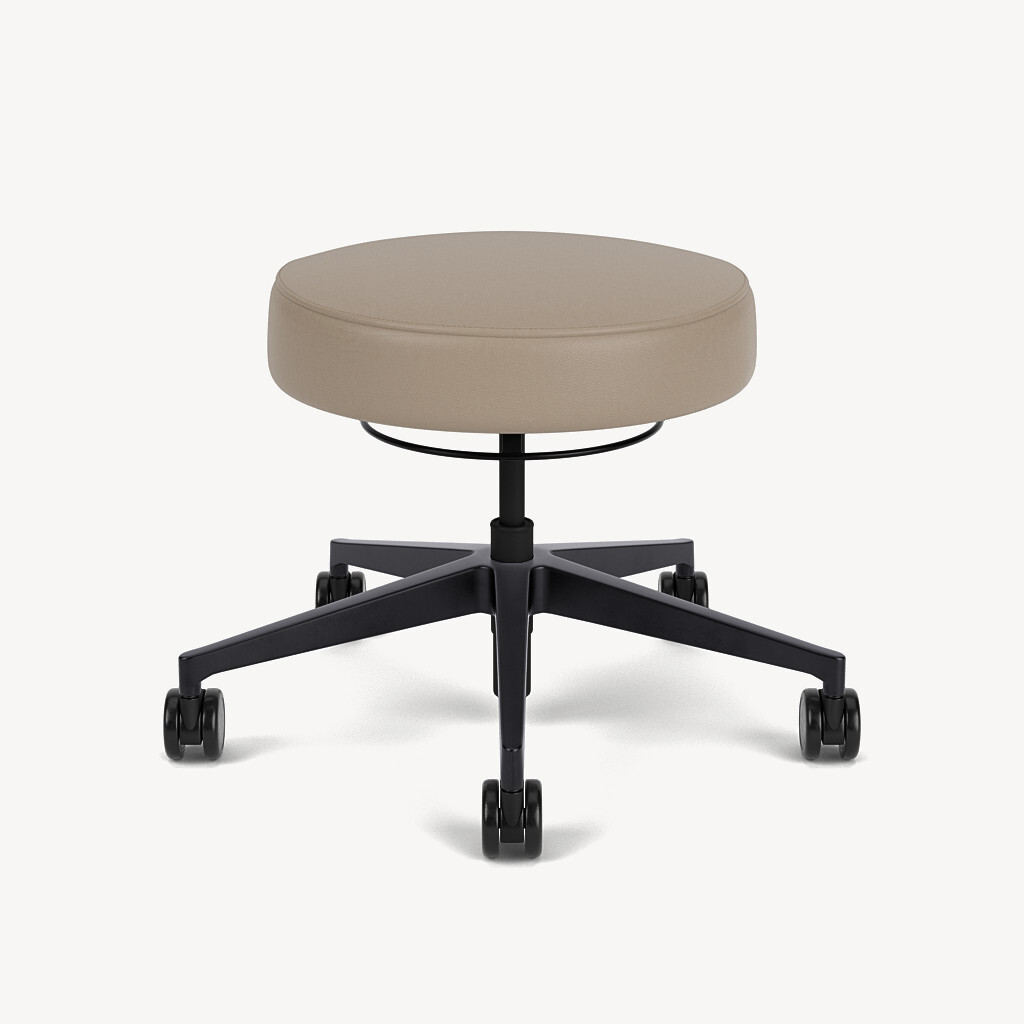

    Stool with high-crown base.

    1416-13BB

    A. 15.4″ – 20.1″
    B. 15.4″ – 20.1″
    C. 16.8″
    F.  21.5″
    G. 16.8″

    A. Overall height.

    B. Seat height.

    C. Seat width.

    F. Overall depth.

    G. Seat depth.

    Stool.

    1416 with -18BB, -18BA & -18PB

    A. 13.5″ – 18.3″
    B. 13.5″ – 18.3″
    C. 16.8″
    F.  23.5″
    G. 16.8″

  • Tall stools.

    A. Overall height.

    B. Seat height.

    C. Seat width.

    F. Overall depth.

    G. Seat depth.

    Tall stool.

    1416 with -11DR

    A. 19.8” – 26.8”
    B. 19.8” – 26.8”
    C. 16.8″
    F.  23.5″
    G. 16.8″

    A. Overall height.

    B. Seat height.

    C. Seat width.

    F. Overall depth.

    G. Seat depth.

    Extra-tall stool.

    1416 with -11XDR

    A. 22.1” – 31.6”
    B. 22.1” – 31.6”
    C. 16.8″
    F.  23.5″
    G. 16.8″

To download a model file type, simply click on the file type name.

Stool with a hands-free height adjustment. #1401

⇩ 2D autoCAD (.dwg)
⇩ 3D autoCAD (.dwg)
⇩ revit (.rfa) – in development

Stool with a hand-activated height adjustment & a high-crown-base. #1416-13BB

⇩ 2D autoCAD (.dwg)
⇩ 3D autoCAD (.dwg)
⇩ revit (.rfa) – in development

Stool with a hand-activated height adjustment & a low-profile base. #1416-18BB

⇩ 2D autoCAD (.dwg)
⇩ 3D autoCAD (.dwg)
⇩ revit (.rfa) – in development

Tall stool with a hand-activated height adjustment. #1416-11DR

⇩ 2D autoCAD (.dwg)
⇩ 3D autoCAD (.dwg)
⇩ revit (.rfa) – in development
