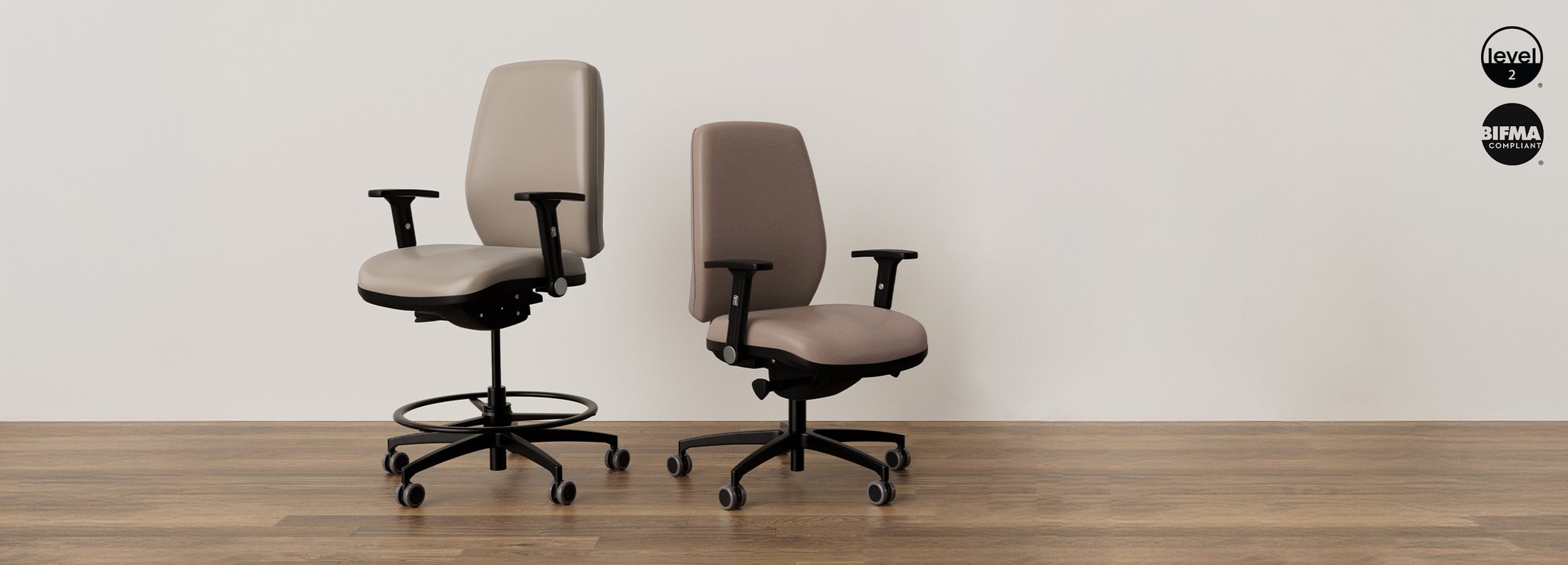

Riva chairs

Riva model: 4R12-25C-38A4-18PB-16HP-01H | Textile: Momentum Origin Alloy.

ergonomic comfort and lasting durability

Riva is an intensive, hardworking, task seating series. It is offered as a mesh mid or high back or an upholstered mid back. On the mesh back, pair with standard tailored seat or new enhanced comfort seat. Available in seat sizes standard (A) to large (C). Select from multiple fixed and height adjustable arms. Pair with conference controls or the latest quick adjust advanced synchro control. Optional mechanical adjustable lumbar addition and upholstered back shells on the upholstered back models.

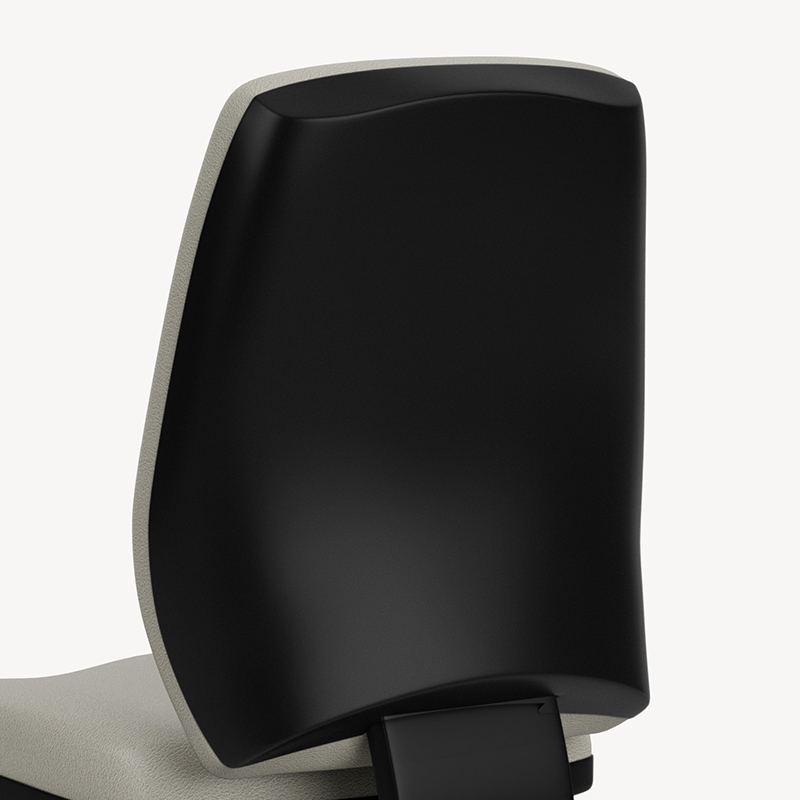

  • Backrest: available as mesh or upholstered mid back & a mesh high back. Option of standard height adjustability or fixed back on the mesh backs.
  • Seats: offering two distinct seat styles—standard tailored seat design and new enhanced comfort seat with extra height in the cushioning of the seat. Both are available in standard, medium & large sizes.
  • Via Seating’s comfort foam: a proprietary blend of high-density, injection-molded, closed-cell, cold-cured foam so durable and lasting it is backed by Via Seating’s 12 year warranty.
  • Arms: multiple height and width adjustable options.
  • Control mechanisms: featuring quick adjust advanced synchro that uses single rotation adjustments for the back (no endless turning of the handle to adjust your backrest to your level of comfort). Standard swivel tilt conference controls are available.
  • Bases: five-star bases available in black nylon, polished aluminum and brushed aluminum finishes.
  • Max weight: 300 lb.
  • Quick Ship: 20 chairs produced in a 48 hour period.
  • Warranty: 12 year warranty including the foam, 2 years for mesh.



  • ANSI/BIFMA X7.1-2011 (R2016) Standard Method equivalent to CDPH Standard Method v1.1-2010 (Clean Air Gold).
  • LEED – v4.1 Low Emitting Materials (Clean Air Gold).
  • Living Building Challenge (LBC) – Imperative 08 (Clean Air Gold).
  • WELL – Feature 04 – VOC Reduction (Clean Air Gold).



Mesh Mid Backs.

  • Tailored A seat. (2R12)
  • Enhanced Comfort A seat. (4R12)
  • Tailored B seat. (2R22)
  • Enhanced Comfort B seat. (4R22)
  • Tailored C seat. (2R32)
  • Enhanced Comfort C seat. (4R32)

Mesh High Backs.

  • Tailored A seat. (2R14)
  • Enhanced Comfort A seat. (4R14)
  • Tailored B seat. (2R24)
  • Enhanced Comfort B seat. (4R24)
  • Tailored C seat. (2R34)
  • Enhanced Comfort C seat. (4R34)

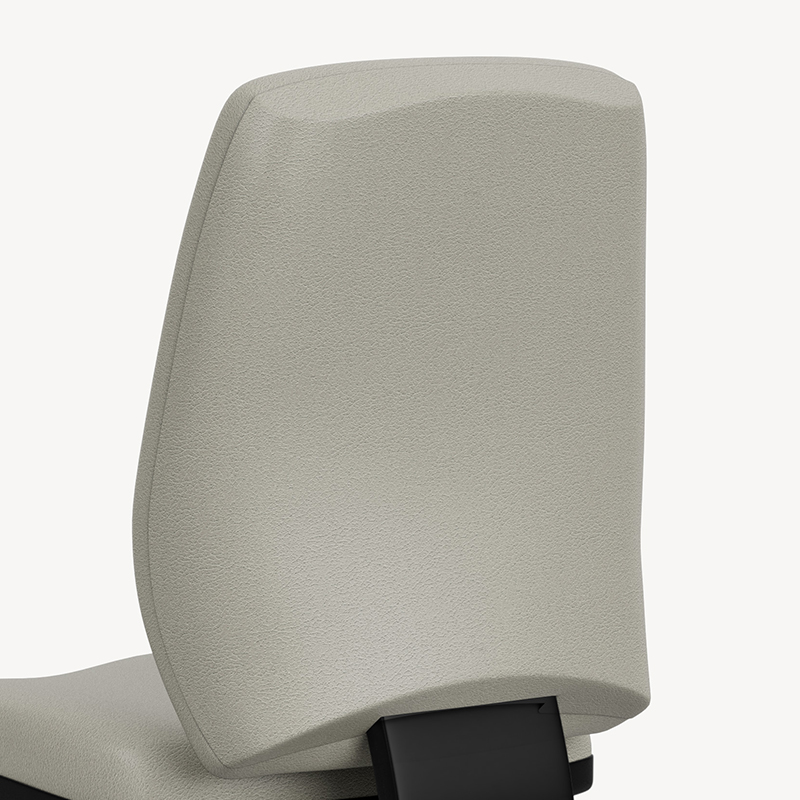

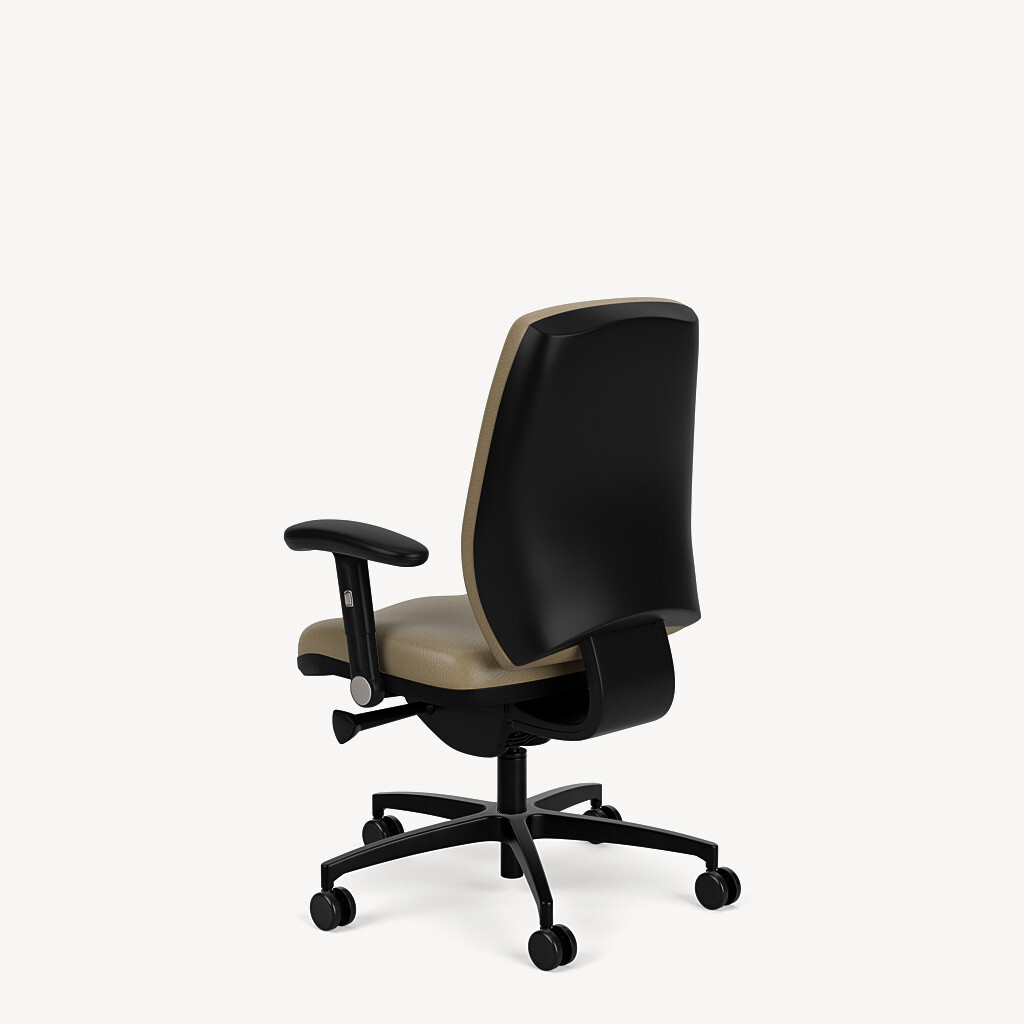

Upholstered Mid Backs.

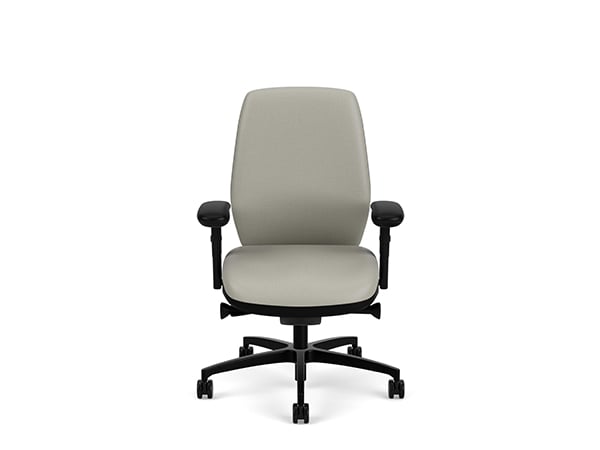

  • Enhanced Comfort A seat. (3403)
  • Enhanced Comfort B seat. (3603)
  • Enhanced Comfort C seat. (3803)

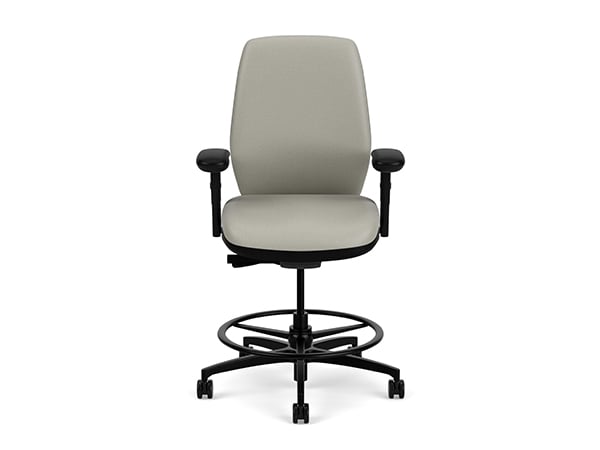

Task stools.

  • Available on mid backs.

mesh colors

arms

  • Armless standard.

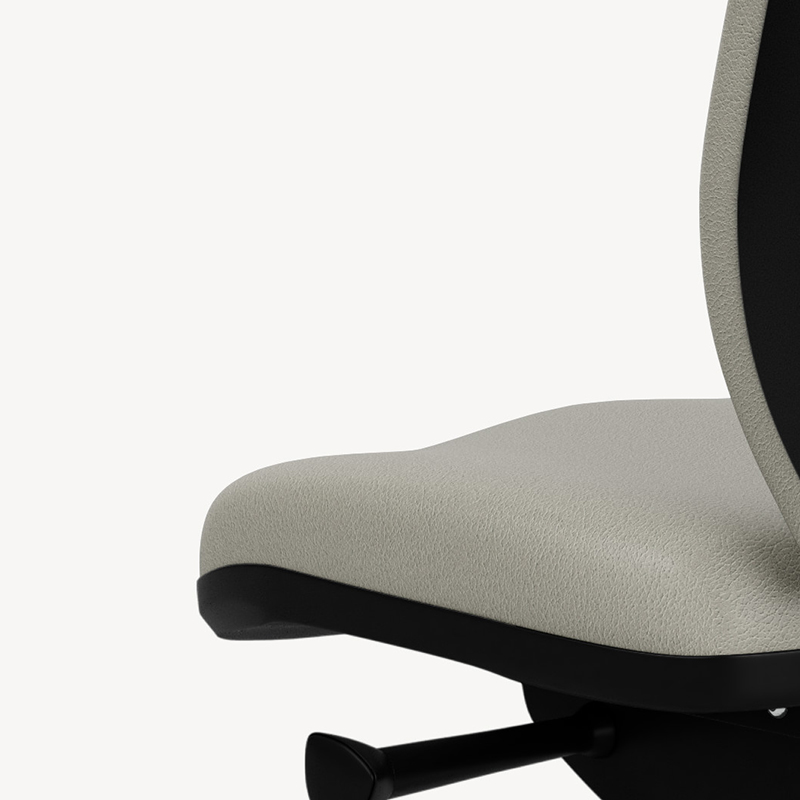

    Armless. (-0A)

    • Armless chairs are standard on all models.
  • Adjustable arms.

    Full function arm. (-18A)

    Features a 6D height adjustable arm that offers the following adjustments:

    • Arm moves up and down.
    • Armrest rotates in 15°, out 15°.
    • Arm width adjustment bracket extends each arm 2.0″ away from the sides of the chairs and back to the resting position.



    Standard armrest:

    4 cap

    user guide: view the guide →

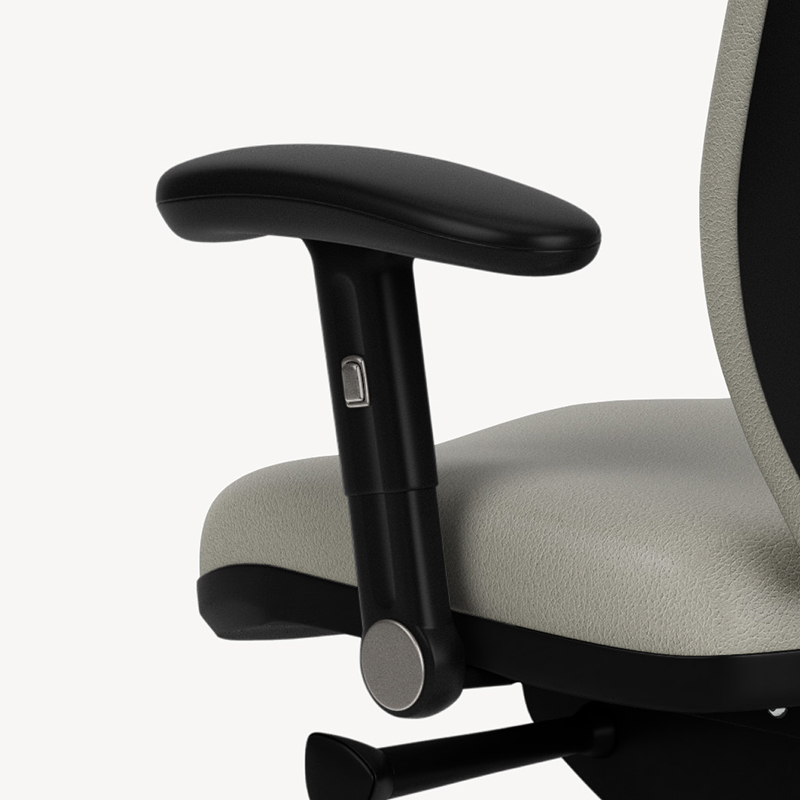

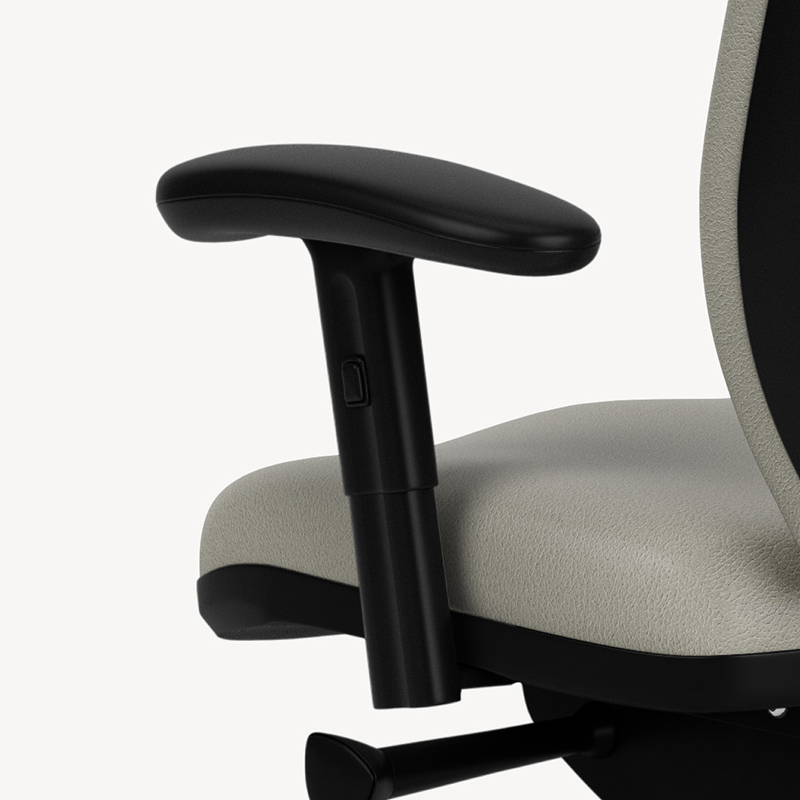

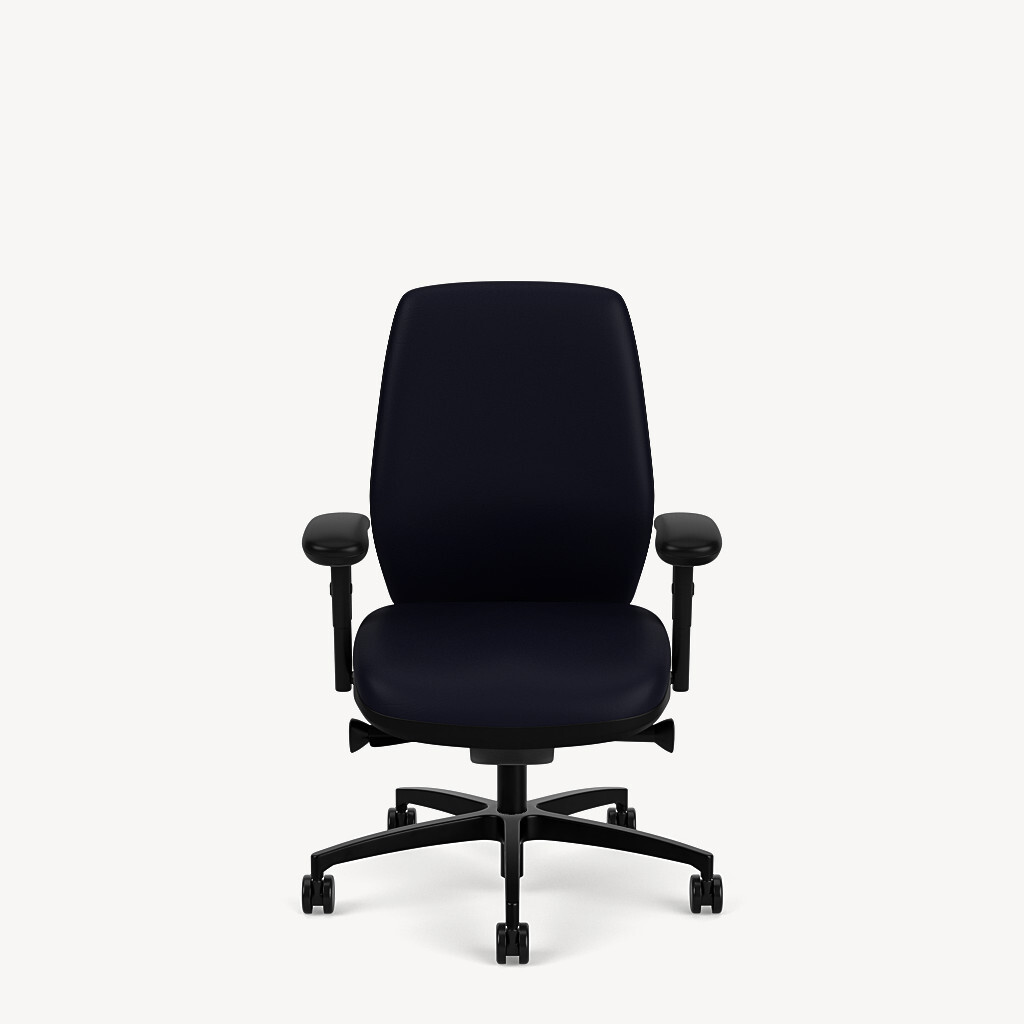

    Basic height adjustable arm, black finish. (-38A)

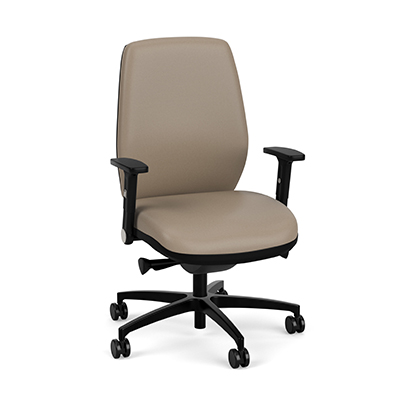

    Features a 2D to 4D height adjustable arm that offers the following adjustments:

    • Arm moves up and down.
    • Optional arm width adjustment bracket extends each arm 2.0″ away from the sides of the chairs and back to the resting position.



    Preferred armrest:

    4 cap

    user guide: view the guide →

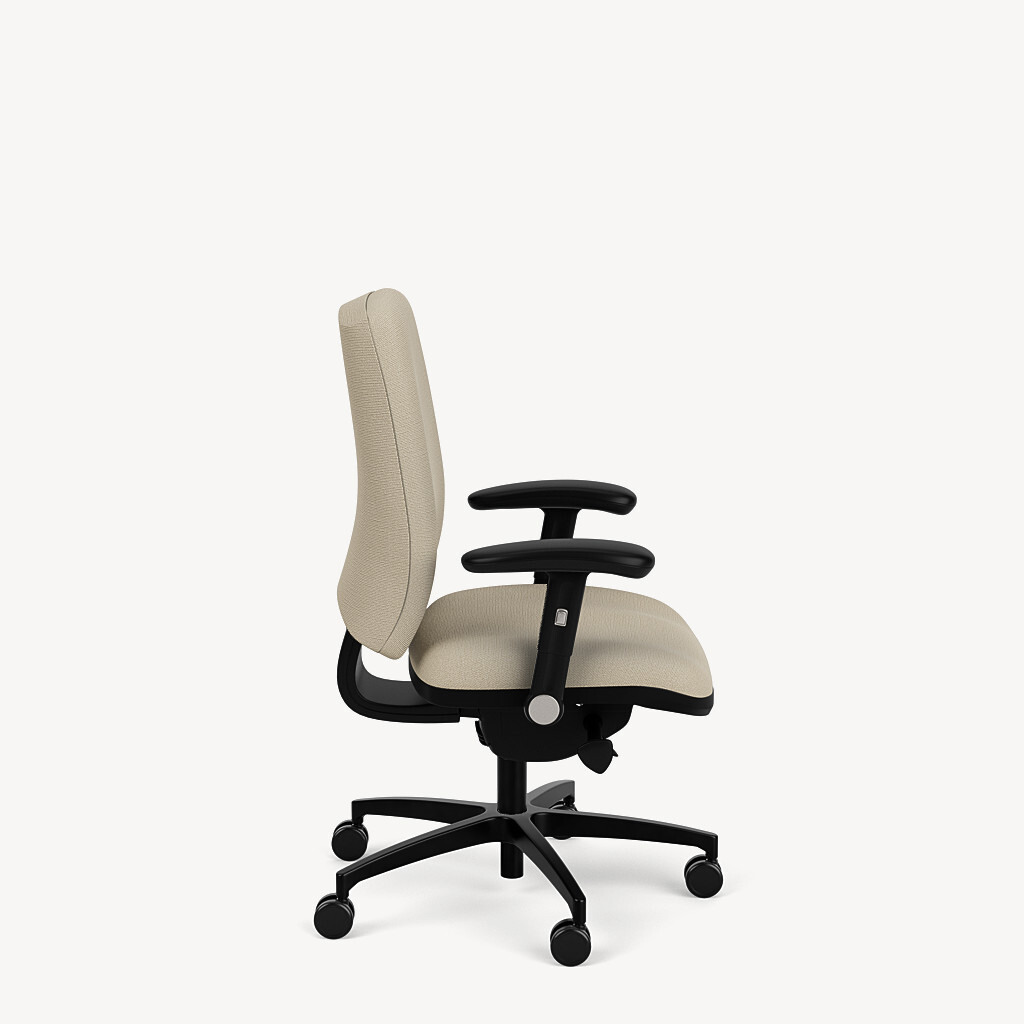

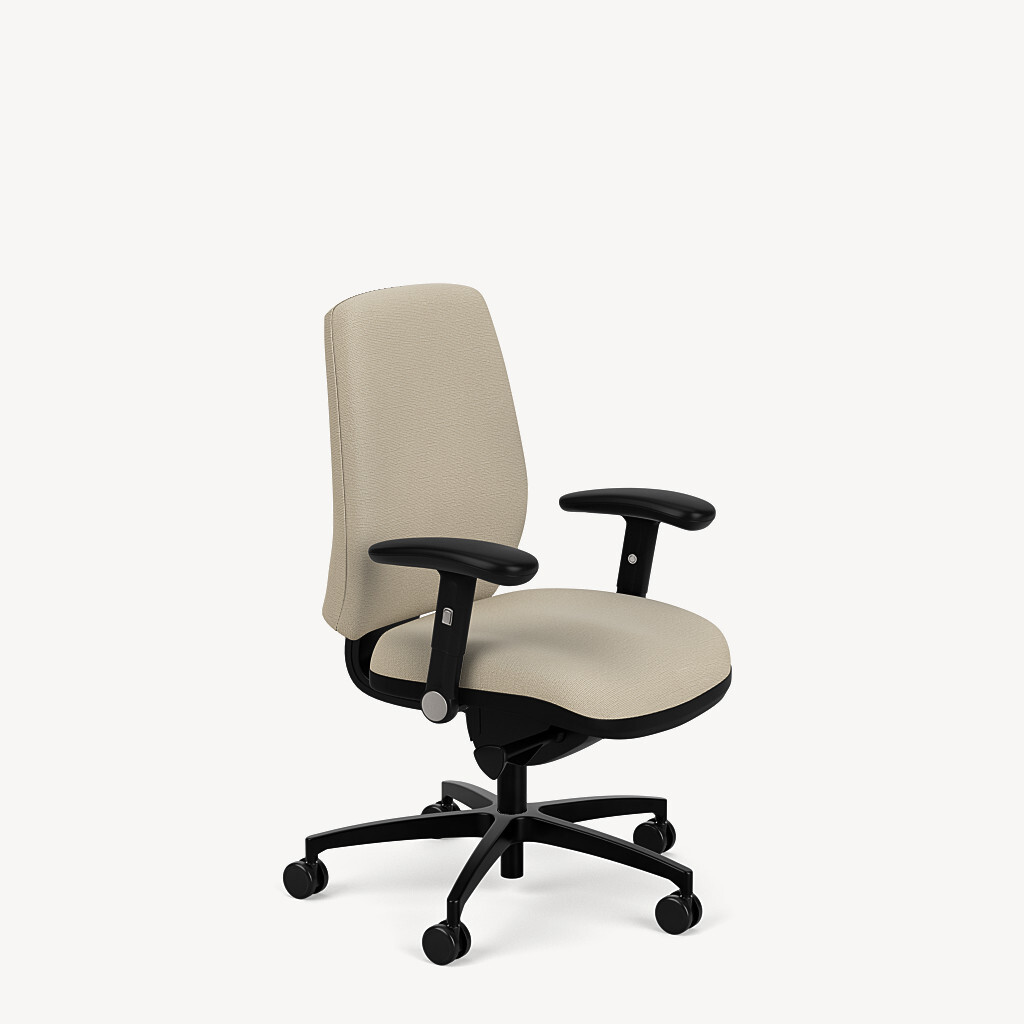

    Roll back arm. (-39A)

    Features a 3D height adjustable arm that offers the following adjustments:

    • Arm moves up and down.
    • Smooth roll back feature where the arm can be fully rolled back out of the way to easily slide in and out of the chair.



    Standard armrest:

    4 cap

    user guide: view the guide →

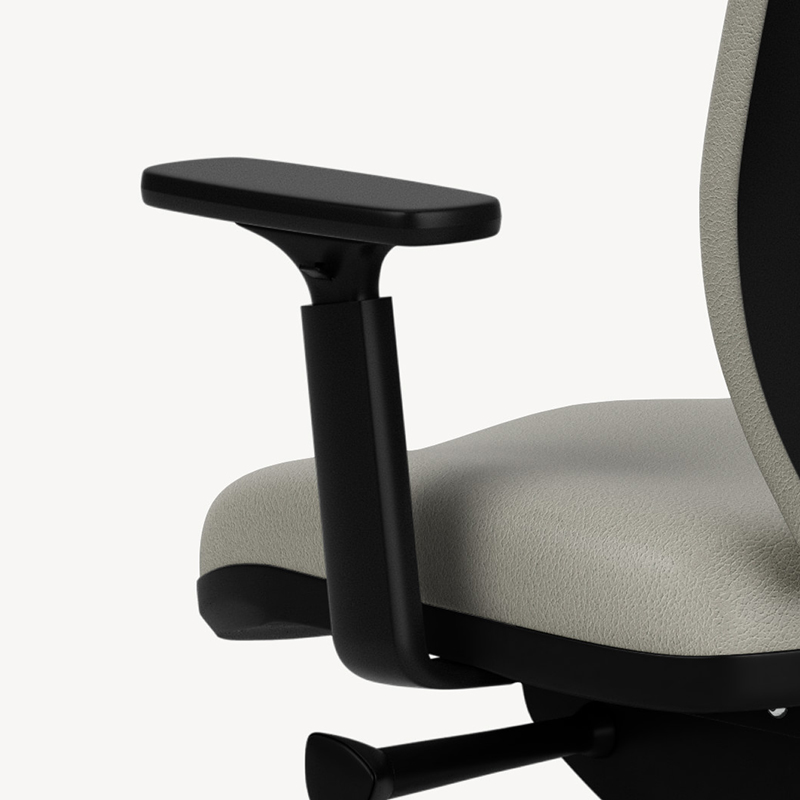

    8-way adjustable arm, black finish. (-51A)

    Features a 2D to 8D height adjustable arm that offers the following adjustments:

    • Arm moves up and down.
    • Optional armrest rotates in 15°, out 15°.
    • Optional armrest slides out 1.5″, slides back to resting position.
    • Optional arm width adjustment bracket extends each arm 2.0″ away from the sides of the chairs and back to the resting position.
    • Optional upholstery can be added on static armrest 20S & and 4D rotating armrest 20R.



    Armrest choices include:

    20S static cap is fixed

    20R rotating cap

    • Both armrests are available with option of upholstery. The 20R example above shows upholstery applied.



    user guide: view the guide →

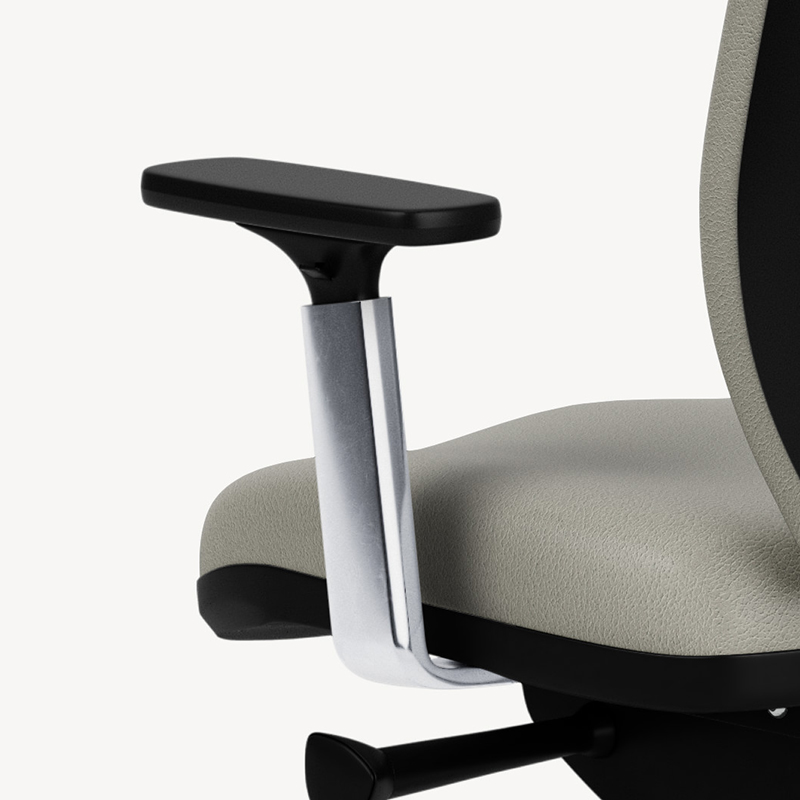

    8-way adjustable arm, polished finish. (-53A)

    Features a 2D to 8D height adjustable arm that offers the following adjustments:

    • Arm moves up and down.
    • Optional armrest rotates in 15°, out 15°.
    • Optional armrest slides out 1.5″, slides back to resting position.
    • Optional arm width adjustment bracket extends each arm 2.0″ away from the sides of the chairs and back to the resting position.
    • Optional upholstery can be added on static armrest 20S & and 4D rotating armrest 20R.



    Armrest choices include:

    20S static cap is fixed

    20R rotating cap

    • Both armrests are available with option of upholstery. The 20R example above shows upholstery applied.



    user guide: view the guide →

  • Fixed arms.

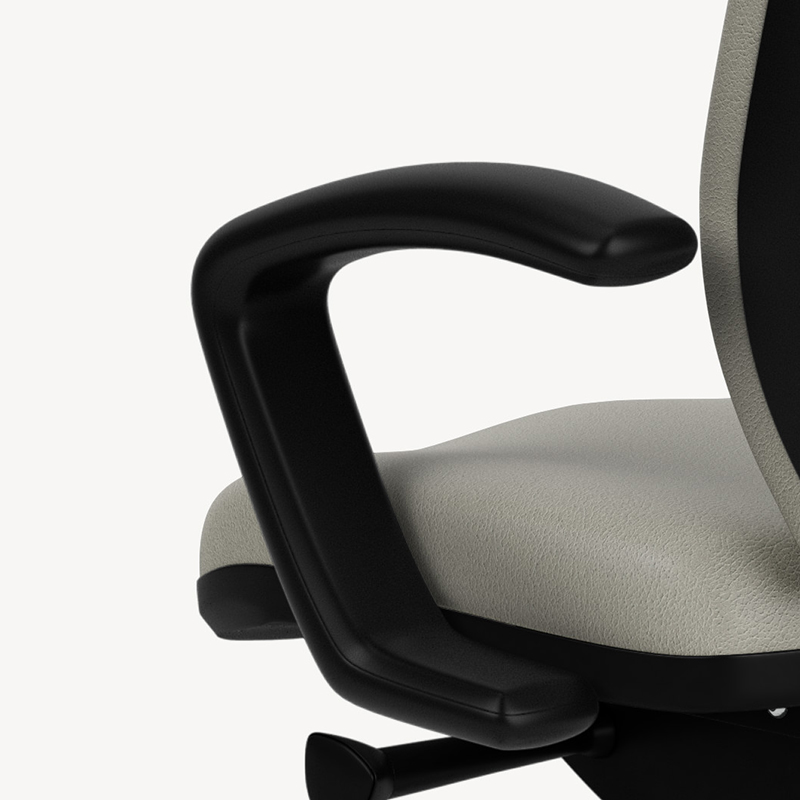

    Black polyurethane “C” shape arm. (-80A)

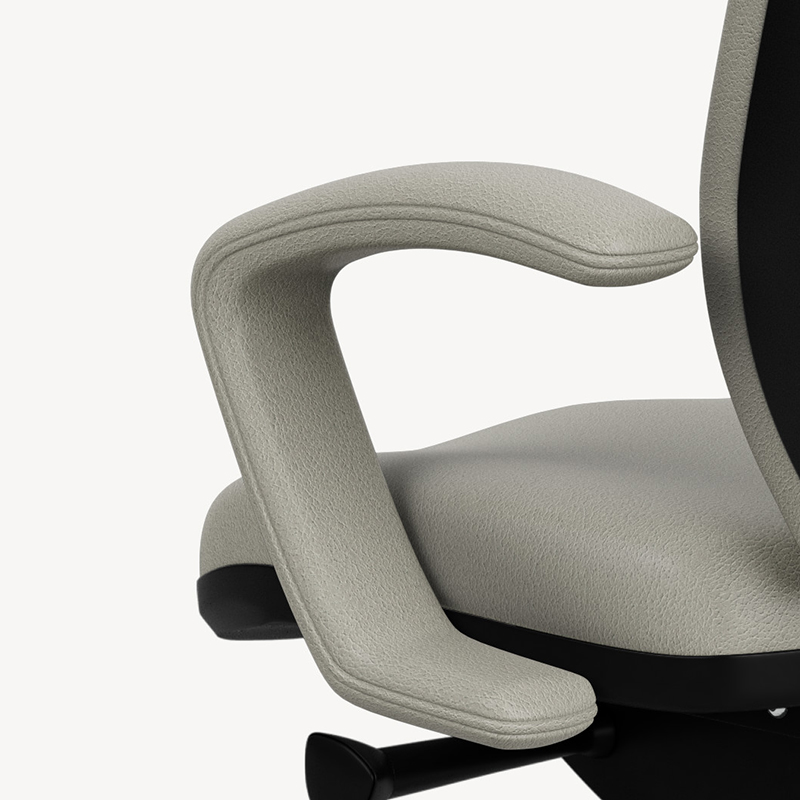

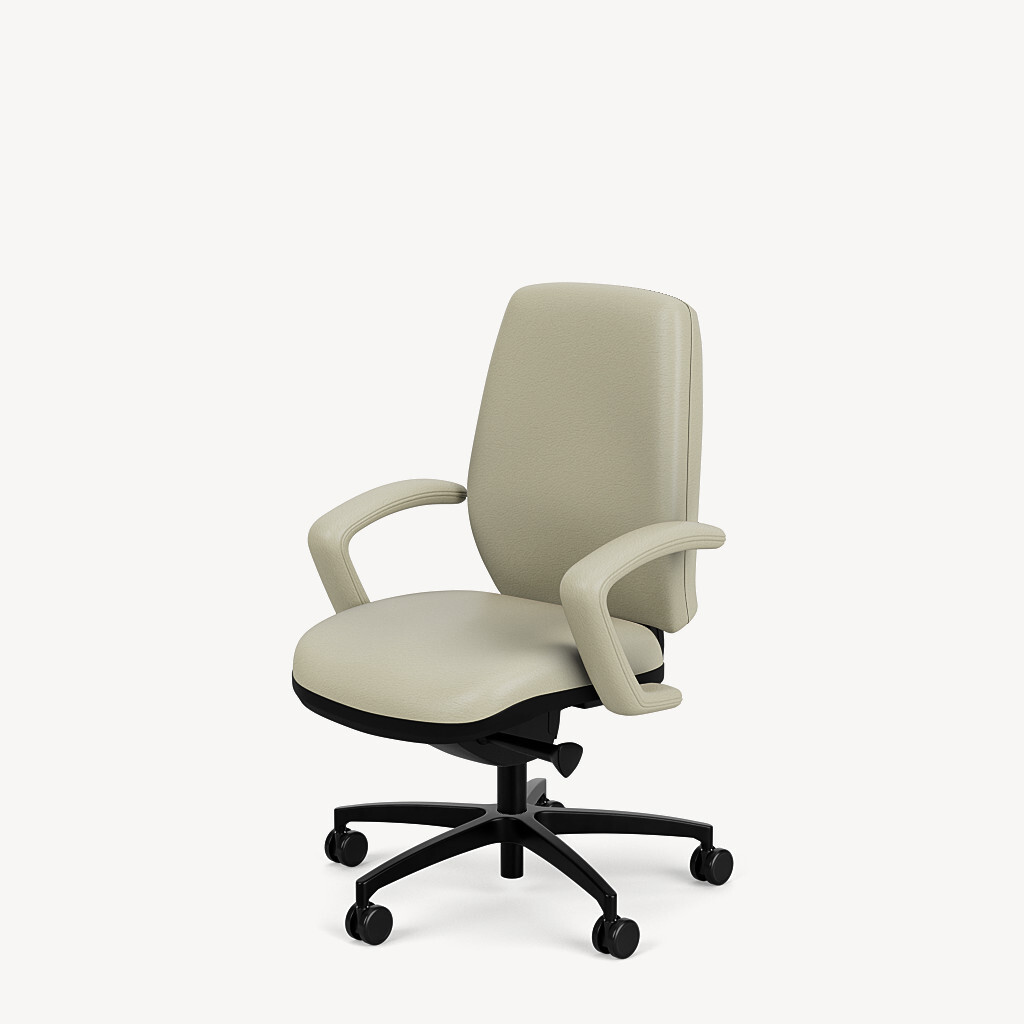

    Fully upholstered “C” shape arm with a polyurethane interior. (-90A)

control mechanisms

  • Conference control mechanisms.

    Swivel tilt conference control. (-25C)

    adjustments:
    1 Seat height adjustment.
    2 upright position tilt lock (single position).
    3 Back/recline tension adjustment.



    user guide: view the guide →

    Swivel tilt conference control with seat slider. (-26C)

    adjustments:
    1 Seat height adjustment.
    2 upright position tilt lock (single position).
    3 Back/recline tension adjustment.
    4 Seat depth adjustment.



    user guide: view the guide →

  • Synchro control mechanisms.

    Quick adjust advanced synchro control. *new* (-67C)

    adjustments:
    1 Seat height adjustment.
    2 Back tension adjustment.
    3 Single rotation back tilt lock adjustment (5 position).



    user guide: view the guide →

    Quick adjust advanced synchro control with a seat slide. *new* (-67CSS)

    adjustments:
    1 Seat height adjustment.
    2 Back tension adjustment.
    3 Single rotation back tilt lock adjustment (5 position).
    4 Seat depth adjustment.



    user guide: view the guide →

    Quick adjust advanced synchro control with a seat slide & forward tilt adjustment. *new* (-67CSS-FT)

    adjustments:
    1 Seat height adjustment.
    2 Back tension adjustment.
    3 Single rotation back tilt lock adjustment (5 position).
    4 Seat depth adjustment.
    5 Forward tilt adjustment.



    user guide: view the guide →

  • Task stool control.

    Auto-adjust body balance stool control. *new* (-35C)

    adjustments:
    1 Seat height adjustment.
    2 Back lock adjustment (single position).
    3 Foot ring height adjustment.



    user guide: view the guide →

adjustable lumbars

  • Optional adjustable lumbar supports.

    Mechanical lumbar support. (-12LUM)

    • Offers depth adjustment.
    • Adjusts independently from the back.
    • Allows the user to promote the natural, forward curve of his/her lower back.
    • Promotes an optimal sitting position and the opportunity to maintain this posture throughout the entire work day.



    user guide: view the guide →



bases

  • Chair swivel bases.

    Standard black nylon 5-star base. (-18BB)

    • Standard base.

    Polished aluminum 5-star base. (-18PB)

    Brushed aluminum 5-star base. (-18BA)

  • Stool swivel bases.

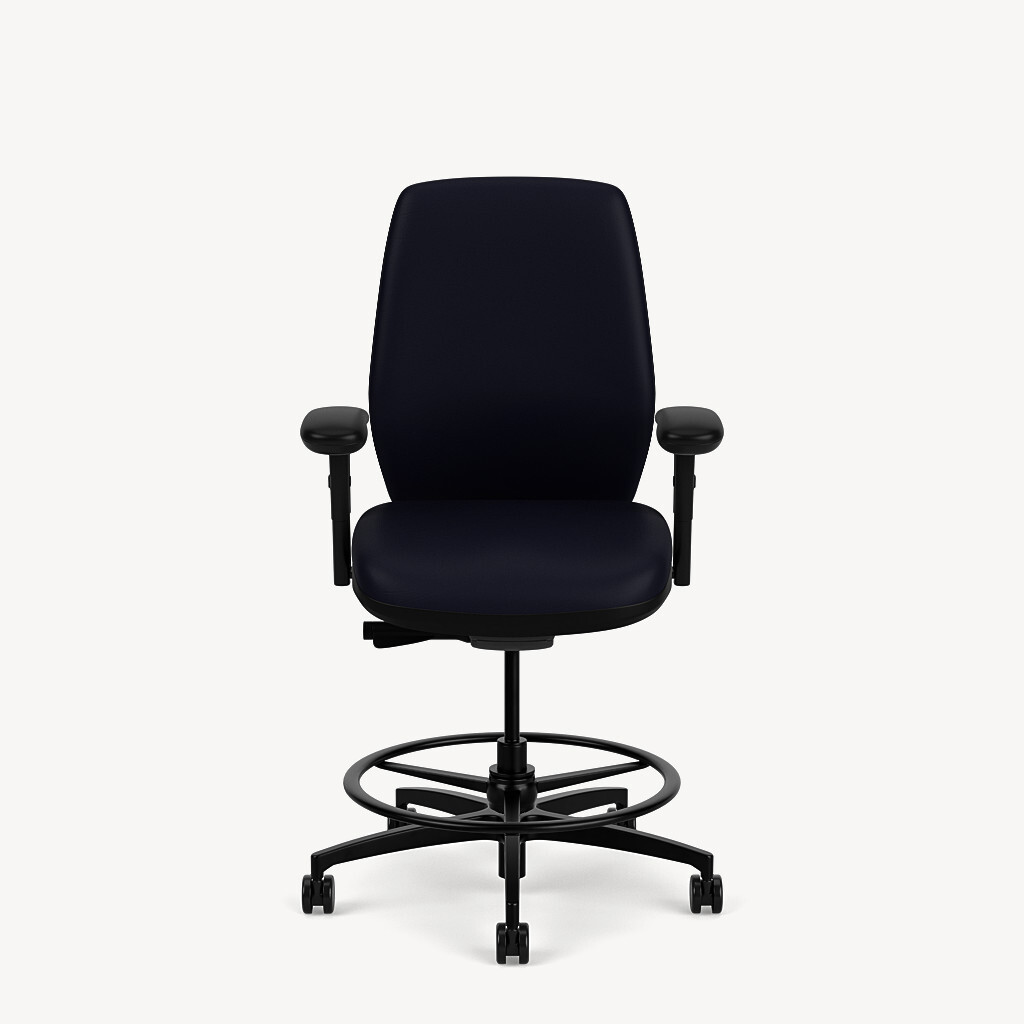

    Black nylon 5-star base with foot ring. (-18BB-11DR, -18BB-11XDR)

    • Standard stool base.
    • Tall (-11DR) height range/stroke: 7 in.
    • Extra-tall (-11XDR) height range/stroke: 9.5 in.
    • See exact dimensions in the drawings section.

    Polished aluminum 5-star with foot ring. (-18PB-11DR, -18PB-11XDR)

    • Tall (-11DR) height range/stroke: 7 in.
    • Extra-tall (-11XDR) height range/stroke: 9.5 in.
    • See exact dimensions in the drawings section.

    Brushed aluminum 5-star with foot ring. (-18BA-11DR, -18BA-11XDR)

    • Tall (-11DR) height range/stroke: 7 in.
    • Extra-tall (-11XDR) height range/stroke: 9.5 in.
    • See exact dimensions in the drawings section.

casters & glides

  • Casters.

    Black carpet casters. (-16HP)

    • Standard casters for all swivel bases.

    Grey hard floor & carpet casters. (-16SCG)

  • Glides.

    Black glides. (-16GL)

designed by Studio V

Studio V creates modern, sophisticated and original seating solutions that are ergonomic, beautiful and sustainable. This team of engineers and designers are based at the Via Seating Factory in Reno, Nevada, where they develop products using a prototyping lab, the latest in 3D modeling software and a materials testing center.

studio: Reno, Nevada.

Explore their design process here→

Dimensions recorded by Via Seating engineers using:

  • the BIFMA Chair Measuring Device® (CMD) &

  • the BIFMA Universal Measuring Procedure.

chair drawings

  • Mesh mid back chairs with a swivel tilt conference control on all enhanced comfort seat sizes. (4R12-25C, 4R22-25C & 4R32-25C)

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    4R12-25C, 4R22-25C & 4R32-25C

    seats A seat (4R12) B seat (4R22) C seat (4R32)
    A 34.7″ – 41.5″ (ratchet)
    34.7″ – 39.5″ (fixed)
    35.6″ – 42.4″ (ratchet)
    35.6″ – 40.4″ (fixed)
    35.1″ – 41.9″ (ratchet)
    35.1″ – 39.9″ (fixed)
    B 18.4″ – 23.2″ 18.2″ – 23.0″ 18.6″ – 23.4″
    C 19.5″ 21.0″ 22.2″
    D 15.7″ – 17.8″ 15.7″ – 17.8″ 15.7″ – 17.8″
    E 20.4″ – 22.4″ (ratchet)
    20.4″ (fixed)
    20.6″ – 22.6″ (ratchet)
    20.6″ (fixed)
    20.6″ – 22.6″ (ratchet)
    20.6″ (fixed)
    F 29.4″ 31.0″ 28.8″
    G 17.8″ 19.7″ 17.0″

    Ratchet (up and down adjustable) back is standard. Backs can be fully fixed (option -F).

  • Mesh mid back chairs with a swivel tilt conference control & seat slider on all enhanced comfort seat sizes. (4R12-26C, 4R22-26C & 4R32-26C)

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    4R12-26C, 4R22-26C & 4R32-26C

    seats A seat (4R12) B seat (4R22) C seat (4R32)
    A 34.8″ – 41.6″ (ratchet)
    34.8″ – 39.6″ (fixed)
    35.7″ – 42.5″ (ratchet)
    35.7″ – 40.5″ (fixed)
    35.2″ – 42.0″ (ratchet)
    35.2″ – 40.0″ (fixed)
    B 19.2″ – 24.0″ 19.0″ – 23.8″ 19.4″ – 24.2″
    C 19.5″ 21.0″ 22.2″
    D 15.7″ – 17.8″ 15.7″ – 17.8″ 15.7″ – 17.8″
    E 20.4″ – 22.4″ (ratchet)
    20.4″ (fixed)
    20.6″ – 22.6″ (ratchet)
    20.6″ (fixed)
    20.6″ – 22.6″ (ratchet)
    20.6″ (fixed)
    F 29.4″ 31.0″ 28.8″
    G 17.6″ – 19.6″ 19.5″ – 21.5″ 16.8″ – 18.8″

    Ratchet (up and down adjustable) back is standard. Backs can be fully fixed (option -F).

  • Mesh mid back chairs with a quick adjust advanced synchro control on all enhanced comfort seat sizes. (4R12-67C, 4R22-67C & 4R32-67C)

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    4R12-67C, 4R22-67C & 4R32-67C

    seats A seat (4R12) B seat (4R22) C seat (4R32)
    A 34.5″ – 41.3″ (ratchet)
    34.5″ – 39.3″ (fixed)
    35.4″ – 42.2″ (ratchet)
    35.4″ – 40.2″ (fixed)
    34.9″ – 41.7″ (ratchet)
    34.9″ – 39.7″ (fixed)
    B 18.1″ – 22.9″ 17.9″ – 22.7″ 18.3″ – 23.1″
    C 19.5″ 21.0″ 22.2″
    D 15.7″ – 17.8″ 15.7″ – 17.8″ 15.7″ – 17.8″
    E 19.0″ – 21.0″ (ratchet)
    19.0″ (fixed)
    19.2″ – 21.2″ (ratchet)
    19.2″ (fixed)
    19.2″ – 21.2″ (ratchet)
    19.2″ (fixed)
    F 27.0″ 28.6″ 26.4″
    G 16.7″ 18.6″ 15.9″

    Ratchet (up and down adjustable) back is standard. Backs can be fully fixed (option -F).

  • Mesh mid back chairs with a quick adjust advanced synchro control & seat slider on all enhanced comfort seat sizes. (4R12-67CSS, 4R22-67CSS & 4R32-67CSS)

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    4R12-67CSS, 4R22-67CSS & 4R32-67CSS

    seats A seat (4R12) B seat (4R22) C seat (4R32)
    A 35.4″ – 42.2″ (ratchet)
    35.4″ – 40.2″ (fixed)
    36.3″ – 43.1″ (ratchet)
    36.3″ – 41.1″ (fixed)
    35.8″ – 42.6″ (ratchet)
    35.8″ – 40.6″ (fixed)
    B 18.6″ – 23.4″ 18.4″ – 23.2″ 18.8″ – 23.6″
    C 19.5″ 21.0″ 22.2″
    D 15.7″ – 17.8″ 15.7″ – 17.8″ 15.7″ – 17.8″
    E 18.0″ – 20.0″ (ratchet)
    18.0″ (fixed)
    18.2″ – 20.2″ (ratchet)
    18.2″ (fixed)
    18.2″ – 20.2″ (ratchet)
    18.2″ (fixed)
    F 27.0″ 28.6″ 26.4″
    G 15.5″ – 17.5″ 17.4″ – 19.4″ 14.7″ – 16.7″

    Ratchet (up and down adjustable) back is standard. Backs can be fully fixed (option -F).

  • Mesh high back chairs with a swivel tilt conference control on all enhanced comfort seat sizes. (4R14-25C, 4R24-25C & 4R34-25C)

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    4R14-25C, 4R24-25C & 4R34-25C

    seats A seat (4R14) B seat (4R24) C seat (4R34)
    A 39.0″ – 45.8″ (ratchet)
    39.0″ – 43.8″ (fixed)
    39.9″ – 46.7″ (ratchet)
    39.9″ – 44.7″ (fixed)
    39.4″ – 46.2″ (ratchet)
    39.4″ – 44.2″ (fixed)
    B 17.8″ – 22.6″ 17.6″ – 22.4″ 18.0″ – 22.8″
    C 19.5″ 21.0″ 22.2″
    D 15.9″ – 18.2″ 15.9″ – 18.2″ 15.9″ – 18.2″
    E 23.3″ – 25.3″ (ratchet)
    23.3″ (fixed)
    23.5″ – 25.5″ (ratchet)
    23.5″ (fixed)
    23.5″ – 25.5″ (ratchet)
    23.5″ (fixed)
    F 29.7″ 31.3″ 29.1″
    G 17.8″ 19.7″ 17.0″

    Ratchet (up and down adjustable) back is standard. Backs can be fully fixed (option -F).

  • Mesh high back chairs with a swivel tilt conference control & seat slider on all enhanced comfort seat sizes. (4R14-26C, 4R24-26C & 4R34-26C)

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    4R14-26C, 4R24-26C & 4R34-26C

    seats A seat (4R14) B seat (4R24) C seat (4R34)
    A 39.1″ – 45.9″ (ratchet)
    39.1″ – 43.9″ (fixed)
    40.0″ – 46.8″ (ratchet)
    40.0″ – 44.8″ (fixed)
    39.5″ – 46.3″ (ratchet)
    39.5″ – 44.3″ (fixed)
    B 18.6″ – 23.4″ 18.6″ – 23.4″ 18.8″ – 23.6″
    C 19.5″ 21.0″ 22.2″
    D 15.9″ – 18.2″ 15.9″ – 18.2″ 15.9″ – 18.2″
    E 23.3″ – 25.3″ (ratchet)
    23.3″ (fixed)
    23.5″ – 25.5″ (ratchet)
    23.5″ (fixed)
    23.5″ – 25.5″ (ratchet)
    23.5″ (fixed)
    F 29.7″ 31.3″ 29.1″
    G 17.6″ – 19.6″ 19.5″ – 21.5″ 16.8″ – 18.8″

    Ratchet (up and down adjustable) back is standard. Backs can be fully fixed (option -F).

  • Mesh high back chairs with a quick adjust advanced synchro control on all enhanced comfort seat sizes. (4R14-67C, 4R24-67C & 4R34-67C)

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    4R14-67C, 4R24-67C & 4R34-67C

    seats A seat (4R14) B seat (4R24) C seat (4R34)
    A 38.8″ – 46.1″ (ratchet)
    38.8″ – 42.9″ (fixed)
    39.7″ – 46.5″ (ratchet)
    39.7″ – 44.5″ (fixed)
    39.2″ – 46.0″ (ratchet)
    39.2″ – 44.0″ (fixed)
    B 17.5″ – 22.3″ 17.3″ – 22.1″ 17.7″ – 21.9″
    C 19.5″ 21.0″ 22.2″
    D 15.9″ – 18.2″ 15.9″ – 18.2″ 15.9″ – 18.2″
    E 21.9″ – 24.4″ (ratchet)
    21.9″ (fixed)
    22.1″ – 24.6″ (ratchet)
    22.1″ (fixed)
    22.1″ – 24.6″ (ratchet)
    22.1″ (fixed)
    F 27.3″ 28.9″ 26.7″
    G 16.7″ 18.6″ 15.9″

    Ratchet (up and down adjustable) back is standard. Backs can be fully fixed (option -F).

  • Mesh high back chairs with a quick adjust advanced synchro control & seat slider on all enhanced comfort seat sizes. (4R14-67CSS, 4R24-67CSS & 4R34-67CSS)

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    4R14-67CSS, 4R24-67CSS & 4R34-67CSS

    seats A seat (4R14) B seat (4R24) C seat (4R34)
    A 39.7″ – 46.5″ (ratchet)
    39.7″ – 44.5″ (fixed)
    40.6″ – 47.4″ (ratchet)
    40.6″ – 45.4″ (fixed)
    39.2″ – 46.0″ (ratchet)
    39.2″ – 44.0″ (fixed)
    B 18.0″ – 22.8″ 17.8″ – 22.6″ 17.7″ – 21.9″
    C 19.5″ 21.0″ 22.2″
    D 15.9″ – 18.2″ 15.9″ – 18.2″ 15.9″ – 18.2″
    E 20.9″ – 22.9″ (ratchet)
    20.9″ (fixed)
    21.1″ – 23.1″ (ratchet)
    21.1″ (fixed)
    22.1″ – 24.6″ (ratchet)
    22.1″ (fixed)
    F 27.3″ 28.6″ 26.7″
    G 15.5″ – 17.5″ 17.4″ – 19.4″ 14.7″ – 16.7″

    Ratchet (up and down adjustable) back is standard. Backs can be fully fixed (option -F).

stool drawings

  • Mesh mid back stools with enhanced comfort A & B seats. (4R12-11DR, 4R12-11DR)

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    4R12-11DR, 4R12-11DR

    seats A seat (4R12) B seat (4R22)
    A 40.6″ – 49.6″ (ratchet)
    40.6″ – 47.6″ (fixed)
    41.5″ – 50.5″ (ratchet)
    41.5″ – 48.5″ (fixed)
    B 24.0″ – 31.0″ 23.8″ – 30.8″
    C 19.5″ 21.0″
    D 15.7″ – 17.8″ 15.7″ – 17.8″
    E 19.1″ – 21.1″ (ratchet)
    19.1″ (fixed)
    19.3″ – 21.3″ (ratchet)
    19.3″ (fixed)
    F 24.8″ 26.4″
    G 16.9″ 18.8″

    Ratchet (up and down adjustable) back is standard. Backs can be fully fixed (option -F).

  • Upholstered mid back stools with enhanced comfort A & B seats. (3403-11DR, 3603-11DR)

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    3403-11DR, 3603-11DR

    seats A seat (3403) B seat (3603)
    A 43.7″ – 50.7″ 44.6″ – 51.6″
    B 23.5″ – 30.5″ 23.3″ – 30.3″
    C 19.5″ 21.0″
    D 17.0″ – 17.4″ 17.0″ – 17.4″
    E 24.6″ – 26.6″ 24.8″ – 26.8″
    F 25.3″ 26.9″
    G 18.1″ 20.0″

    Ratchet (up and down adjustable) back is standard. Backs can be fully fixed (option -F).

seat drawings



Seat Reference Point (SRP),
The ergonomic seat depth measurement.



Measurement G (and not measurement H) is the true seat reference point. SRP is an ergonomic term that defines where there is a slight indentation in the lumbar (i.e. where the sitter is benefiting from the lumbar support) to the front edge of the seat. It gives the true measurement of surface area in contact with the body. It is very useful for correctly matching up with hip to knee measurements for ergonomists taking into account the two – three finger gap between the back of the leg to the edge of the seat. It is very important to ensure no restriction in circulation to the lower extremities (lower legs and ankles).

  • Mesh backs standard A seat. (2R12, 4R12, 2R14, 4R14)

    C. Seat width.

    G. Seat depth.

    H. Seat depth of the seat off the chair.

    controls 25C 26C 67C 67CSS
    C 19.5″ 19.5″ 19.5″ 19.5″
    G 17.8″ 17.6″ – 19.6″ 16.7″ 15.5″ – 17.5″
    H 17.5″ 17.5″ 17.5″ 17.5″
  • Mesh backs medium B seat. (2R22, 4R22, 2R24, 4R24)

    C. Seat width.

    G. Seat depth.

    H. Seat depth of the seat off the chair.

    controls 25C 26C 67C 67CSS
    C 21.0″ 21.0″ 21.0″ 21.0″
    G 19.7″ 19.5″ – 21.5″ 18.6″ 17.4″ – 19.4″
    H 21.0″ 21.0″ 21.0″ 21.0″
  • Mesh backs large C seat. (2R32, 4R32, 2R34, 4R34)

    C. Seat width.

    G. Seat depth.

    H. Seat depth of the seat off the chair.

    controls 25C 26C 67C 67CSS
    C 22.2″ 22.2″ 22.2″ 22.2″
    G 17.0″ 16.8″ – 18.8″ 15.9″ 14.7″ – 16.7″
    H 20.0″ 20.0″ 20.0″ 20.0″
  • Upholstered mid back standard A seat. (3403)

    C. Seat width.

    G. Seat depth.

    H. Seat depth of the seat off the chair.

    controls 25C 26C 67C 67CSS
    C 19.5″ 19.5″ 19.5″ 19.5″
    G 19.0″ 18.8″ – 20.8″ 17.9″ 16.7″ – 18.7″
    H 17.5″ 17.5″ 17.5″ 17.5″
  • Upholstered mid back medium B seat. (4R24)

    C. Seat width.

    G. Seat depth.

    H. Seat depth of the seat off the chair.

    controls 25C 26C 67C 67CSS
    C 21.0″ 21.0″ 21.0″ 21.0″
    G 20.9″ 20.7″ – 22.7″ 19.8″ 18.6″ – 20.6″
    H 21.0″ 21.0″ 21.0″ 21.0″
  • Upholstered mid back large C seat. (4R34)

    C. Seat width.

    G. Seat depth.

    H. Seat depth of the seat off the chair.

    controls 25C 26C 67C 67CSS
    C 22.2″ 22.2″ 22.2″ 22.2″
    G 18.2″ 18.0″ – 20.0″ 17.1″ 15.9″ – 17.9″
    H 20.0″ 20.0″ 20.0″ 20.0″

arm drawings

  • Full function arm. (-18A)

    J. Armrest length.

    K. Armrest height.

    L. Armrest width.

    M. Width between armrests.

    seats A seats B seats C seats
    J 7.9″ 6.2″ 5.2″
    K 5.0″ – 8.2″ 8.9″ – 12.1″ 7.1″ – 10.3″
    L 28.3″ 28.7″ 30.8″
    M 21.0″ 22.4″ 24.8″

    A seats (2R12, 4R12, 2R14, 4R14, 3403)
    B seats (2R22, 4R22, 2R24, 4R24, 3603)
    C seats (2R32, 4R32, 2R34, 4R34, 3803)

  • Basic height adjustable arm, black finish. (-38A)

    J. Armrest length.

    K. Armrest height.

    L. Armrest width.

    M. Width between armrests.

    seats A seats B seats C seats
    J 7.7″ 6.0″ 5.0″
    K 5.3″ – 7.8″ 9.2″ – 11.5″ 7.4″ – 9.9″
    L 25.6″ 26.0″ 28.1″
    M 17.7″ 19.1″ 21.5″

    A seats (2R12, 4R12, 2R14, 4R14, 3403)
    B seats (2R22, 4R22, 2R24, 4R24, 3603)
    C seats (2R32, 4R32, 2R34, 4R34, 3803)

  • Roll back arm. (-39A)

    J. Armrest length.

    K. Armrest height.

    L. Armrest width.

    M. Width between armrests.

    seats A seats B seats C seats
    J 7.6″ 5.9″ 4.9″
    K 5.1″ – 7.6″ 9.0″ – 11.5″ 7.2″ – 9.7″
    L 26.3″ 26.7″ 28.8″
    M 18.4″ 19.8″ 22.2″

    A seats (2R12, 4R12, 2R14, 4R14, 3403)
    B seats (2R22, 4R22, 2R24, 4R24, 3603)
    C seats (2R32, 4R32, 2R34, 4R34, 3803)

  • 8-way adjustable arm. (-51A, -53A)

    J. Armrest length.

    K. Armrest height.

    L. Armrest width.

    M. Width between armrests.

    seats A seats B seats C seats
    J 7.6″ 5.9″ 4.9″
    K 6.1″ – 9.9″ 10.0″ – 13.8″ 8.2″ – 12.0″
    L 25.7″ 26.1″ 28.2″
    M 18.6″ 20.0″ 22.4″

    A seats (2R12, 4R12, 2R14, 4R14, 3403)
    B seats (2R22, 4R22, 2R24, 4R24, 3603)
    C seats (2R32, 4R32, 2R34, 4R34, 3803)
