Reset chairs

Reset models: 350-DG-RA1G-16HP-03RE | Textile: Maharam Medium Marina.

Set. Nest. Reset. Adjust the room with ease.

Whether for brief or longer use, Reset is the compact nesting and light task seating experience that delivers comfort you can both see & feel. Sink back into its thick layer of injection-molded, closed-cell, cold-cured seat foam with ergonomic, waterfall seat. Experience its smooth flex back to a full 22 degrees. Embrace Reset’s arms that are long enough to comfortably accommodate a variety of differently sized individuals. Reset your perspective on compact seating. Discover Reset, compact nesting and light task seating designed  with you in mind.

  • Applications: available as a nesting chair, light task chair on 5-star base and a swivel-caster stool.
  • Mesh: flex-back (to 22 degrees) high-performance mesh available in 9 colors including copper mesh with option of screen print logo added to mesh.
  • Seat foam: high density, closed-cell, cold-cured, injection molded, foam using Via Seating’s proprietary process (backed by Via Seating’s 12 year warranty).
  • Arms: integrated arms available in 2 finishes.
  • Bases: five-star bases available in black nylon, magnet grey nylon, polished aluminum and brushed aluminum finishes, 4-leg
    available in black and magnet grey.
  • Max weight: 300 lb.
  • Quick ship: 20 chairs produced in a 48 hour period.
  • Warranty: 12 year warranty, 5 years for mesh.



  • CDPH Standard Method v1.1-2010 (Clean Air Gold).
  • LEED – v4.1 Low Emitting Materials (Clean Air Gold).
  • Living Building Challenge (LBC) – Imperative 08 (Clean Air Gold).
  • WELL – Feature 04 – VOC Reduction (Clean Air Gold).



Nesting chairs. (350)

Light task chairs. (352)

Task stools.

finishes

  • Framework finishes.

    Matte black. (-B)

    • Black finish is standard.
    • Finish applied to mesh frame, arms & 4-leg base.
    • Explore details here →

    Matte magnet grey. (-DG)

    • Finish applied to mesh frame, arms & 4-leg base.
    • Explore details here →

mesh colors

arms

  • Armless standard.

    Armless. (-0A)

    • Armless chairs are standard on all models.
  • Fixed arms.

    Black fixed arm. (-RA1B)

    • Available option with black frames.

    Grey fixed arm. (-RA1G)

    • Available option with magnet grey frames.

bases



  • Chair swivel bases.

    Standard black nylon 5-star base. (-18BB)

    • Standard light task chair base with a black frame.

    Magnet grey nylon 5-star. (-18GB)

    • Standard light task chair base with a magnet grey frame.

    Polished aluminum 5-star base. (-18PB)

    Brushed aluminum 5-star base. (-18BA)

  • Stool swivel bases.

    Black nylon 5-star base with foot ring. (-18BB-11DR, -18BB-11XDR)

    • Standard stool base with a black frame.
    • Tall (-11DR) height range: 7 in.
    • Extra-tall (-11XDR) height range: 9 in.
    • See exact dimensions in the drawings section.

    Magnet grey nylon 5-star with foot ring. (-18GB-11DR, -18GB-11XDR)

    • Standard stool base with a magnet grey frame.
    • Tall (-11DR) height range: 7 in.
    • Extra-tall (-11XDR) height range: 9 in.
    • See exact dimensions in the drawings section.

    Polished aluminum 5-star with foot ring. (-18PB-11DR, -18PB-11XDR)

    • Tall (-11DR) height range: 7 in.
    • Extra-tall (-11XDR) height range: 9 in.
    • See exact dimensions in the drawings section.

    Brushed aluminum 5-star with foot ring. (-18BA-11DR, -18BA-11XDR)

    • Tall (-11DR) height range: 7 in.
    • Extra-tall (-11XDR) height range: 9 in.
    • See exact dimensions in the drawings section.

casters & glides

  • Casters.

    Black carpet casters. (-16HP)

    • Standard casters for all swivel bases.

    Grey hard floor & carpet casters. (-16SCG)

  • Glides.

    Black glides. (-16GL)

designed by Studio V

Studio V creates modern, sophisticated and original seating solutions that are ergonomic, beautiful and sustainable. This team of engineers and designers are based at the Via Seating Factory in Reno, Nevada, where they develop products using a prototyping lab, the latest in 3D modeling software and a materials testing center.

studio: Reno, Nevada.

Explore their design process here→

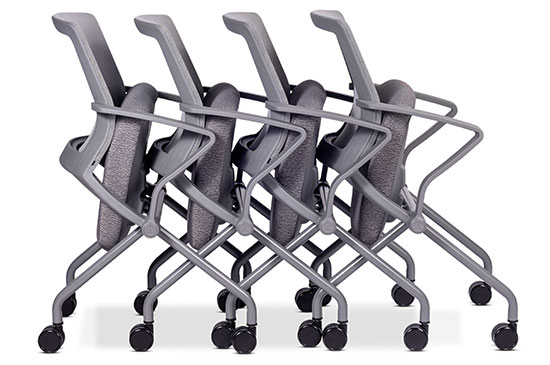

compact nesting

Reset nesting chairs are designed with easy fold-away seats that transition each chair into a compact form. These are easily and tightly nested into one another. They can be rolled and stored away until their next use.

22 degrees of flex back

Reset's framework allows for a comfortable 22 degrees of flex back at the hip. The smooth and supportive flex feature allows the back to relax and lifts the chest enabling deep breath.

sleek, integrated arm

Reset has a sleek, integrated arm that grounds the sitter when flexing back. Its smart design delivers an extensive length in the arm perfect for accommodating a variety of differently sized individuals without sacrificing on the tight, compact nature of its nesting feature.

part of the copper mesh collection

Reset is included in the copper mesh collection. This copper mesh works by physically embedding an EPA registered copper into the fibers of via seating copper mesh. Through this process, the copper will not wear off like topically applied alternatives. The result is a self-sanitizing, copper-infused mesh that has strong biocidal, antifungal, and antiviral properties. There are additional anti-odor properties to the copper mesh as well. It is available in natural and black finishes.

Dimensions recorded by Via Seating engineers using:

  • the BIFMA Chair Measuring Device® (CMD) &

  • the BIFMA Universal Measuring Procedure.

chair drawings

  • Nesting chairs.

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    Nesting chair.

    350

    A.  34.0″
    B.
      16.5″
    C.  18.0″
    D.  17.8″
    E.  17.5″
    F.  22.5″
    G.  16.0″

  • Light task chairs.

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    Light task chair.

    352 with -18BB, -18BA & -18PB

    A. 33.9″ – 38.7″
    B.
    16.4″ – 21.2″
    C.  18.0″
    D.  17.8″
    E.  18.3″
    F.   29.5″
    G.
      17.5″

  • Light task stools.

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    Light task stool.

    352 with -11DR

    A  39.7″ – 47.2″
    22.2″ – 29.7″
    C  18.0″
    D  17.8″
    E  18.3″
    F   29.5″
    G  17.5″

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    Light task extra-tall stool.

    352 with -11XDR

    A  41.7″ – 49.2″
    24.2” – 31.7″
    C  18.0″
    D  17.8″
    E  18.3″
    F   29.5″
    G  17.5″

seat drawings



Seat Reference Point (SRP),
The ergonomic seat depth measurement.



Measurement G (and not measurement H) is the true seat reference point. SRP is an ergonomic term that defines where there is a slight indentation in the lumbar (i.e. where the sitter is benefiting from the lumbar support) to the front edge of the seat. It gives the true measurement of surface area in contact with the body. It is very useful for correctly matching up with hip to knee measurements for ergonomists taking into account the two – three finger gap between the back of the leg to the edge of the seat. It is very important to ensure no restriction in circulation to the lower extremities (lower legs and ankles).

  • Reset seats.

    C. Seat width.

    G. Seat depth.

    H. Seat depth of the seat off the chair.

    C.  1.5″
    G.  9.2″
    H.   23.5″

arm drawings

  • Fixed arms.

    J. Armrest length.

    K. Armrest height.

    L. Armrest width.

    M. Width between armrests.

    Reset arms.

    -RA1B & -RA1G

    J.  1.5″
    K.  9.2″
    L.   23.5″
    M.  19.7″

flexed back drawings

  • Showing degrees of flex back.

    N. Minimum backrest angle.

    O. Minimum seat pan angle.

    P. Maximum backrest angle.

    Q. Maximum seat pan angle.

    Chair type. Nesting chair. Light task chair & stool.
    N 100° 96°
    O
    P 133° 129°
    Q



nested chairs drawings

  • Nested chairs.

    Na. Distance between back of the backmost chair & back of the next nested chair.

    Nb. Distance from the backmost to the frontmost part of 1 chair.

    Nc Distance from the backmost to the frontmost part of 2 nested chairs.

    Na.  9.5″
    Nb.  22.2″
    Nc.   31.5″
