Orbit chair

Orbit model: 928-70C-SR-33POL | Fabric: Maharam Mode Billygoat (seat) & Tri-Kes Kindred Uph Mountain Fog (back).

the classic round lounge chair elevated

Orbit is a classic, round form elevated by Via Seating’s motion-lounge experience. Enjoy its 360 swivel or rock & swivel. Orbit can also be fixed upon the sturdy and stylish, wire frame “X” base available in multiple finishes. Enhance the beauty of Orbit by applying different upholstery to its seat and back. Orbit is the perfect solution for lounge, lobby, and executive guest spaces.

  • Backrest: stylish round shape with integrated arms.

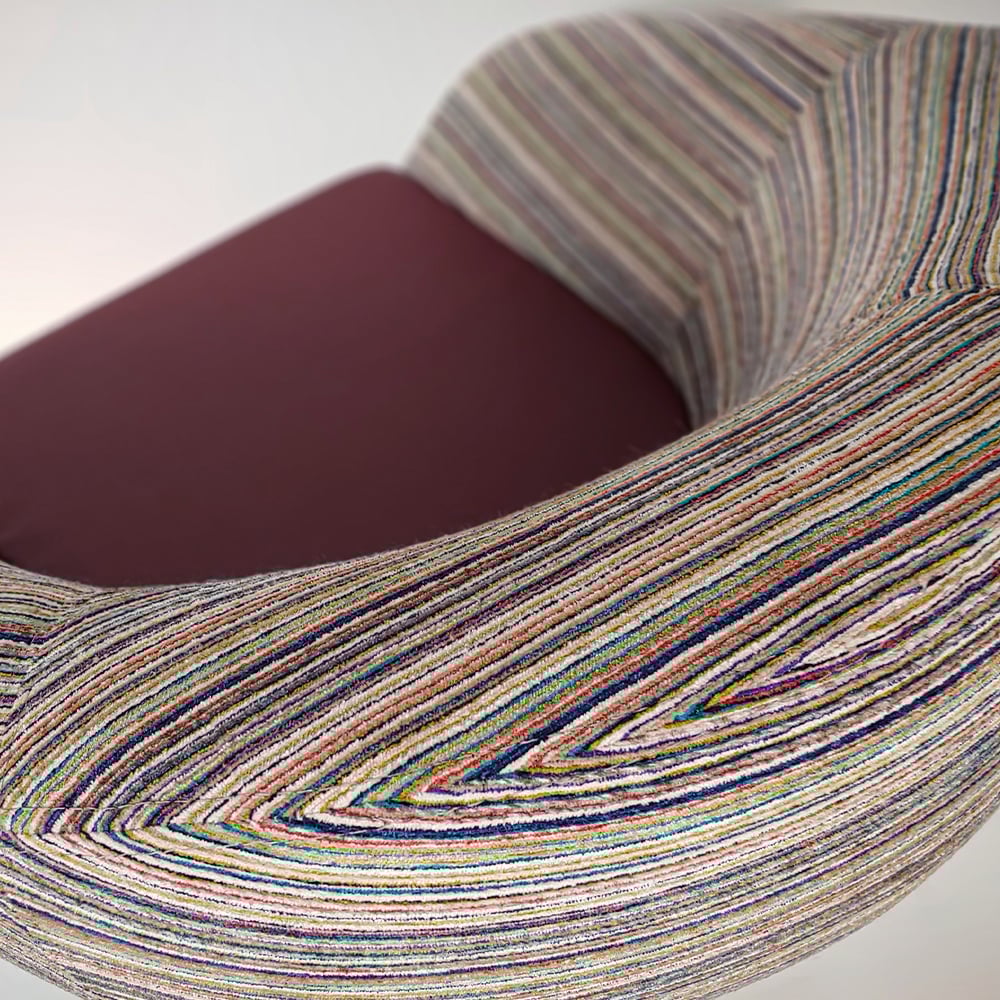

  • Seat: option to upholster the comfortable seat in a different fabric.
  • Control mechanisms: choices include fixed, motion-lounge rock (back-and-forth rocking movement) or 360 degree swivel.
  • Bases: a variety of styles in polished, matte black and silver finishes including 5-star conference applications.
  • Foam: high-density, closed-cell, cold-cured, injection-molded foam using Via Seating’s proprietary process.
  • Max weight: 300 lb.

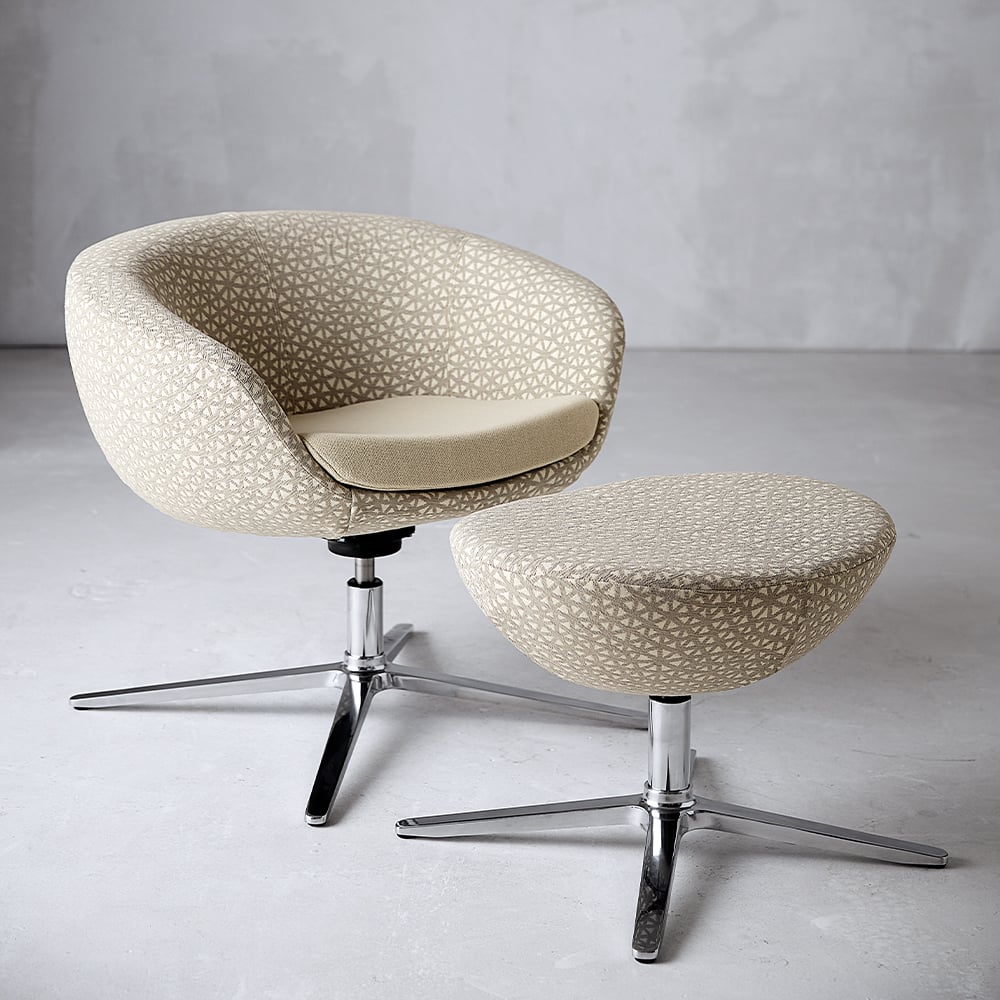

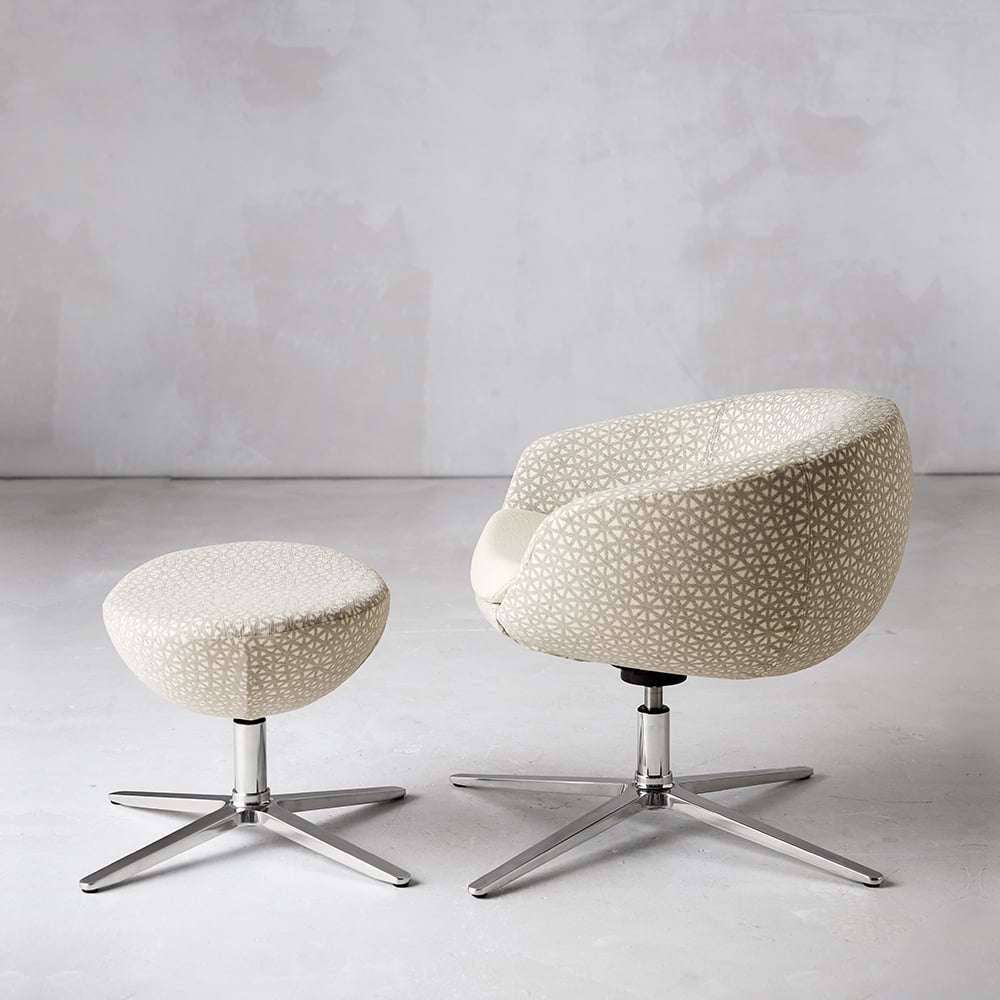

  • Ottomans: add an ottoman, choosing between the square Chico style or round Luna style.
  • Quick ship: 2 chairs produced in a 48 hour period.
  • Warranty: 6 year warranty.



  • ANSI/BIFMA X7.1-2011 (R2016) Standard Method equivalent to CDPH Standard Method v1.1-2010 (Clean Air Gold).
  • LEED – v4.1 Low Emitting Materials (Clean Air Gold).
  • Living Building Challenge (LBC) – Imperative 08 (Clean Air Gold).
  • WELL – Feature 04 – VOC Reduction (Clean Air Gold).

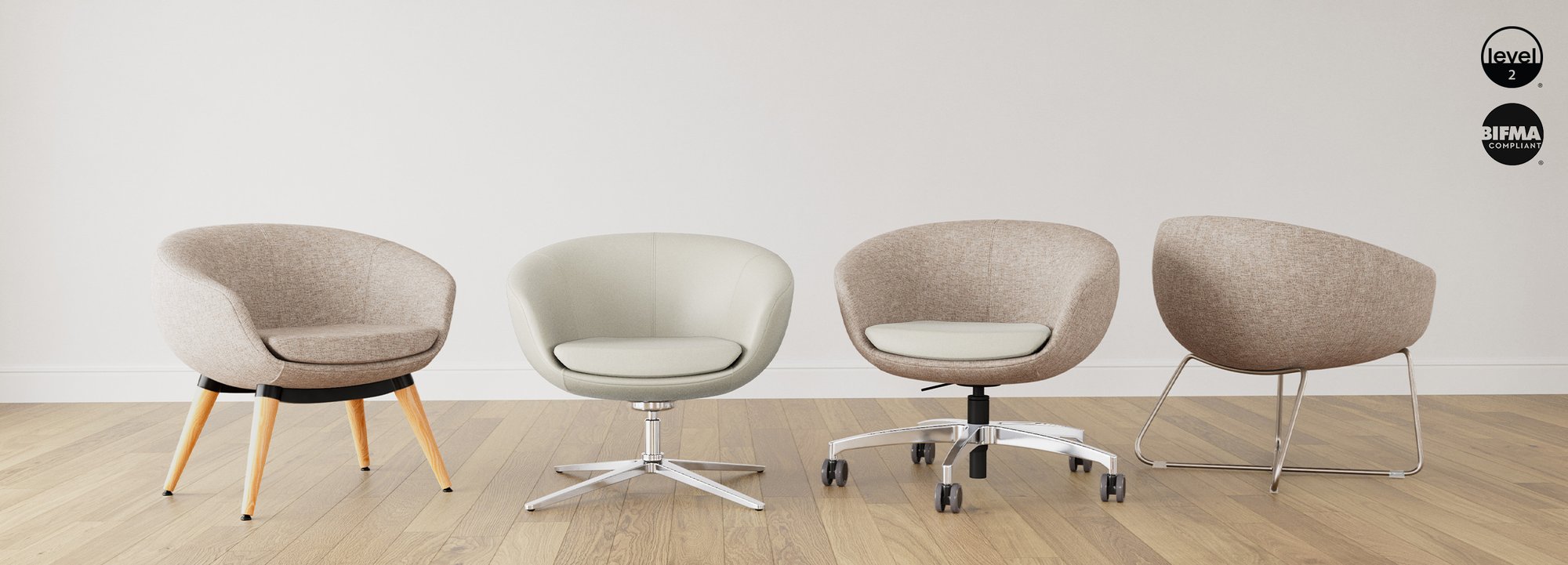

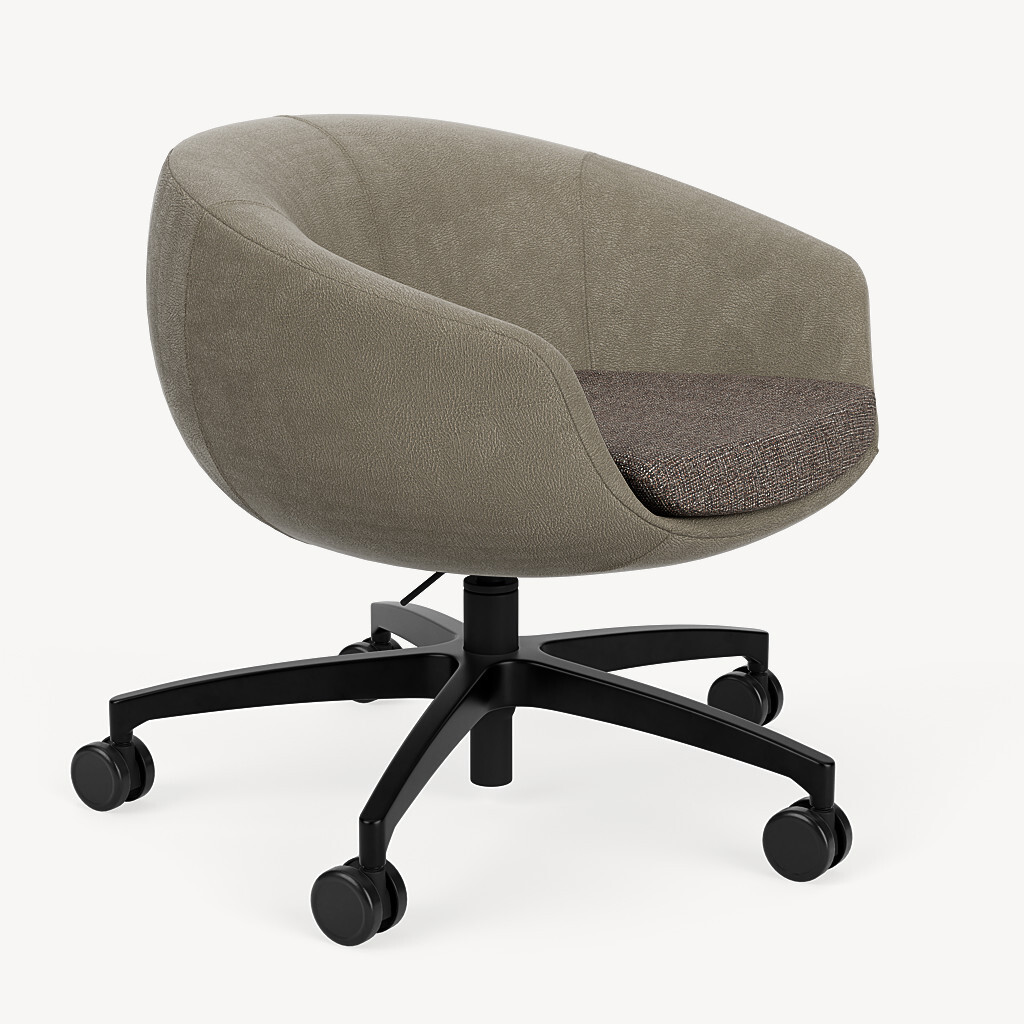

Conference Chair. (928)

With adjustable height bases.

Lounge & Guest Chair. (928)

With fixed height bases.

Chico ottoman. (955)

explore now →

Luna ottoman. (926)

explore now →

finishes

  • Wood base finishes.

    Walnut wood finish. (-5WAL)

    Oak wood finish. (-5OAK)

  • Metal base finishes.

    Matte black powder-coated steel. (-21XB)

    Matte black powder-coated aluminum. (-33BLK)

    Matte black nylon. (-18BB)

    Silver powder-coated steel. (-21XS)

    Brushed steel. (-3DISK)

    Brushed aluminum. (-18BA)

    Polished aluminum. (-33POL)

    Polished aluminum. (-18PB)

control mechanisms

  • Control mechanisms ("the motion experience").

    Fixed. (-69C-SF)

    • Fixed base, no movement.
    • Available on bases 33BLK, 33POL & 3DISK.

    Swivel. (-69C)

    • Swivels 360 degrees freely.
    • Optional auto return-to-center feature.
    • Available on bases 33BLK, 33POL & 3DISK.

    Rock & swivel. (-70C)

    • Rocks back & forth.
    • Swivels 360 degrees freely.
    • Optional auto return-to-center feature.
    • Available on bases 33BLK, 33POL & 3DISK.

bases

  • Adjustable height bases.

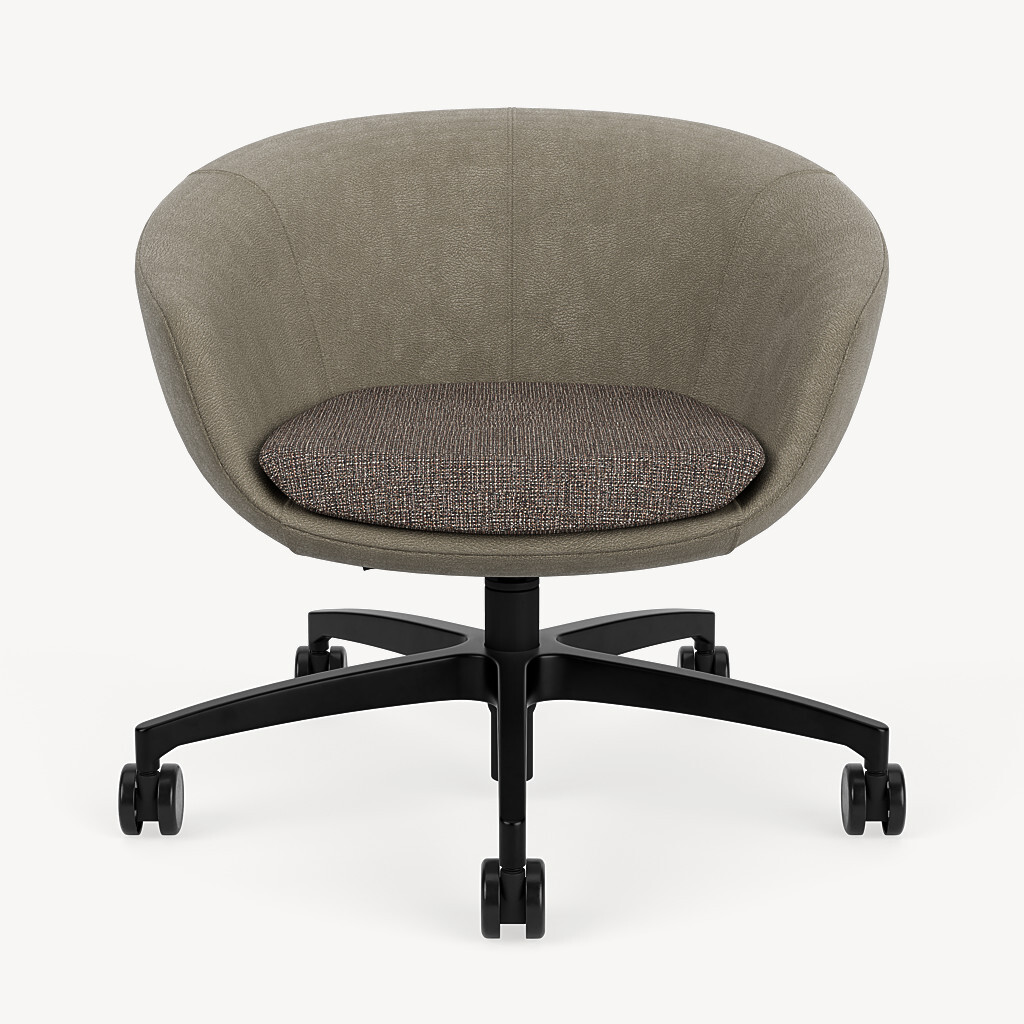

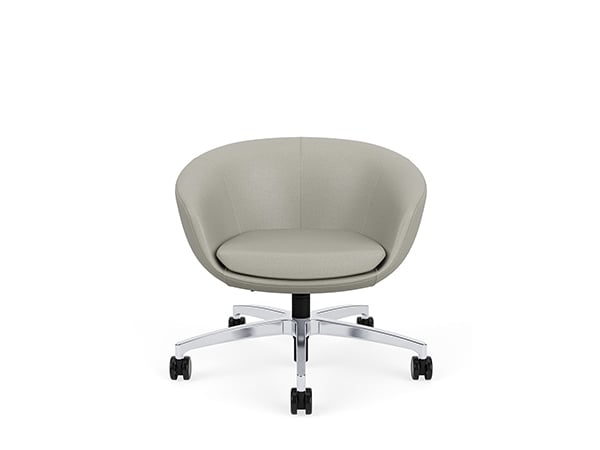

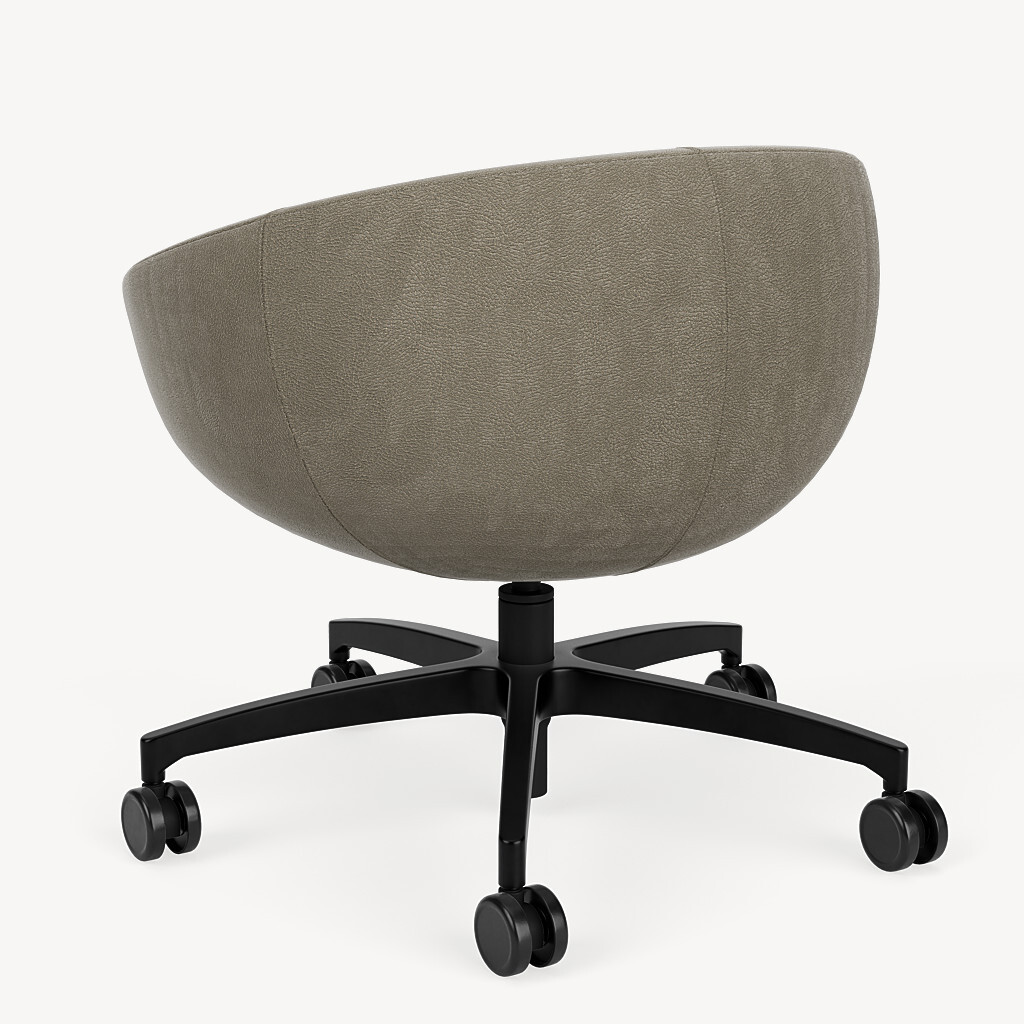

    Black nylon 5-star base. (-18BB)

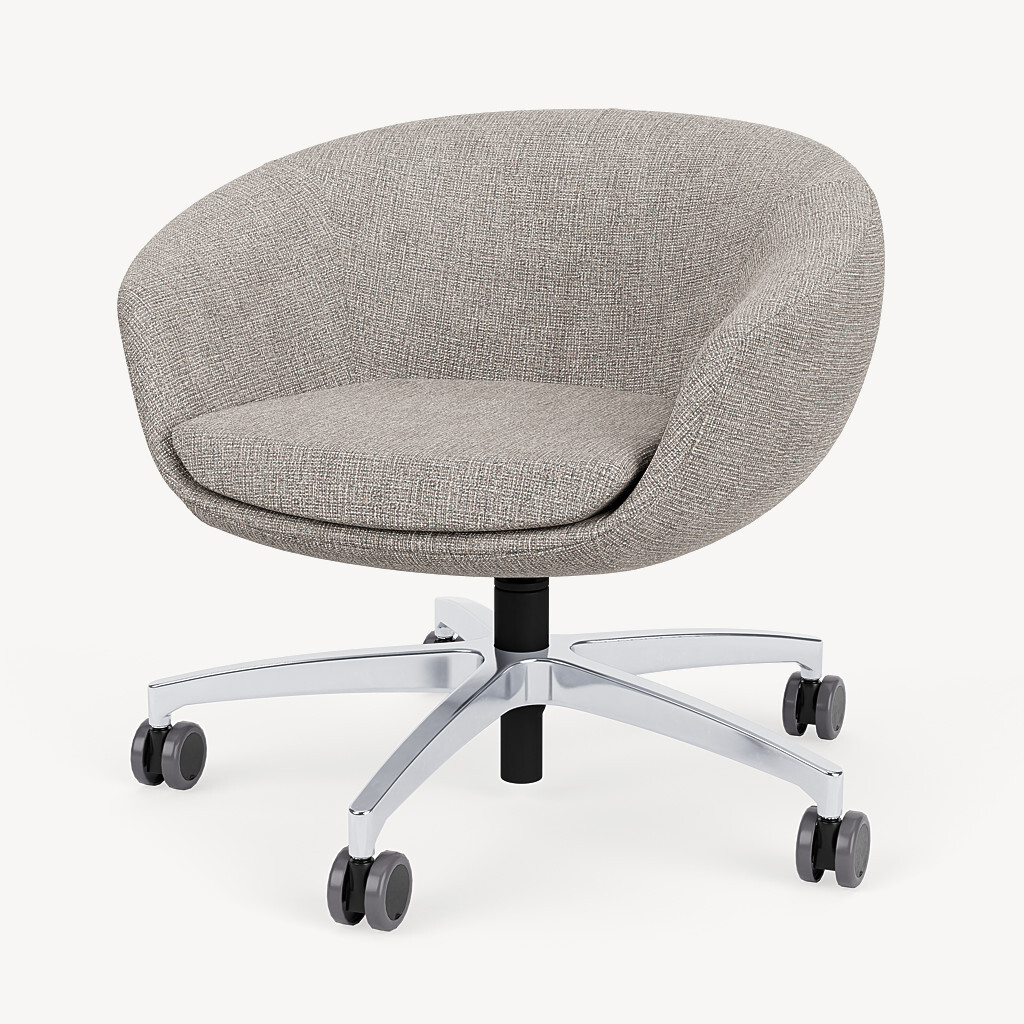

    Polished aluminum 5-star base. (-18PB)

    Brushed aluminum 5-star. (-18BA)

  • Bases with Fixed Height & Optional Swivel.

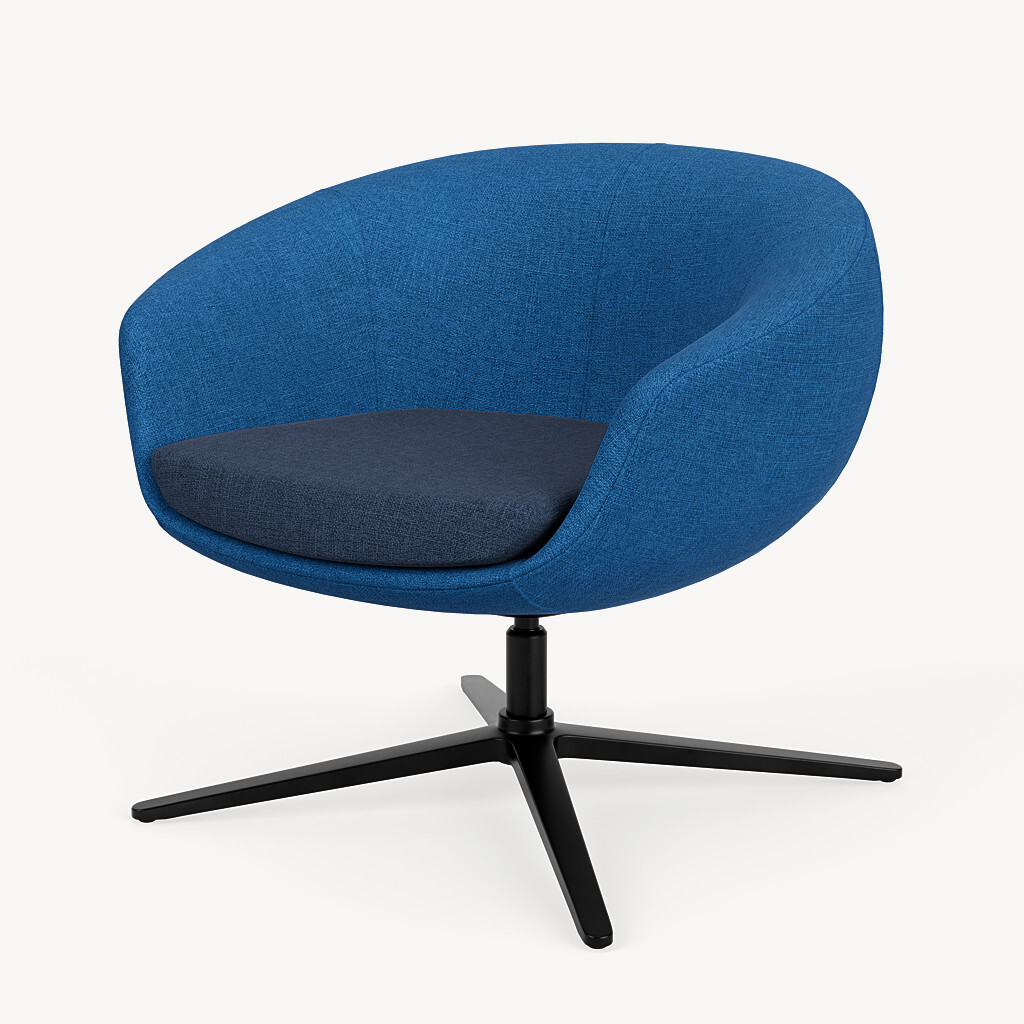

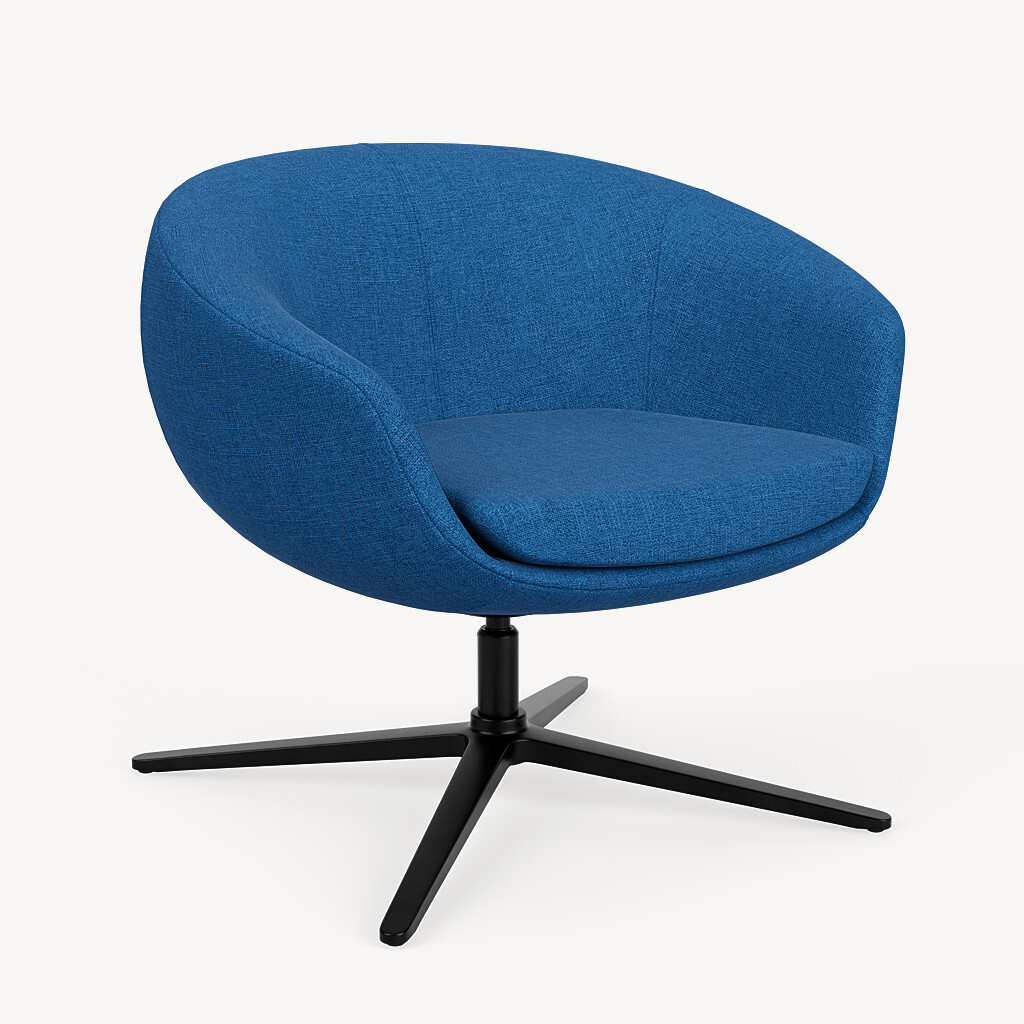

    4-leg base with a matte black finish. (-33BLK)

    • Optional fixed (no swivel), non return-to-center (swivel) or return-to-center.
    • Non return-to-center (swivel) is standard.

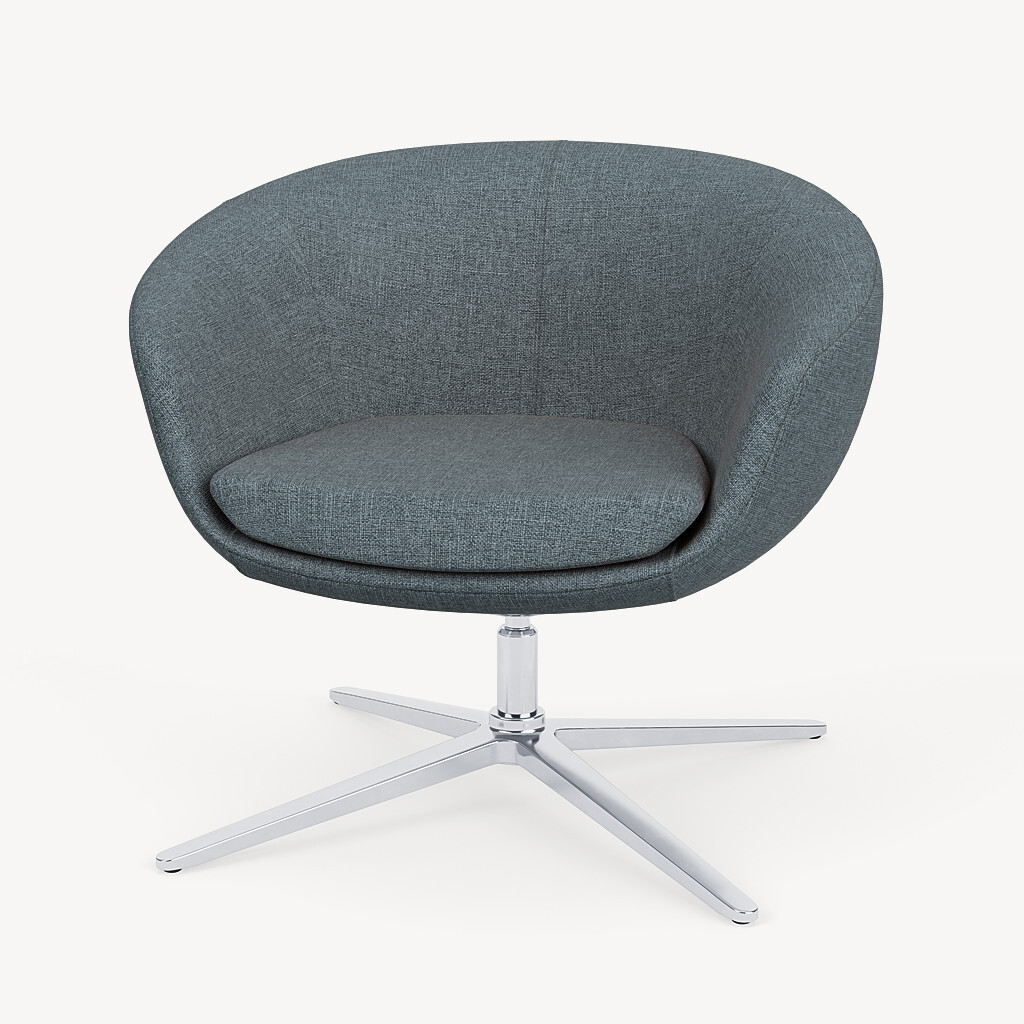

    4-leg base with a polished finish. (-33POL)

    • Optional fixed (no swivel), non return-to-center (swivel) or return-to-center.
    • Non return-to-center (swivel) is standard.

    Disk base with a brushed finish. (-3DISK)

    • Optional fixed (no swivel), non return-to-center (swivel) or return-to-center.
    • Non return-to-center (swivel) is standard.
  • Fixed Bases (No Motion).

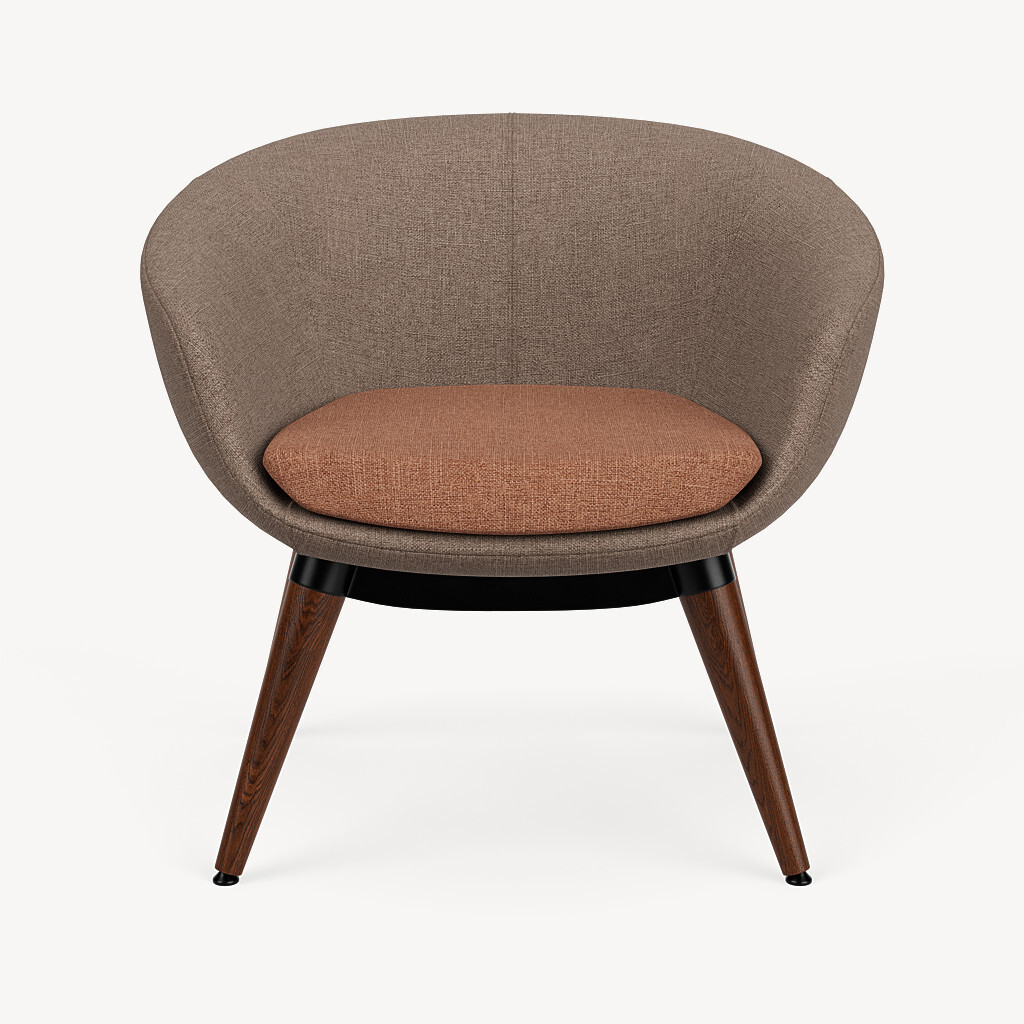

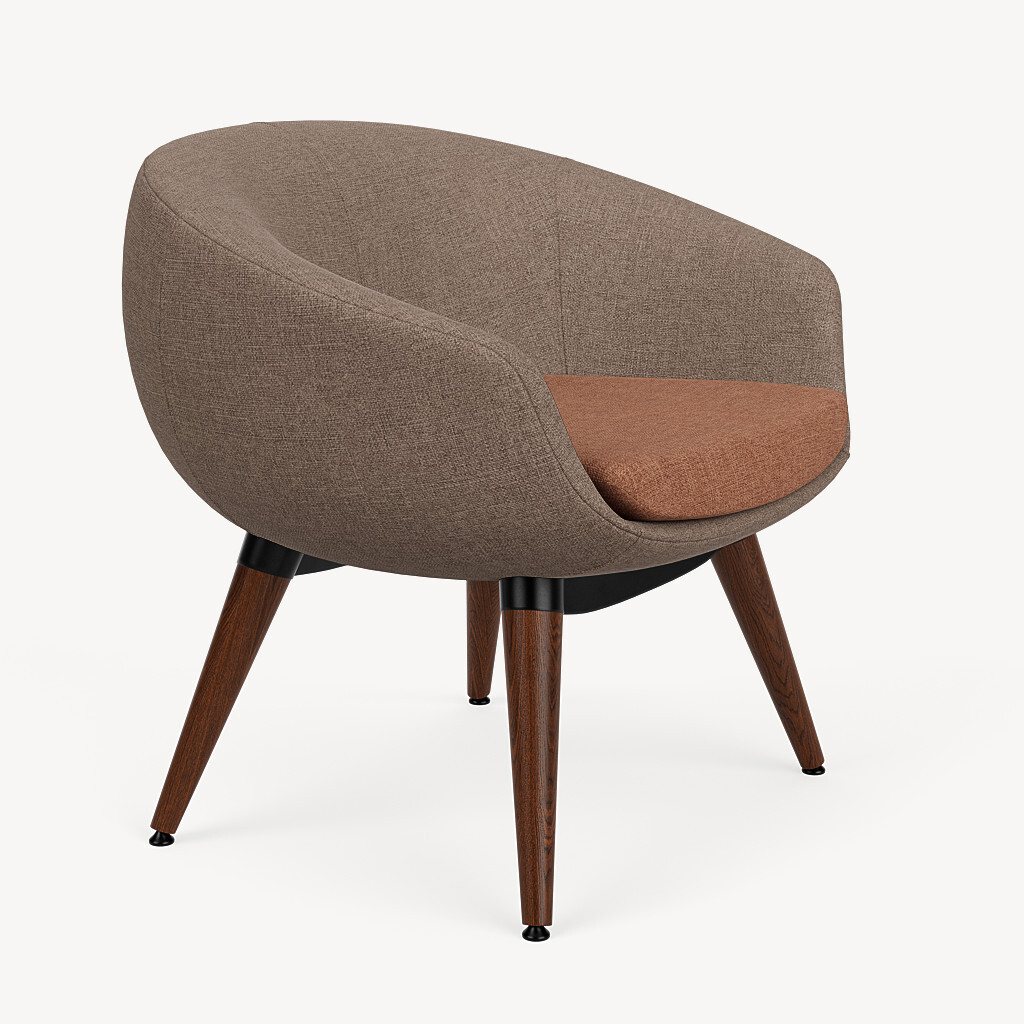

    *NEW* Low profile 4-leg fixed-height wood base with a walnut wood finish. (-5WAL)

    • Pre-order now. Production ready in July.

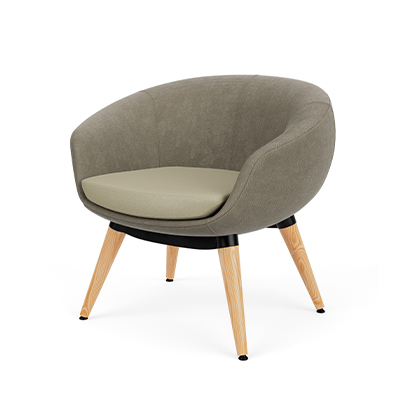

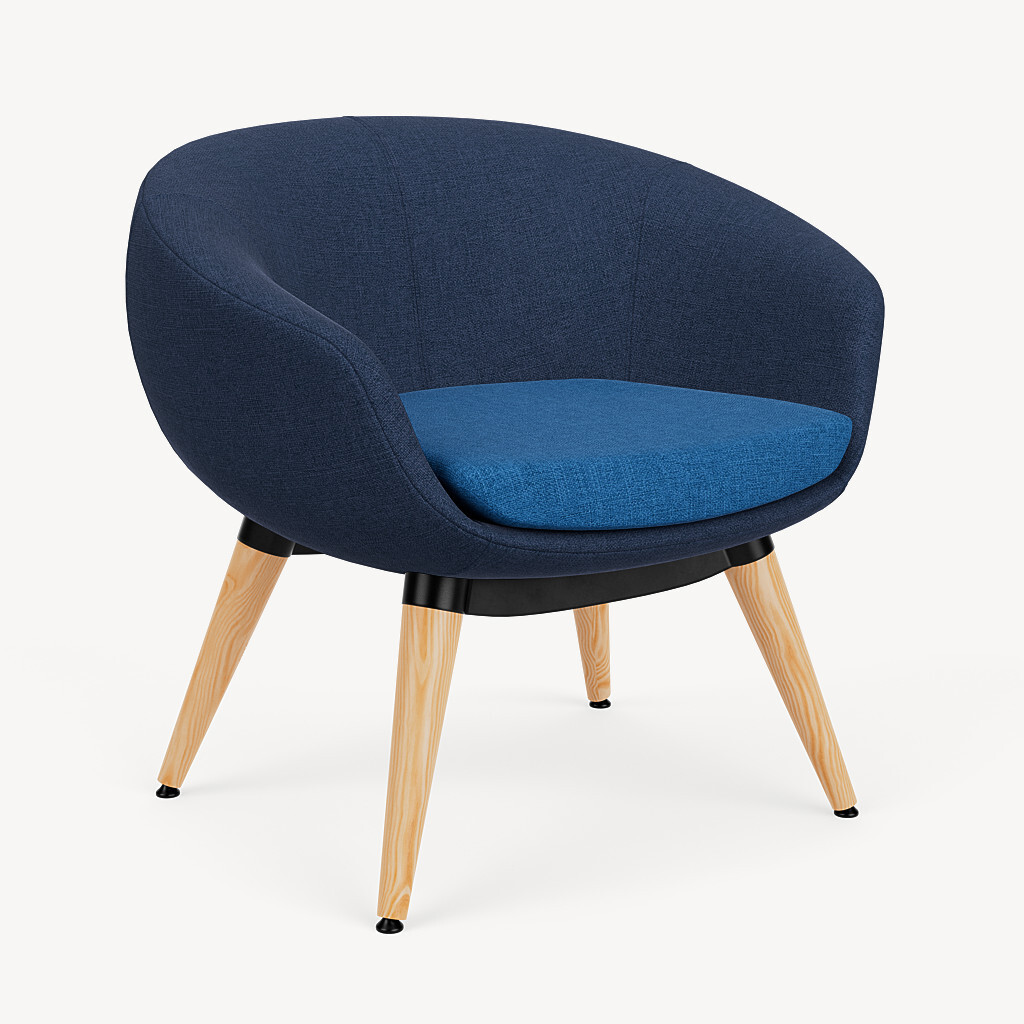

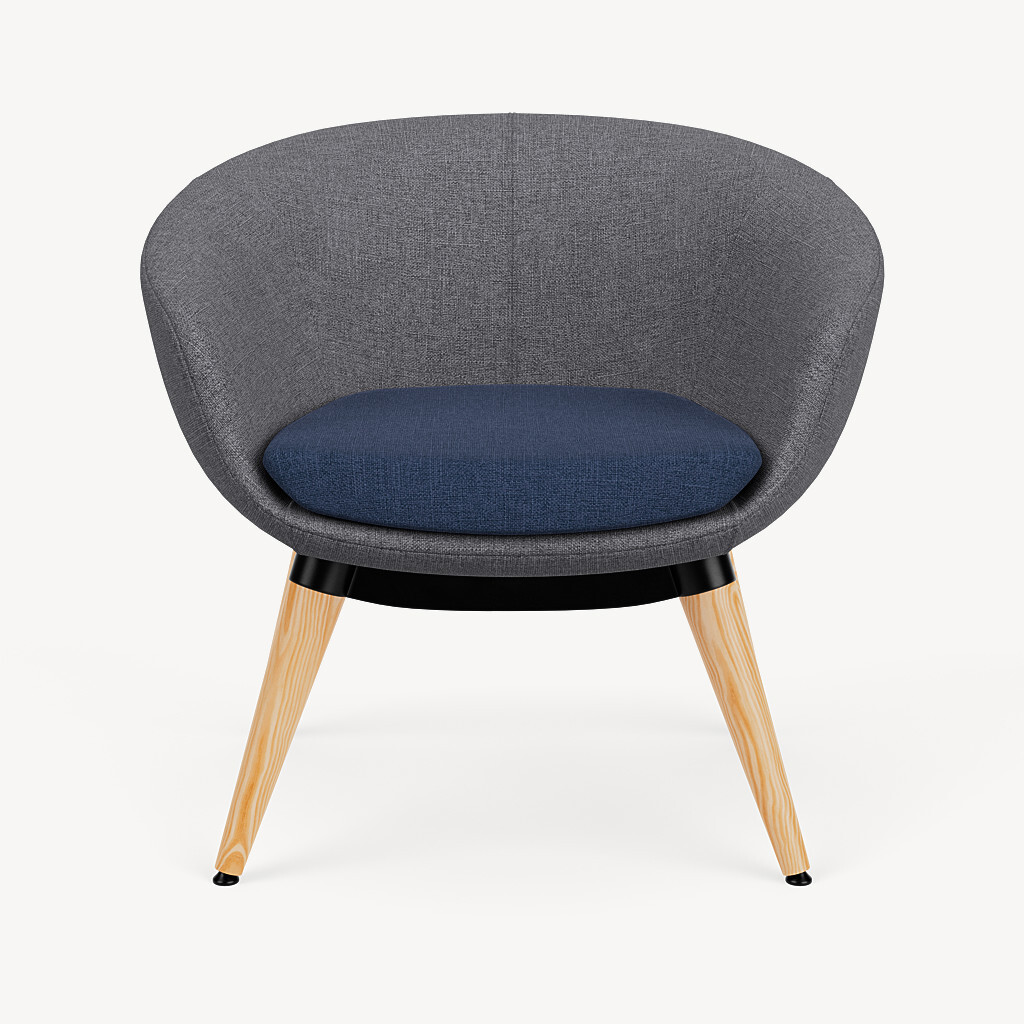

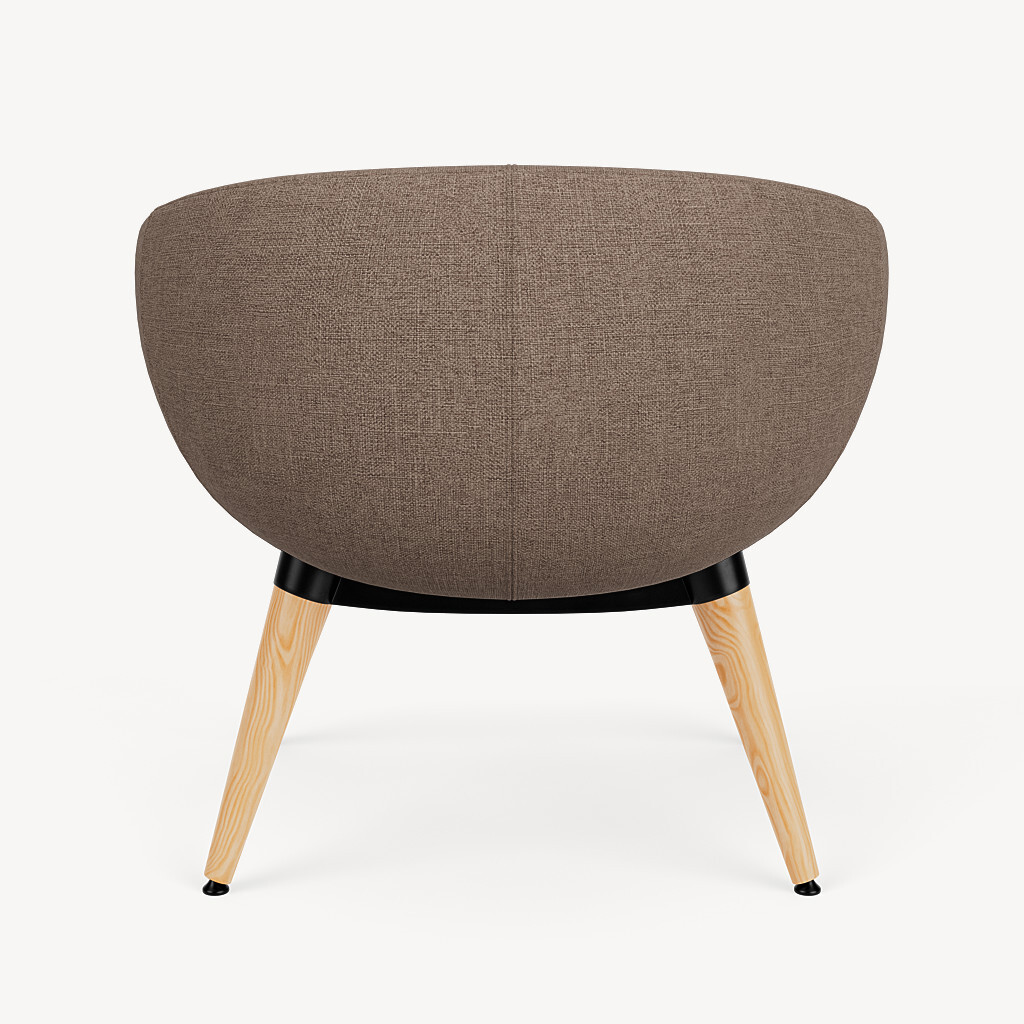

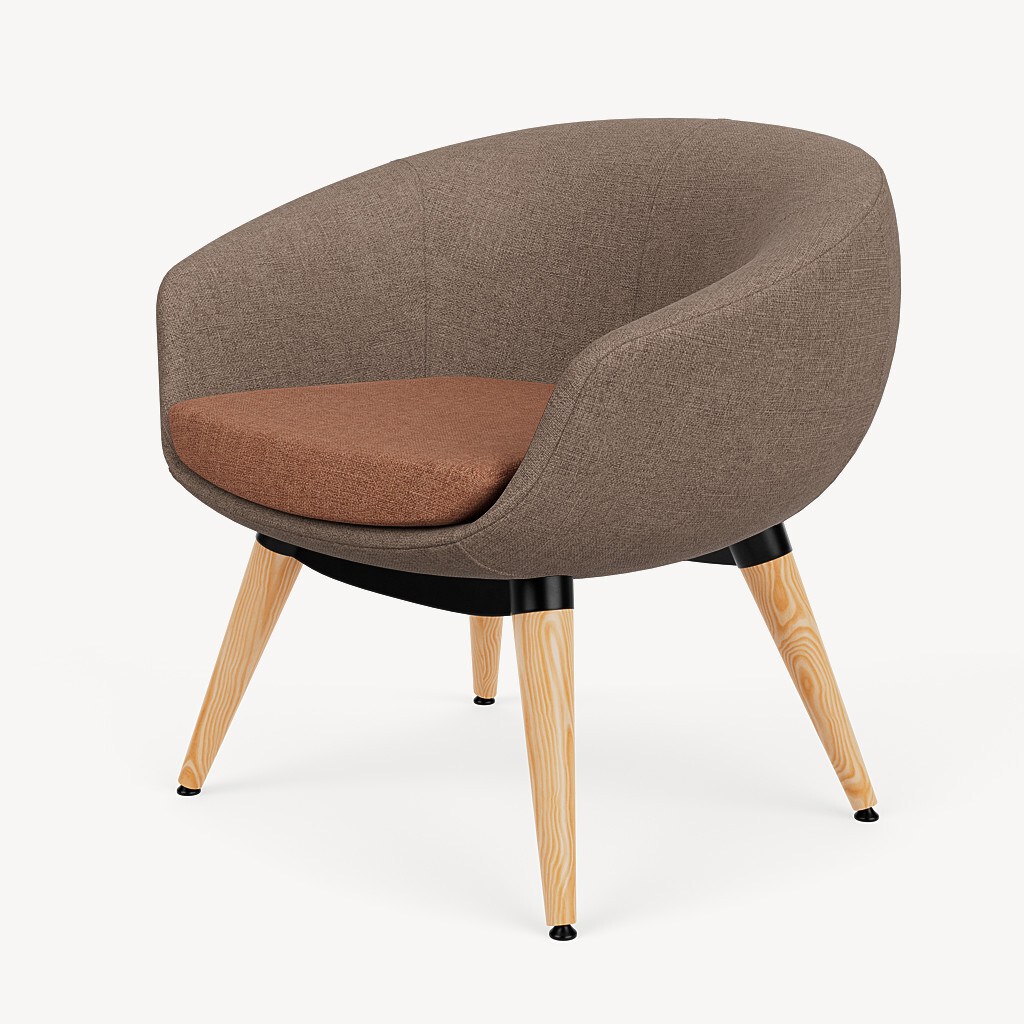

    *NEW* Low profile 4-leg fixed-height wood base with a oak wood finish. (-5OAK)

    • Pre-order now. Production ready in July.

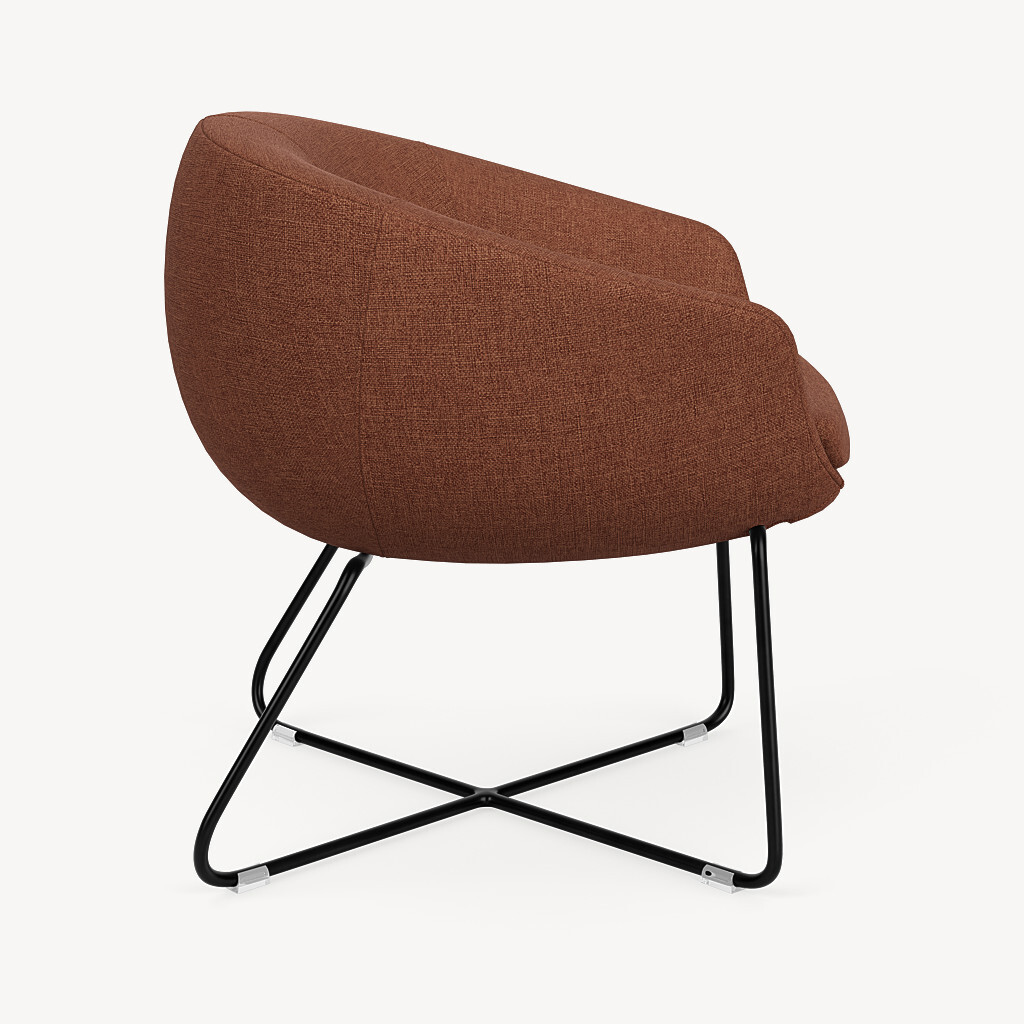

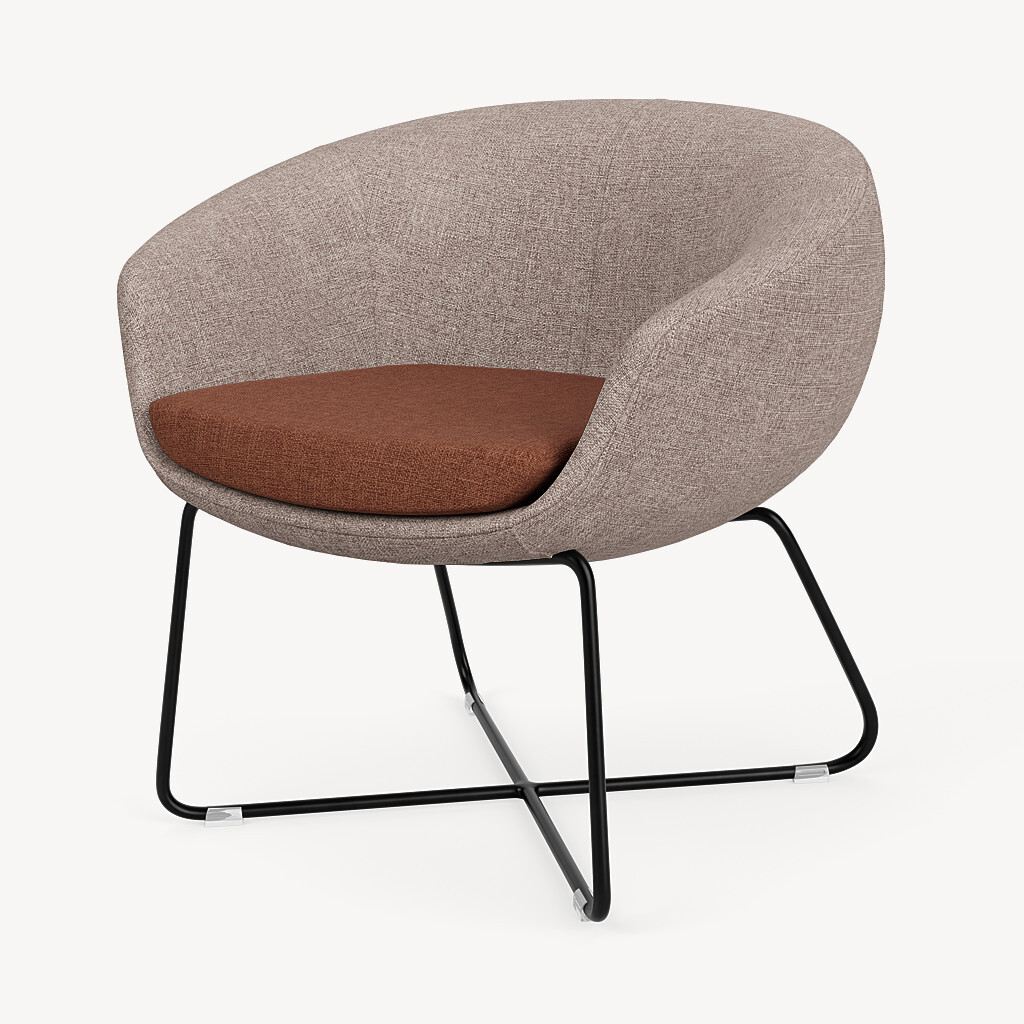

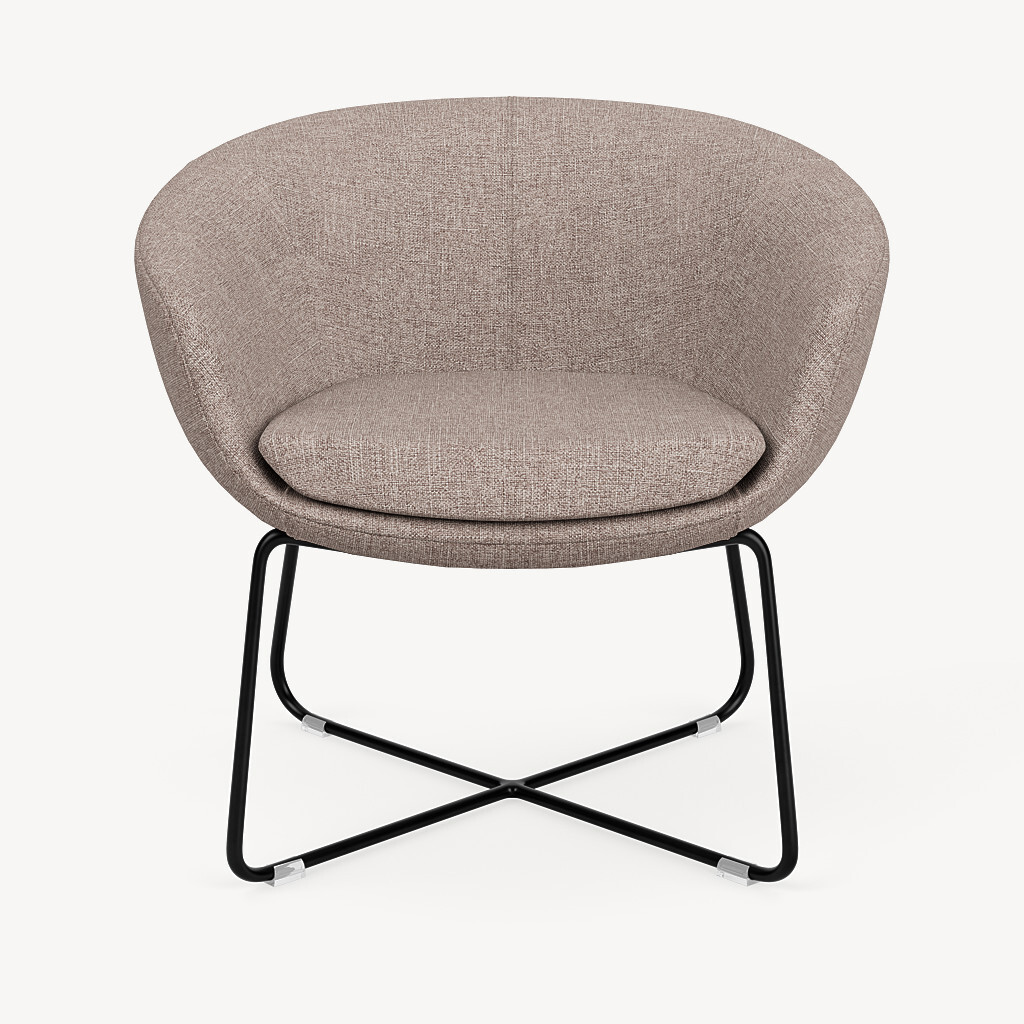

    X-base with a matte black finish. (-21XB)

    X-base with a silver finish. (-21XS)

casters & glides

For use on adjustable height bases.

  • Casters.

    Black carpet casters. (-16HP)

    • Standard casters for all swivel bases.

    Grey hard floor & carpet casters. (-16SCG)

  • Glides.

    Black glides. (-16GL)

designed by Studio V

Studio V creates modern, sophisticated and original seating solutions that are ergonomic, beautiful and sustainable. This team of engineers and designers are based at the Via Seating Factory in Reno, Nevada, where they develop products using a prototyping lab, the latest in 3D modeling software and a materials testing center.

studio: Reno, Nevada.

Explore their design process here→

Dimensions recorded by Via Seating engineers using:

  • the BIFMA Chair Measuring Device® (CMD) &

  • the BIFMA Universal Measuring Procedure.

chair drawings

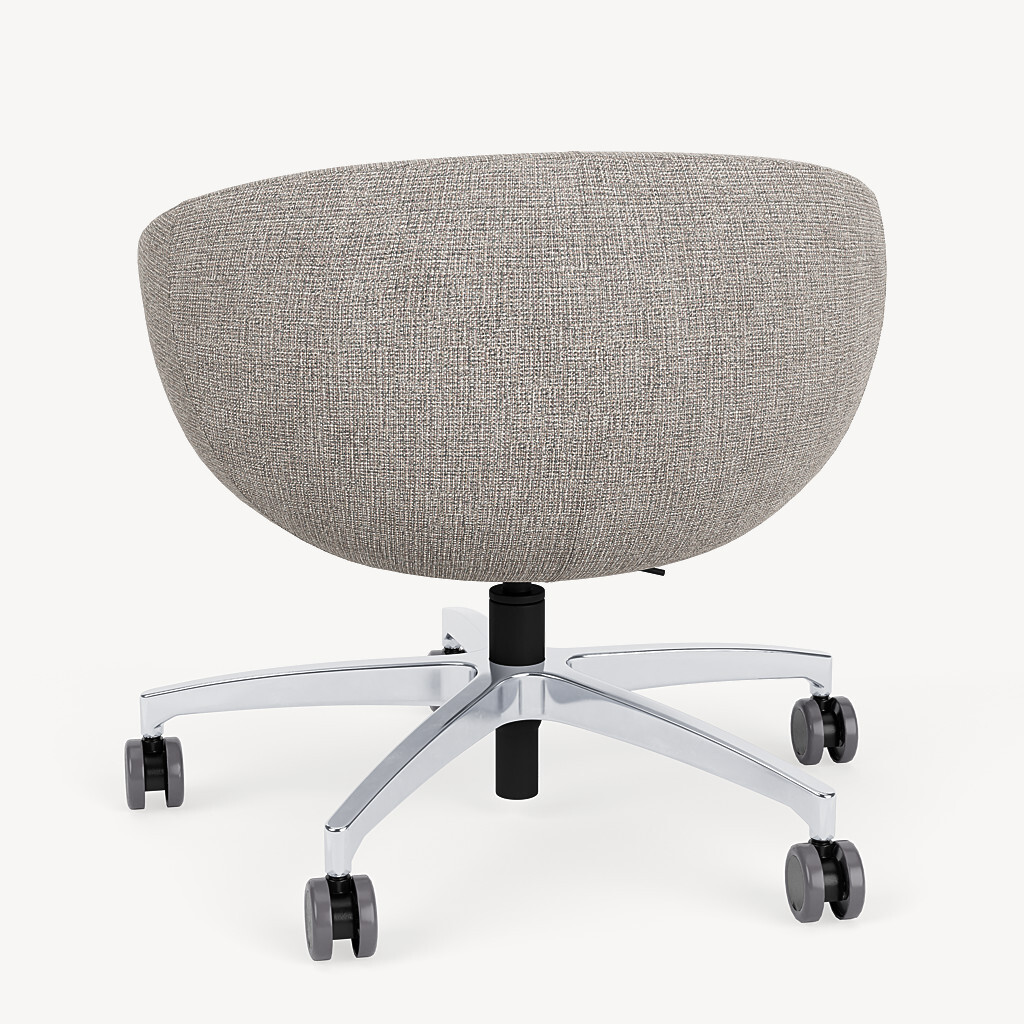

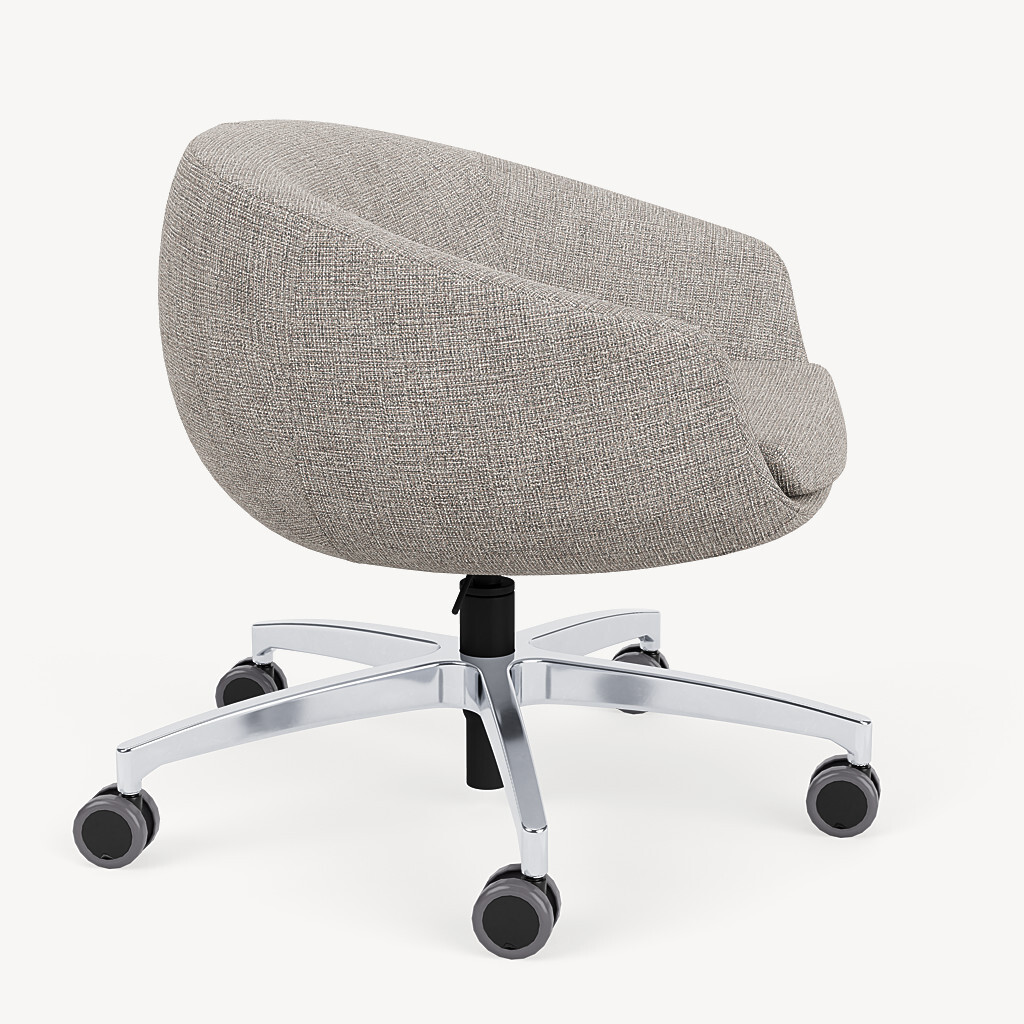

  • Chair with an adjustable height base. (-18BB, -18PB, -18BA)

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    927-18BB, 927-18PB, 927-18BA

    A.  27.8″ – 30.8″
    B.  17.5″ – 20.3″
    C.  18.4″
    D.  15.0″
    E.  15.1″
    F.   28.5″
    G.  17.2″

  • Chair with a 4-leg base. (-33POL, -33BLK)

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    927-33POL, 927-33BLK

    controls 69C 70C 72C
    A 23.4″ (SO)
    26.3″ (SF)
    25.8″ (SR)
    25.1″ (SO)
    28.0″ (SF)
    27.5″ (SR)
    24.1″ (SO)
    27.0″ (SF)
    26.5″ (SR)
    B 13.8″ (SO)
    16.5″ (SF)
    16.0″ (SR)
    13.6″ (SO)
    16.5″ (SF)
    16.0″ (SR)
    12.4″ (SO)
    15.3″ (SF)
    14.8″ (SR)
    C 18.4″ 18.4″ 18.4″
    D 15.0″ 15.0″ 15.0″
    E 15.1″ 15.1″ 15.1″
    F 28.5″ 28.5″ 28.5″
    G 17.2″ 17.2″ 17.2″

    gas lifts:

    • SO: Swivel only.
    • SF: Fixed.
    • SR: Swivel with return-to-center.
  • Chair with a disk base. (-3DISK)

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    927-3DISK

    controls 69C 70C 72C
    A 22.1″ (SO)
    25.0″ (SF)
    24.5″ (SR)
    23.1″ (SO)
    26.0″ (SF)
    25.5″ (SR)
    22.4″ (SO)
    25.3″ (SF)
    24.8″ (SR)
    B 11.6″ (SO)
    14.5″ (SF)
    14.0″ (SR)
    11.6″ (SO)
    14.5″ (SF)
    14.0″ (SR)
    11.0″ (SO)
    13.9″ (SF)
    13.4″ (SR)
    C 18.4″ 18.4″ 18.4″
    D 15.0″ 15.0″ 15.0″
    E 15.1″ 15.1″ 15.1″
    F 28.5″ 28.5″ 28.5″
    G 17.2″ 17.2″ 17.2″

    gas lifts:

    • SO: Swivel only.
    • SF: Fixed.
    • SR: Swivel with return-to-center.

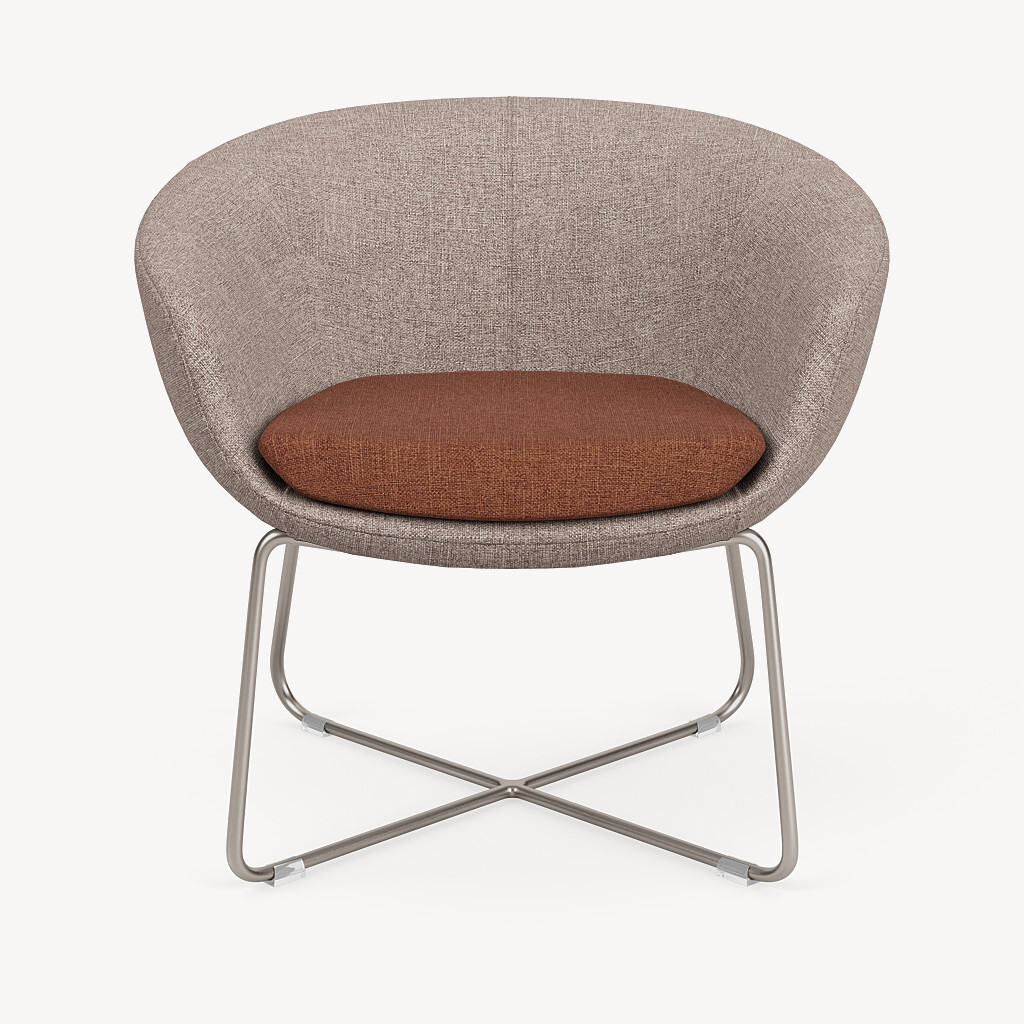

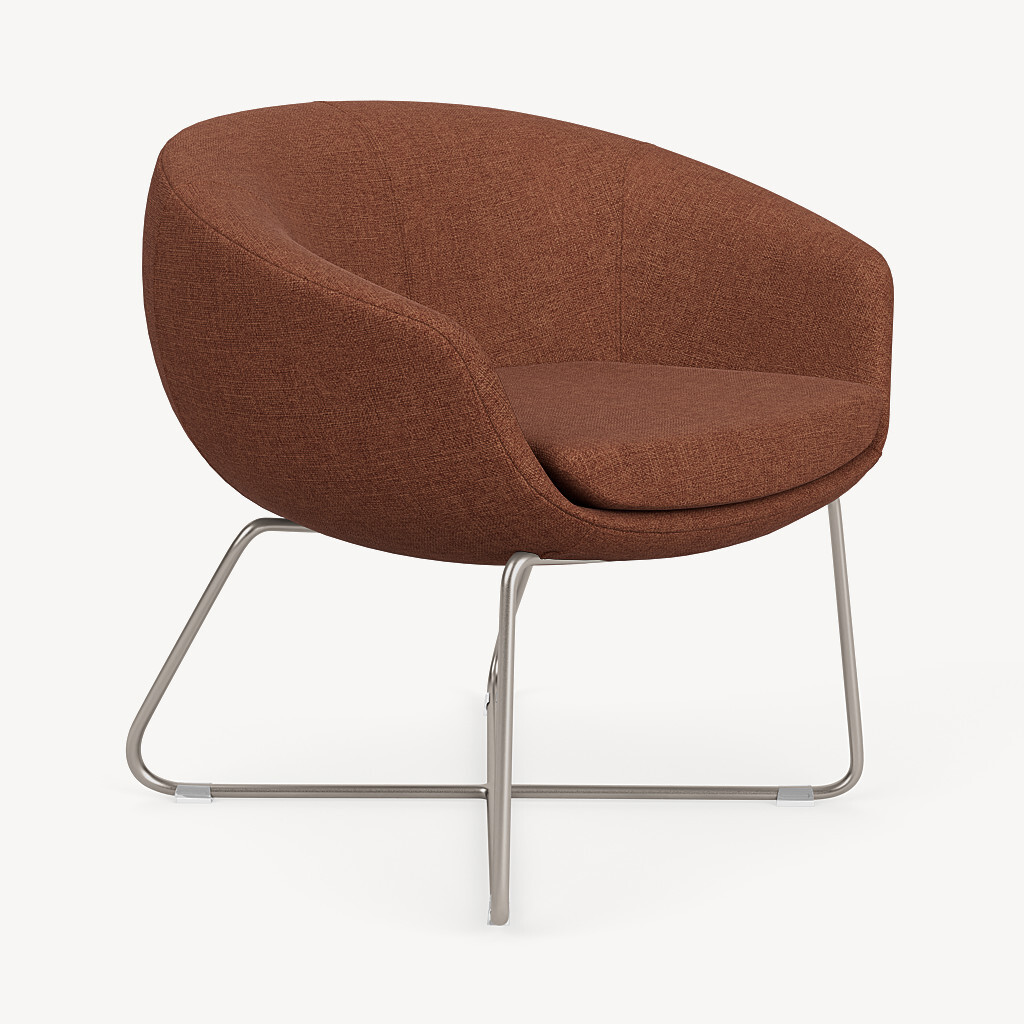

  • Chair with a wire frame X-base. (-21XS, -21XB)

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    927-21XB, 927-21XS

    A.  28.8″
    B.  18.0″
    C.  18.4″
    D.  15.0″
    E.  15.1″
    F.   30.4″
    G.  17.2″

arms drawings

  • Integrated fixed arms.

    J. Armrest length.

    K. Armrest height.

    L. Armrest width.

    M. Width between armrests.

    Orbit arms.

    J.  14.0″
    K.  25″
    L.  29.0″
    M.  20.5″

drawings showing back tilt

  • Chair with an adjustable height base. (-18BB, -18PB, -18BA)

    N. Minimum backrest angle.

    O. Maximum backrest angle.

    P. Minimum seat pan angle.

    Q. Maximum seat pan angle.

    927-18BB, 927-18PB, 927-18BA

    N.   110°
    O.   8°
    P.   110°
    Q.   8°

  • Chair with a 4-leg base. (-33POL, -33BLK)

    N. Minimum backrest angle.

    O. Maximum backrest angle.

    P. Minimum seat pan angle.

    Q. Maximum seat pan angle.

    927-33POL, 927-33BLK

    controls 69C 70C 72C
    N 112° 110° 108°
    O 10°
    P 112° 120° 115°
    Q 10° 11°
  • Chair with a disk base. (-3DISK)

    N. Minimum backrest angle.

    O. Maximum backrest angle.

    P. Minimum seat pan angle.

    Q. Maximum seat pan angle.

    927-3DISK

    controls 69C 70C 72C
    N 110° 109° 108°
    O
    P 110° 118° 115°
    Q 14° 11°
  • Chair with a wire frame X-base. (-21XS, -21XB)

    N. Minimum backrest angle.

    O. Maximum backrest angle.

    P. Minimum seat pan angle.

    Q. Maximum seat pan angle.

    927-21XB, 927-21XS

    N.   109°
    O.   6°
    P.   109°
    Q.   6°
