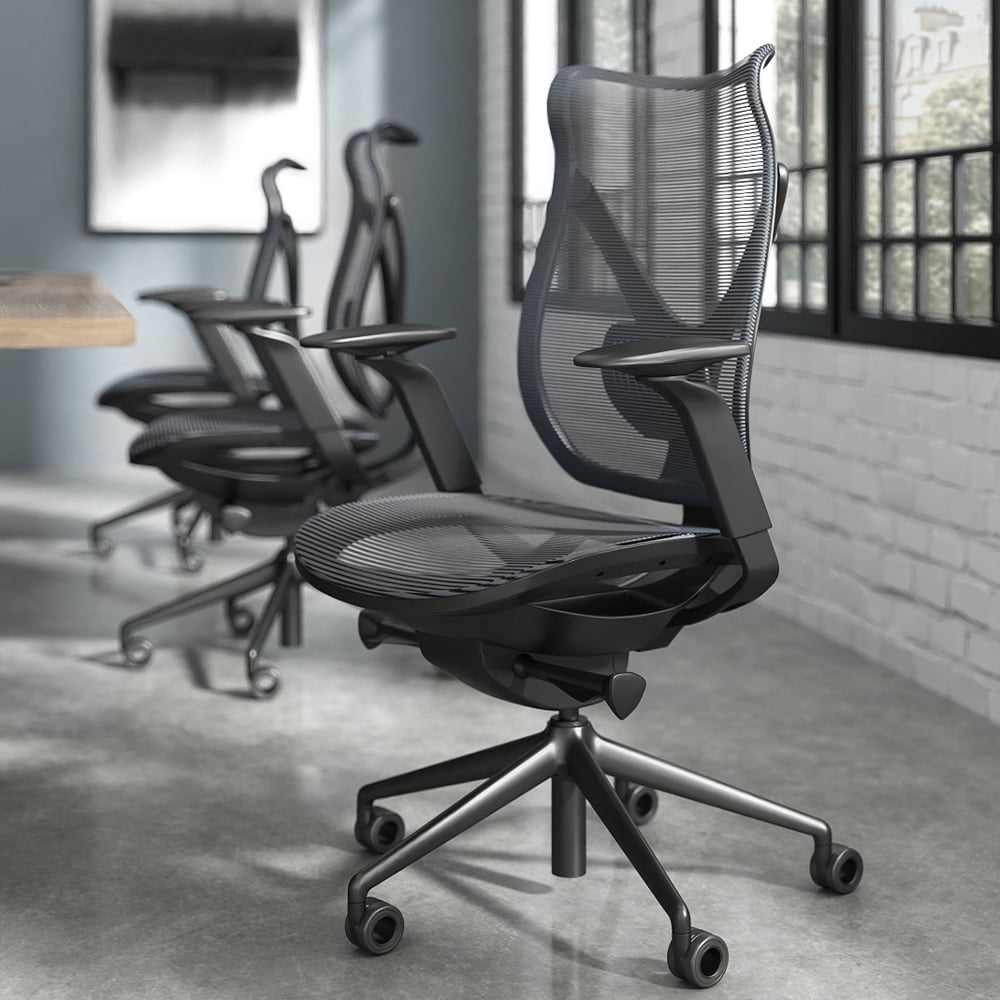

Onda chairs
model: Mid back with nickel mesh & a white frame | #201-OG-ONA2-67C-SS-FT-27GB-16OG-02O. superior all-mesh seating
The perfect balance between form and function. When one favors ergonomic function and adjustability the design of the chair tends to take a back seat. The converse is also true when aesthetic considerations take the fore front, then the ergonomic function and adjustability become less important. Onda supports both ergonomic and design philosophies and holds both in perfect harmony without any compromise. Discover instantaneous comfort personalized to the way you sit with Onda—Italian for “Wave”—Via Seating’s first all mesh chair. Design by Via Seating’s Studio V.

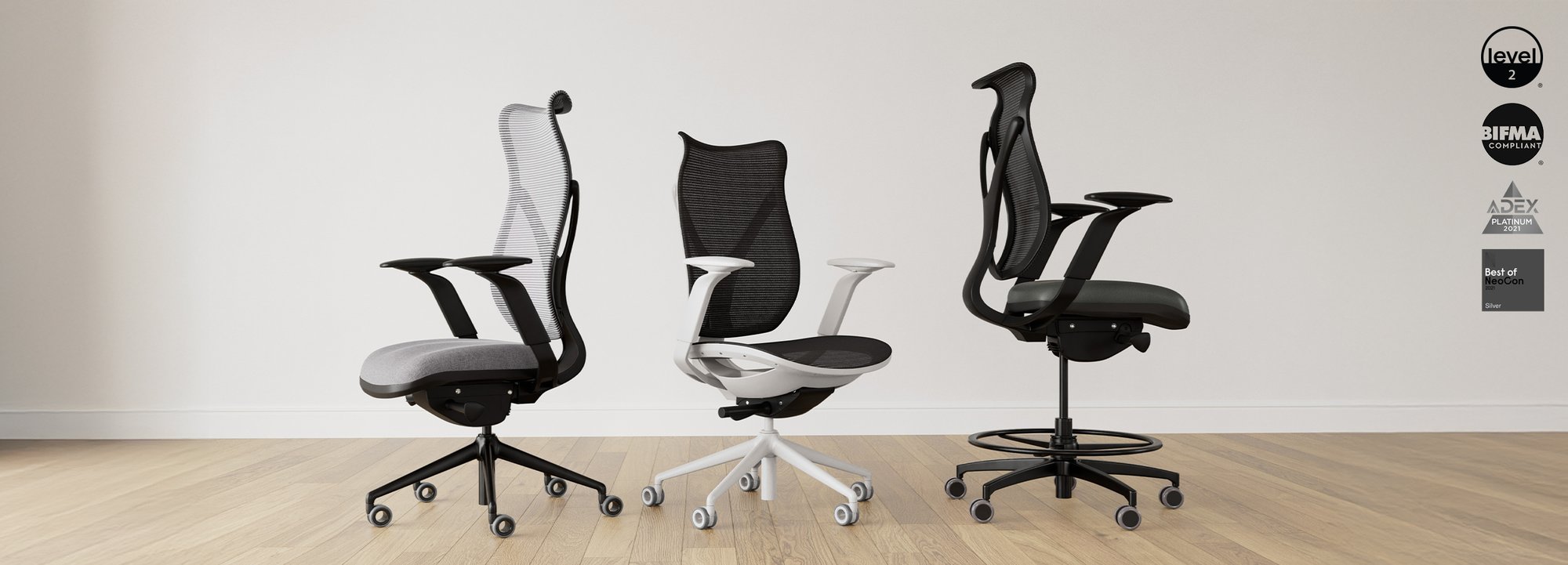

- Breadth of line: high back and mid back all mesh chairs.
- Framework: available in black or light grey dipped-look frame colors.
- Mesh: flocked mesh with a soft hand available in 7 colors, featuring two Via original, biocidal, self-sanitizing copper colors (black and copper striped mesh).

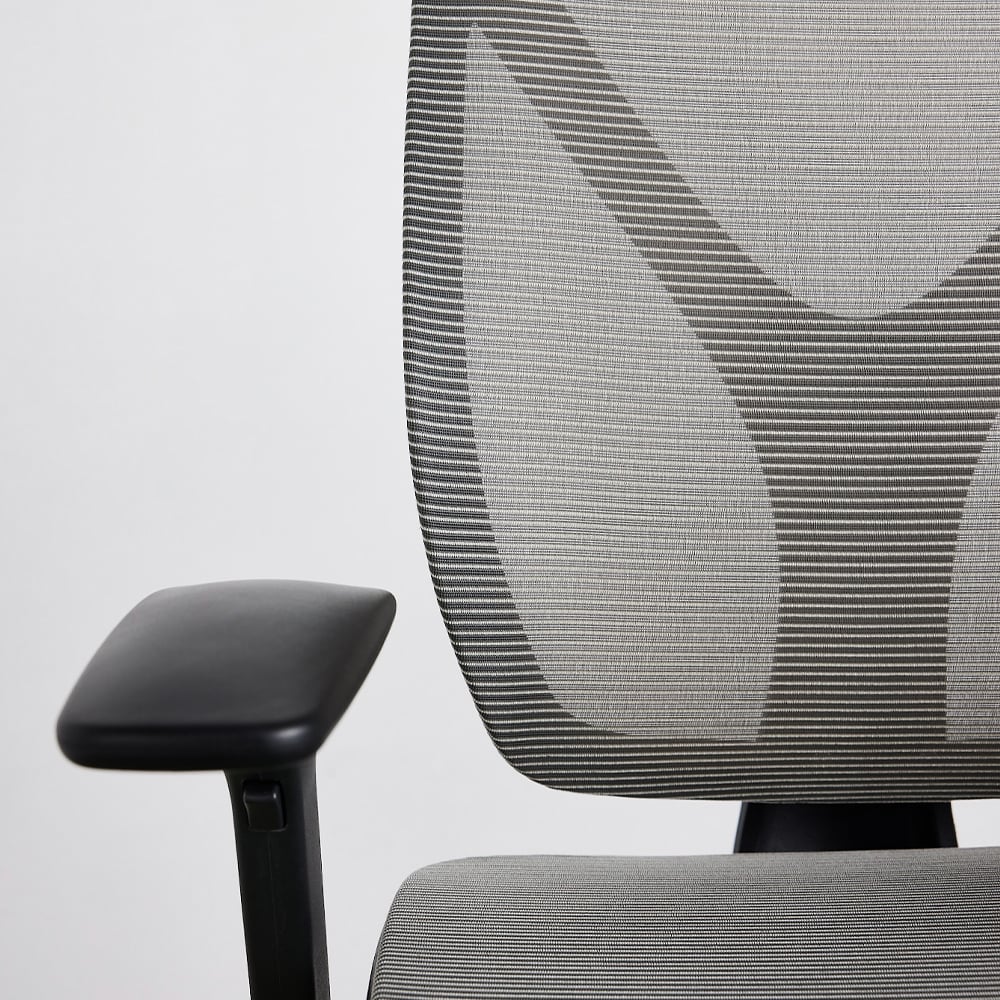

- Arms: optional 6D height adjustable arms with integrated, pivoting, arm caps in a black or light grey finish.
- Control mechanisms: featuring quick adjust advanced synchro that uses single rotation adjustments for the back (no endless turning of the handle to adjust your backrest to your level of comfort). Also offering body balance technology options.

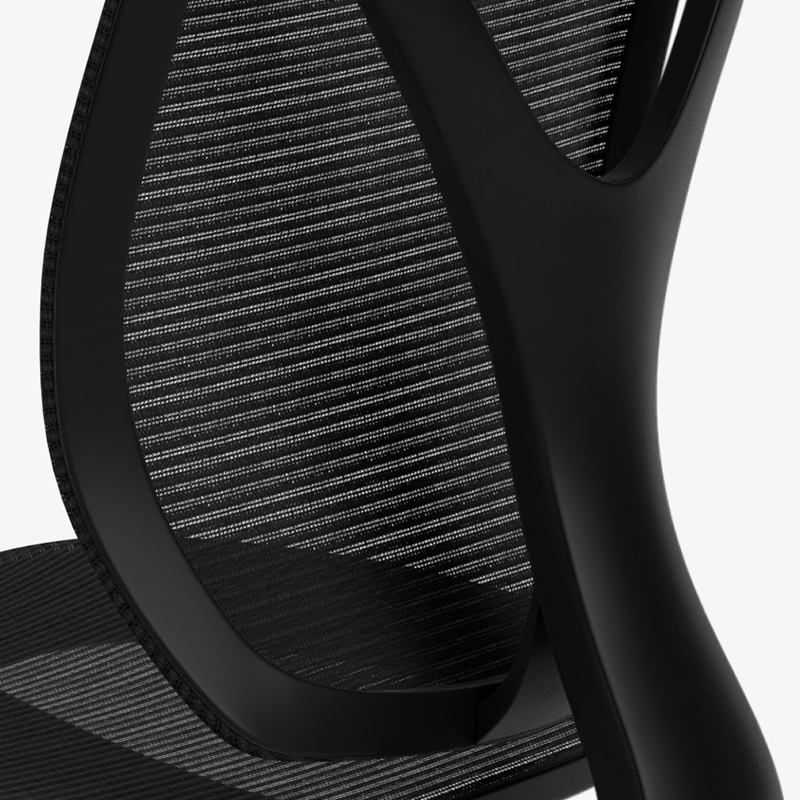

- Lumbar: integrated, adjustable lumbar support.
- Bases: featuring a custom, high-profile, five-star swivel base in a black or light grey finish matching the framework for a flawless, dipped-look.
- Casters: Optional black or light grey open-design, all surface (including hard floor) reverse locking safety casters.
- Max weight: 300 lb. (see options for more details)
- Quick ship: 10 chairs produced in a 48 hour period.
- Warranty: 12 year warranty; all components including mesh.
- ANSI/BIFMA X7.1-2011 (R2016) Standard Method equivalent to CDPH Standard Method v1.1-2010 (Clean Air Gold).
- LEED – v4.1 Low Emitting Materials (Clean Air Gold).
- Living Building Challenge (LBC) – Imperative 08 (Clean Air Gold).
- WELL – Feature 04 – VOC Reduction (Clean Air Gold).
- Meets the Practice Greenhealth, Health Care Without Harm Healthy Interiors Criteria for Seating.

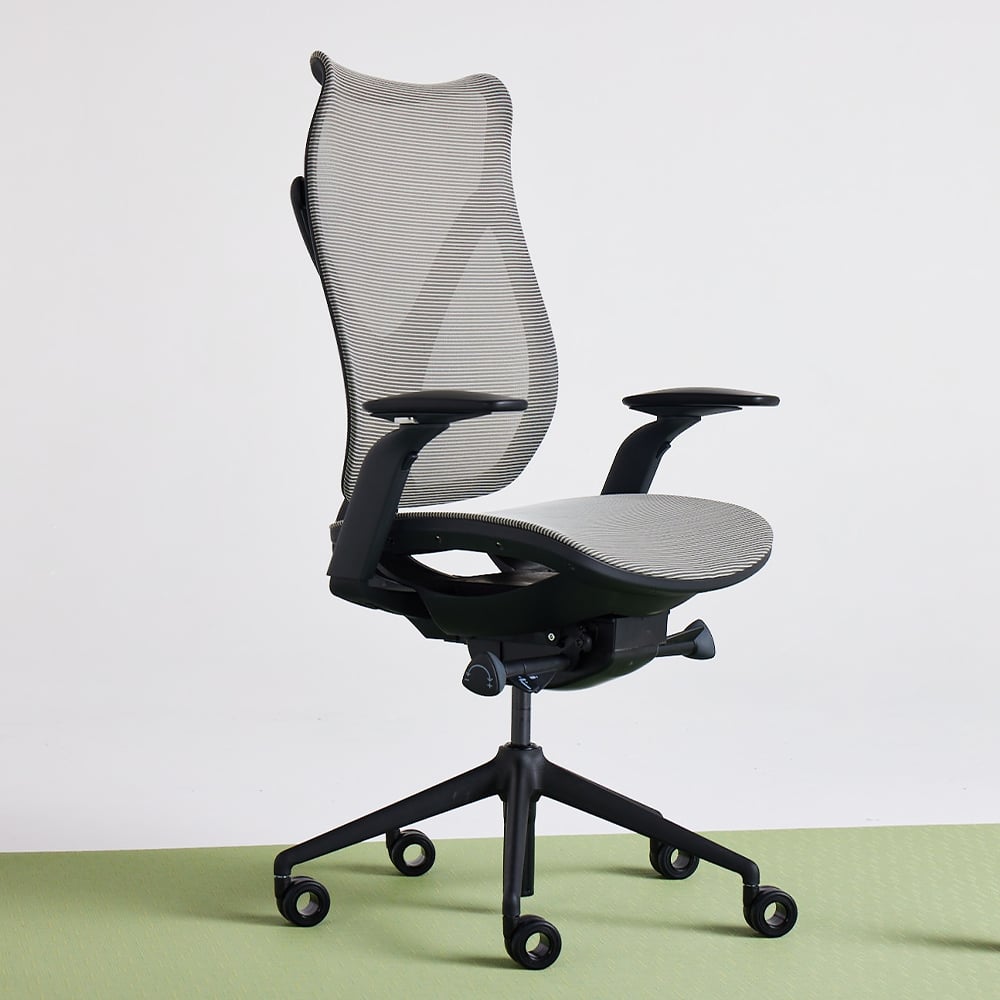

Mid back. #201

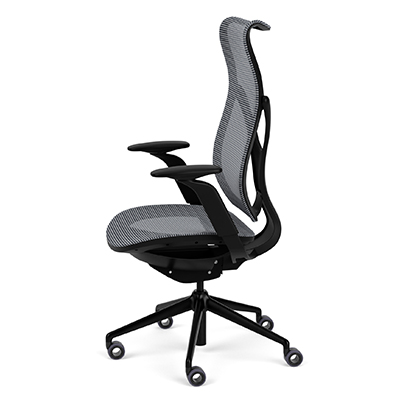

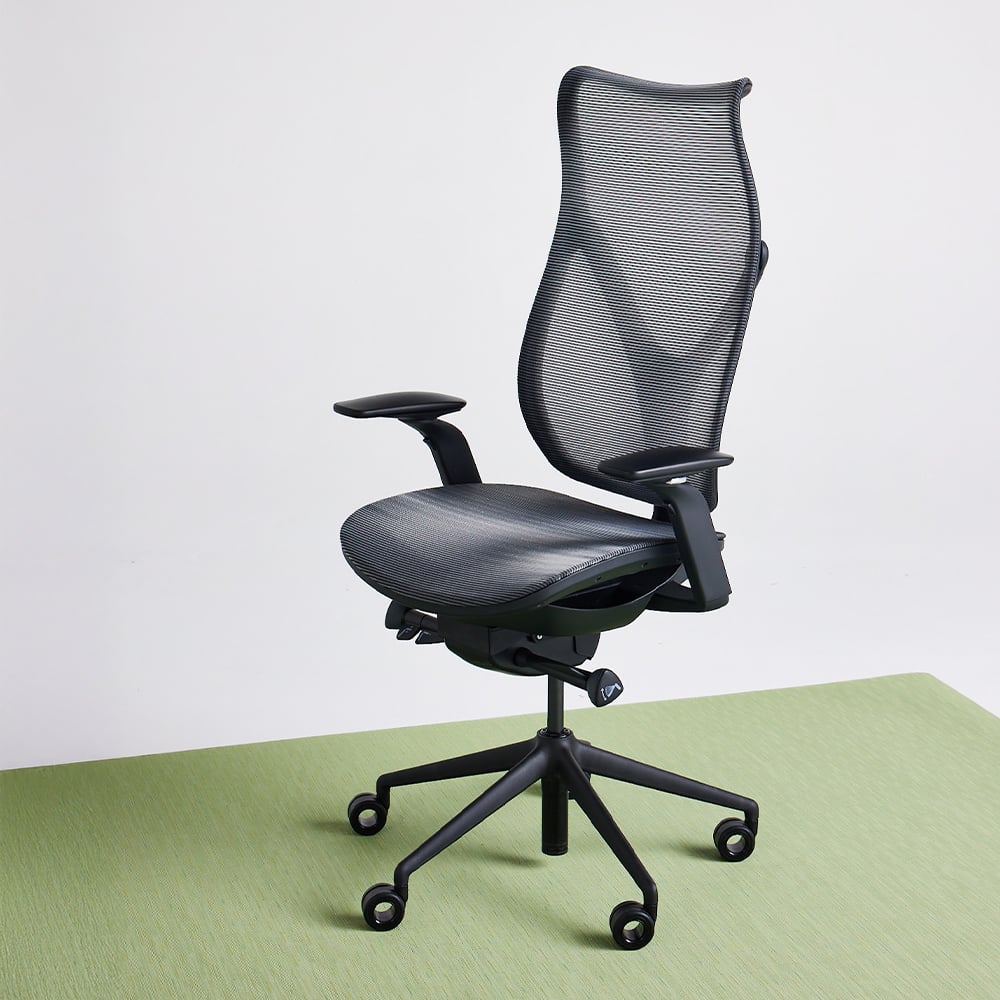

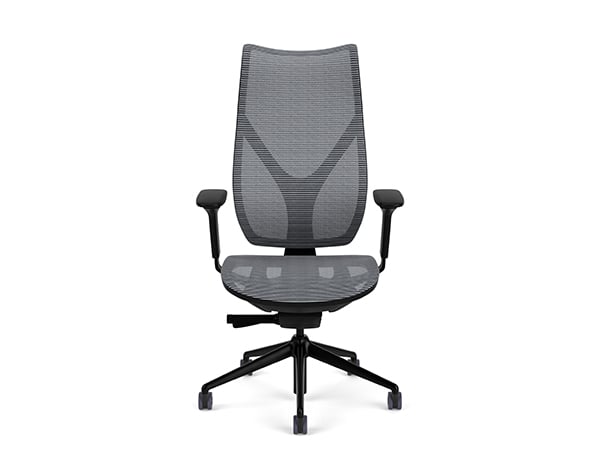

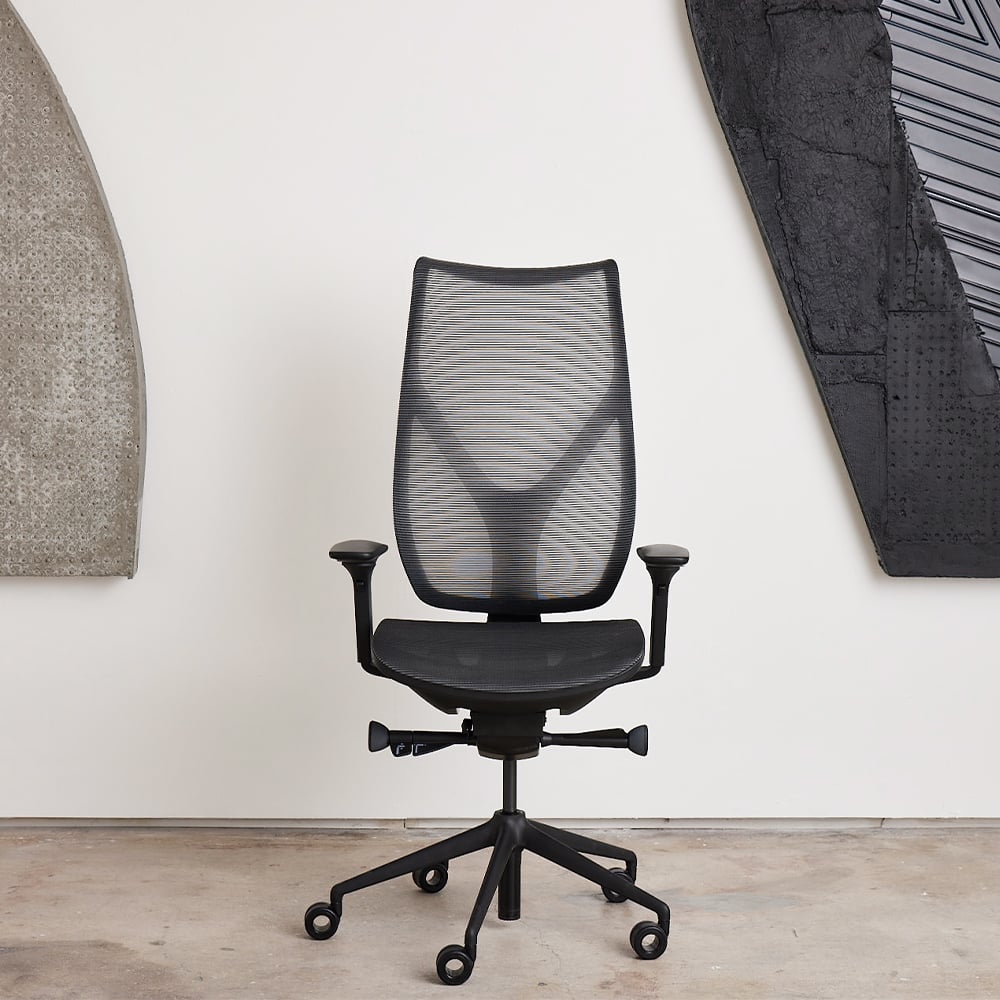

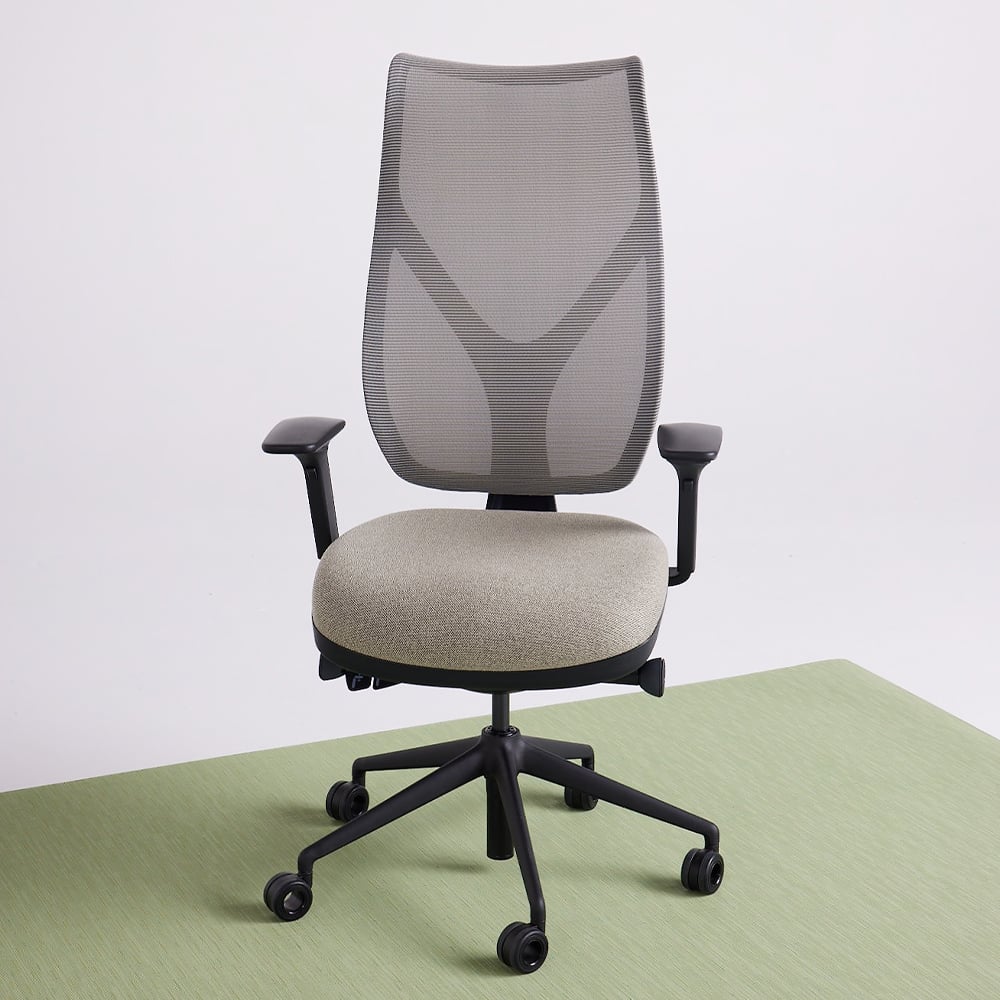

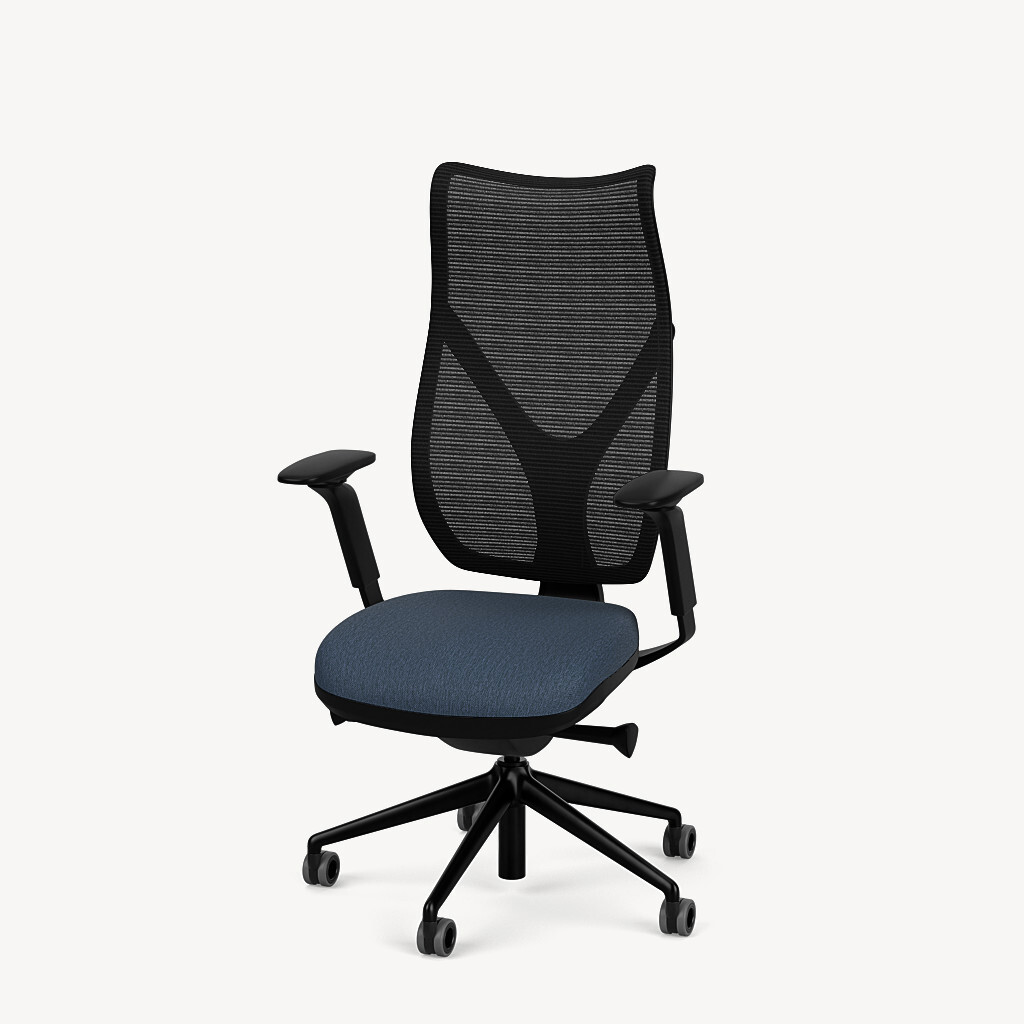

High back. #203

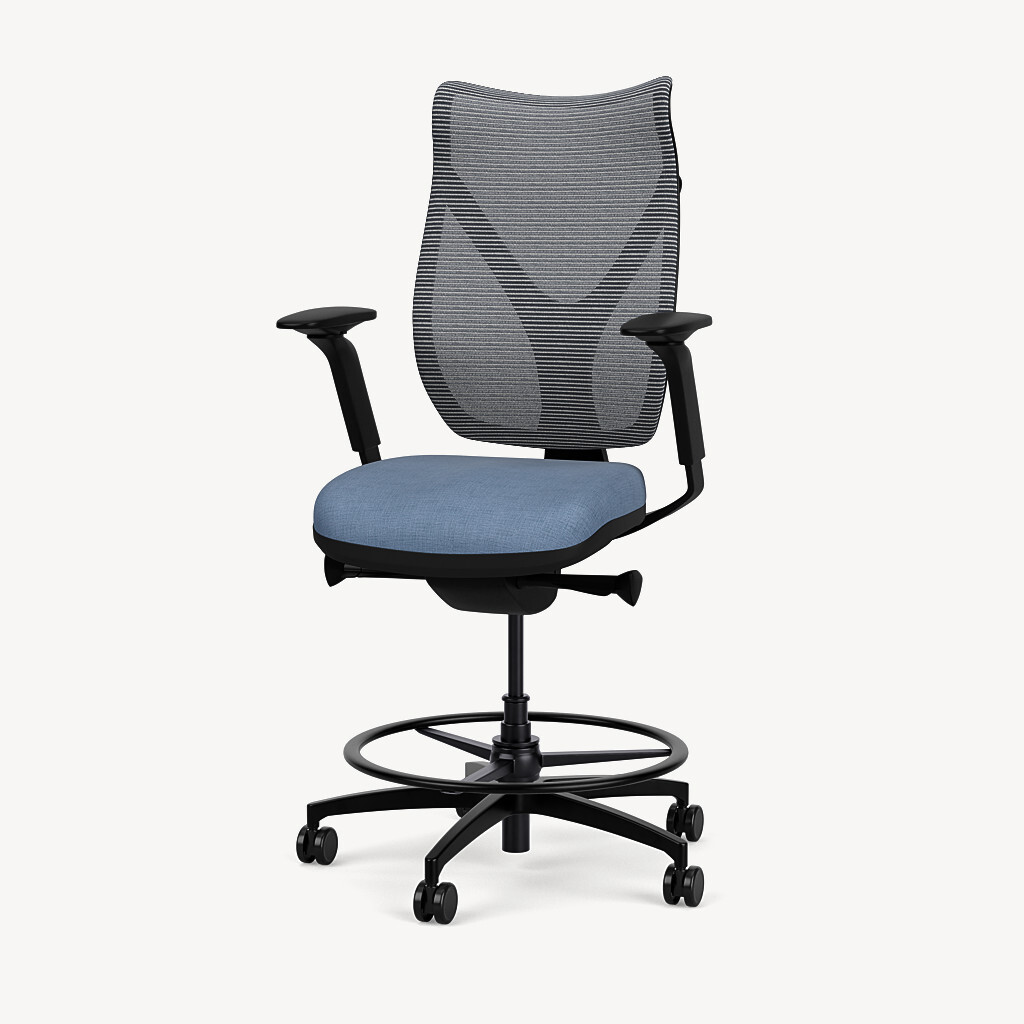

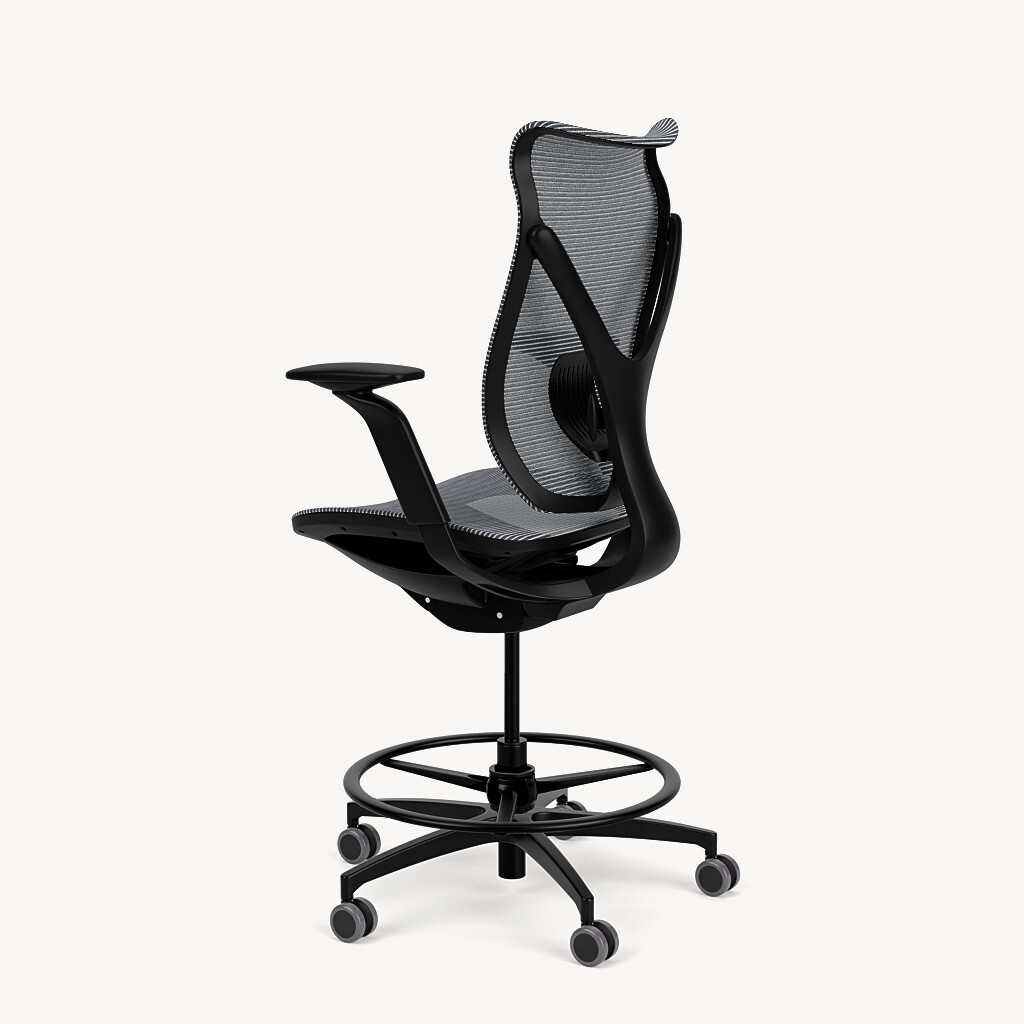

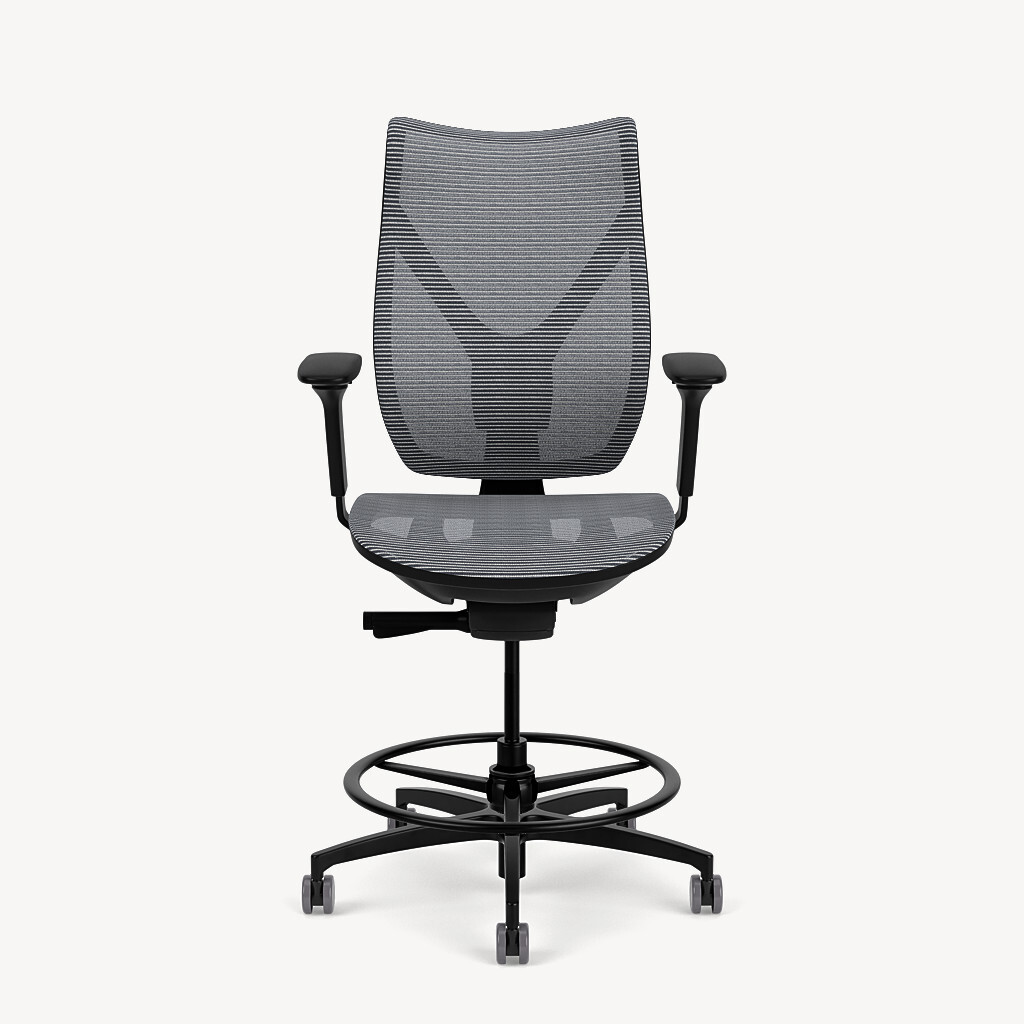

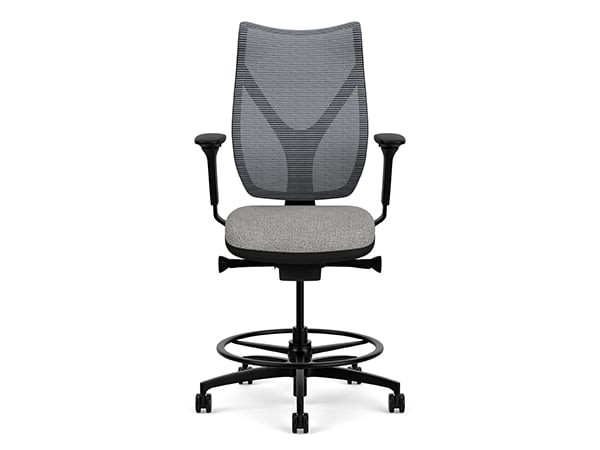

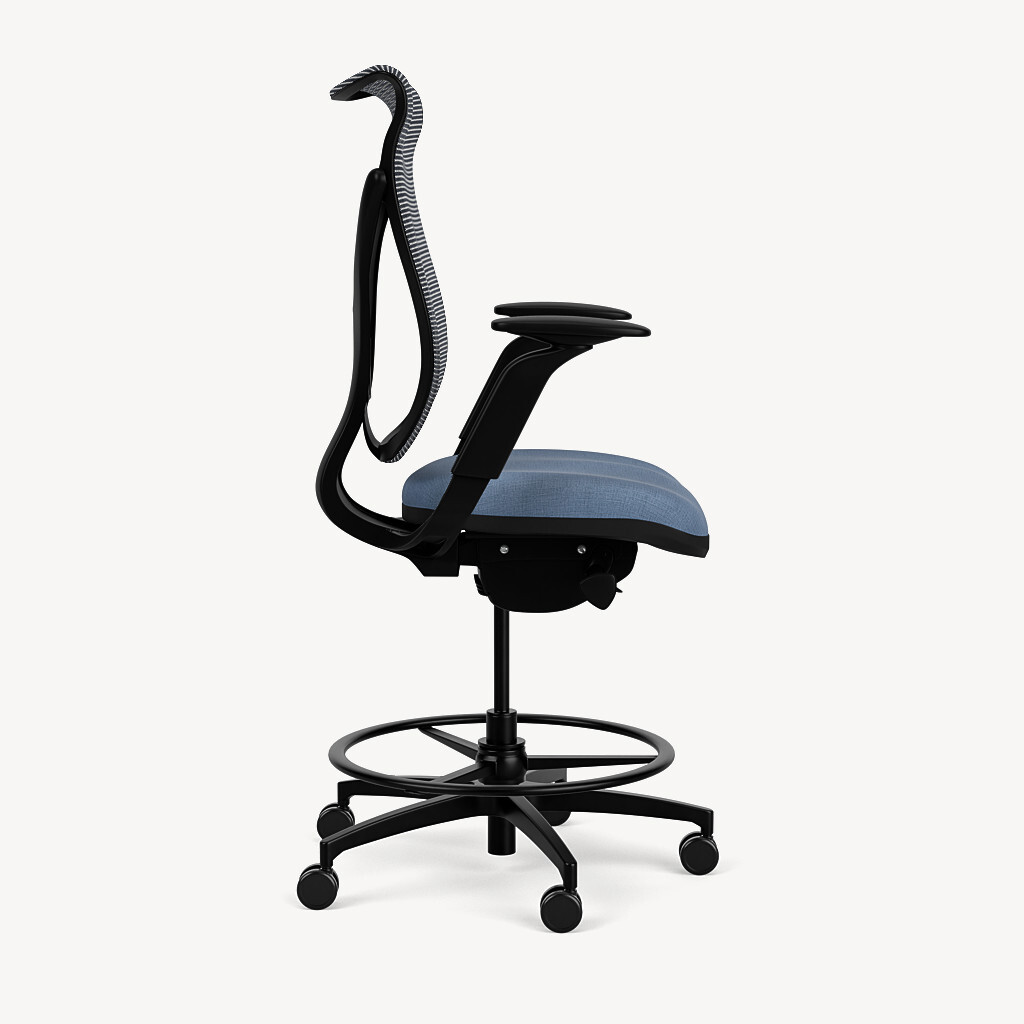

Task stools.
- Available on mid backs.
finishes
-
Frame finishes.
Matte black. #OB
- Black finish is standard.
- Finish applied to mesh frame.
Matte light grey. #OG
- Finish applied to mesh frame.

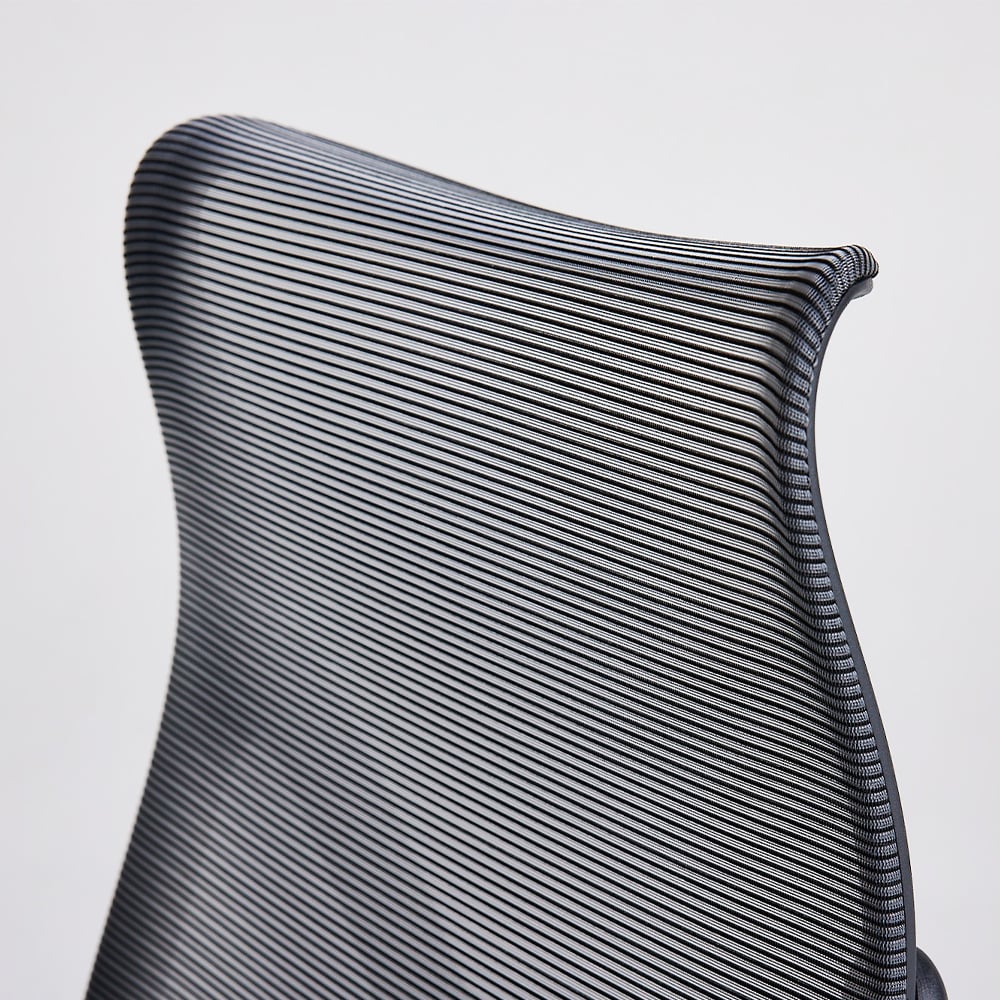

mesh colors
-
Mesh colors.
Black. #1O
- Black mesh is standard.
Nickel. #2O
Silver. #3O
Sky blue. #4O
Red. #5O
-

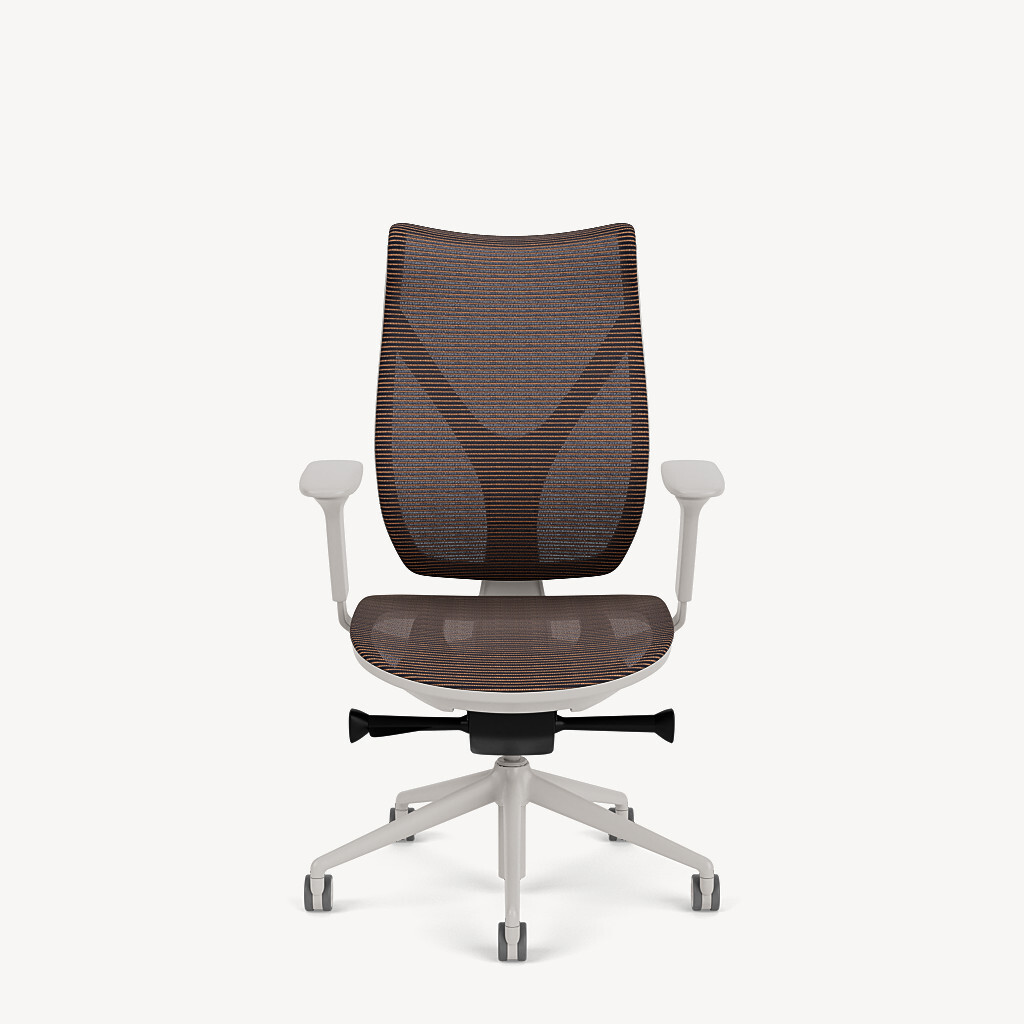

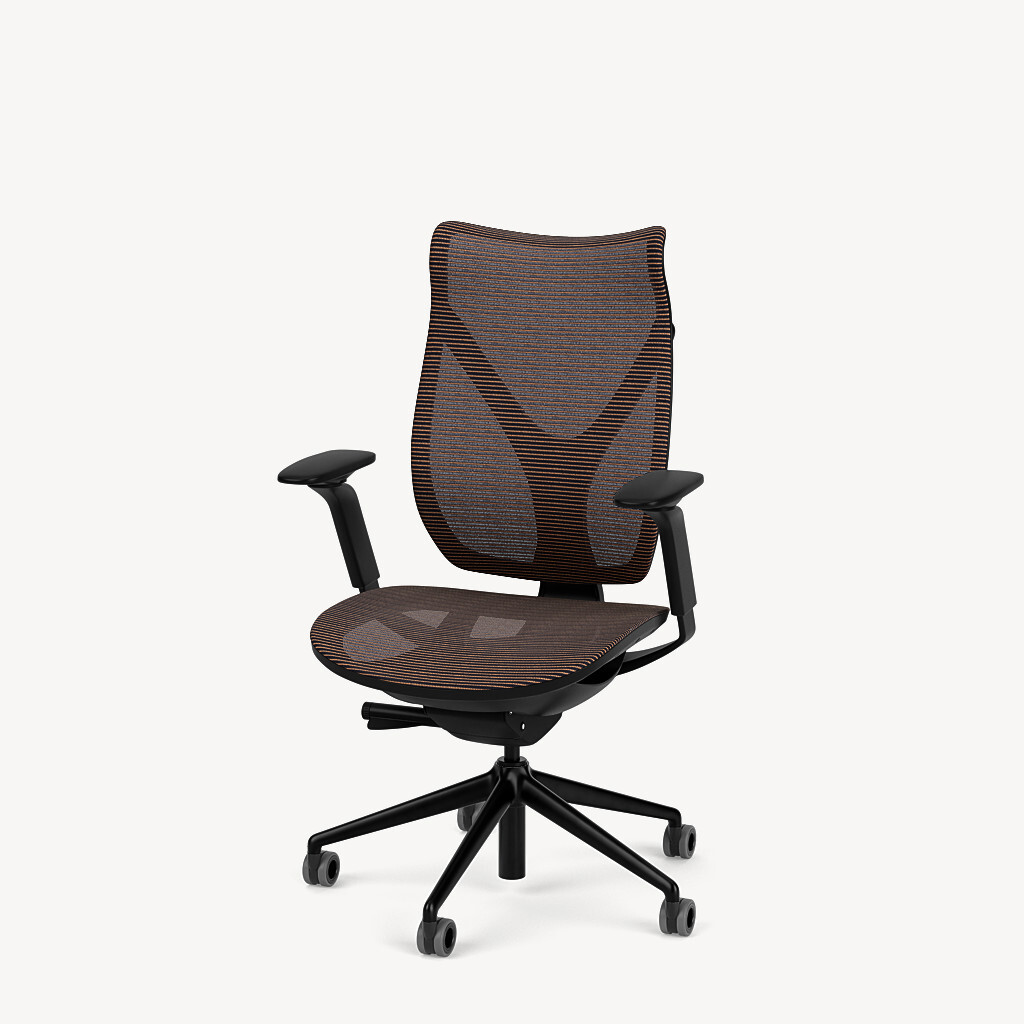

Copper striped mesh colors.
Copper striped mesh. #13O
Black copper striped mesh. #14O
arms
-
Armless standard.

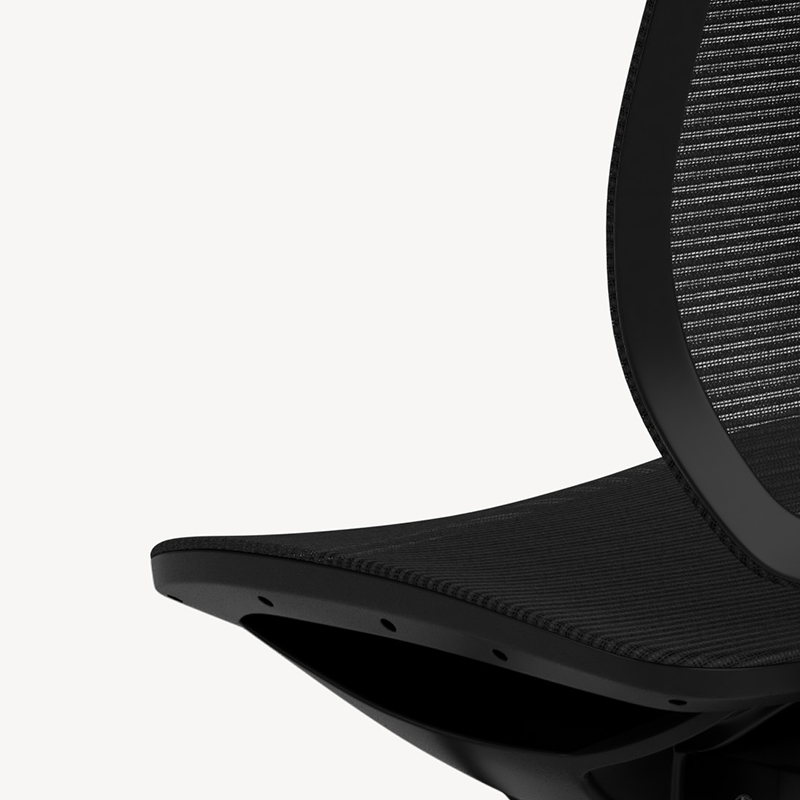

Armless. #0A
- Armless chairs are standard on all models.
-

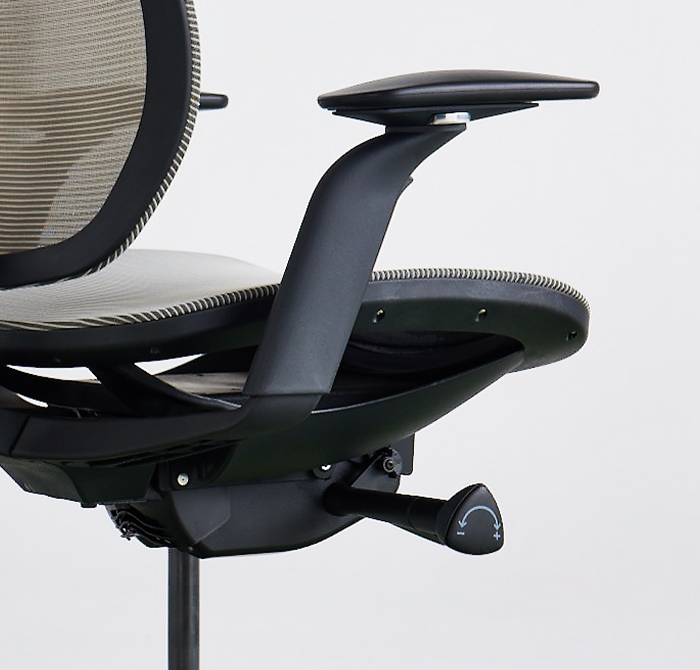

Adjustable arms.
6D black height adjustable arm with integrated, pivoting, black arm caps. #ONA1
user guide: view the guide →
arm features:
- Arm: moves up and down, locking into 1 of 9 positions.
permanent, adjustable armrests features:
- Rotates a full 360° around & locks into 1 of 6 positions.
- Slides forward and back to its resting position.
6D grey height adjustable arm with integrated, pivoting, grey arm caps. #ONA2
user guide: view the guide →
arm features:
- Arm: moves up and down, locking into 1 of 9 positions.
permanent, adjustable armrests features:
- Rotates a full 360° around & locks into 1 of 6 positions.
- Slides forward and back to its resting position.
control mechanisms
-
Body balance control mechanisms.
Auto-adjust body balance. #74C
user guide: view the video → | view the guide (pdf)→
control mechanism adjustments:
- Seat height adjustment.
- Back lock adjustment (3 position).
-
Synchro control mechanisms.
Quick adjust advanced synchro with a seat depth adjustment. #67C-SS
user guide: view the video → | view the guide (pdf)→
control mechanism adjustments:
- Seat height adjustment.
- Back tension adjustment.
- Single rotation back tilt lock adjustment (5 position).
- Seat depth adjustment. #SS
Quick adjust advanced synchro with a seat depth adjustment & a forward tilt adjustment. #67C-SS-FT
user guide: view the video → | view the guide (pdf)→
control mechanism adjustments:
- Seat height adjustment.
- Back tension adjustment.
- Single rotation back tilt lock adjustment (5 position).
- Seat depth adjustment. #SS
- Ergonomic forward tilt adjustment. #FT
-
Task stool control mechanism.
Stool control. #35C
user guide: view the guide →
control mechanism adjustments:
- Seat height adjustment.
- Back lock adjustment (3 position).
- Foot ring height adjustment.
bases
-
Chair high-profile swivel bases.
Black high-profile signature Onda base. #27BB
Grey high-profile signature Onda base. #27GB
-
Chair standard swivel bases.
Standard black nylon 5-star swivel base. #18BB
Polished aluminum 5-star swivel base. #18PB
Brushed aluminum 5-star swivel base. #18BA
-
Stool standard swivel bases.
Standard black nylon 5-star swivel base with a stool kit. #18BB-11DR or #18BB-11XDR
- Tall (-11DR) height range/stroke: 7 in.
- Extra-tall (-11XDR) height range/stroke: 9.5 in.
- See exact dimensions in the drawings section.
Polished aluminum 5-star swivel base with a stool kit. #18PB-11DR or #18PB-11XDR
- Tall (-11DR) height range/stroke: 7 in.
- Extra-tall (-11XDR) height range/stroke: 9.5 in.
- See exact dimensions in the drawings section.
Brushed aluminum 5-star swivel base with a stool kit. #18BA-11DR or #18BA-11XDR
- Tall (-11DR) height range/stroke: 7 in.
- Extra-tall (-11XDR) height range/stroke: 9.5 in.
- See exact dimensions in the drawings section.
casters & glides
-
Open-design casters.
Standard black open-design reverse-locking weight-activated safety all floor casters #16OB
- All-surface (including hard floor).
- Standard on base 27BB only.
Standard grey open-design reverse-locking weight-activated safety all floor casters #16OG
- All-surface (including hard floor).
- Standard on base 27GB only.
-
Casters.
Standard black carpet casters. #16HP
- Standard casters for bases 18BB, 18PB & 18BA.
Two-toned black with grey soft rubber tread all floor casters. #16SCG
- Optional casters for bases 18BB, 18PB & 18BA.
-
Glides.
Black glides. #16GL
- Optional glides for bases 18BB, 18PB & 18BA.
designed by Studio V
Studio V creates modern, sophisticated and original seating solutions that are ergonomic, beautiful and sustainable. This team of engineers and designers are based at the Via Seating Factory in Reno, Nevada, where they develop products using a prototyping lab, the latest in 3D modeling software and a materials testing center.
studio: Reno, Nevada.
Explore their design process here »
Dimensions recorded by Via Seating engineers using:
-
the BIFMA Chair Measuring Device® (CMD) &
-
the BIFMA Universal Measuring Procedure.
chair drawings
mid backs
-
Mid back on an auto-adjust body balance control. (201-74C)
A. 43.0″ – 47.3″
B. 17.8″ – 21.0″
C. 20.3″
D. 17.2″ – 17.9″
E. 27.0″
F. 27.2″
G. 17.8″ -
Mid back on an auto-adjust body balance control with a seat slider. (201-74C-12SS)
A. 43.0″ – 47.3″
B. 17.8″ – 21.0″
C. 20.3″
D. 17.2″ – 17.9″
E. 27.0″
F. 27.2″
G. 17.8″ – 19.8″ -
Mid back on a quick adjust advanced synchro control. (201-67C)
A. 43.0″ – 47.3″
B. 17.8″ – 21.0″
C. 20.3″
D. 17.2″ – 17.9″
E. 27.0″
F. 27.2″
G. 17.8″ -
Mid back on a quick adjust advanced synchro control with a seat slider. (201-67CSS)
A. 43.0″ – 47.3″
B. 17.8″ – 21.0″
C. 20.3″
D. 17.2″ – 17.9″
E. 27.0″
F. 27.2″
G. 17.8″ – 20.3″
high backs
-
High back on an auto-adjust body balance control. (203-74C)
A. 47.0″ – 51.3″
B. 17.8″ – 21.0″
C. 20.3″
D. 17.2″ – 17.9″
E. 31.0″
F. 27.2″
G. 17.8″ -
High back on an auto-adjust body balance control with a seat slider. (203-74C-12SS)
A. 47.0″ – 51.3″
B. 17.8″ – 21.0″
C. 20.3″
D. 17.2″ – 17.9″
E. 31.0″
F. 27.2″
G. 17.8″ – 19.8″ -
High back on a quick adjust advanced synchro control. (203-67C)
A. 47.0″ – 51.3″
B. 17.8″ – 21.0″
C. 20.3″
D. 17.2″ – 17.9″
E. 31.0″
F. 27.2″
G. 17.8″ -
High back on a quick adjust advanced synchro control with a seat slider. (203-67CSS)
A. 47.0″ – 51.3″
B. 17.8″ – 21.0″
C. 20.3″
D. 17.2″ – 17.9″
E. 31.0″
F. 27.2″
G. 17.8″ – 20.3″
stool drawings
seat drawings
Seat Reference Point (SRP),
The ergonomic seat depth measurement.
Measurement G (and not measurement H) is the true seat reference point. SRP is an ergonomic term that defines where there is a slight indentation in the lumbar (i.e. where the sitter is benefiting from the lumbar support) to the front edge of the seat. It gives the true measurement of surface area in contact with the body. It is very useful for correctly matching up with hip to knee measurements for ergonomists taking into account the two – three finger gap between the back of the leg to the edge of the seat. It is very important to ensure no restriction in circulation to the lower extremities (lower legs and ankles).
-
Mesh mid back. (201)
controls 35C 67C-SS 67C-SS-FT 74C C 20.3″ 20.3″ 20.3″ 20.3″ G 18.5″ 18.0″ – 20.5″ 18.0″ – 20.5″ 18.5″ H 19.5″” 19.5″ 19.5″ 19.5″
-
Mesh high back. (203)
controls 35C 67C-SS 67C-SS-FT 74C C 20.3″ 20.3″ 20.3″ 20.3″ G 18.5″ 18.0″ – 20.5″ 18.0″ – 20.5″ 18.5″ H 19.5″” 19.5″ 19.5″ 19.5″
arm drawings
-
Signature Onda height adjustable arms. (-ONA1, -ONA2)
J. 8.3″
K. 7.5″ – 8.3″
L. 27.1″
M. 19.1″
To download a model file type, simply click on the file type name.
Mid back, armless, high-profile base:
Body balance control. #74C
⇩ 2D autoCAD (.dwg)
⇩ 3D autoCAD (.dwg)
⇩ revit (.rfa) – in development
Synchro control with a seat depth adjustment. #67C-SS
⇩ 2D autoCAD (.dwg)
⇩ 3D autoCAD (.dwg)
⇩ revit (.rfa) – in development
Synchro control with a seat depth adjustment & forward tilt. #67C-SS-FT
⇩ 2D autoCAD (.dwg)
⇩ 3D autoCAD (.dwg)
⇩ revit (.rfa) – in development
Mid back, adjustable arms, high-profile base:
Body balance control. #74C
⇩ 2D autoCAD (.dwg)
⇩ 3D autoCAD (.dwg)
⇩ revit (.rfa) – in development
Synchro control with a seat depth adjustment. #67C-SS
⇩ 2D autoCAD (.dwg)
⇩ 3D autoCAD (.dwg)
⇩ revit (.rfa) – in development
Synchro control with a seat depth adjustment & forward tilt. #67C-SS-FT
⇩ 2D autoCAD (.dwg)
⇩ 3D autoCAD (.dwg)
⇩ revit (.rfa) – in development
Mid back, armless, low-profile base:
Body balance control. #74C
⇩ 2D autoCAD (.dwg)
⇩ 3D autoCAD (.dwg)
⇩ revit (.rfa) – in development
Synchro control with a seat depth adjustment. #67C-SS
⇩ 2D autoCAD (.dwg)
⇩ 3D autoCAD (.dwg)
⇩ revit (.rfa) – in development
Synchro control with a seat depth adjustment & forward tilt. #67C-SS-FT
⇩ 2D autoCAD (.dwg)
⇩ 3D autoCAD (.dwg)
⇩ revit (.rfa) – in development
Mid back, adjustable arms, low-profile base:
Body balance control. #74C
⇩ 2D autoCAD (.dwg)
⇩ 3D autoCAD (.dwg)
⇩ revit (.rfa) – in development
Synchro control with a seat depth adjustment. #67C-SS
⇩ 2D autoCAD (.dwg)
⇩ 3D autoCAD (.dwg)
⇩ revit (.rfa) – in development
Synchro control with a seat depth adjustment & forward tilt. #67C-SS-FT
⇩ 2D autoCAD (.dwg)
⇩ 3D autoCAD (.dwg)
⇩ revit (.rfa) – in development
High back, armless, high-profile base:
Body balance control. #74C
⇩ 2D autoCAD (.dwg)
⇩ 3D autoCAD (.dwg)
⇩ revit (.rfa) – in development
Synchro control with a seat depth adjustment. #67C-SS
⇩ 2D autoCAD (.dwg)
⇩ 3D autoCAD (.dwg)
⇩ revit (.rfa) – in development
Synchro control with a seat depth adjustment & forward tilt. #67C-SS-FT
⇩ 2D autoCAD (.dwg)
⇩ 3D autoCAD (.dwg)
⇩ revit (.rfa) – in development
High back, adjustable arms, high-profile base:
Body balance control. #74C
⇩ 2D autoCAD (.dwg)
⇩ 3D autoCAD (.dwg)
⇩ revit (.rfa) – in development
Synchro control with a seat depth adjustment. #67C-SS
⇩ 2D autoCAD (.dwg)
⇩ 3D autoCAD (.dwg)
⇩ revit (.rfa) – in development
Synchro control with a seat depth adjustment & forward tilt. #67C-SS-FT
⇩ 2D autoCAD (.dwg)
⇩ 3D autoCAD (.dwg)
⇩ revit (.rfa) – in development
High back, armless, high-profile base:
Body balance control. #74C
⇩ 2D autoCAD (.dwg)
⇩ 3D autoCAD (.dwg)
⇩ revit (.rfa) – in development
Synchro control with a seat depth adjustment. #67C-SS
⇩ 2D autoCAD (.dwg)
⇩ 3D autoCAD (.dwg)
⇩ revit (.rfa) – in development
Synchro control with a seat depth adjustment & forward tilt. #67C-SS-FT
⇩ 2D autoCAD (.dwg)
⇩ 3D autoCAD (.dwg)
⇩ revit (.rfa) – in development
High back, adjustable arms, low-profile base:
Body balance control. #74C
⇩ 2D autoCAD (.dwg)
⇩ 3D autoCAD (.dwg)
⇩ revit (.rfa) – in development
Synchro control with a seat depth adjustment. #67C-SS
⇩ 2D autoCAD (.dwg)
⇩ 3D autoCAD (.dwg)
⇩ revit (.rfa) – in development
Synchro control with a seat depth adjustment & forward tilt. #67C-SS-FT
⇩ 2D autoCAD (.dwg)
⇩ 3D autoCAD (.dwg)
⇩ revit (.rfa) – in development
Downloads
pricing
| Onda price list and specification guide, 2021 Price Book, 3rd. ed. | (1.47 MB) |
brochures
| Copper Mesh Collection brochure | (4.04 MB) | |
| Onda brochure | (2.76 MB) |
books
| Solutions Overview book 2021 | (78.22 MB) | |
| Via Look book 2021 | (68.71 MB) |
postcards
| Onda Via Pops! postcard | (708.15 KB) | |
| Onda landscape postcard | (539.98 KB) |
symbols
| Onda 201 mid back chair and stool symbols | zip | (12.97 MB) |
| Onda 203 high back chair symbols | zip | (11.56 MB) |
certifications
| BIFMA LEVEL 2 certification for 2021 new product | (467.21 KB) | |
| CLEAN AIR GOLD certification | (441.6 KB) |
care
| Onda cleaning and care guidelines | (130.53 KB) |
instructions
| base to chair assembly instructions | (308.35 KB) |
arm user guides
| ONA1 & ONA2 Onda 6-way adjustable arm with integrated, pivoting armrests. | (152.13 KB) |
control user guides
| 35C auto-adjust body balance stool control user guide | (158.28 KB) | |
| 74C-12SS auto-adjust body balance control with a seat depth adjustment user guide | (157.06 KB) | |
| 74C auto-adjust body balance control user guide | (155.49 KB) |
