Brisbane HD Model: 1703-67C-SS-FT-39A6-18BB-16HP-HDR1-BALL1 | Fabric: Ultrafabrics Ultraleather Pro Char & Via Ballstic Nylon

24/7-use, heavy duty, comfortable support

Brisbane is a versatile ergonomic workhorse task chair that meets all your comfort and support needs while being customizable to fit everybody in the office.  Offering up to 6 seat sizes, multiple controls, an adjustable height back and arm options including a unique roll back arm that moves out of the way when you don’t want or need it.  The Heavy Duty 24/7 version includes our 12-year warranty for up to a 450 lb person.  Ballistic Brisbane, a unique ballistic nylon version is perfect for security, police and fire departments where utility belts often tear up chair upholstery when sitting with them on in a chair.  This super strong nylon material is placed in just the right areas to protect from wear and tear and look great year after year.  Via Seating’s 12-year warranty includes Brisbane HD’s incredible comfortable and supportive proprietary foam and the heavy-duty 24/7 applications. It even covers the labor. Brisbane HD chairs are  shipped 95% assembled and the price includes shipping.

Designed by Via Seating’s Studio V.

  • Backrest: adjustable height mid backs for HD 24/7 use.
  • Headrest: optional intuitive, articulating height adjustable headrest on high back models, all seat sizes.
  • Seats: offering six seat sizes—petite (AA) to heavy-duty, extra-large (D).
  • Via Seating’s comfort foam: a proprietary blend of high-density, injection-molded, closed-cell, cold-cured foam so durable and lasting it is backed by Via Seating’s 12 year warranty.
  • Arms: roll back option, multiple height adjustable options.
  • Control mechanisms: featuring quick adjust advanced synchro that uses single rotation adjustments for the back (no endless turning of the handle to adjust your backrest to your level of comfort).
  • Bases: five-star bases available in black nylon, polished aluminum and brushed aluminum finishes.
  • Ballistic Brisbane: featuring Ballistic Brisbane, which uses strategically placed ballistic nylon to protect chair against gun, safety and utility belts.
  • Max weight: 450 lb. (see options for more details)
  • Quick Ship: 15 chairs produced in a 48 hour period.
  • Warranty: 12 year warranty including the foam & HD 24/7 use applications.



  • ANSI/BIFMA X5.1 General-Purpose Office Chairs (BIFMA Compliant).
  • ANSI/BIFMA X5.11 General-Purpose Large Occupant Office Chairs (BIFMA Compliant).
  • LEED – v4.1 Low Emitting Materials (Clean Air Gold).
  • Living Building Challenge (LBC) – Imperative 08 (Clean Air Gold).
  • WELL – Feature 04 – VOC Reduction (Clean Air Gold).
  • Meets the Practice Greenhealth, Health Care Without Harm Healthy Interiors Criteria for Seating (ie. HHI compliant).

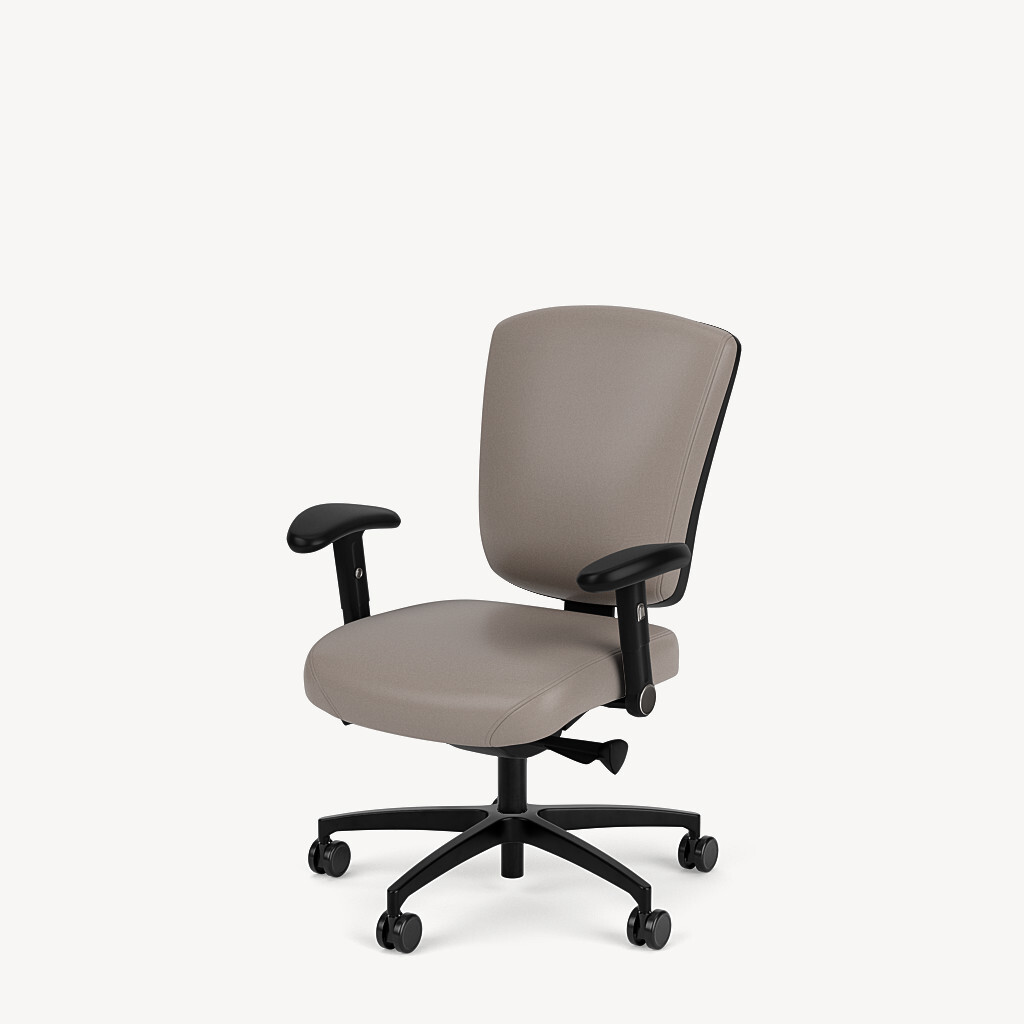

Mid backs with a standard A seat. #1303

Available with a petite AA seat. #1PTT-1303

Mid backs with a medium B seat. #1503

Available with a medium BB seat. #1PTT-1503

Mid backs with a large C seat. #1603

Mid backs with an extra-large D seat. #1703

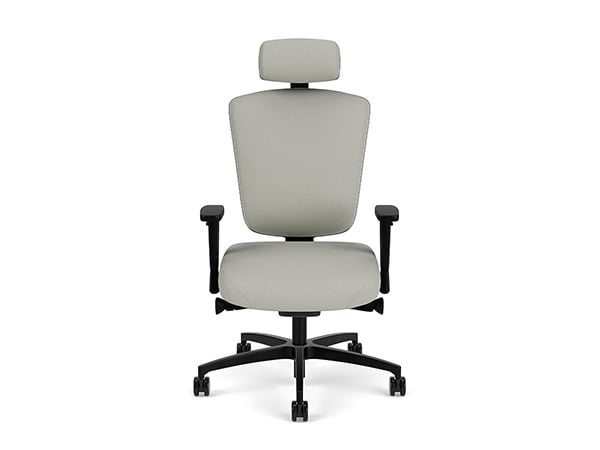

High backs with a standard A seat. #1303 with #HDR1

Available with a petite AA seat. #1PTT-1303

High backs with a medium B seat. #1503 with #HDR1

Available with a medium BB seat. #1PTT-1503

High backs with a large C seat. #1603 with #HDR1

High backs with an extra-large D seat. #1703 with #HDR1

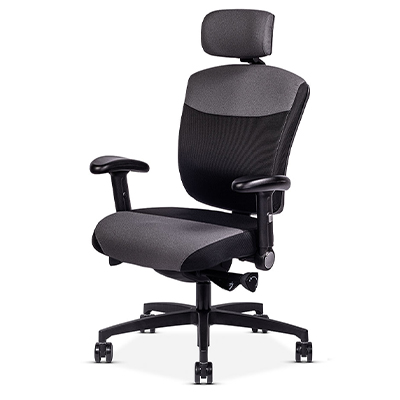

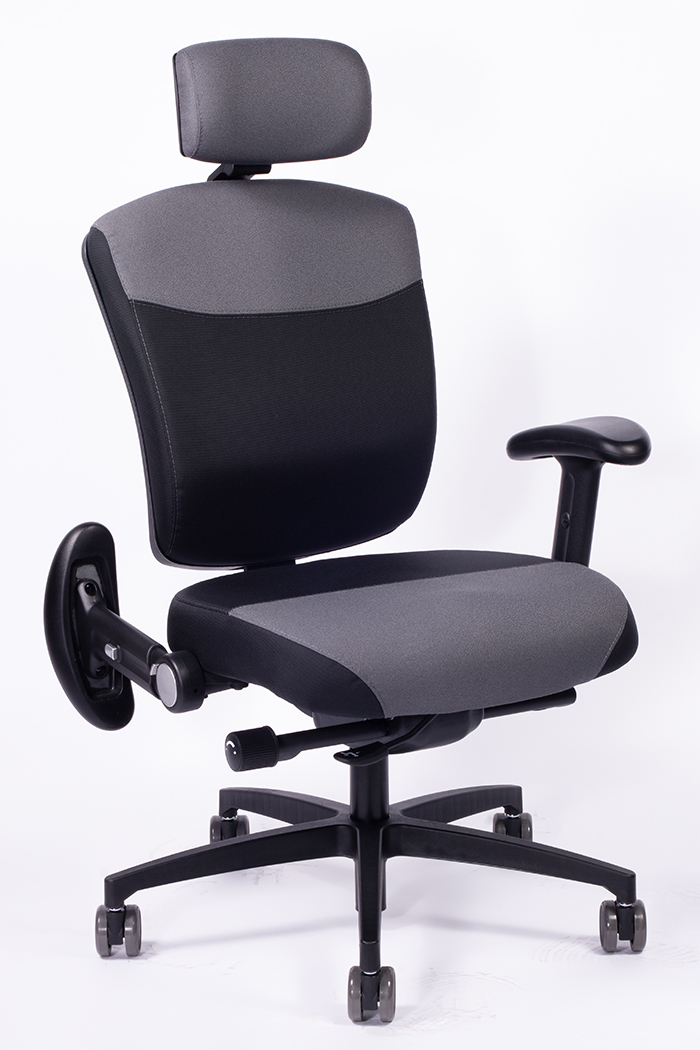

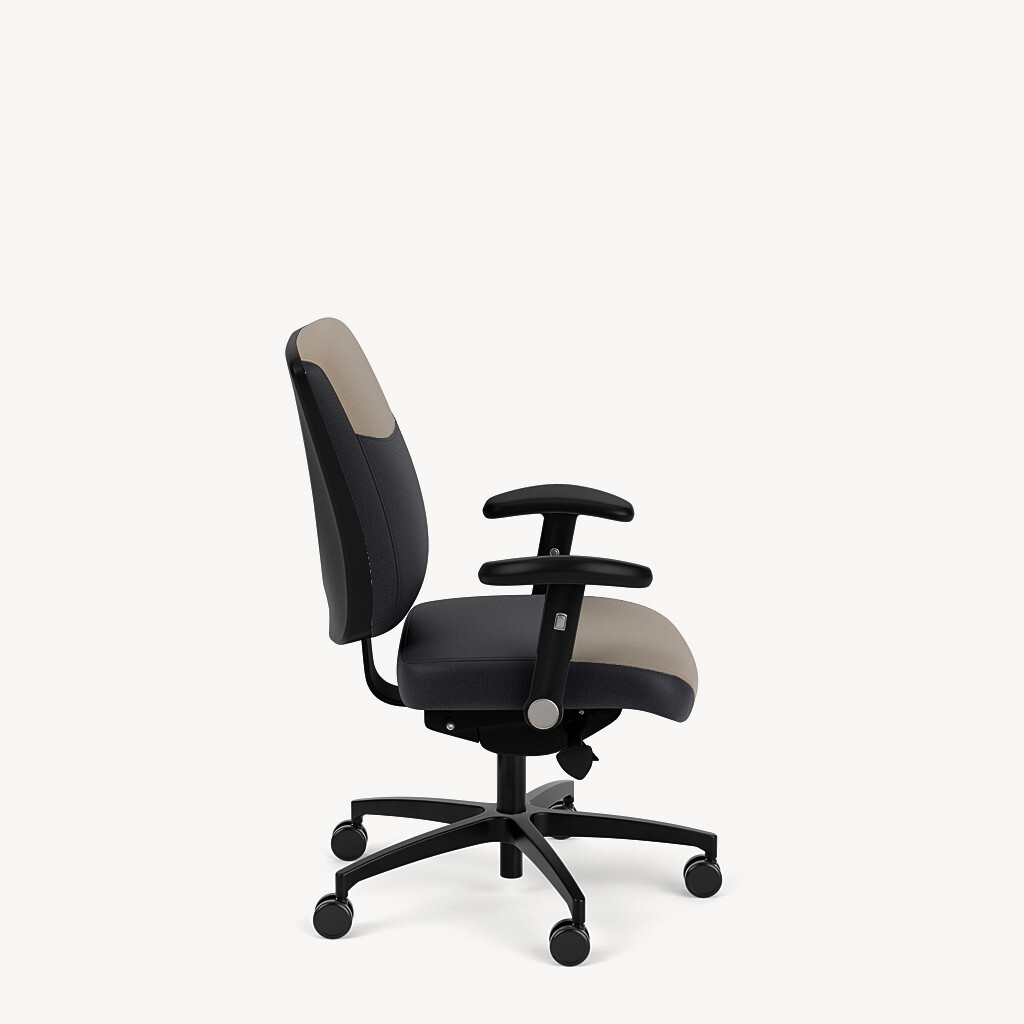

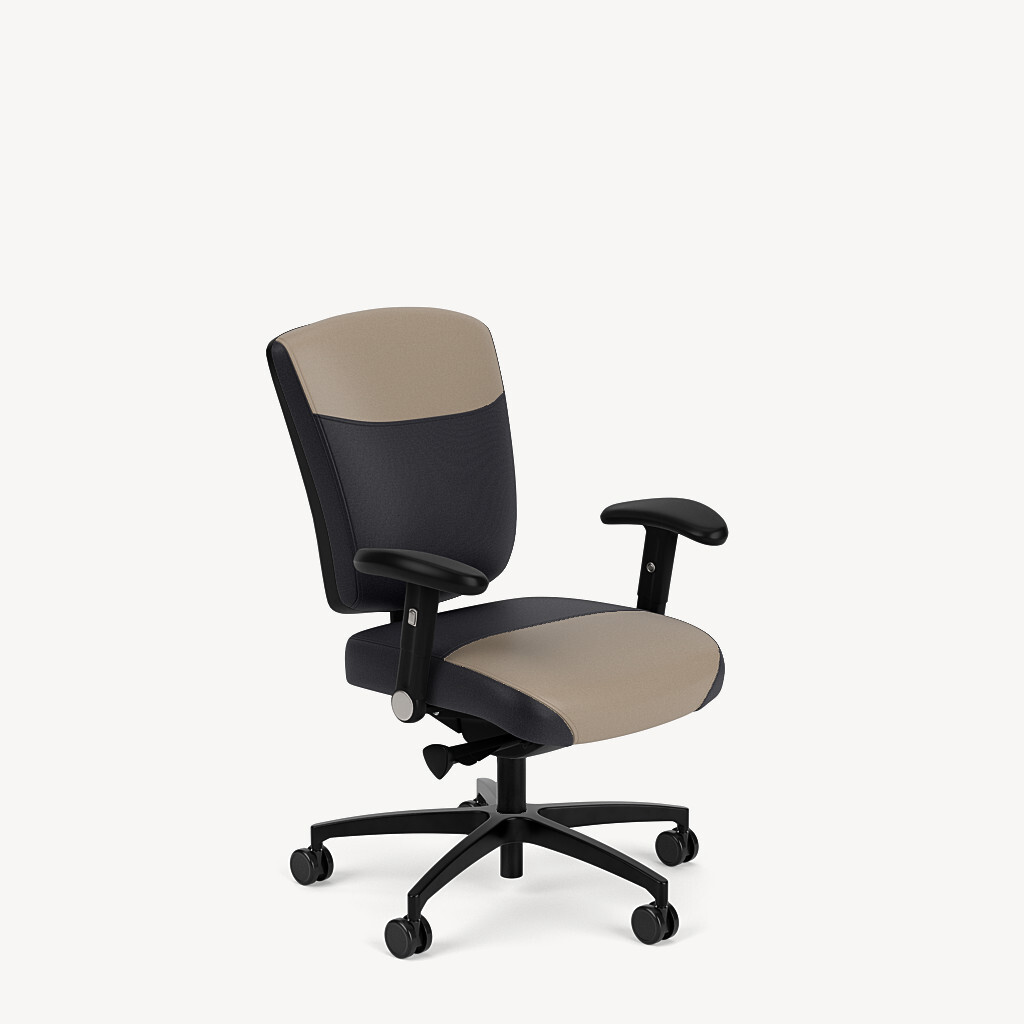

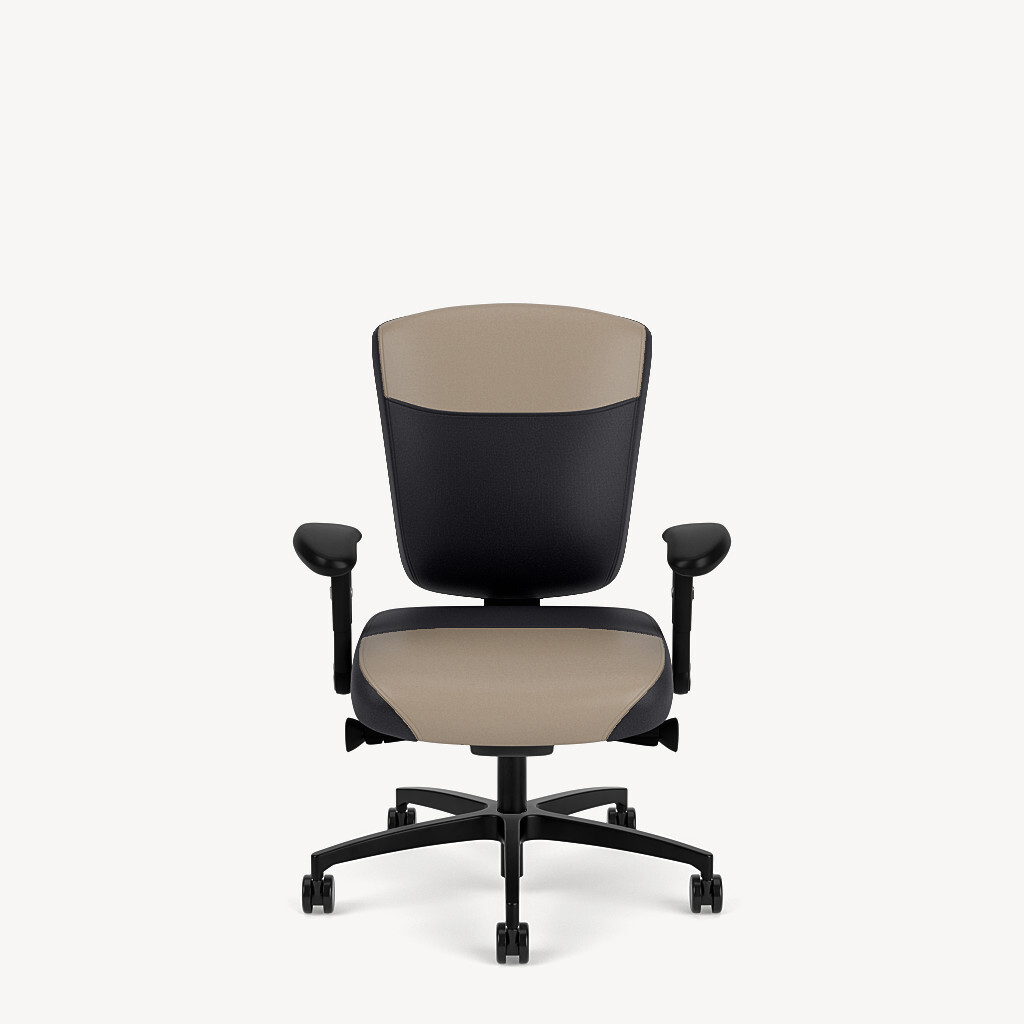

Ballistic Brisbane.

Available on all models.

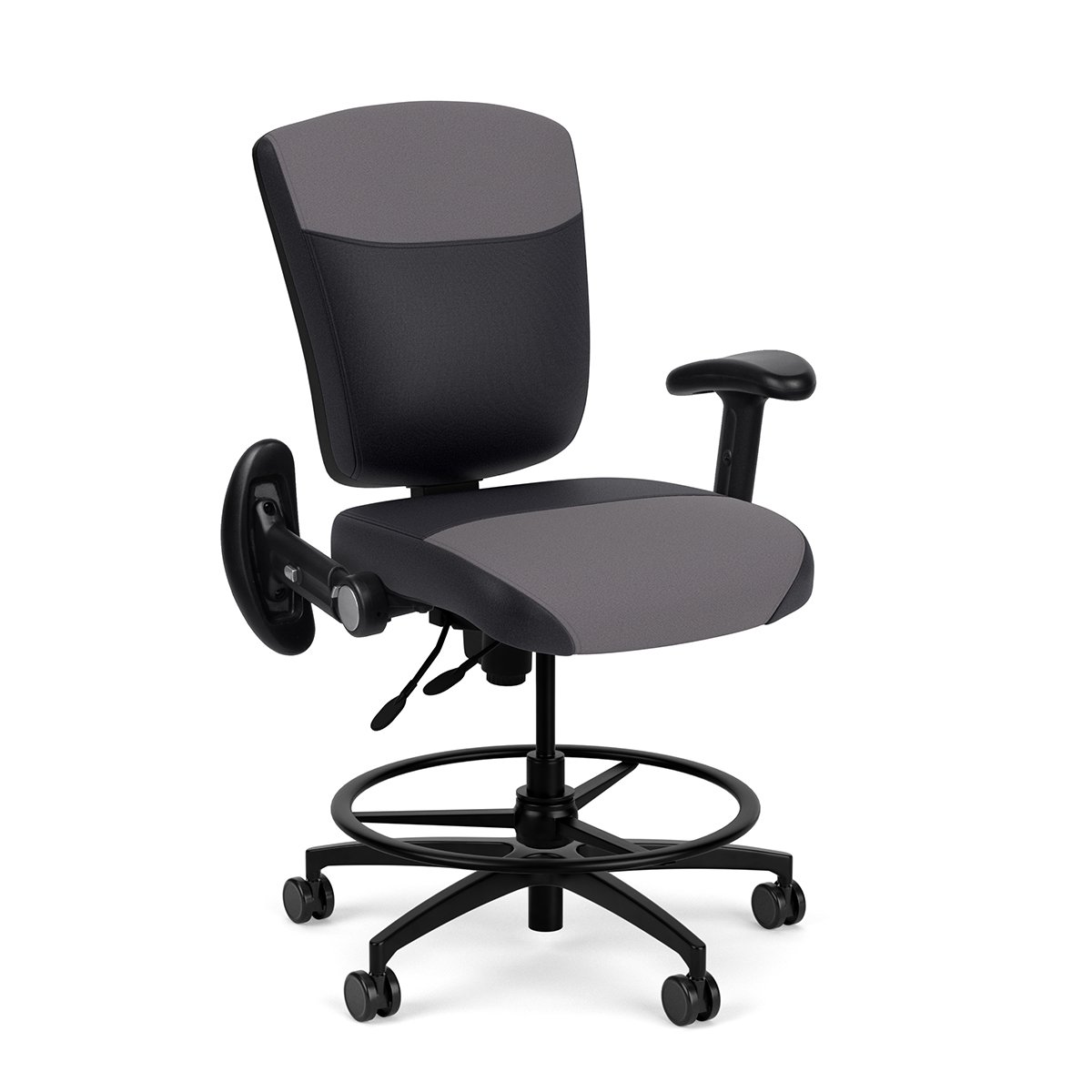

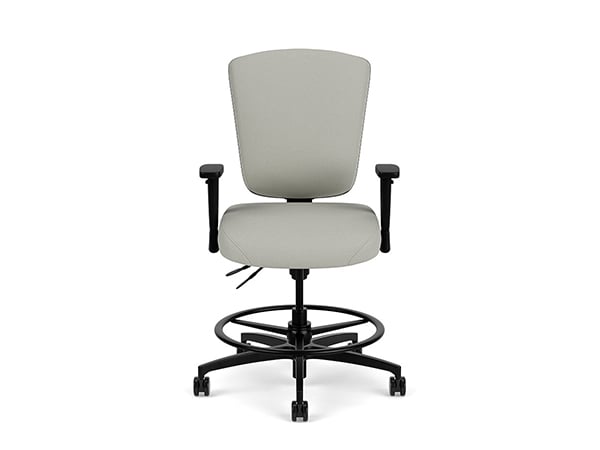

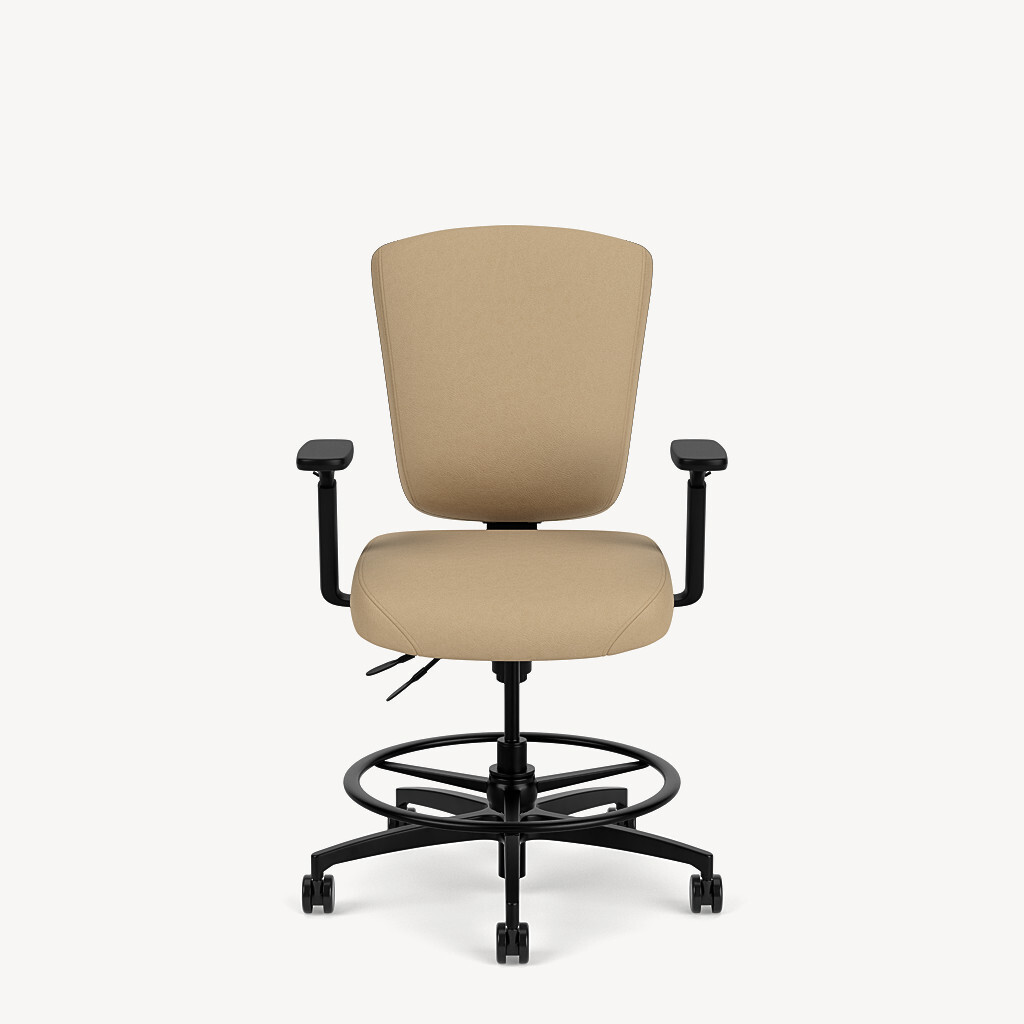

Stools.

Available on mid backs using AA, A, BB & B seats.

headrests

  • Optional adjustable headrests.

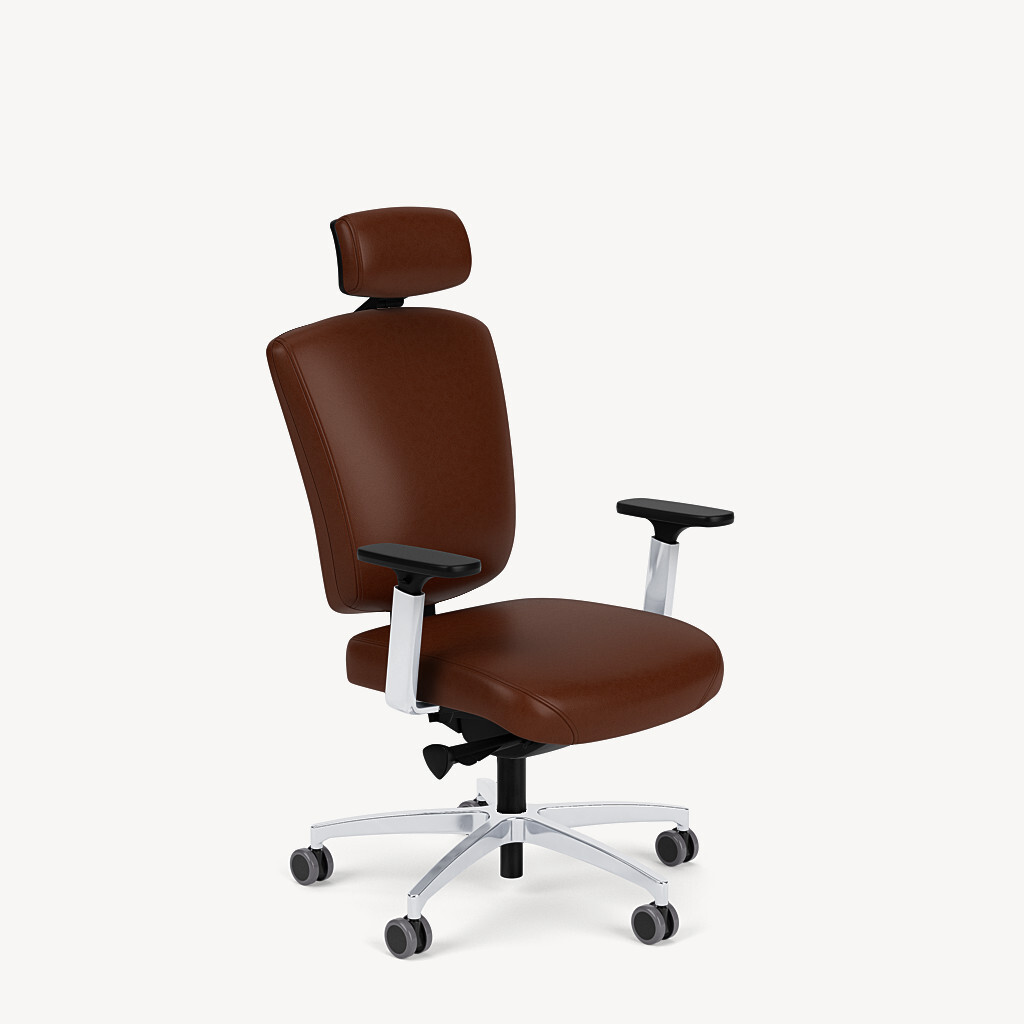

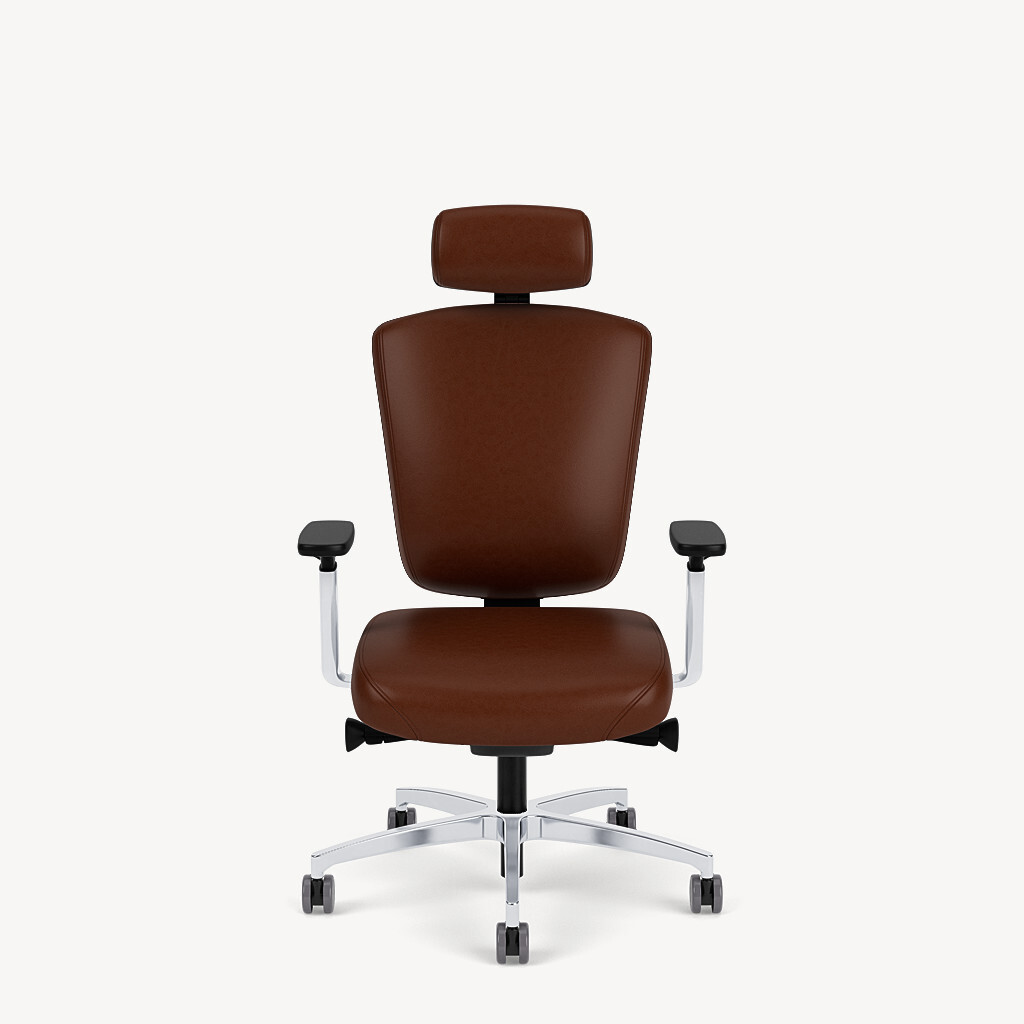

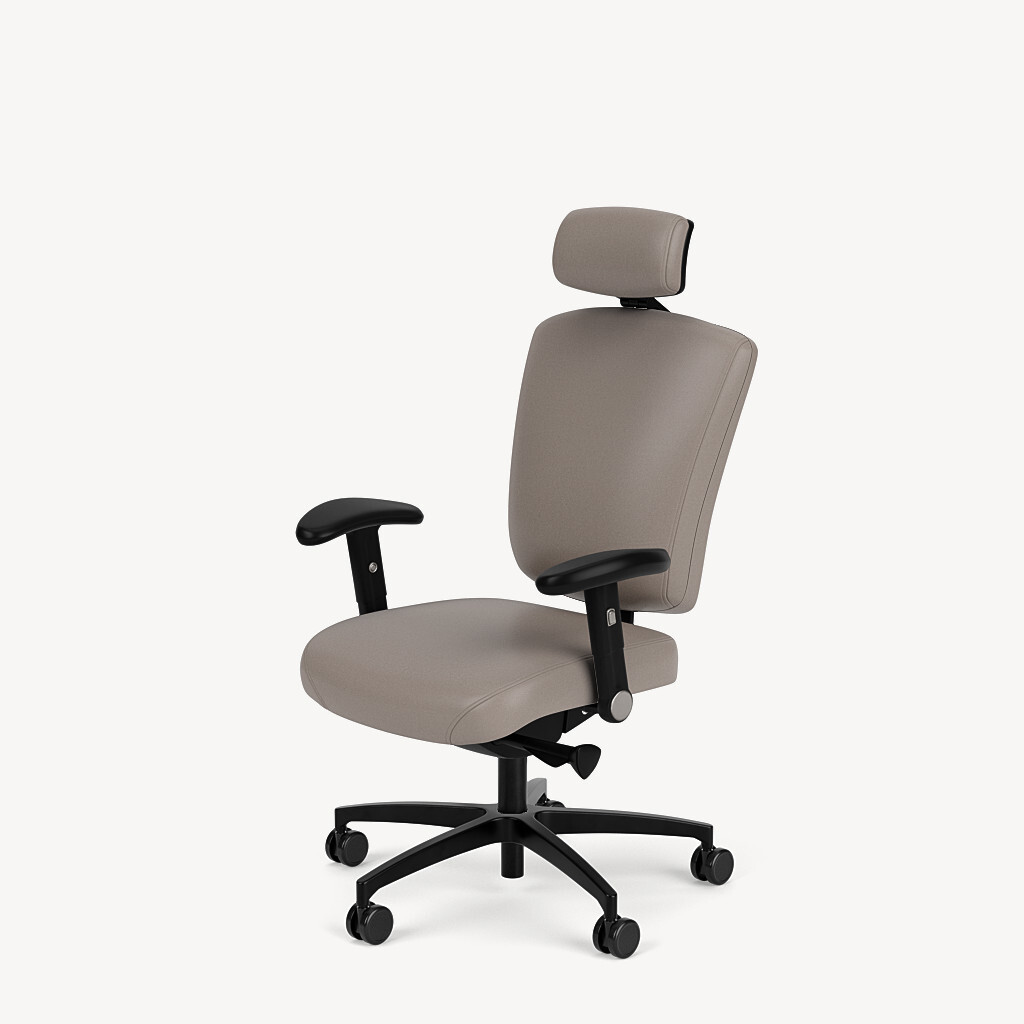

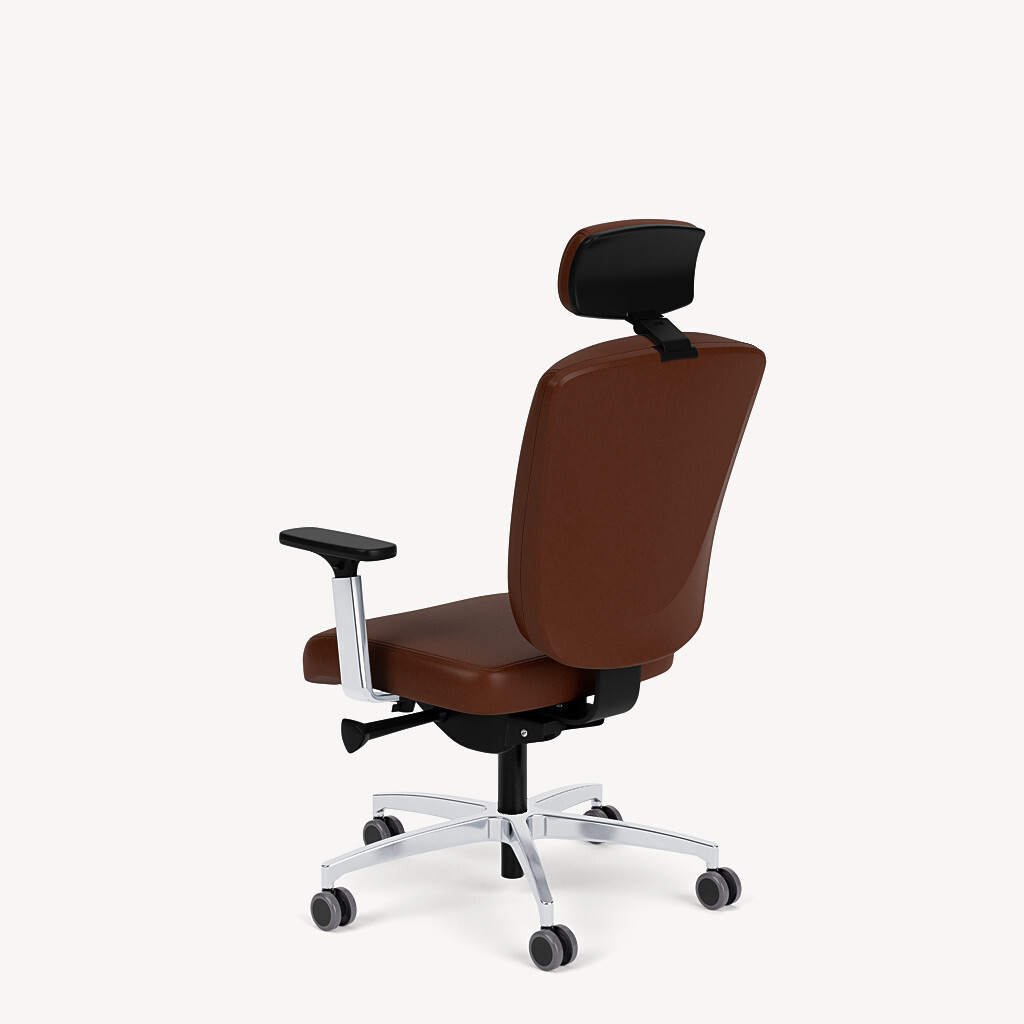

    Intuitive articulating height adjustable headrest. #HDR1

    user guide: view the guide »

    adjustable headrest features:

    1. Height adjustment with 2.5″ of travel.
    2. Angle adjustment with angle adjustments to 5° forward & 40° back from the starting, upright position.

arms

  • Armless standard.

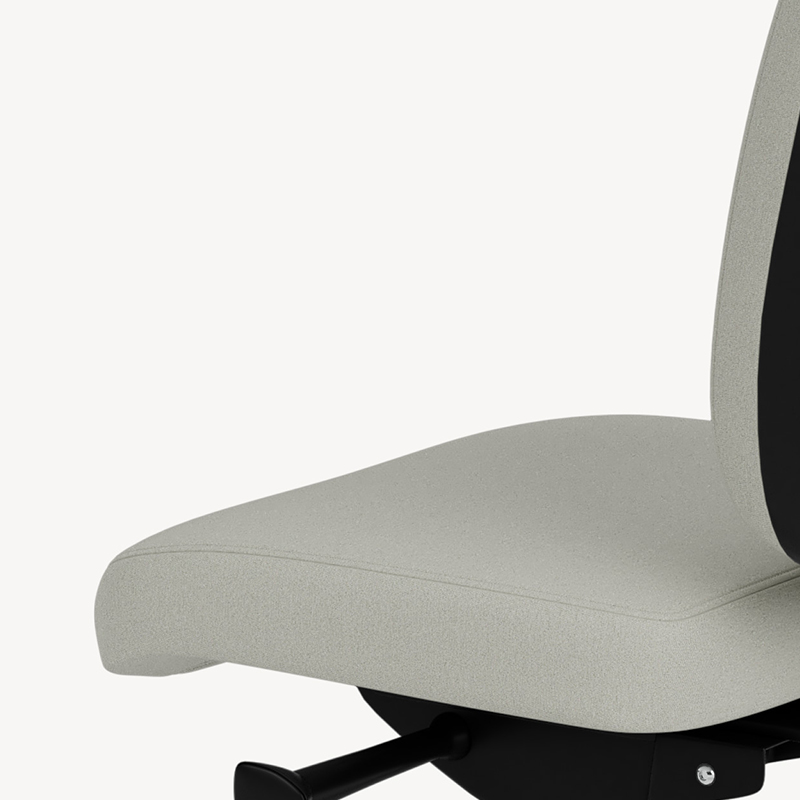

    Armless. #0A

    • Armless chairs are standard on all models.
  • Adjustable arms.

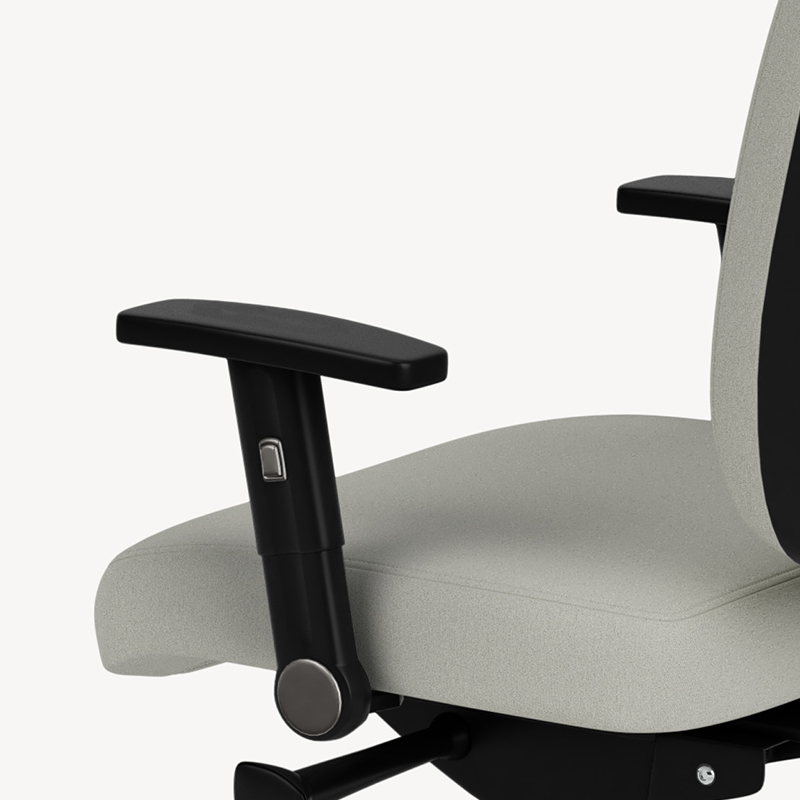

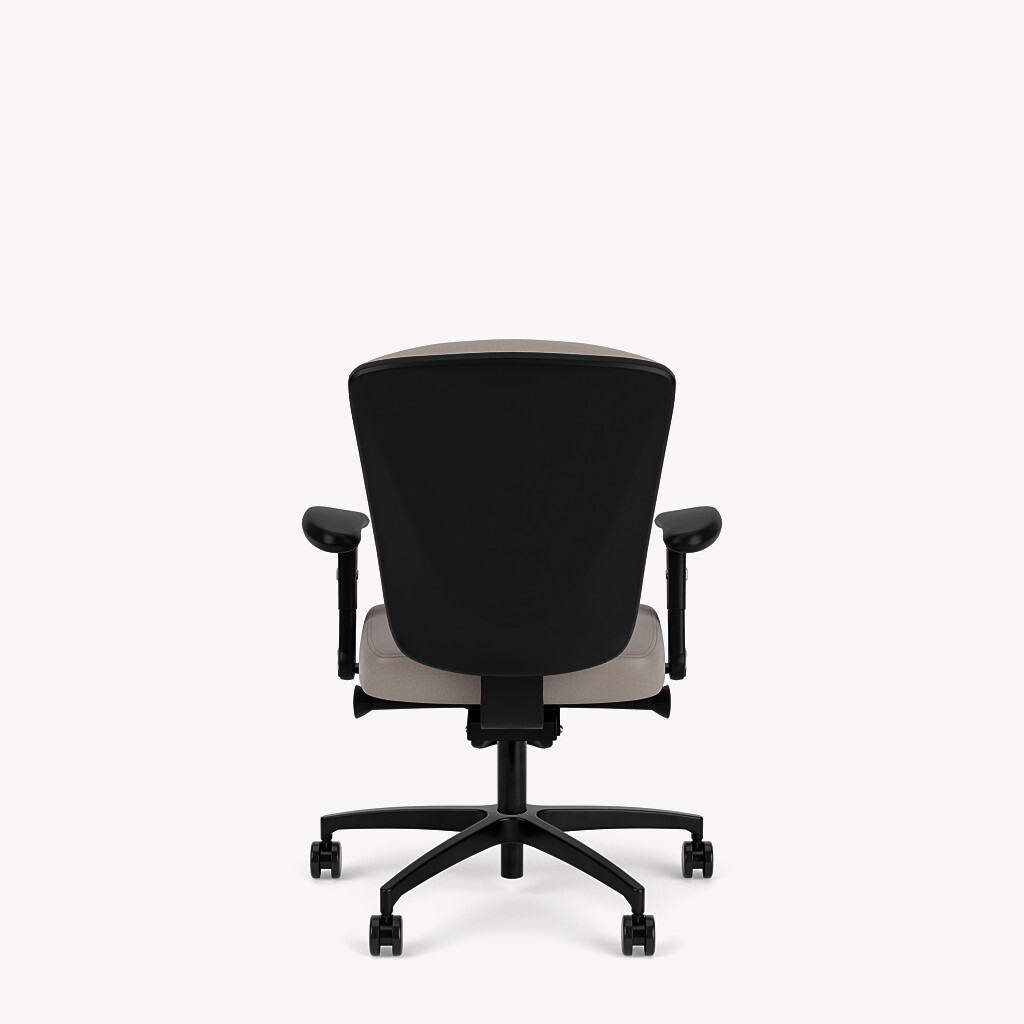

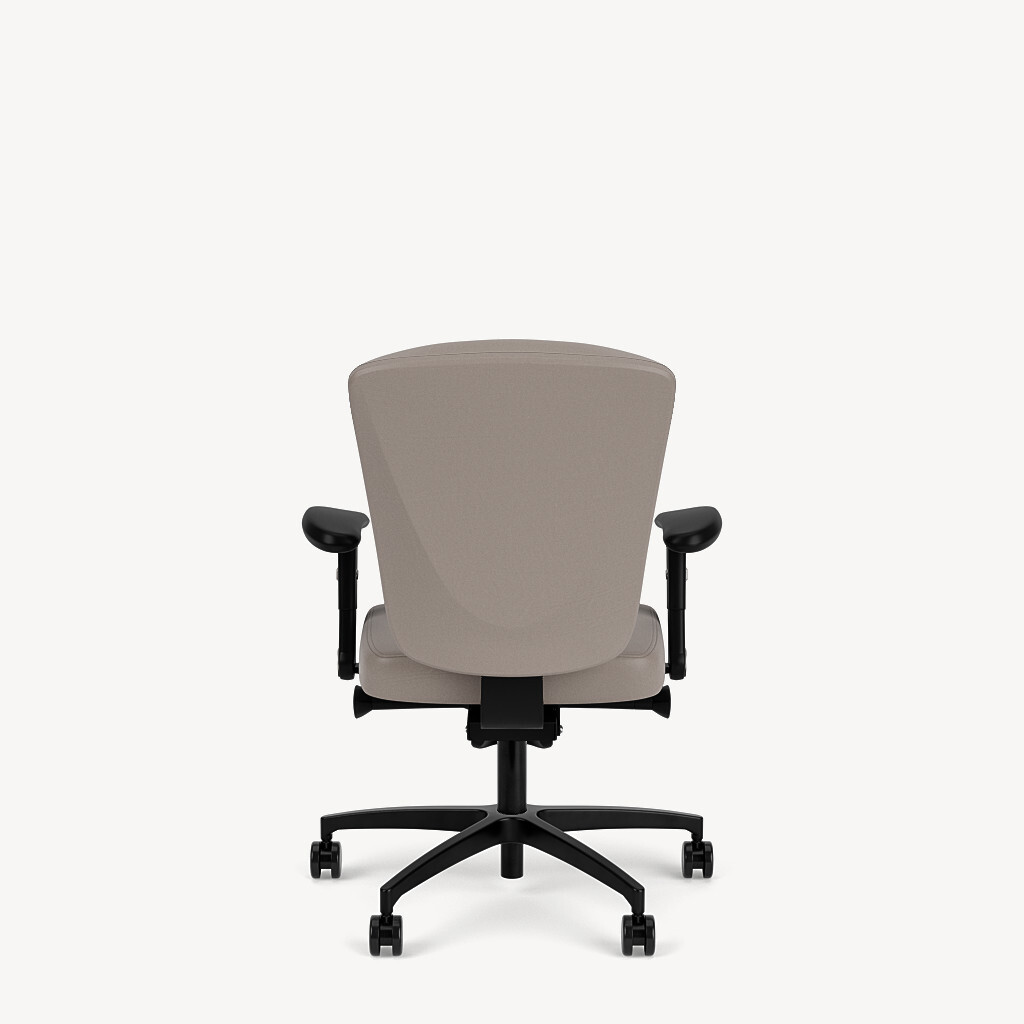

    Black roll back arms. #39A

    user guide: view the guide »

    arm features:

    • Moves up and down.
    • Smooth roll back feature where the arm can be fully rolled back out of the way to easily slide in and out of the chair.

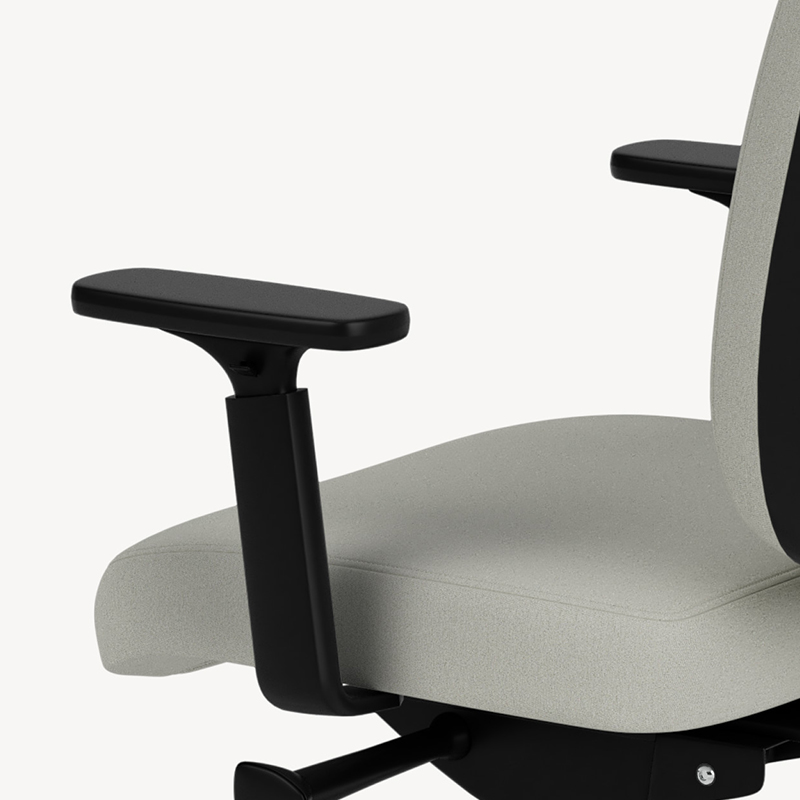

    Black arms with optional 8-way adjustments. #51A

    user guide: view the guide »

    arm features:

    • Arm: moves up and down.

    optional adjustable armrests features:

    • Rotates in 15° and out 15°.
    • Slides forward 1.5″ and back to its resting position.

    optional arm width adjustment features:

    • Bracket extends each arm up to 2.0″ away from the sides of the seat.

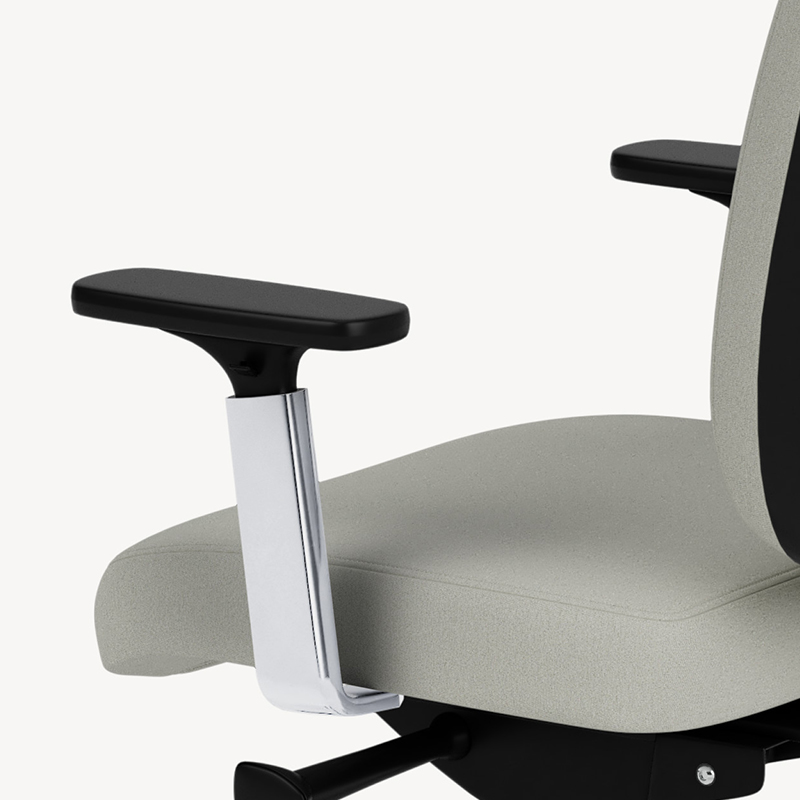

    Polished arms with optional 8-way adjustments. #53A

    user guide: view the guide »

    arm features:

    • Arm: moves up and down.

    optional adjustable armrests features:

    • Rotates in 15° and out 15°.
    • Slides forward 1.5″ and back to its resting position.

    optional arm width adjustment features:

    • Bracket extends each arm up to 2.0″ away from the sides of the seat.

control mechanisms

  • Synchro control mechanisms.

    Quick adjust advanced synchro. #67C

    user guide: view the video » | view the guide (pdf) »

    control mechanism adjustments:

    1. Seat height adjustment.
    2.  Back tension adjustment.
    3. Single rotation back tilt lock adjustment (5 position).

    Quick adjust advanced synchro with a seat depth adjustment. #67C-SS

    user guide: view the video » | view the guide (pdf) »

    control mechanism adjustments:

    1. Seat height adjustment.
    2.  Back tension adjustment.
    3. Single rotation back tilt lock adjustment (5 position).
    4. Seat depth adjustment. #SS

    Quick adjust advanced synchro with a seat depth adjustment & a forward tilt adjustment. #67C-SS-FT

    user guide: view the video » | view the guide (pdf) »

    control mechanism adjustments:

    1. Seat height adjustment.
    2.  Back tension adjustment.
    3. Single rotation back tilt lock adjustment (5 position).
    4. Seat depth adjustment. #SS
    5. Ergonomic forward tilt adjustment. #FT
  • Task stool control.

    Active back synchro control mechanism for stools. #3C-11DR, #3C-11XDR

    user guide: view the video » | view the guide (pdf) »

    control mechanism adjustments:

    1. Seat height adjustment.
    2. Back lock adjustment (5 position).
    3. Back/recline tension adjustment.
    4. Foot ring height adjustment.

adjustable lumbars

  • Optional adjustable lumbar supports.

    Mechanical, internal lumbar support. #12LUM

    user guide: view the guide (pdf) »

    adjustable lumbar features:

    • Offers depth adjustment.
    • Adjusts independently from the back.
    • Allows the user to promote the natural, forward curve of his/her lower back.
    • Promotes an optimal sitting position and the opportunity to maintain this posture throughout the entire work day.

bases

  • Chair swivel bases.

    Standard black nylon 5-star swivel base. #18BB

    • Standard base.

    Polished aluminum 5-star swivel base. #18PB

    Brushed aluminum 5-star swivel base. #18BA

  • Stool swivel bases.

    Standard black nylon 5-star swivel base with a stool kit. #18BB-11DR or #18BB-11XDR

    • Standard stool base.
    • Tall (-11DR) height range/stroke: 7 in.
    • Extra-tall (-11XDR) height range/stroke: 9.5 in.
    • See exact dimensions in the drawings section.

    Polished aluminum 5-star swivel base with a stool kit. #18PB-11DR or #18PB-11XDR

    • Tall (-11DR) height range/stroke: 7 in.
    • Extra-tall (-11XDR) height range/stroke: 9.5 in.
    • See exact dimensions in the drawings section.

    Brushed aluminum 5-star swivel base with a stool kit. #18BA-11DR or #18BA-11XDR

    • Tall (-11DR) height range/stroke: 7 in.
    • Extra-tall (-11XDR) height range/stroke: 9.5 in.
    • See exact dimensions in the drawings section.

casters & glides

  • Casters.

    Black carpet casters. #16HP

    • Standard casters for all swivel bases.

    Two-toned black with grey soft rubber tread all floor casters. #16SCG

  • Glides.

    Black all floor glides. #16GL

designed by Studio V

Studio V creates modern, sophisticated and original seating solutions that are ergonomic, beautiful and sustainable. This team of engineers and designers are based at the Via Seating Factory in Reno, Nevada, where they develop products using a prototyping lab, the latest in 3D modeling software and a materials testing center.

studio: Reno, Nevada.

Explore their design process here »

Dimensions recorded by Via Seating engineers using:

  • the BIFMA Chair Measuring Device® (CMD) &

  • the BIFMA Universal Measuring Procedure.

chair drawings

  • Mid back chairs, all seats on a quick adjust advanced synchro control. (1303, 1503, 1603, 1703 with -67C)

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    -67C

    seats A seat (1303) B seat (1503) C seat (1603) D seat (1703)
    A 34.7″ – 39.5″ 35.6″ – 40.0″ 35.1″ – 39.9″ 34.7″ – 39.5″
    B 17.1″ – 21.9″ 16.9″ – 21.7″ 17.3″ – 22.1″ 17.1″ – 21.9″
    C 19.5″ 20.0″ 22.0″ 23.5″
    D 15.3″ – 16.3″ 15.3″ – 16.3″ 15.3″ – 16.3″ 15.3″ – 16.3″
    E 21.2″ – 24.0″ 21.4″ – 24.2″ 21.4″ – 24.2″ 21.2″ – 24.0″
    F 29.1″ 30.7″ 28.5″ 29.1″
    G 17.3″ 19.2″ 19.6″ 19.8″
  • Mid back chairs, all seats on a quick adjust advanced synchro control with seat depth adjustment. (1303, 1503, 1603, 1703 with -67CSS, -67CSS-FT)

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    -67CSS (+seat depth adjustment)

    seats A seat (1303) B seat (1503) C seat (1603) D seat (1803)
    A 35.6″ – 42.9″ 36.5″ – 43.8″ 36.0″ – 43.3″ 35.6″ – 42.9″
    B 17.6″ – 22.4″ 17.4″ – 22.2″ 17.8″ – 22.6″ 17.6″ – 22.4″
    C 19.5″ 20.0″ 22.0″ 23.5″
    D 15.3″ – 16.3″ 15.3″ – 16.3″ 15.3″ – 16.3″ 15.3″ – 16.3″
    E 20.2″ – 22.7″ 20.4″ – 22.9″ 20.4″ – 22.9″ 20.2″ – 22.7″
    F 29.1″ 30.7″ 28.5″ 29.1″
    G 16.1″ – 18.1″ 18.0″ – 20.0″ 18.4″ – 20.4″ 18.6″ – 20.6″

    Note: Dimensions are the same with the -FT (Forward Tilt) option added.

  • Mid back chairs with headrest, all seats on a quick adjust advanced synchro control. (1303, 1503, 1603, 1703 with HDR1, -67C)

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    -67C

    seats A seat (1303) B seat (1503) C seat (1603) D seat (1703)
    A 41.7″ – 49.0″ 42.6″- 49.5″ 42.1 – 49.4″ 41.7″ – 49.0″
    B 17.1″ – 21.9″ 16.9″ – 21.7″ 17.3″ – 22.1″ 17.1″ – 21.9″
    C 19.5″ 20.0″ 22.0″ 23.5″
    D 15.3″ – 16.3″ 15.3″ – 16.3″ 15.3″ – 16.3″ 15.3″ – 16.3″
    E 21.2″ – 24.0″ 21.4″ – 24.2″ 21.4″ – 24.2″ 21.2″ – 24.0″
    F 29.1″ 30.7″ 28.5″ 29.1″
    G 17.3″ 19.2″ 19.6″ 19.8″
  • Mid back chairs with headrest, all seats on a quick adjust advanced synchro control with seat depth adjustment. (1303, 1503, 1603, 1703 with HDR1 -67CSS, -67CSS-FT)

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    -67CSS (+seat depth adjustment)

    seats A seat (1303) B seat (1503) C seat (1603) D seat (1803)
    A 42.6″ – 52.4″ 43.5″ – 53.3″ 43.0″ – 52.8″ 42.6″ – 52.4″
    B 17.6″ – 22.4″ 17.4″ – 22.2″ 17.8″ – 22.6″ 17.6″ – 22.4″
    C 19.5″ 20.0″ 22.0″ 23.5″
    D 15.3″ – 16.3″ 15.3″ – 16.3″ 15.3″ – 16.3″ 15.3″ – 16.3″
    E 20.2″ – 22.7″ 20.4″ – 22.9″ 20.4″ – 22.9″ 20.2″ – 22.7″
    F 29.1″ 30.7″ 28.5″ 29.1″
    G 16.1″ – 18.1″ 18.0″ – 20.0″ 18.4″ – 20.4″ 18.6″ – 20.6″

    Note: Dimensions are the same with the -FT (Forward Tilt) option added.

stool drawings

  • Mid back chairs, A & B seats on an active back stool control. (1303, 1503 with -3C-11DR, -3C-11XDR)

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    -3C-11DR (Stool)

    seats A seat (1303) B seat (1503)
    A 37.2″ – 46.7″ 38.1″ – 47.6″
    B 21.5″ – 28.5″ 21.5″ – 28.5″
    C 19.5″ 20.0″
    D 15.3″ – 16.3″ 15.3″ – 16.3″
    E 22.9″ – 25.4″ 16.5″ – 19.0″
    F 31.8″ 26.9″
    G 16.6″ 18.5″

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    -3C-11XDR (Extra-Tall Stool)

    seats A seat (1303) B seat (1503)
    A 39.6″ – 51.6″ 40.5″ – 52.5″”
    B 23.8″ – 33.3″ 23.8″ – 33.3″
    C 19.5″ 20.0″
    D 15.3″ – 16.3″ 15.3″ – 16.3″
    E 22.9″ – 25.4″ 16.5″ – 19.0″
    F 31.8″ 26.9″
    G 16.3″ 18.5″
  • Mid back chairs with headrest, A & B seats on an active back stool control. (1303, 1503 with HDR1, -3C-11DR, -3C-11XDR)

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    -3C-11DR (Stool)

    seats A seat (1303) B seat (1503)
    A 44.2″ – 56.2″ 45.1″ – 57.1″
    B 21.5″ – 28.5″ 21.5″ – 28.5″
    C 19.5″ 20.0″
    D 15.3″ – 16.3″ 15.3″ – 16.3″
    E 22.9″ – 25.4″ 16.5″ – 19.0″
    F 31.8″ 26.9″
    G 16.6″ 18.5″

    A. Overall height.

    B. Seat height.

    C. Seat width.

    D. Backrest width in lumbar support zone.

    E. Backrest height.

    F. Overall depth.

    G. Seat depth.

    -3C-11XDR (Extra-Tall Stool)

    seats A seat (1303) B seat (1503)
    A 46.6″ – 61.1″ 47.5″ – 62.0″
    B 23.8″ – 33.3″ 23.8″ – 33.3″
    C 19.5″ 20.0″
    D 15.3″ – 16.3″ 15.3″ – 16.3″
    E 22.9″ – 25.4″ 16.5″ – 19.0″
    F 31.8″ 26.9″
    G 16.3″ 18.5″

seat drawings



Seat Reference Point (SRP),
The ergonomic seat depth measurement.



Measurement G (and not measurement H) is the true seat reference point. SRP is an ergonomic term that defines where there is a slight indentation in the lumbar (i.e. where the sitter is benefiting from the lumbar support) to the front edge of the seat. It gives the true measurement of surface area in contact with the body. It is very useful for correctly matching up with hip to knee measurements for ergonomists taking into account the two – three finger gap between the back of the leg to the edge of the seat. It is very important to ensure no restriction in circulation to the lower extremities (lower legs and ankles).

  • Standard A seats. (1303, 1305)

    C. Seat width.

    G. Seat depth.

    H. Seat depth of the seat off the chair.

    1303

    controls 67C 67CSS
    C 19.5″ 19.5″
    G 17.3″ 16.1″ – 18.1″
    H 18.0″ 18.0″

    Note: Dimensions are the same with the -FT (Forward Tilt) option added.

    C. Seat width.

    G. Seat depth.

    H. Seat depth of the seat off the chair.

    1305

    controls 67C 67CSS
    C 19.5″ 19.5″
    G 16.1″ 14.9″ – 16.9″
    H 18.0″ 18.0″

    Note: Dimensions are the same with the -FT (Forward Tilt) option added.

  • Medium B seat. (1503)

    C. Seat width.

    G. Seat depth.

    H. Seat depth of the seat off the chair.

    1503

    controls 67C 67CSS
    C 20.0″ 20.0″
    G 19.2″ 18.0″ – 20.0″
    H 19.5″ 19.5″

    Note: Dimensions are the same with the -FT (Forward Tilt) option added.

    C. Seat width.

    G. Seat depth.

    H. Seat depth of the seat off the chair.

    1603

    controls 67C 67CSS
    C 20.0″ 20.0″
    G 18.0″ 16.8″ – 18.8″
    H 19.5″ 19.5″

    Note: Dimensions are the same with the -FT (Forward Tilt) option added.

  • Large C seat. (1603)

    C. Seat width.

    G. Seat depth.

    H. Seat depth of the seat off the chair.

    1603

    controls 67C 67CSS
    C 22.0″ 22.0″
    G 16.5″ 15.3″ – 17.3″
    H 20.0″ 20.0″

    Note: Dimensions are the same with the -FT (Forward Tilt) option added.

    C. Seat width.

    G. Seat depth.

    H. Seat depth of the seat off the chair.

    1605

    controls 67C 67CSS
    C 22.0″ 22.0″
    G 15.3″ 14.1″ – 16.1″
    H 20.0″ 20.0″

    Note: Dimensions are the same with the -FT (Forward Tilt) option added.

  • Extra-large D seat. (1703)

    C. Seat width.

    G. Seat depth.

    H. Seat depth of the seat off the chair.

    1703

    controls 67C 67CSS
    C 23.5″ 23.5″
    G 20.7″ 19.5″ – 21.5″
    H 19.0″ 19.0″

    Note: Dimensions are the same with the -FT (Forward Tilt) option added.

    C. Seat width.

    G. Seat depth.

    H. Seat depth of the seat off the chair.

    1705

    controls 67C 67CSS
    C 23.5″ 23.5″
    G 15.6″ 14.4″ – 16.4″
    H 19.0″ 19.0″

    Note: Dimensions are the same with the -FT (Forward Tilt) option added.

arm drawings

  • Roll back arm. (-39A)

    J. Armrest length.

    K. Armrest height.

    L. Armrest width.

    M. Width between armrests.
    seats A seat (1303) B seat (1503) C seat (1603) D seat (1703)
    J 7.9″ 7.9″ 7.0″ 8.0″
    K 5.7″ – 8.3″ 5.8″ – 8.3″ 7.4″ – 9.4″ 7.4″ – 9.9″
    L 26.4″ 27.2″ 29.0″ 30.0″
    M 18.4″ 19.5″ 22.5″ 23.5″
  • 8-way adjustable arm. (-51A, -53A)

    J. Armrest length.

    K. Armrest height.

    L. Armrest width.

    M. Width between armrests.
    seats A seat (1303) B seat (1503) C seat (1603) D seat (1703)
    J 7.9″ 7.9″ 7.0″ 8.0″
    K 6.3″ – 10.2″ 6.4″ – 10.3″ 8.0″ – 11.9″ 8.0″ – 11.9″
    L 25.8″ 26.6″ 28.4″ 29.4″
    M 18.9″ 20.0″ 23.0″ 24.0″
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download
Download
download

Downloads

pricing

Brisbane HD price list and specification guide 2021, 2nd edition pdf (1.43 MB)

brochures

Brisbane HD brochure pdf (873.47 KB)

symbols

Brisbane HD 2D autoCAD files zip (1.1 MB)
Brisbane HD 3D autoCAD files zip (6.67 MB)
Brisbane HD revit files zip (3.71 MB)

certifications

BIFMA LEVEL 2 certification pdf (467.46 KB)
CLEAN AIR GOLD certification pdf (441.6 KB)

care

Brisbane HD cleaning and care guidelines pdf (111.18 KB)

instructions

base to chair assembly instructions pdf (308.35 KB)

arm user guides

39A roll back arm user guide pdf (146.55 KB)
51A/51AG/52A/53A 8-way adjustable arm user guide pdf (162.22 KB)

control user guides

3C-11DR/3C-11XDR active back control with a stool kit user guide pdf (160.28 KB)
67C-SS-FT quick adjust advanced synchro control with a seat depth adjustment and forward tilt user guide pdf (159.89 KB)
67C-SS quick adjust advanced synchro control with a seat depth adjustment user guide pdf (156.52 KB)
67C quick adjust advanced synchro control user guide pdf (156.21 KB)

headrest user guides

HDR1 Intuitive articulating, height adjustable headrest user guide pdf (159.02 KB)

lumbar user guides

12LUM mechanical lumbar support user guide pdf (150.67 KB)
X
