Sierra outdoor furniture

Sierra curved backless benches: XFC15-3 | Sierra benches with backrests: XBS20-3

a game of shadows & light

“Sierra enters in the urban and natural landscape in a quiet way; the idea is something silent,
but at the same time the small details, like the tubes of the legs, makes Sierra unique.”
—Natalia Rota Nodari, designer

Italian designers Alberto Basagalia & Natalia Roto Nodari studied the way cylinders capture the light and create interesting shadows. The developed Sierra, a game of shadows and light, molding durable, hot-dip galvanized, stainless steel shaped rods into intriguing and inviting shapes. Enjoy the curves and bends of its many benches. Rest back into its chaise lounge while enjoying dinner fresh off its functional barbeque. Many of Sierra’s pieces are also modular in nature allowing your imagination to truly run wild. Sierra delivers by elevating any outdoor space into a lasting, durable and colorful haven.

  • Collection includes: chairs, couches, benches, a chaise lounge, litter bins, tables and a functional barbecue.
  • For use in: outdoor environments including those with extreme heat, humidity & salt water air.
  • Structure: 18 mm tubular structure made of hot-dip galvanized, steel.
  • Finish: epoxy powder coat color glossy finishes.
  • Stabilization: designed to be bolted to the ground.
  • Max weight: 2500 lb.
  • Lead time: 14 week lead time imported from Italy.
  • Warranty: 5 year warranty (even in Salt-water air environments).



  • ANSI/BIFMA X7.1-2011 (R2016) Standard Method equivalent to CDPH Standard Method v1.1-2010 (Clean Air Gold).
  • LEED – v4.1 Low Emitting Materials (Clean Air Gold).
  • Living Building Challenge (LBC) – Imperative 08 (Clean Air Gold).
  • WELL – Feature 04 – VOC Reduction (Clean Air Gold).



Cube backless chair. (XCUBE)

Club chair. (XCLUB)

Couch. (XCOUCH)

Flat backless bench. (XSF20)

Flat bench with backrest. (XBS20)

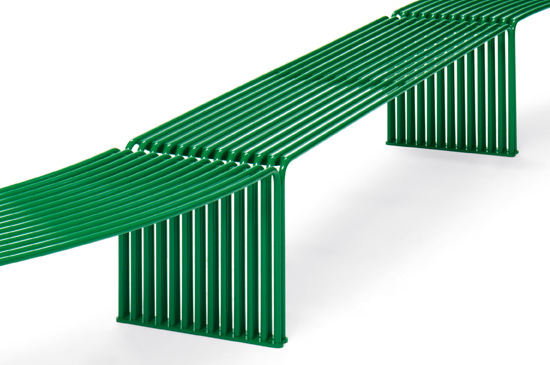

Curved backless bench. (XFC15)

Curved CONCAVE bench with backrest. (XBC15)

Curved CONVEX bench with backrest. (XBX15)

Table. (XTV20)

Barbecue. (XBBQ)

Modular arm. (XSA)

Modular seat, armless. (XSM)

Free-standing litter bins.

  • With an open top. (XBBO1)
  • With a closed top. (XBBC1)

Mounted litter bins.

  • Single litter bin. (XSBP1)
  • Double litter bins. (XDBP2)
  • Triple litter bins. (XTBP3)

finishes

  • Full model finishes.

    Jet black. (-1)

    Micaceous anthracite. (-2)

    Signal white. (-3)

    Carmine red. (-4)

    Mint green. (-5)

the collection

  • Backless benches.

    Flat backless bench. (XFS20)

    • Available in 5 dipped-look colors: Jet Black, Micaceous Anthracite, Signal White, Carmine Red & Mint Green.
    • Optional skate guards (UT15) can be applied to this model to prevent skating on it.

    Curved backless bench. (XFC15)

    • Available in 5 dipped-look colors: Jet Black, Micaceous Anthracite, Signal White, Carmine Red & Mint Green.
    • Optional skate guards (UT15) can be applied to this model to prevent skating on it.
  • Benches with backrests.

    Flat bench with backrest. (XBS20)

    • Available in 5 dipped-look colors: Jet Black, Micaceous Anthracite, Signal White, Carmine Red & Mint Green.
    • Optional skate guards (UT15) can be applied to this model to prevent skating on it.

    Curved CONCAVE bench with backrest. (XBC15)

    • Concave: Backrest and seat curve in.
    • Available in 5 dipped-look colors: Jet Black, Micaceous Anthracite, Signal White, Carmine Red & Mint Green.
    • Optional skate guards (UT15) can be applied to this model to prevent skating on it.

    Curved CONVEX bench with backrest. (XBX15)

    • Convex: Backrest and seat curve out.
    • Available in 5 dipped-look colors: Jet Black, Micaceous Anthracite, Signal White, Carmine Red & Mint Green.
    • Optional skate guards (UT15) can be applied to this model to prevent skating on it.
  • Chairs & Couches.

    Backless cube chair. (XCUBE)

    • Available in 5 dipped-look colors: Jet Black, Micaceous Anthracite, Signal White, Carmine Red & Mint Green.
    • Optional skate guards (UT15) can be applied to this model to prevent skating on it.

    Club Chair. (XCLUB)

    • Available in 5 dipped-look colors: Jet Black, Micaceous Anthracite, Signal White, Carmine Red & Mint Green.
    • Optional skate guards (UT15) can be applied to this model to prevent skating on it.

    Couch. (XCOUCH)

    • Available in 5 dipped-look colors: Jet Black, Micaceous Anthracite, Signal White, Carmine Red & Mint Green.
    • Optional skate guards (UT15) can be applied to this model to prevent skating on it.
  • Chaise lounge.

    Chaise Lounge, (XLC16)

    • Available in 5 dipped-look colors: Jet Black, Micaceous Anthracite, Signal White, Carmine Red & Mint Green.
    • Optional skate guards (UT15) can be applied to this model to prevent skating on it.
  • Modular seating builds.

    Modular arm piece. (XSA)

    • Available in 5 dipped-look colors: Jet Black, Micaceous Anthracite, Signal White, Carmine Red & Mint Green.
    • Optional skate guards (UT15) can be applied to this model to prevent skating on it.

    Modular seat piece, armless. (XSM)

    • Available in 5 dipped-look colors: Jet Black, Micaceous Anthracite, Signal White, Carmine Red & Mint Green.
    • Optional skate guards (UT15) can be applied to this model to prevent skating on it.

    Example of a custom build. (XSA-SB1-XSM)

    • Available in 5 dipped-look colors: Jet Black, Micaceous Anthracite, Signal White, Carmine Red & Mint Green.
    • Different colors can be specified on each piece (arm & seat).
    • Optional skate guards (UT15) can be applied to the custom build to prevent skating on it.
    • Connect chairs & seats with brackets:
        • Small, general fixing bracket (x2) in an anthracite color. (XB1)
        • Large bracket for connecting middle arms in an anthracite color. (XB2)
  • Table.

    Table. (XTV20)

    • Available in 5 dipped-look colors: Jet Black, Micaceous Anthracite, Signal White, Carmine Red & Mint Green.
  • Functional barbecue.

    Functional barbecue. (XBBQ)

    • Legs/arms are available in 5 dipped-look colors: Jet Black, Micaceous Anthracite, Signal White, Carmine Red & Mint Green.
    • Functional barbecue.
    • Removal steel liner
    • Theft-proof
  • Free-standing litter bins.

    Closed top litter bin. (XBBC1)

    • Available in 1 dipped-look color: Micaceous Anthracite.
    • Closed top.
    • The litter bin holds a 17 gallon bag.

    Open top litter bin. (XBBO1)

    • Available in 2 dipped-look colors: Micaceous Anthracite & Signal White.
    • Open top.
    • The litter bin holds a 17 gallon bag.
  • Mounted litter bins.

    Single mounted litter bin. (XSBP1)

    • Available in 1 dipped-look color: Micaceous Anthracite.
    • Open top.
    • The litter bin holds an 8 gallon bag.

    Double mounted litter bins. (XDBP2)

    • Available in 1 dipped-look color: Micaceous Anthracite.
    • Open top.
    • The litter bins hold an 8 gallon bag/bin.

    Triple mounted litter bins. (XTBP3)

    • Available in 1 dipped-look color: Micaceous Anthracite.
    • Open top.
    • The litter bins hold an 8 gallon bag/bin.

designed by Alberto Basaglia and Natalia Rota Nodari

Alberto Basaglia and Natalia Rota Nodari met while studying at the Politecnico of Milan where they both graduated in architecture.  Shortly after, they founded their studio, BASAGLIA ROTA NODARI.  They completed their first design project in 1999 – the Antennati collection of side tables, clothing racks and more – winning first prize in the Young & Design competition.  This was a powerful sign of much more to come.  Since then, the duo has gone on to win numerous awards and recognition in architecture, design, interior space, food and town planning projects.

These Italian designers aim to transcend the typical image of the Italian designer. The pair achieve this by capturing beauty in equal measure with the technical aspects of their creations. Their visions manifest into award-winning, lovely furniture that captivates and stands the test of time.

“Seizing the specific energies of the person we are communicating with and finding the way to enhance them through the creation of alternative visions, often complementary to that which is already exists.” This is what the duo said about themselves in 2013, during the opening of “Alternative Synergies”.

studio: BASAGLIA ROTA NODARI, Brembate di Sopra (BG), Italy

embrace an elegant structure

Sierra uses a bent pipe structure made from 18mm hot-dip galvanized steel tubes. This hot-dip galvanization strengthens and protects the steel structure from corrosion. This allows Sierra furniture to hold up in extreme weather conditions, including salt water environments.

observe a dipped surface finish

Sierra's colorful look uses a polyester powder coat glossy finish for the framework and and the other surfaces. The result is a smooth, dipped color look across the full piece. Available in choice of captivating black, anthracite, white, red or green.

play with Sierra's modularity

Further shape your own Sierra, by designing your own custom chairs, couches and more. Use the elegant arm and ergonomically shaped seat, connected by a solid, bracket system.

experience grounding stabilization

Ready-equipped for fastening to the ground with bolts or steel linking plate.

Dimensions recorded by Via Seating engineers using:

  • the BIFMA Chair Measuring Device® (CMD) &

  • the BIFMA Universal Measuring Procedure.

Dimensions are shown in inches (“).

bench drawings

  • Flat backless bench. (XFS20)

    A. Overall height.

    F. Overall depth.

    W. Overall width.

    XFS20

    A.  18.1″
    F.   17.7″
    W.  78.7″

  • Flat bench with a backrest. (XBS20)

    A. Overall height.

    B. Seat height.

    F. Overall depth.

    W. Overall width.

    XBS20

    A.  31.9″
    B.  17.7″
    F.
     22.4″
    W.  78.7″

  • Curved backless bench. (XFC15)

    A. Overall height.

    F. Overall width of outer curve.

    r1. Overall width of inner curve.

    r2. Angle of inner curve.

    W. Overall width.

    XFC15

    A.  17.7″
    F.   77.0″
    r1.  59.0″
    r2.
    45°
    W.
      18.1″

  • Curved CONCAVE bench with a backrest. (XBC15)

    A. Overall height.

    B. Seat height.

    F. Overall width of outer curve.

    r1. Overall width of inner curve.

    r2. Angle of inner curve.

    W. Overall width.

    XBC15

    A.  31.9″
    B.  17.7″
    F.   77.0″
    r1.  59.0″
    r2.
    45°
    W.
      22.4″

  • Curved CONVEX bench with a backrest. (XBX15)

    A. Overall height.

    B. Seat height.

    F. Overall width of outer curve.

    r1. Overall width of inner curve.

    r2. Angle of inner curve.

    W. Overall width.

    XBX15

    A.  31.9″
    B.  17.7″
    F.   77.0″
    r1.  59.0″
    r2.
    45°
    W.
      22.4″

chairs & couches drawings

  • Club chair. (XCLUB)

    A. Overall height.

    B. Seat height.

    B. Seat width.

    F. Overall depth.

    W. Overall width.

    X. Arm width across.

    XCLUB

    A.  32.0″
    B.  17.7″
    C.  21.0″
    F.
     32.0″
    W.  37.0″
    X.   8.0″

  • Couch. (XCOUCH)

    A. Overall height.

    B. Seat height.

    B. Seat width.

    F. Overall depth.

    W. Overall width.

    X. Arm width across.

    XCOUCH

    A.  32.0″
    B.  17.7″
    C.  63.0″
    F.
     32.0″
    W.  79.0″
    X.   8.0″

chaise lounge drawings

  • Chaise lounge. (XLC16)

    A. Overall height.

    F. Overall depth.

    W. Overall width.

    XLC16

    A.  34.3″
    F.   64.2″
    W.  20.5″

table drawings

  • Chaise lounge. (XTV20)

    A. Overall height.

    F. Overall depth.

    W. Overall width.

    XTV20

    A.  29.5″
    F.   78.7″
    W.  29.5″

modular drawings

litter bin drawings
